Highlights
Model: Target-152GZT/YEL
1.3D Laser Scanner Target/Paddle Scanner Target
2.Replacement of Leica-style GZT21
3.Target Outer Diameter: 152mm (6")
4.Centre Height: 165mm (6.5")
5.Magnetic Mounting Base w. 5/8" male Thread
6.Target Backside Color: Fluorescent Yellow (YEL)
7.Base chrome-plated or black-oxidized
| Quantity: | |
|---|---|
Target-152GZT/YEL
Geomaster
9031809090
Specifications
Model: Target-152GZT/YEL
1.Scanning Target Plate: STP-152GZT
1)Circular, black & white, tilting & turning
2)Centre Height: 165mm (6.5")
3)Plate OD (Outer Diameter): 152mm (6")
4)Plate Thickness: 5mm
5)Plate N.W.: 546g
6)Plate Material: Al.Alloy
7)With female Thread 5/8"
8)Target Backside Color: Fluorescent Yellow (YEL) Retro-reflective Sheet (Sticker)
2.Scanner Target Base (Magnetic Mount Base): MMB100-58
1)Base Diameter: 100mm
2)Base Thickness: 15mm
3)N.W.: 520-525g
4)Adapter made of Stainless Steel Male Thread 5/8"×11
5)Base Material: chrome-plated steel; Black-oxidized available
Features
Model: Target-152GZT/YEL
1.Equivalent to and Replacement of Leica-style Scanner Target GZT21
2.Target Outer Diameter: 152mm (6")
3.Centre Height: 165mm (6.5")
4.5mm-thick Aluminum Target
5.OD-100mm Magnetic Mounting Base for fixing on steel surfaces
6.Mounting Base chrome-plated or black-oxidized
7.Compatible with all present GPS/Laser/Prism Poles
8.Soft Carrying Bag for easy packing and carrying
9.Working together with Leica Scan Stations P30,P40,P50...for construction monitoring and scanning purposes.

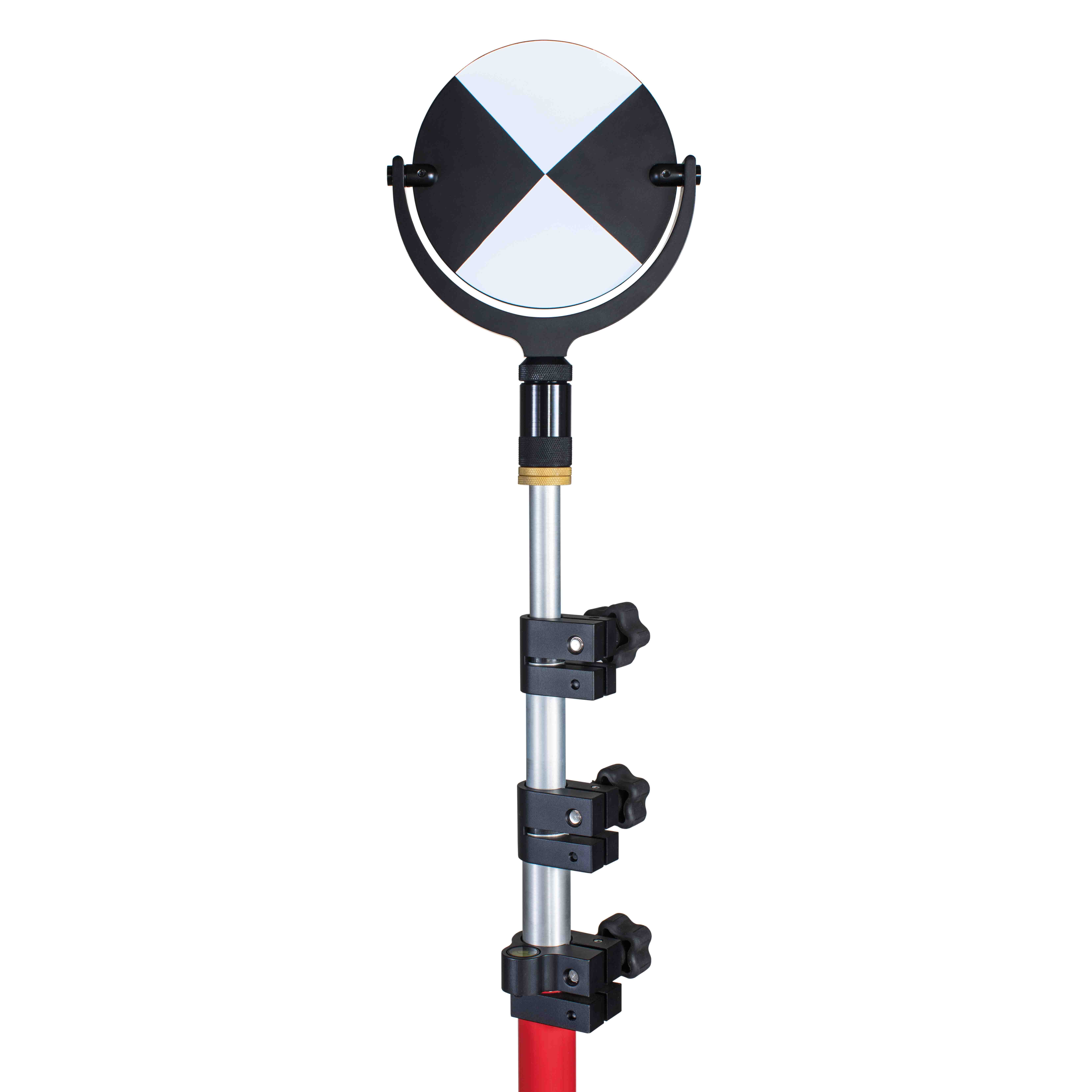

10.Equipped with female Thread 5/8" to mount on Magnetic Mounting Base STB-58 or any Prism Pole, Ranging Pole or Prism Adapter with male Thread 5/8"
11.Target Backside Color: Fluorescent Yellow (YEL) Retro-reflective Sheet (Sticker) to warn the surveyors when the Target is facing the wrong direction
Note: Any updating would be subject to occur without prior notice!!
