Highlights
Model: LSS23-145P
1.ABS Laser Scanner Sphere
2.Outer Diameter 145mm
3.Anti-glare Coating
4.Blackening Oxidized Adapters
5.Cushioned Reflective Backpack
6.Compatible with all Laser Scanners
Availability: | |
---|---|
Quantity: | |
LSS23-145P
Geomaster
9031809090
Specifications
Model: LSS23-145P
1.ABS Scanner Sphere, Blackening oxidized Adapters & PVC-coated Oxford Fabric Backpack
2.Wide Field Applications
Precise geometrical designing and guaranteed manufacturing (Allowable Deviation <1mm) ensure accurate and efficient scanning from all directions; highly compatible with and widely used in all present top-brand 3D Laser Scanners such as Leica HDS series, Faro Focus series, Trimble FX series, Riegl VZ series, Z+F IMAGER series and so on.
3.Large-format and different-diameter Scanning Reference Sphere (SRS)
LSS23-100P: OD:100mm (4"), LSS23-150P: OD:150mm (6")
LSS23-200P: OD:200mm (8"), LSS23-230P: OD:230mm (9")
LSS23-145P: OD:145mm (5.7"); T: 0.60mm; N.W.:280-290g; with Brass Mounting Rest
(OD: 22mm; Female Thread M8×1.25)
4.Anti-reflective (Anti-glare) Coating
White shock-proof Ball painted with enhanced anti-reflective (anti-glare) properties ideal
for optimum reflectivity
5.Diversified Connecting Adapters (Blackening oxidized)
1)Magnetic Mounting Adapter (MMA8-30B: OD: 30mm; N.W.: 46-50g)
Male Thread M8×1.25 into SRS and strong Magnetic Mounting Base for fixing on various metal surfaces to respond to different working sites.
2)Leica-style Adapter (GAD8-50B: N.W.: 70-75g)
Male Thread M8×1.25 into SRS and Leica-style end to mount on Prism Poles, Ranging Poles, GPS Poles or Tribrachs
with Leica standard Stub.
3)Universal Adapter (ADP8-58B: N.W.: 17-20g)
Male Thread M8×1.25 into SRS and female Thread 5/8" to mount onto Prism Poles, Ranging Poles,
GPS/GNSS Poles,Tripods or Tribrachs with male Thread 5/8" or mount onto universal Prism Adapter with Dia: 25mm
5.Various Combos for Option
1)SRS+GNNS Adapter+GNSS Tribrach
2)SRS+GNSS Adapter GNSS Tribrach+Tripod (Aluminum, Wooden or Fibreglass)
3)SRS+Prism Pole+Tripod (Aluminum, Wooden or Fibreglass)
4)SRS+GNSS Pole+Tripod (Aluminum, Wooden or Fibreglass)
5)SRS+Leveling Rod (Staff)+Bipod (Prism Bipod or GNSS Bipod)
Features
Model: LSS23-145P
1.Light-weighted ABS 3D Laser Scanning Sphere: 145mm O.D.
2.Wide different diameters available: 100mm,150mm,200mm,230mm
3.Anti-reflective Coating ideal for optimum reflectivity
4.Magnetic Mounting Adapter for fixing on various metal surfaces
5.Leica-style Adapter for GPS/Laser/Prism Poles or Tribrachs w. Leica standard Stub.
6.Universal Adapter for GPS/Laser/Prism Poles,Tripods or Tribrachs (w. male Thread 5/8")
7.Adapters chrome-plated or black-oxidized
8.Flexible packing available: single piece by cardboard box or 6pcs by robust PVC-coated Reflective Backpack
9.Compatible with and widely used in all present top-brand 3D Laser Scanners such as Leica
HDS series, Faro Focus series, Trimble FX series, Riegl VZ series, Z+F IMAGER series and so on.
10.Various Combinations for option
11.Customization service available.
Note: Any updating would be subject to occur without prior notice!!
Related Names
Surveying Instrument,Surveying Equipment,Surveying Accessories,Geomax Scanner Target, Leica Scanner Target,Nikon Scanner Target,Seco Scanner Target,Sokkia
Scanner Target, Topcon Scanner Target,Trimble Scanner Target,Geomaster Scanner Target, 3D Target,3D Laser Target,3D Scanner Target,3D Scanner Sphere,Laser
Scanner Sphere,Leica Scanner Target,Scanner Reference,Reference Sphere,Reference Target,Leica Scanner,Faro Scanner,Trimble Scanner,Geomax Scanner,Riegl
Scanner,Drone Target,Drone Survey Target, Drone Plate, Drone Ground Marker,Drone Ground Target,Drone Control Point,Survey Point,Scanner Tripod,Laser Scanner
Tripod, Laser Sphere Adapter,Reference Sphere Adapter,Reference Ball, Reference Globe,Reference Point,Scanning Sphere,Surveying Sphere,Measuring Sphere, Checkerboard,UAV Survey,UAV Target,UAV Ground Control Point,AutoPole,Pneumatic Pole,Scan Station,ScanStation,Laser Scanner Prism Sphere,Laser Prism
Sphere,Prism Sphere,Sphere Prism,Prism Reference Sphere,Spherically Mounted Retro Reflector (SMR), Red Ring Reflector (RRR),Laser Tracker,Reflective Sphere
Prism,Ball Mounted Reflector,Mobile Mapping System,Mobile Mapping Survey,Mobile LiDar Scanner,Mobile LiDAR,LiDAR
Specifications
Model: LSS23-145P
1.ABS Scanner Sphere, Blackening oxidized Adapters & PVC-coated Oxford Fabric Backpack
2.Wide Field Applications
Precise geometrical designing and guaranteed manufacturing (Allowable Deviation <1mm) ensure accurate and efficient scanning from all directions; highly compatible with and widely used in all present top-brand 3D Laser Scanners such as Leica HDS series, Faro Focus series, Trimble FX series, Riegl VZ series, Z+F IMAGER series and so on.
3.Large-format and different-diameter Scanning Reference Sphere (SRS)
LSS23-100P: OD:100mm (4"), LSS23-150P: OD:150mm (6")
LSS23-200P: OD:200mm (8"), LSS23-230P: OD:230mm (9")
LSS23-145P: OD:145mm (5.7"); T: 0.60mm; N.W.:280-290g; with Brass Mounting Rest
(OD: 22mm; Female Thread M8×1.25)
4.Anti-reflective (Anti-glare) Coating
White shock-proof Ball painted with enhanced anti-reflective (anti-glare) properties ideal
for optimum reflectivity
5.Diversified Connecting Adapters (Blackening oxidized)
1)Magnetic Mounting Adapter (MMA8-30B: OD: 30mm; N.W.: 46-50g)
Male Thread M8×1.25 into SRS and strong Magnetic Mounting Base for fixing on various metal surfaces to respond to different working sites.
2)Leica-style Adapter (GAD8-50B: N.W.: 70-75g)
Male Thread M8×1.25 into SRS and Leica-style end to mount on Prism Poles, Ranging Poles, GPS Poles or Tribrachs
with Leica standard Stub.

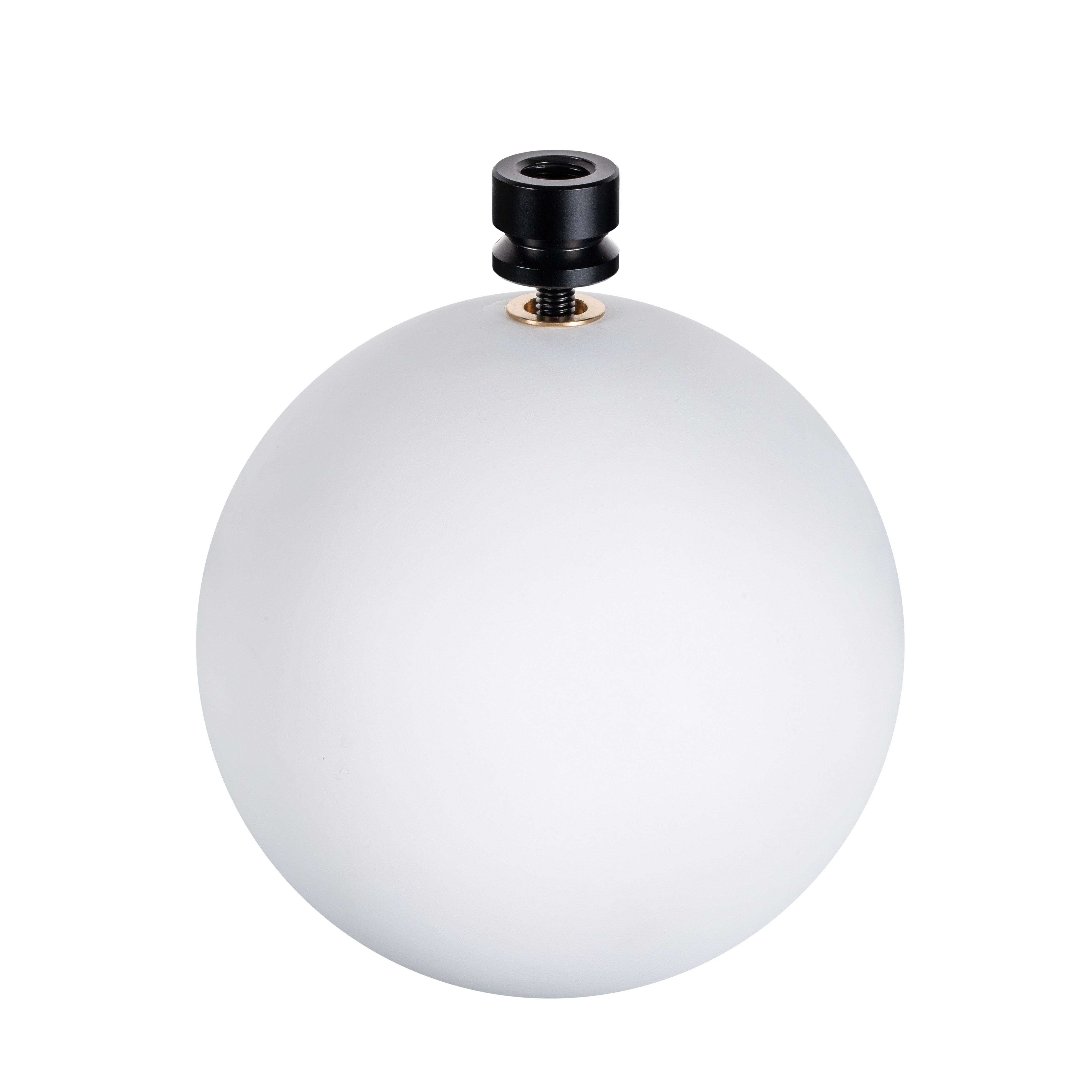

3)Universal Adapter (ADP8-58B: N.W.: 17-20g)
Male Thread M8×1.25 into SRS and female Thread 5/8" to mount onto Prism Poles, Ranging Poles,
GPS/GNSS Poles,Tripods or Tribrachs with male Thread 5/8" or mount onto universal Prism Adapter with Dia: 25mm
5.Various Combos for Option
1)SRS+GNNS Adapter+GNSS Tribrach
2)SRS+GNSS Adapter GNSS Tribrach+Tripod (Aluminum, Wooden or Fibreglass)
3)SRS+Prism Pole+Tripod (Aluminum, Wooden or Fibreglass)
4)SRS+GNSS Pole+Tripod (Aluminum, Wooden or Fibreglass)
5)SRS+Leveling Rod (Staff)+Bipod (Prism Bipod or GNSS Bipod)
Features
Model: LSS23-145P
1.Light-weighted ABS 3D Laser Scanning Sphere: 145mm O.D.
2.Wide different diameters available: 100mm,150mm,200mm,230mm
3.Anti-reflective Coating ideal for optimum reflectivity
4.Magnetic Mounting Adapter for fixing on various metal surfaces
5.Leica-style Adapter for GPS/Laser/Prism Poles or Tribrachs w. Leica standard Stub.
6.Universal Adapter for GPS/Laser/Prism Poles,Tripods or Tribrachs (w. male Thread 5/8")
7.Adapters chrome-plated or black-oxidized
8.Flexible packing available: single piece by cardboard box or 6pcs by robust PVC-coated Reflective Backpack
9.Compatible with and widely used in all present top-brand 3D Laser Scanners such as Leica
HDS series, Faro Focus series, Trimble FX series, Riegl VZ series, Z+F IMAGER series and so on.
10.Various Combinations for option
11.Customization service available.
Note: Any updating would be subject to occur without prior notice!!
Related Names
Surveying Instrument,Surveying Equipment,Surveying Accessories,Geomax Scanner Target, Leica Scanner Target,Nikon Scanner Target,Seco Scanner Target,Sokkia
Scanner Target, Topcon Scanner Target,Trimble Scanner Target,Geomaster Scanner Target, 3D Target,3D Laser Target,3D Scanner Target,3D Scanner Sphere,Laser
Scanner Sphere,Leica Scanner Target,Scanner Reference,Reference Sphere,Reference Target,Leica Scanner,Faro Scanner,Trimble Scanner,Geomax Scanner,Riegl
Scanner,Drone Target,Drone Survey Target, Drone Plate, Drone Ground Marker,Drone Ground Target,Drone Control Point,Survey Point,Scanner Tripod,Laser Scanner
Tripod, Laser Sphere Adapter,Reference Sphere Adapter,Reference Ball, Reference Globe,Reference Point,Scanning Sphere,Surveying Sphere,Measuring Sphere, Checkerboard,UAV Survey,UAV Target,UAV Ground Control Point,AutoPole,Pneumatic Pole,Scan Station,ScanStation,Laser Scanner Prism Sphere,Laser Prism
Sphere,Prism Sphere,Sphere Prism,Prism Reference Sphere,Spherically Mounted Retro Reflector (SMR), Red Ring Reflector (RRR),Laser Tracker,Reflective Sphere
Prism,Ball Mounted Reflector,Mobile Mapping System,Mobile Mapping Survey,Mobile LiDar Scanner,Mobile LiDAR,LiDAR
Packing Details
Model: LSS23-145P
1.Each Cardboard Box
Each LSS23-145P includes 1pc Scanning Reference Sphere (SRS-145P), 1pc Magnetic Mounting Adapter
(MMA8-30B),1pc Leica-style Adapter (GAD8-50B) and 1pc Universal Adapter (ADP8-58B).
2.Each Reflective Backpack (PVC-coated Oxford Fabric)
6 kits LSS23-145P contained in a rugged,light-weighted and cushioned (pre-cut foam insert) Reflective Backpack
RBP-145P (N.W.: 3.5kg; Dimensions: 48cm×35cm×20cm)
3.Each Shipping Carton
1)Qty: 6pcs
2)G.W.: 3.5-4.0kg
3)Size: 0.05cbm(55m×39cm×24cm)
Packing Details
Model: LSS23-145P
1.Each Cardboard Box
Each LSS23-145P includes 1pc Scanning Reference Sphere (SRS-145P), 1pc Magnetic Mounting Adapter
(MMA8-30B),1pc Leica-style Adapter (GAD8-50B) and 1pc Universal Adapter (ADP8-58B).
2.Each Reflective Backpack (PVC-coated Oxford Fabric)
6 kits LSS23-145P contained in a rugged,light-weighted and cushioned (pre-cut foam insert) Reflective Backpack
RBP-145P (N.W.: 3.5kg; Dimensions: 48cm×35cm×20cm)
3.Each Shipping Carton
1)Qty: 6pcs
2)G.W.: 3.5-4.0kg
3)Size: 0.05cbm(55m×39cm×24cm)
