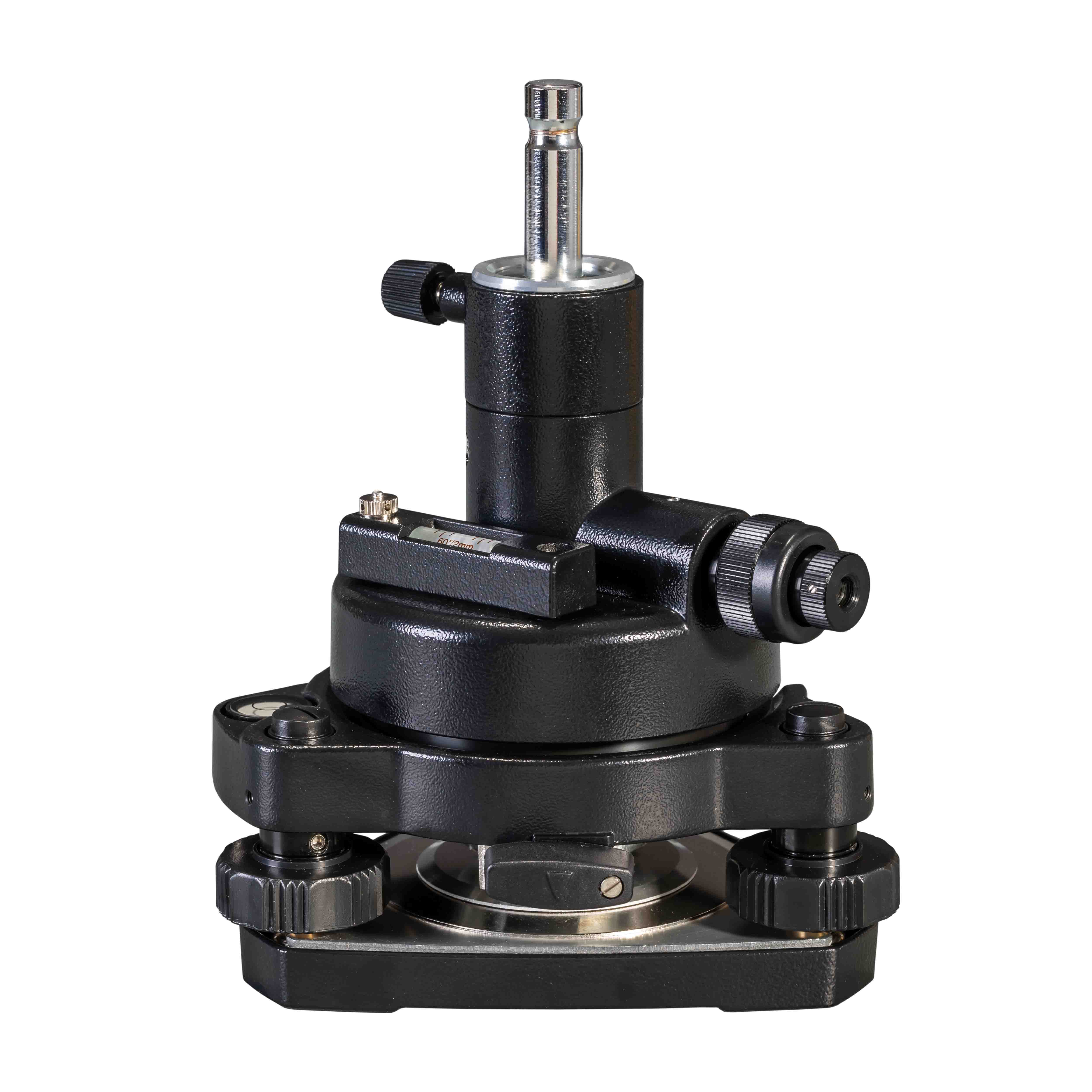

Prism Adapter & Tribrach

Model: LJ13/G-BK
1.Topcon-style Prism Adapter & Tribrach Combo
2.Prism Adapter: AL13/G-BK (w.Optical Plummet)
3.Prism Tribrach: AJ13/G-BK
4.Plate Bubble: 60"/2mm
5.Circular Bubble: 8´/2mm

  • LJ13/G-BK

  • Geomaster

  • 90159000

Specifications & Features
Model: LJ13/G-BK
Topcon-style Prism and Pentax-style Adapter & Tribrach Combination for traversing and precise setting-up,including

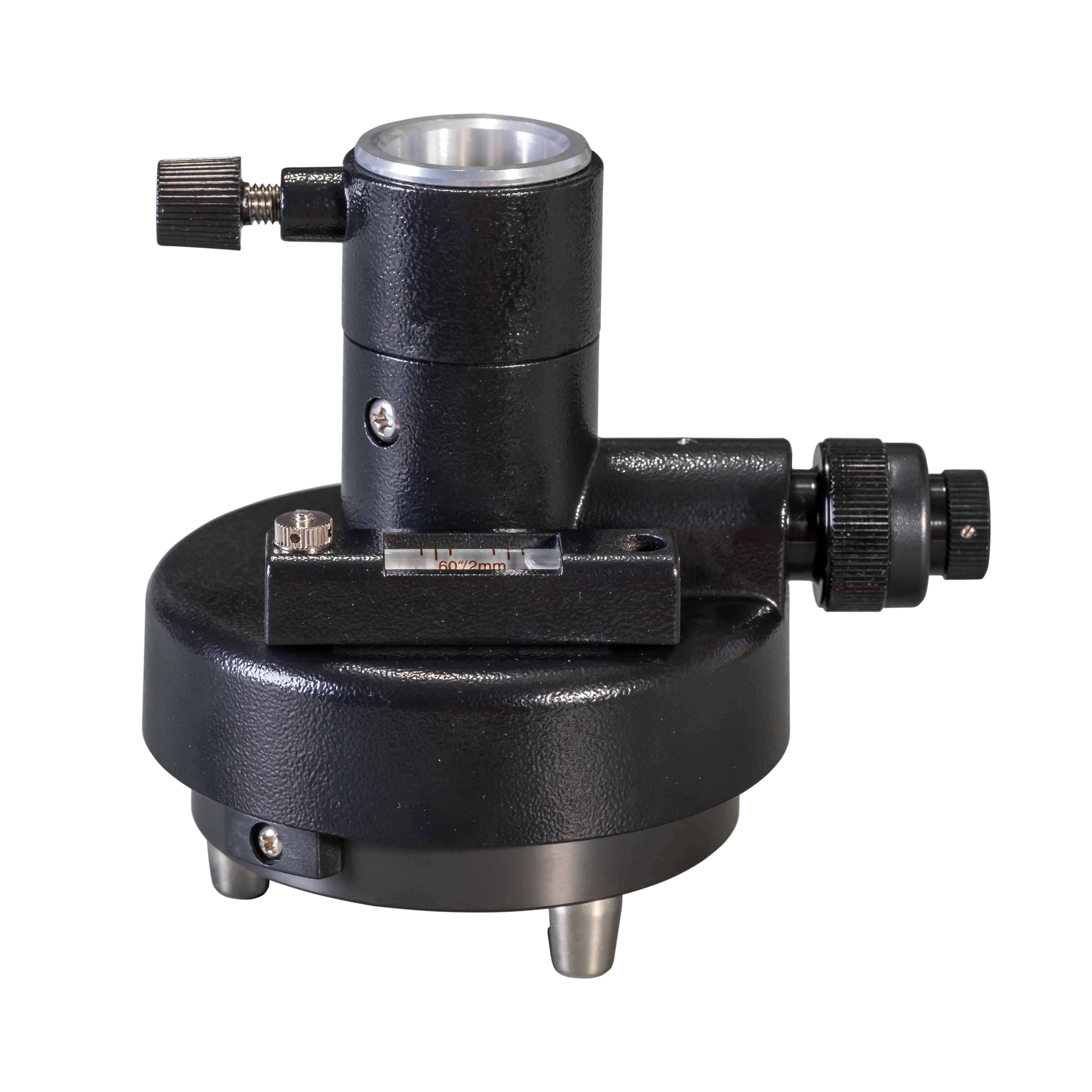

Prism Rotating Adapter: AL13/G-BK
1.Twist-focusing Optical Plummet (Magnification: 2.5x)
2.Adjustable Plate Bubble: 60"/2mm
3.Compatible with all 24.9mm (O.D.) bayonet-based Surveying Equipment like Prism Holders, GPS Receivers, Laser Scanners...

Prism/GPS Tribrach: AJ13/G-BK
1.Adjustable Circular Bubble: 8´/2mm
2.Three-prong forced centering on the Base Plate
3.Large-diameter Foot-screws for quick and smooth leveling
4.Equipped with 5/8" ×11 female Thread,compatible with all present Surveying Tripods with 5/8" Central Screw

Note:Any updating would be subject to change without prior notice.

Related Names
Surveying Accessories,Surveying Equipment, Surveying Instrument,Fixed Adapter,Fixed Carrier,GPS Adapter,Mini Adapter,Optical Carrier,Precision Carrier,Precision Optical
Carrier, Prism Adapter,Prism Carrier,Rotating Adapter,Rotating Carrier,Scanner Sphere Adapter,Tribrach Adapter,Surveying Tribrach, Traverse Tribrach,GPS Tribrach,Prism
Tribrach, GNSS Tribrach, Laser Tribrach,Traverse Kit,Swiss-style Tribrach,Swiss-style Adapter,Traverse Adapter,Leica Tribrach,Seco Tribrach,Sokkia Tribrach,Nikon Tribrach,
Topcon Tribrach,Trimble Tribrach,Pentax Tribrach, Zeiss-Wild Adapter,Geomaster Tribrach, Geomaster Adapter
,Universal Tribrach,Scan Station,ScanStation,AutoPole

Packing Details
Model: LJ13/G-BK
1.N.W./SET: 1.10-1.15kg
2.Qty./CTN: 12pcs
3.G.W./CTN: 18-20kg
4.Size/CTN: 0.07cbm (55cm×38cm×34cm)
