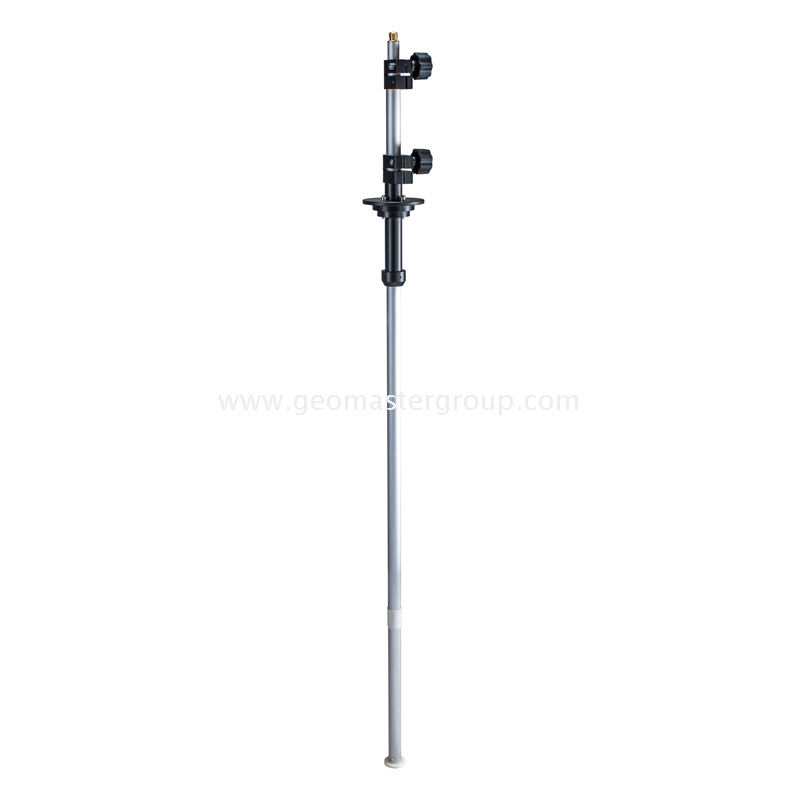

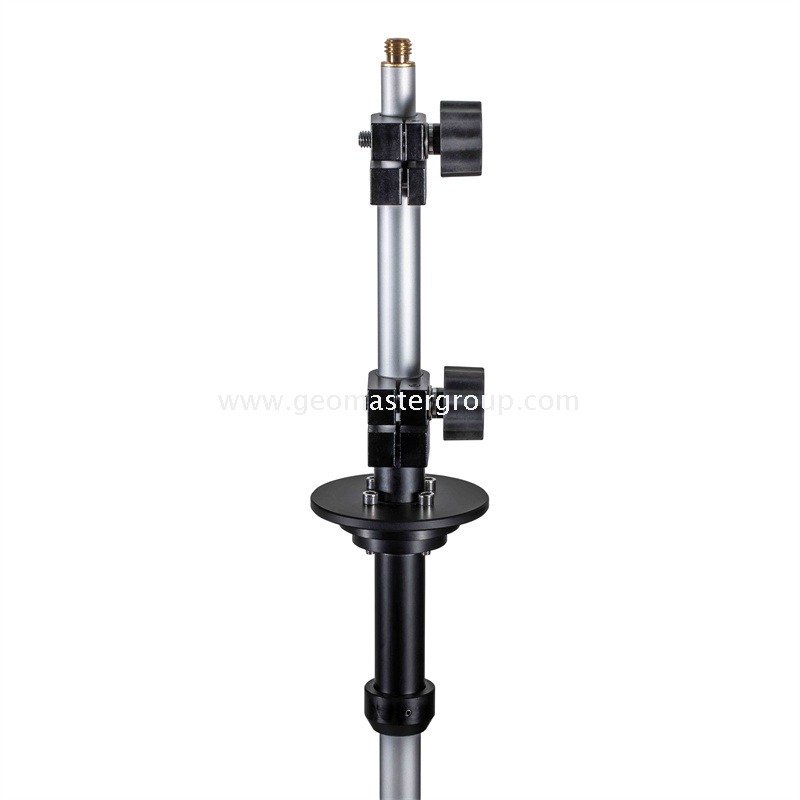

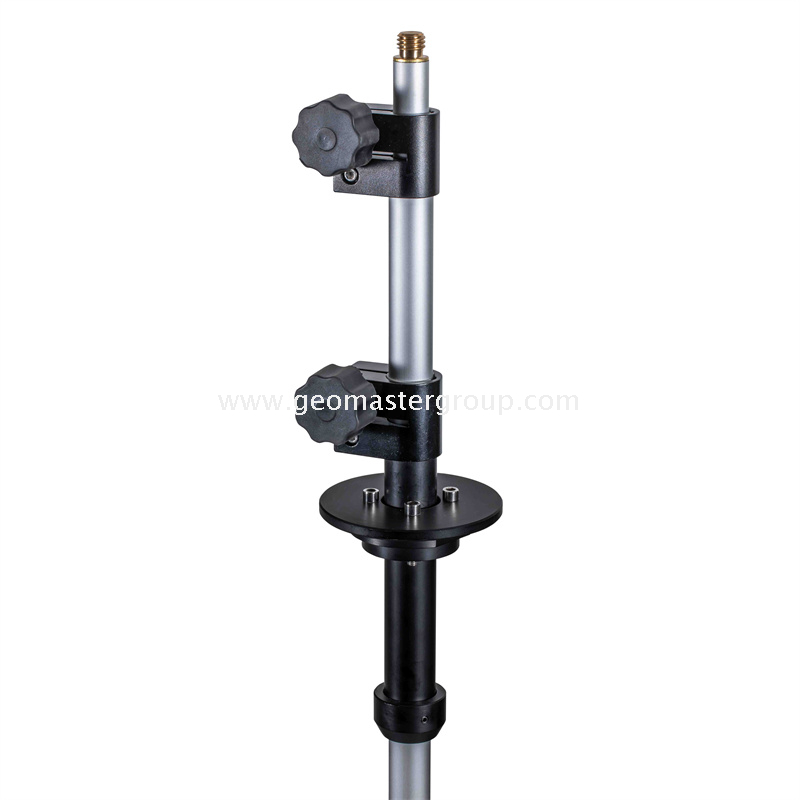

Radio Antenna Mast

Highlights
Model: RAM21-248
1.Seco-style Radio Antenna Mast
2.Height from 1.28m to 2.48m
3.Extension Poles 3 sections up to 1.2m
4.Brass, 5/8" male Thread

Availability:
Quantity:
  • RAM21-248

  • Geomaster

  • 90159000

Specifications
Model: RAM21-248
1.Min.Height: 1.28m (fully retracted)
2.Max.Height: 2.48m (fully extended)
3.Inner Pole Extension: up to 1.2m
4.Locking System Style: Twist Locks
5.Tube Sections: 3
6.Tube Outer Diameter: 29mm (1⅛")
7.Pole Brass Adaptor: 5/8" male Thread

Features
Model: RAM21-248
1.Equivalent to and Replacement of Seco-style Radio Antenna Mast 5561-20

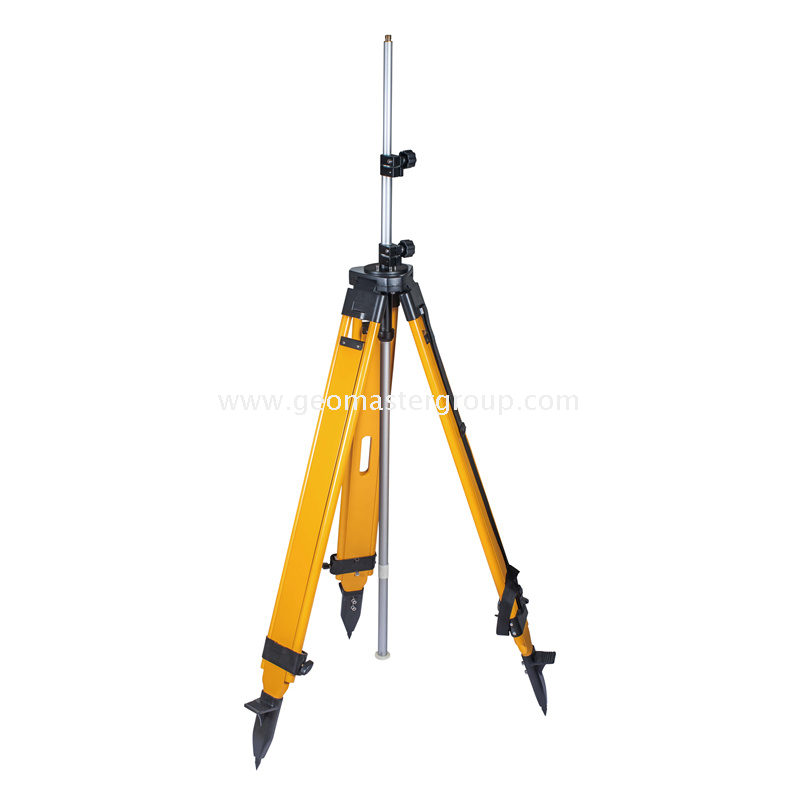

2.Fits most heavy-duty Surveying Tripods after the Central Connecting Screw has been removed, such as Geomaster Aluminum Tripods, Wooden Tripods, Fiberglass Tripods...
3.Three-sectioned Telescopic Poles plus Tripods to reach the maximum height and your desired working heights
4.Equipped with universal 5/8"×11 Thread accommodating most light-weight and medium-weight Surveying Instruments
and Accessories such as 3D Laser Scanners, Scanner Spheres, Scanner Targets, Laser Levels, GNSS Receivers, GPS Radios, Prism Holders and Targets,etc.
5.Hex Key for easy and fast installation
6.Red soft Carrying Bag for carry-around during surveying
7.Customization service available

Note: Any updating would be subject to change without prior notice.

Related Names
Surveying Accessories,Surveying Equipment,Surveying Instrument,Surveying Pole,Surveying Rod,GPS Pole,GPS Rod,GNSS Pole,
GNSS Rod,Aluminum Pole,Aluminum Rod,Antenna Mast,Antenna Pole,Antenna Rod, Carbon Fiber Pole,Carbon Pole,Fiber Pole,Mini
Pole, Rover Pole,Rover Rod,Satellite Stick,Geomax GPS Pole, Leica GPS Pole,Nikon GPS Pole,Seco GPS Pole,Sokkia GPS Pole,
Trimble GPS Pole,Geospatial Rod,TLV Pole,TLV Rod,
GLS Pole,Geomaster Pole,Geomaster GPS Pole,AutoPole

Packing Details
Model: RAM21-248
1.N.W: 1.32kg
2.Qty./CTN: TBD
3.G.W./CTN: TBD
4.Size/CTN: TBD
