Highlights
Model: LSS145P-58/70S
1.ABS Laser Scanner Sphere
2.Sphere Outer Diameter 145mm
3.Sphere Adapter ADP8-58B (M8 to 5/8")
4.Suction Cup Plate Dia.120mm
5.Suction Cup Adapter 700mm w. 5/8" Thread
6.Compatible with all Laser Scanners
7.Ideal for all smooth-surfaced Constructions
| Quantity: | |
|---|---|
LSS145P-58/70S
Geomaster
9031809090
Specifications
Model: LSS145P-58/70S
Including 145mm ABS Laser Scanner Reference Sphere LSS21-145P and Prism Suction Holder PSH120-58/70
1.ABS Laser Scanner Sphere SRS-145P
1)Outer Diameter: 145mm (5.7")
2)Thickness: 0.60mm
3)N.W.: 280-290g
4)Built-in Brass Female Thread M8×1.25
5)Universal Adapter ADP8-58B (M8 to 5/8"; N.W.: 17-20g), Male Thread M8×1.25 into SRS-145P and female Thread
5/8" to Magnetic Mount Base

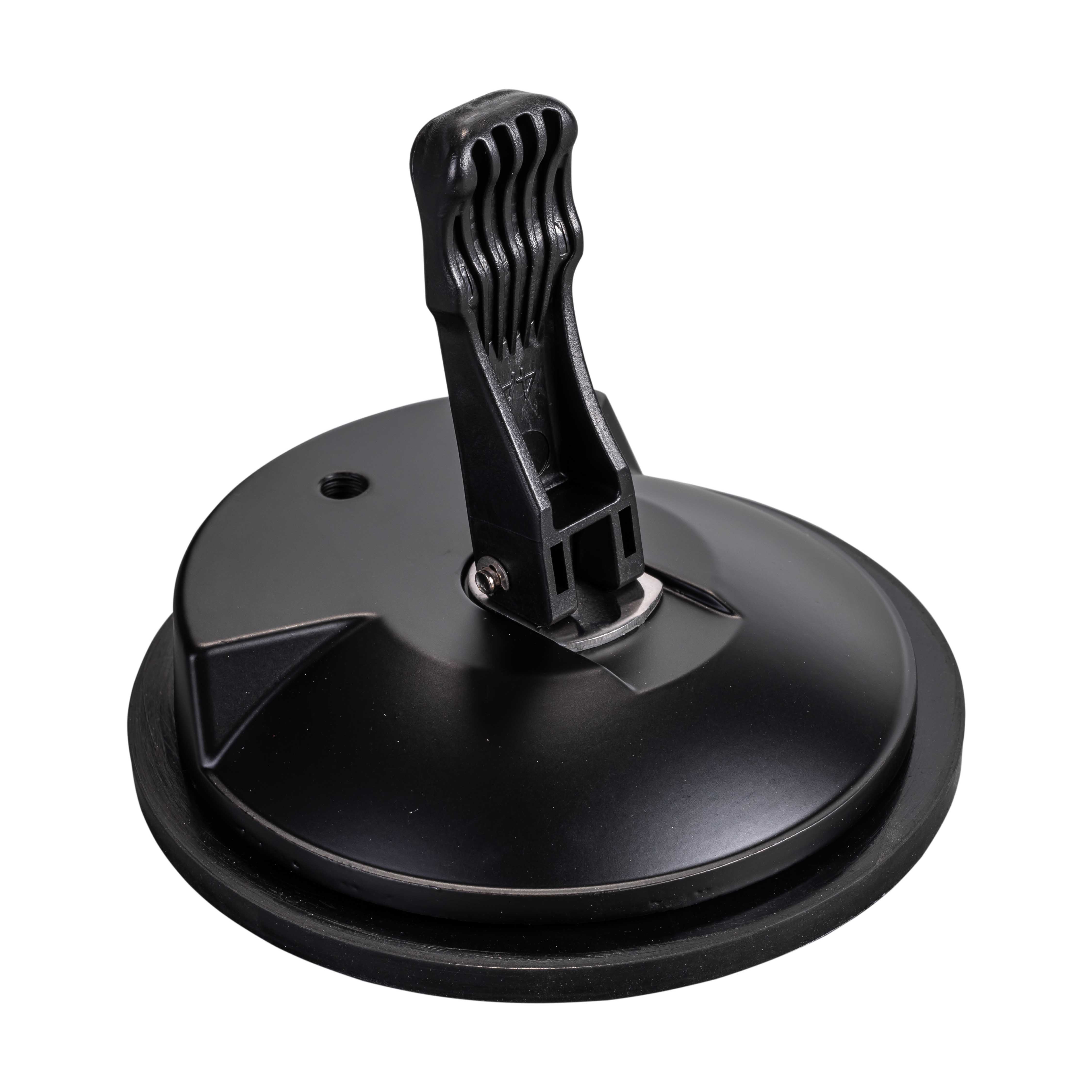

2.Prism Suction Holder/Suction Cup Holder PSH120-58/70
1)Suction Pad Diameter 120mm
2)Connecting Bore Hole: built-in M8 Thread (10mm high)
3)Geo-Adapter Thread: male M8 to male 5/8"
4)Geo-Adapter Height: 70mm
5)Cup Suction Force up to 15kg
6)N.W.: 465-475g
Features
Model: LSS145P-58/70S
1.Light-weighted ABS 3D Laser Scanning Sphere (O.D. 145mm)
2.Anti-reflective Coating ideal for optimum reflectivity
3.Applicable Solution for façade measuring; free removing without leaving residues after Monitoring, Laser Scanning, Surveying...
4.Widely used on all smooth working surfaces (Floors, Glass Fronts,Windows, Marble, Metal Surfaces,coated or painted Surfaces,Hard Plastic Surfaces....)
5.Holding light-weighted all 5/8"-threaded Surveying Items such as Monitoring Prisms (Circular Prisms, Mini Prisms,
Robotic Prisms), Prism Holders, Retro Targets, Reference Spheres, Laser Scanner Spheres, Laser Scanner Targets,
Spherically Mounted Reflective (SMR), Survey Targets, etc
6.Compatible with and widely used in all present top-brand 3D Laser Scanners such as Leica
HDS series, Faro Focus series, Trimble FX series, Riegl VZ series, Z+F IMAGER series and so on.
Note: Any updating would be subject to occur without prior notice!!
