Pocket Compass

Highlights
Model: DQL-19
1.Worldwide Pocket Compass
2.Measuring Azimuth,Bearing,Distance,Slope...
3.For Positioning,Surveying,Mining,Mapping...
4.Bead-sighting System
5.
Luminescent Outer Circle
6.Inclinometer

Quantity:
  • DQL-19
  • Geomaster
  • 90140000

Features and Specifications
Model: DQL-19
Ideal for Military Training, Mining, Camping, Hiking, Mapping, Positioning, Surveying,etc; measuring Azimuth, Bearing, Distance,Slope...
1.Sighting System
Sight Bead with Magnetic Declination Adjuster (Zero Pin)
2.Outer Circle (Luminescent Dial)
Range: 360º; Interval: 10º; Min Graduation: 1º; Accuracy: ±0.5°
3.Inclinometer
Range: ±90º; Min. Graduation: 1º; With Conversion Table of Slope Angle
4.Induction-dampened Needle
Damping Time: 15"; Needle locked when out of use
5.Levels (Bubbles)
Circular Level: 30'±5'/2mm; Plate Level: 15'±5'/2mm
6.Colors
Optional: Army Green, Black, Bronze, Camouflage,Copper
7.Material
Body Housing: Zinc Alloy; Outer Circle and Sighting Mirror: ABS
8.IP: Fully-sealed; water-proof, dust-proof and shock-proof
9. Ambient/Storage Temperature
-20℃~50℃ (normal-temperature storage suggested)

Note:Any updating would be subject to change without prior notice.

Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory, Pocket Compass, Optical Compass,Prismatic Compass, Military Compass, Brunton
Compass, Lensatic Compass, GEO Compass, Boussole,Rose Compass, Nautical Compass, Luminous Compass, Transit Compass, Omnisight Compass,
TruArc Compass,Silva Compass, Tritium Compass, Commenga Compass, Russian Compass, Army Compass, Tourism Compass, Surveying Compass,

Sunnto Compass, Rukhs Compass, 6400-mils Compass, 6000-mils Compass, Clinometer Compass, e-Compass, Digital Compass

Packing Details
Model: DQL-19
1.N.W.: 313g; G.W.: 366g (Box and Accessories)
2.Diameter: 65mm; Dimensions: 80mm×70mm×32mm
3.Qty./CTN: 30pcs
4.G.W./CTN: 13kg
5.Size/CTN: 0.025cbm (32cm×24cm×32cm)

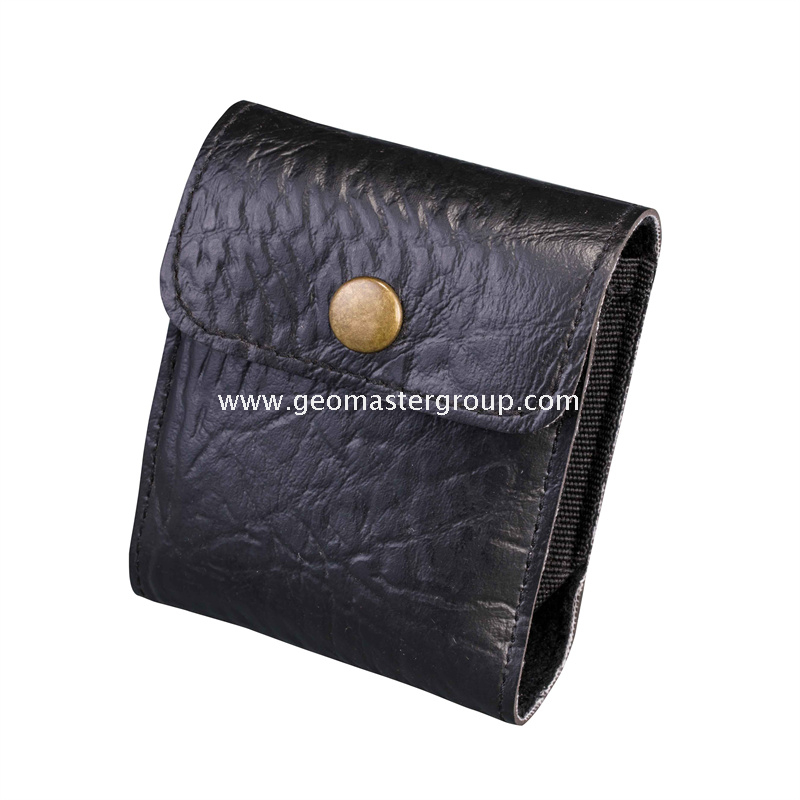

6.Coming with Cloth Bag or Leather Bag, Flannelette, User Guide
