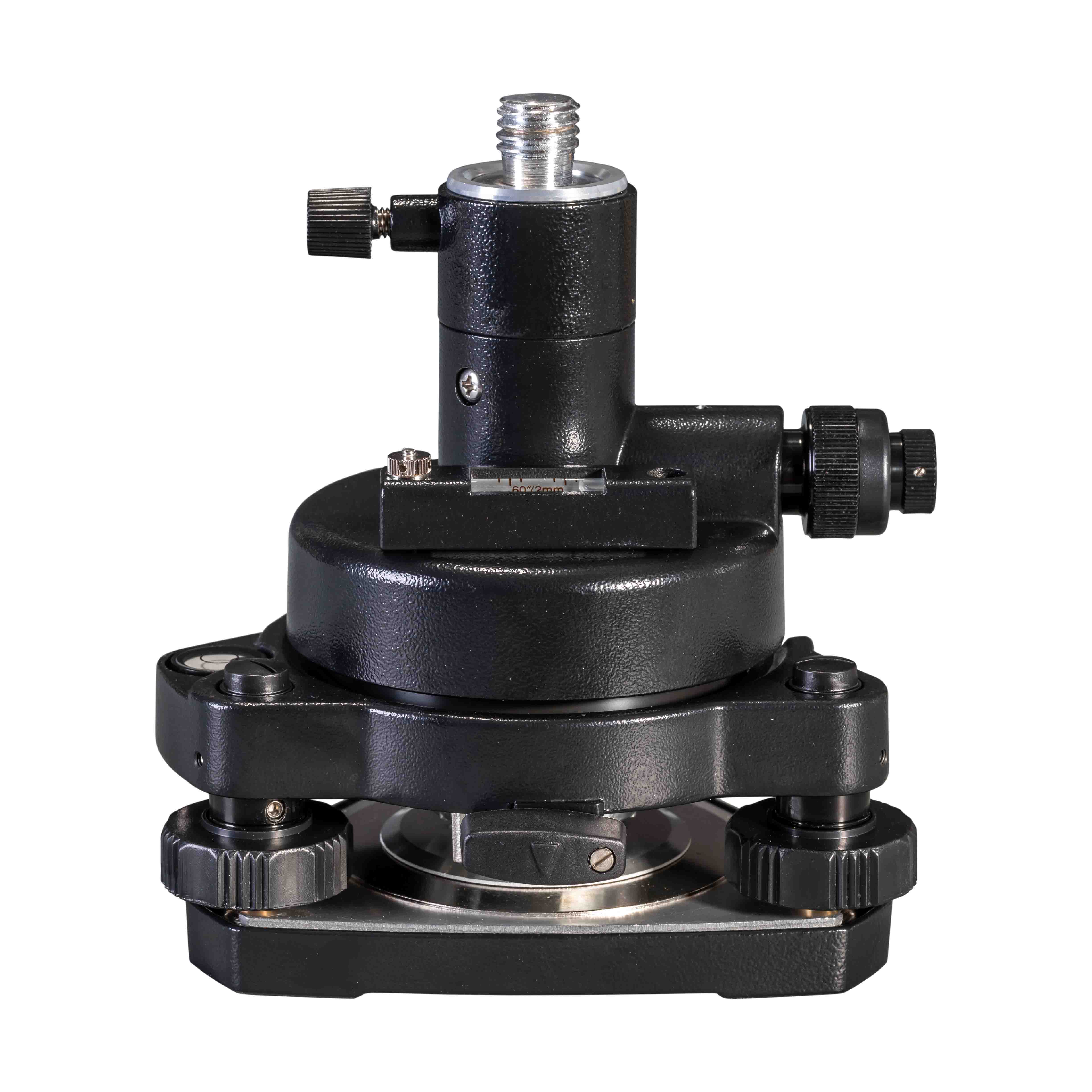

Prism Rotating Adapter

Model: AL13/G-BLK
1.Geomaster Traverse Tribrach Adapter
2.Topon-style Black Prism Adapter (BLK)
3.w.Optical Plummet
4.Plate Bubble: 60"/2mm
5.Compatible w. all Prism & GPS Tribrachs
6.Compatible w. all 24.9mm bayonet-based Surveying Acc.

  • AL13/G-BLK

  • Geomaster

  • 90159000

Specifications & Features
Model: AL13/G-BLK
1.New Topcon-style Traverse Tribrach Adapter for traversing and precise setting-up
2.Equipped with
Twist-focusing Optical Plummet
(1)Magnification: 2.5x
Focusing Range: 0.5-15m
Plummet accuracy: 1mm at 1.5m
(4)Reflector Centering Accuracy: 1.5mm

3.Adjustable Height:
4.w.adjustable Plate Bubble: 60"/2mm
5.w.Bayonet Holder (ID:25mm),c
ompatible with all 24.9mm (O.D.) bayonet-based Surveying Accessories like
Geomaster Prism Holders & Targets (AKZ series)...
6.Precision-machined rotating Axis, fitting all standard three-prong forced-centering Prism & GPS Tribrachs such as
Geomaster AJ13 series...
7.Colors a/v: Topcon Yellow;
Leica Green (pale or dark),Sokkia Grey,Black
8.Customization service available

Note:Any updating would be subject to change without prior notice.

Keywords & Hashtags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,
SLAM Survey,Geosystems,Reality Capture,SLAM Survey,Multitrack Prism,Multitrack Target, Rail Survey,Leveling Staff Adapter,Magnetic Fixed Carrier,Fixed Carrier,Magnetic Mount Base,
Magnetic Base, Mounting Base,Magnetic Rail shoe,Mini Prism Pole,Prism Mount Adapter,Prism Pole Adapter,Prism Suction Holder,Scanner Sphere Adapter,Scanner Target Adapter,Scanner
Target Base,Survey Point Plug,Switch Magnetic Base,Tribrach Prism Mount,Prism Mounting Set,Mounting Set,Prism Rain Shelter,Prism Rain Hood, Prism Adapter,Prism Carrier,Prism
Tribrach,Drifting Base,Premier Prism,Tribrach 58002007,Tribrach 78607007,Base 78608019,Traverse Adapter,Traverse Tribrach,SLSU-S2020,SX10,SX12,RTS360,RTC360,BLK360,X7,X9,
X10,TX6,TX8 (Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO,Sokkia ,Stonex, Topcon, Trimble, Zeb, Geomaster)

Packing Details
Model: AL13/G-BLK
1.N.W.: 640-650g
2.Qty./CTN: TBD
4.Size/CTN: TBD
