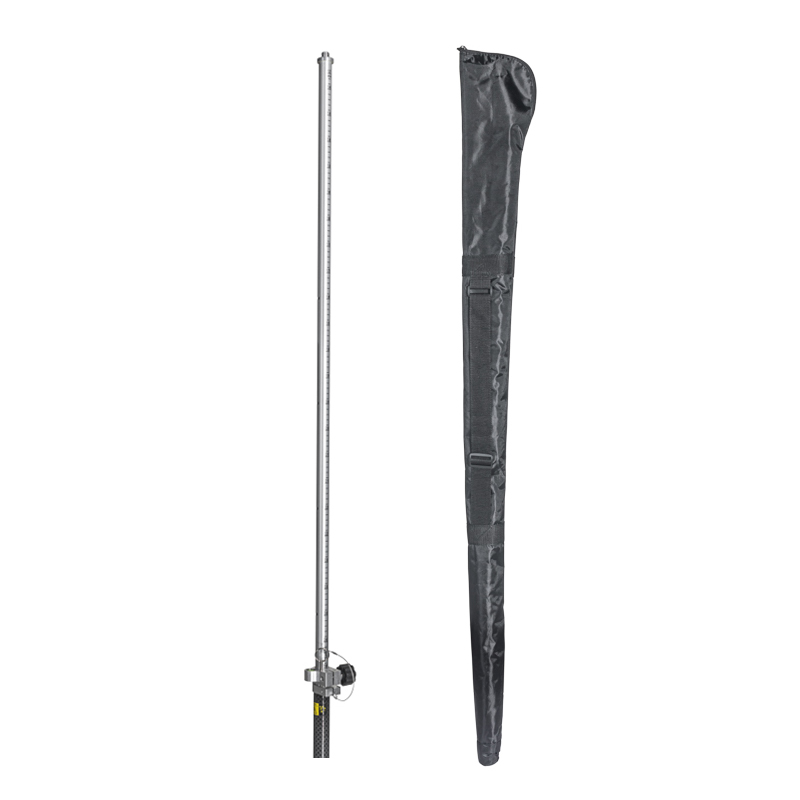

Al & Carbon RTK Pole (2.5m,PinLoc4)

Specifications & Features
Model: RTK2-250-PinLoc4
Precision-grade 2.5m carbon-aluminum telescopic pole with 4-position pin locking and integrated vial for
rapid field setup. Compatible with most GPS tripods and bipods, it securely mounts GPS receivers, RTK
rovers, GPS antennas, etc.

1.Height Range & Sections
1)Maximum Height
2.50m (8.2 ft), full extension for elevated target placement.

2)Minimum Height
1.37 m (4.5 ft), compact collapsed size for transport and low-height work.

3)Number of Sections
2-telescopic design for quick length adjustment.

2.Tube Construction & Materials
1)Inner (Top) Tube

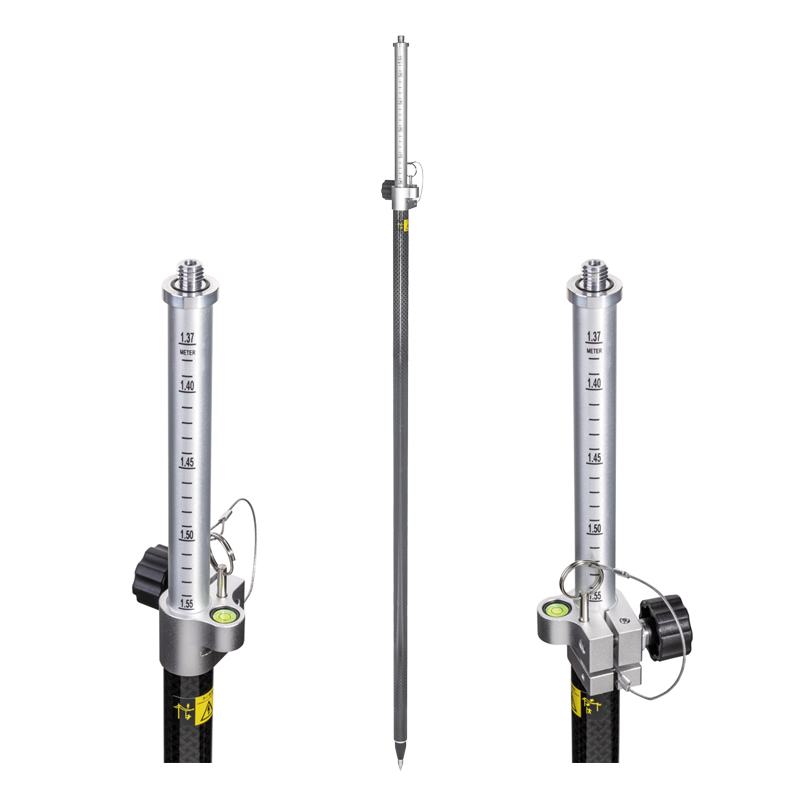

Aluminum with durable paint finish; features permanent silkscreened metric graduations (10 mm
minimum increment) for precise height reading.

2)Outer (Bottom) Tube
Carbon fiber, diameter 32 mm (1.26″), wall thickness 1.5 mm, offering high strength-to-weight ratio and
reduced vibration.

3.Locking Mechanism (Dual System)
1)Primary Lock
Twist knob with integrated softrubber grip for smooth, secure tightening/loosening.

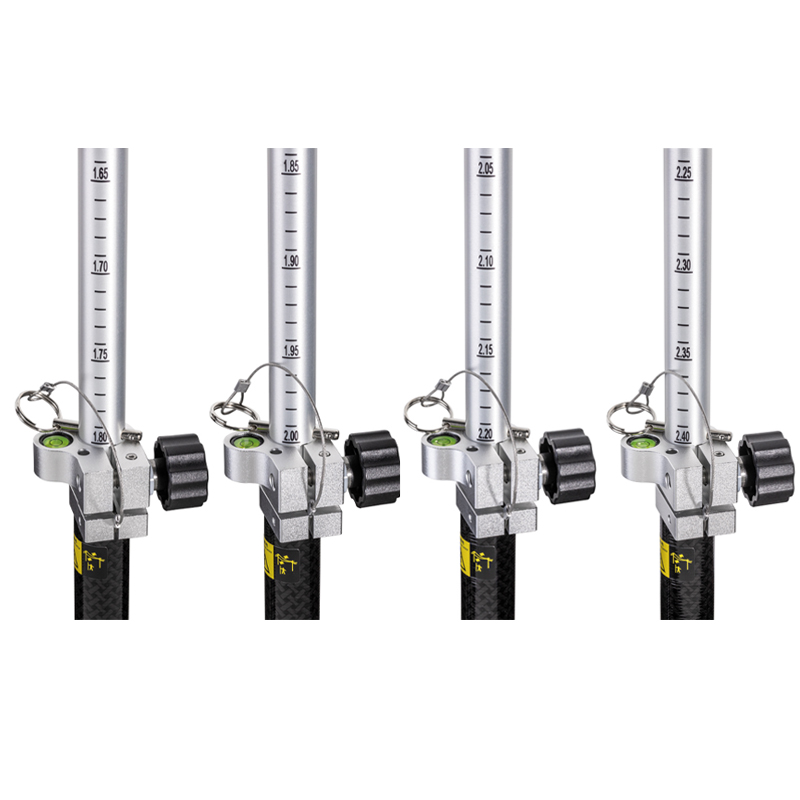

2)Secondary Lock
4-position pin lock system, engaging at preset heights of 2.4 m, 2.2 m, 2.0 m, and 1.8 m for rapid,
repeatable working heights without recalibration.

4.Leveling & Alignment
Built in Adjustable Vial: 40 minute/2 mm sensitivity, housed within the twist lock knob for direct line of
sight monitoring, enabling swift and accurate horizontal leveling.

5.Mounting & Compatibility
1)Top Adapter
External thread 5/8″ × 11, standard fit for most surveying instruments and accessories.

2)Optional: Swiss style quick release spigot/stub
Compatible with prism reflectors, prism targets, laser scanner targets/spheres, retro targets, snap on
prisms, GNSS/GPS receivers, and compact survey gear.

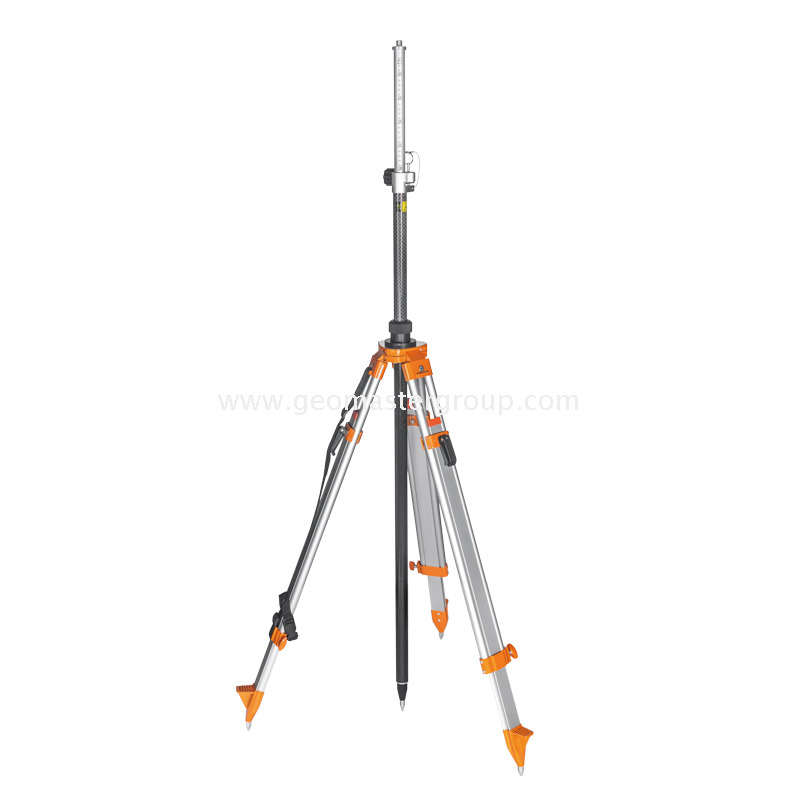

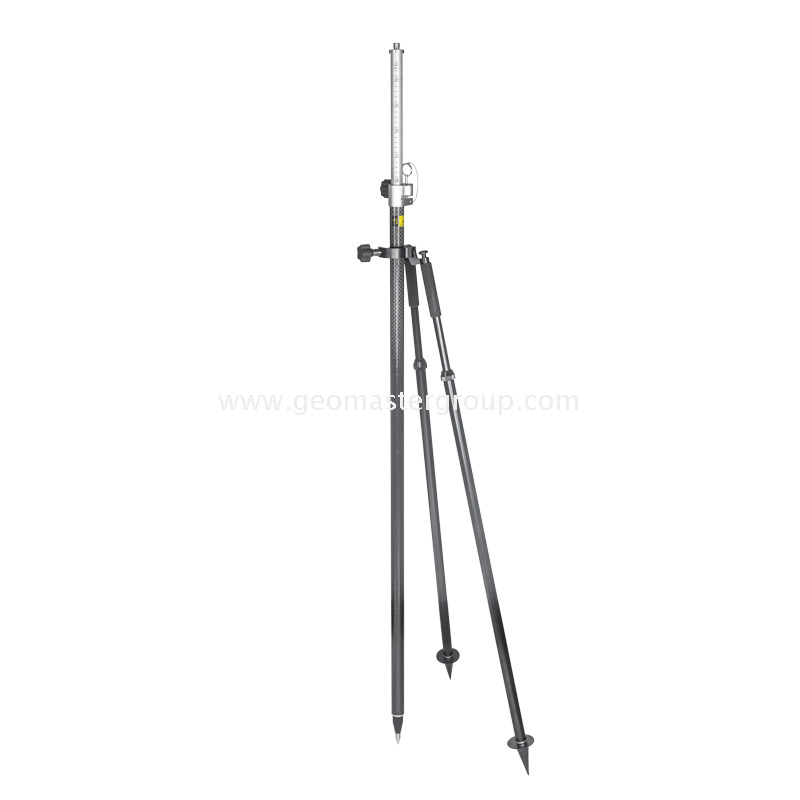

3)Tripod/Bipod Compatibility
Works seamlessly with most surveying/prism/GPS/laser tripods or bipods.

6.Durability & Field Accessories
1)Base Foot
Detachable metal foot with hardened tip point for secure ground penetration on soft or uneven terrain.

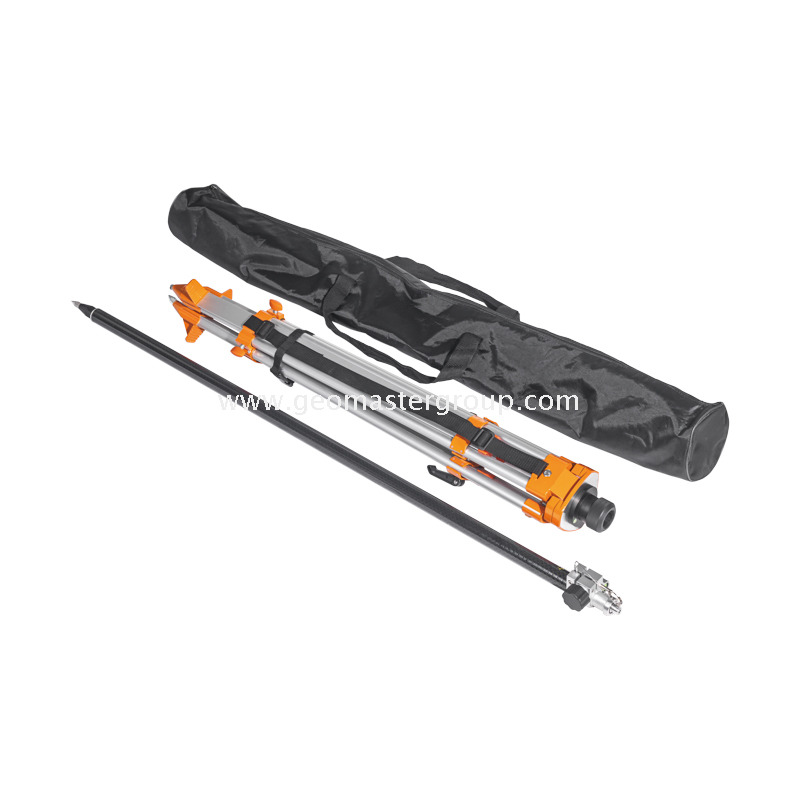

2)Carrying Case
Robust dark blue canvas bag, lightweight yet protective, designed for convenient field transport and storage.

Note: Any updates would be subject to change without prior notice. RTK Pole, RTK Tripod. DRTK3 Pole, DRTK3 Tripod, DRTK2 Pole, DRTK2 Tripod.
