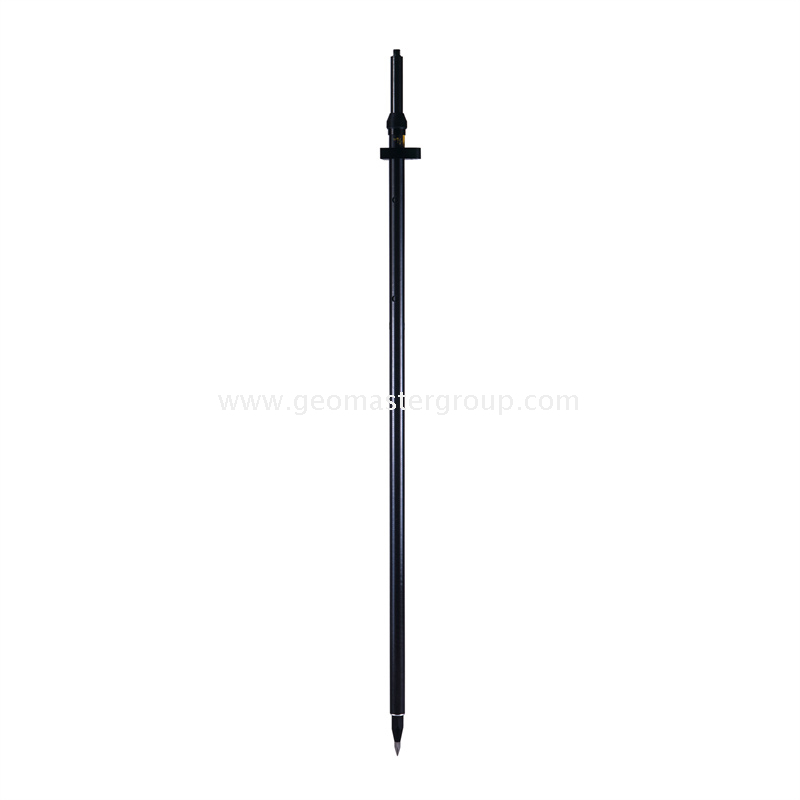

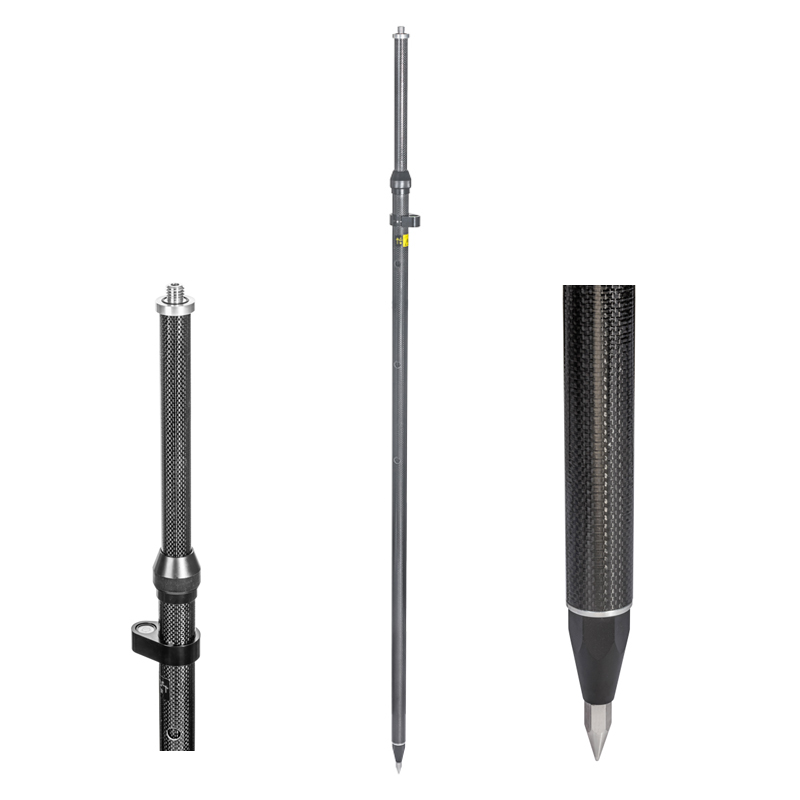

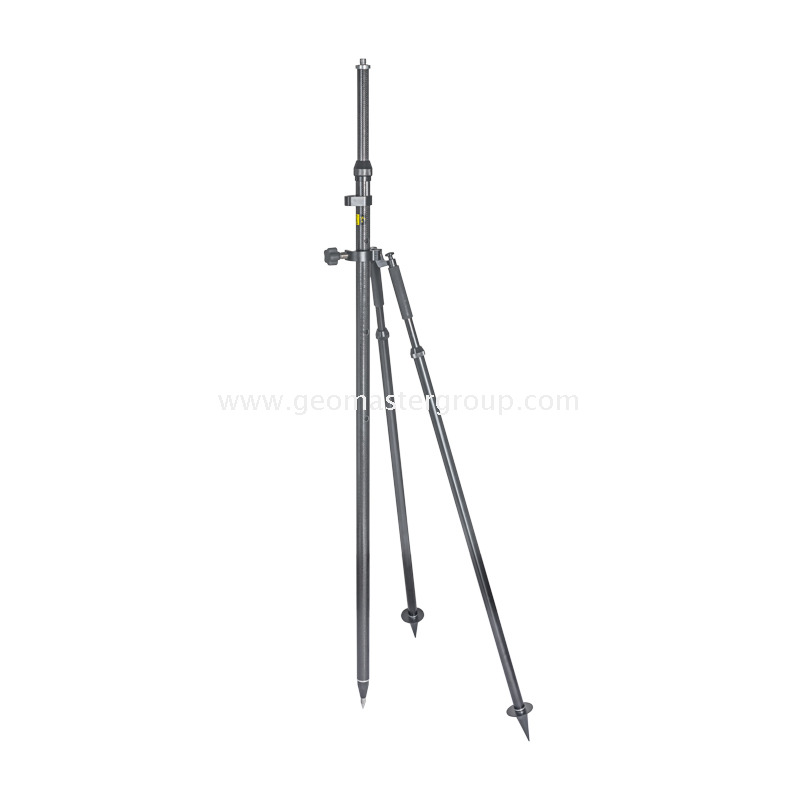

All Carbon Rover Pole (2m)

Specifications & Features
Model: GLS31-200F/SnapLoc-3
1.Critical Dimensional & Structural Parameters
1)Maximum Length (extended): 2.0m (6.6 ft)
2)Minimum Length (collapsed): 1.36m (4.5 ft)
3)Number of Sections: 2 (telescoping design)
4)Outer Tube Diameter: 32mm (1.25")
5)Outer Tube Wall Thickness: 1.5mm
6)Material: Full carbon fiber (F) construction (both the inner top and outer bottom sections)

2. Locking & Positioning System

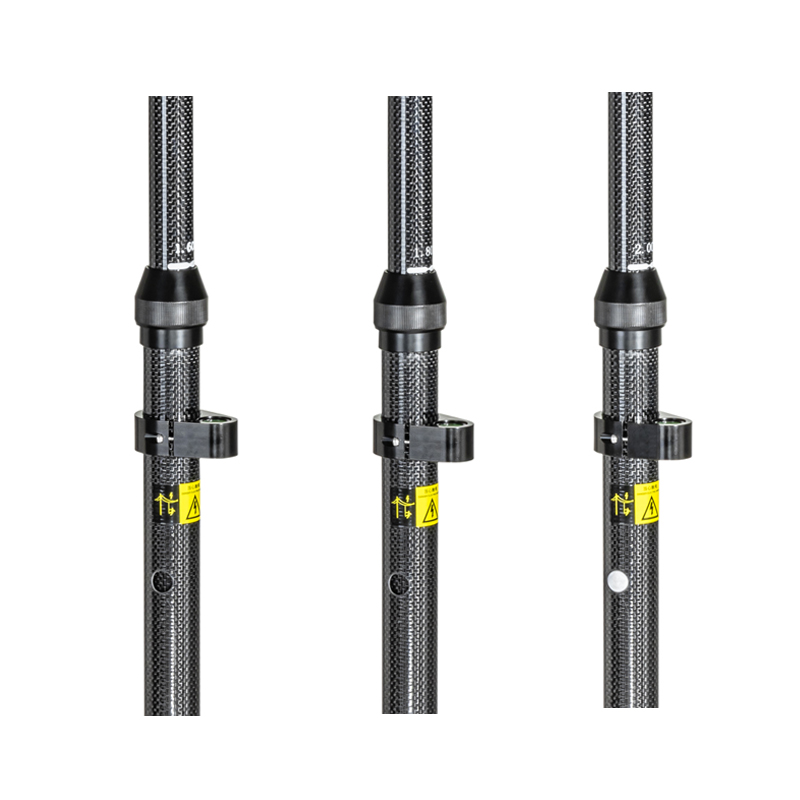

1)Locking Mechanism: Twist lock combined with Snap Locks (3 preset positions)
2)Preset Locking Heights: 2.0m, 1.8m, 1.6m

3. Leveling & Ground Interface

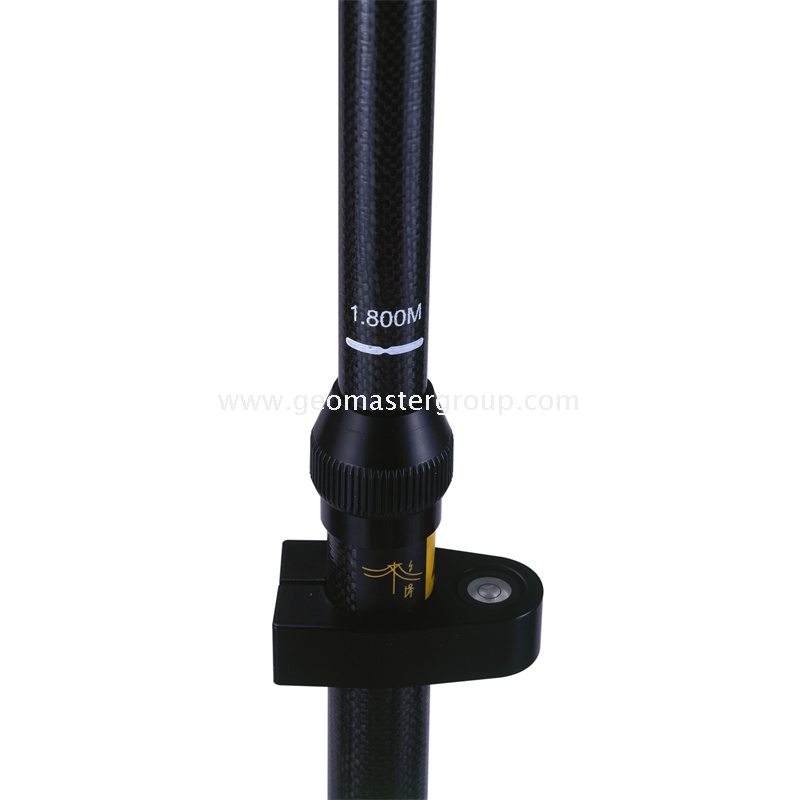

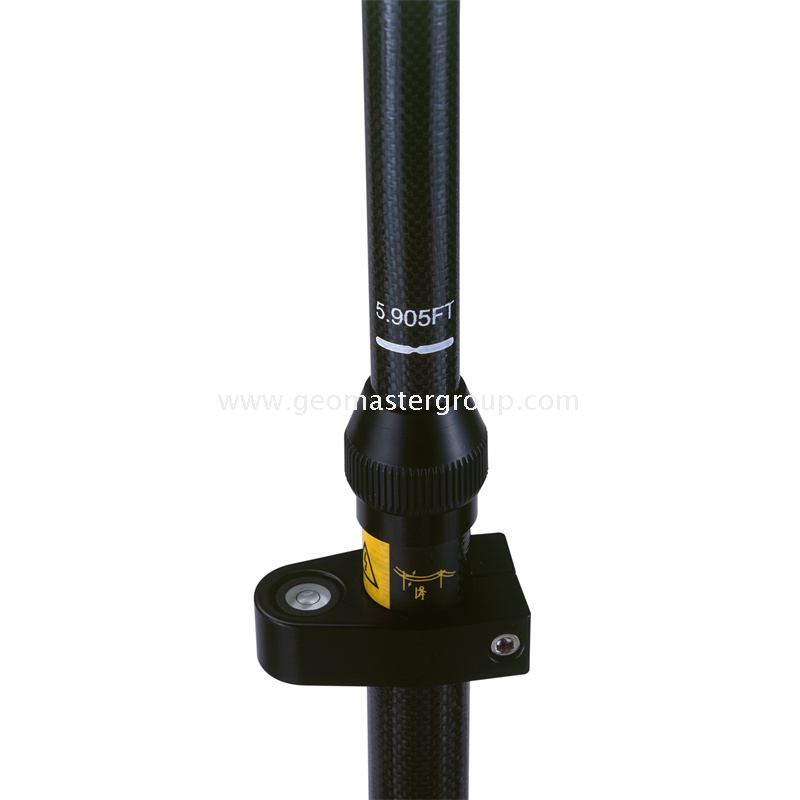

1)Adjustable Level Vial
40-minute/2mm sensitivity, high-visibility design for rapid, accurate leveling

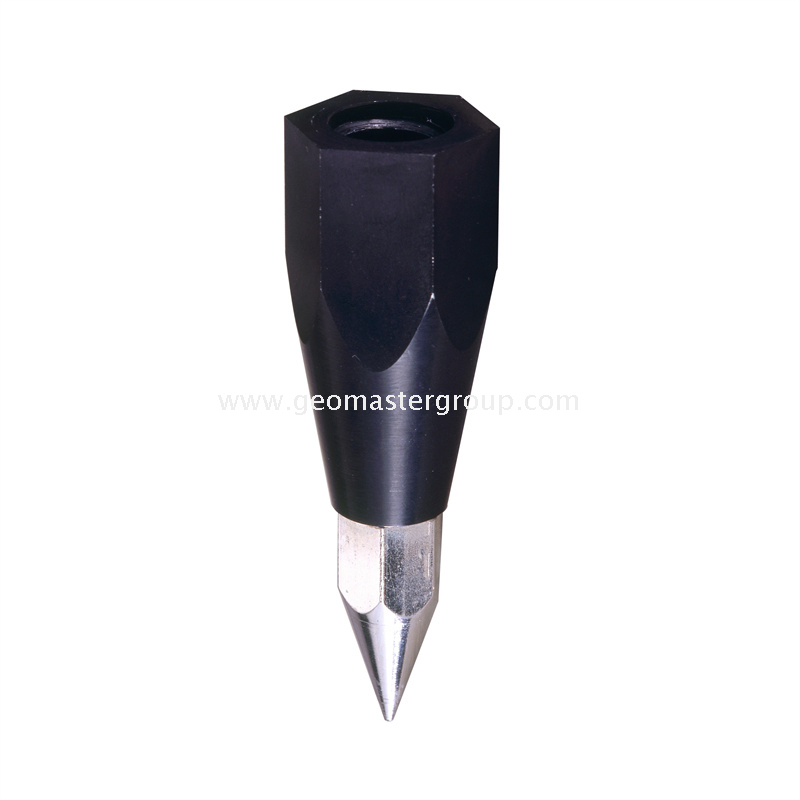

2)Foot Design
Detachable metal feet with tip point for easy ground penetration

4. Equipment Compatibility & Mounting

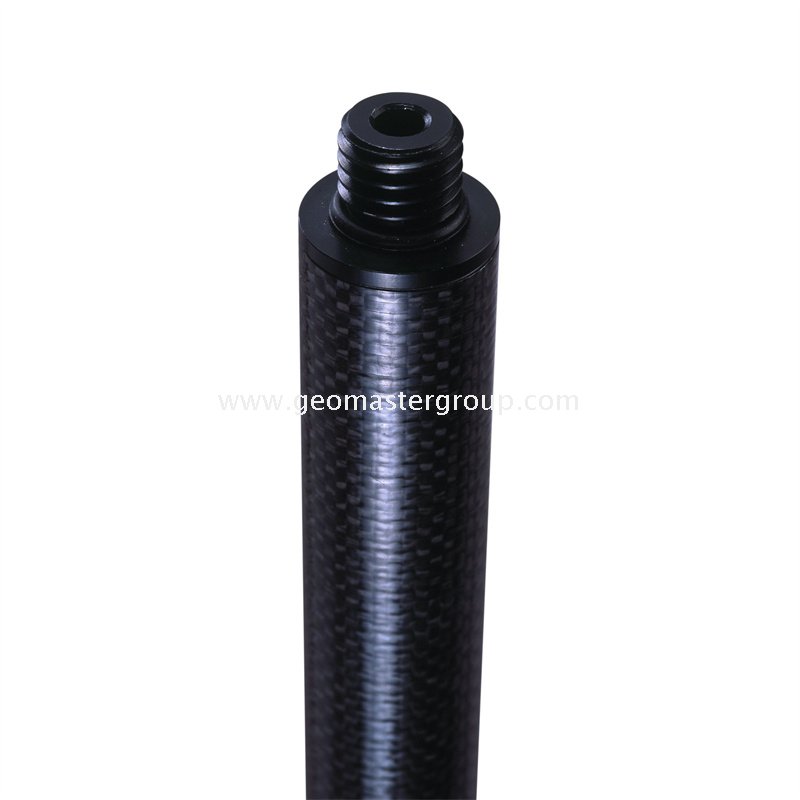

1)Pole Adapter
External thread, 5/8" × 11

2)Compatible with

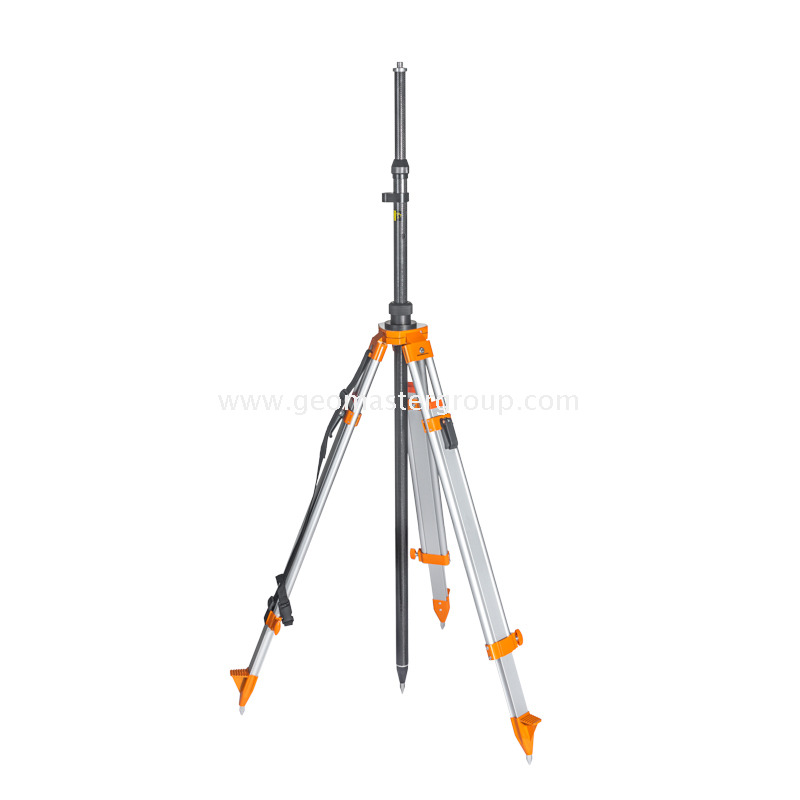

Most surveying tripods, bipods, prisms, GPS, RTK, laser systems

3)Optional Accessory
a)Swiss-style quick-release spigot/stub for compact surveying equipment (prism reflectors, prism targets,
laser scanner targets/spheres, retro targets, snap-on prisms, GNSS/GPS)

b)Tripod Clip (Clip32-185T), Bipod Clip (Clip32-185B), TopoShoe (GHT36-86/64), Anti-rotating Quick Release Adapters (GAD31-40, GAD31-60,R10/R12-0.05)

5. Transport & Storage
1)Collapsible Design
Top section fully retracts into bottom section for compact storage and easy transport inside a truck cab

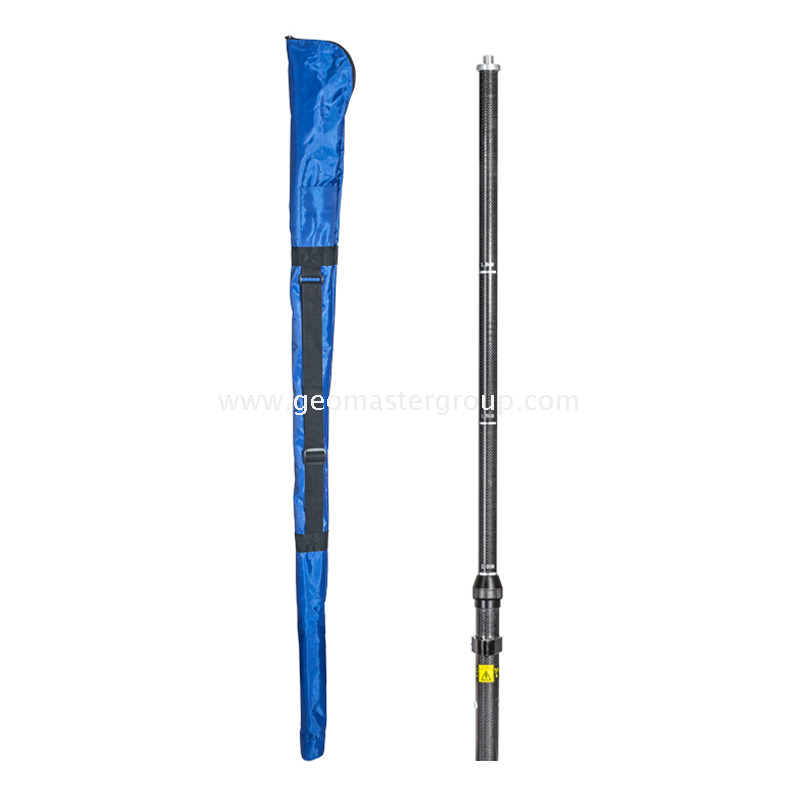

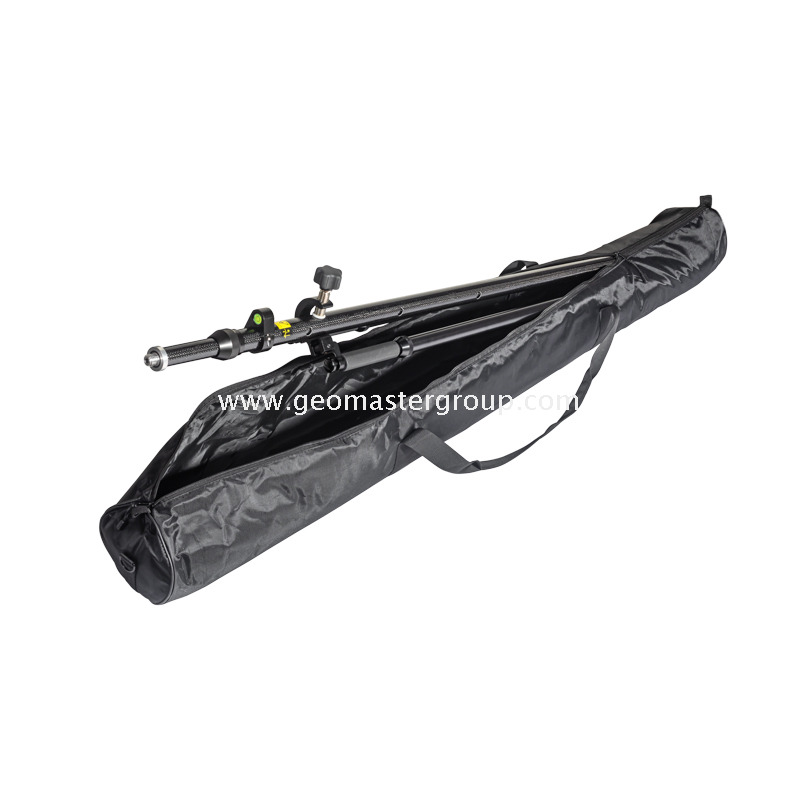

2)Carrying Case
Durable soft carrying bag included for field portability

Note: Any updating would be subject to change without prior notice. RTK Pole, RTK Tripod, DRTK3 Pole, DRTK3 Tripod. DRTK2 Pole, DRTK2 Tripod.
