Antifog Prism (5",copper-coated)

Model: GPR112-YEL5-5S-W-CU-AF
Product Overview

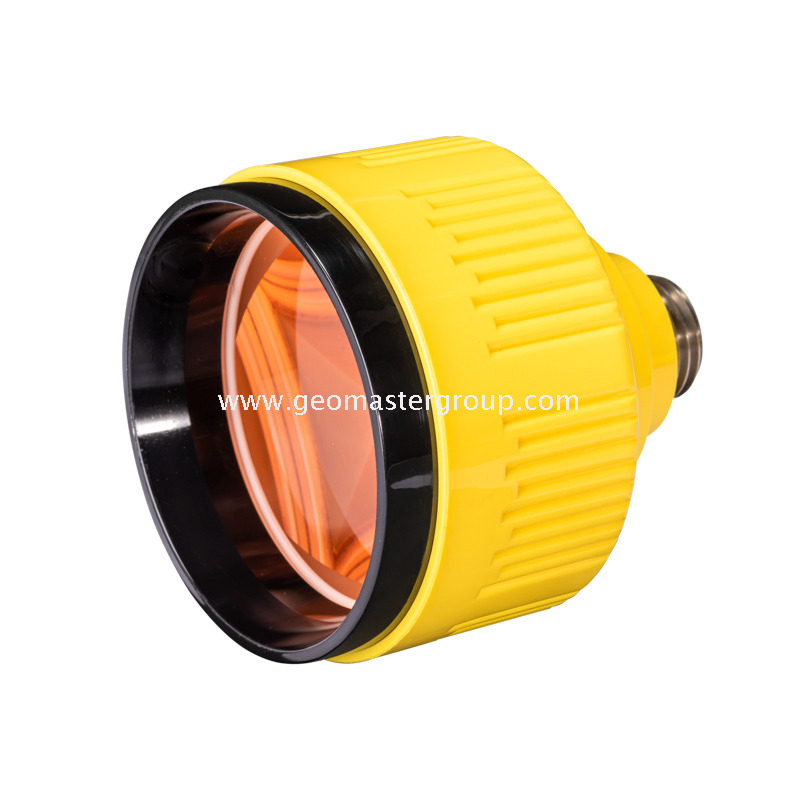

The GPR112-YEL5-5S-W-CU-AF is a high-precision surveying prism built for reliable performance in demanding field conditions. It delivers ≤5″ optical accuracy, up to 2000 m range, and combines water-proof, copper-coated and antifog protection with high visibility. Its durable PC canister, precision K9 glass and dual-thread mounting ensure broad compatibility with industry-standard surveying instruments (electronic theodolites, reflectorless total stations,laser trackers...

1.Optical Accuracy
1)Prism Accuracy

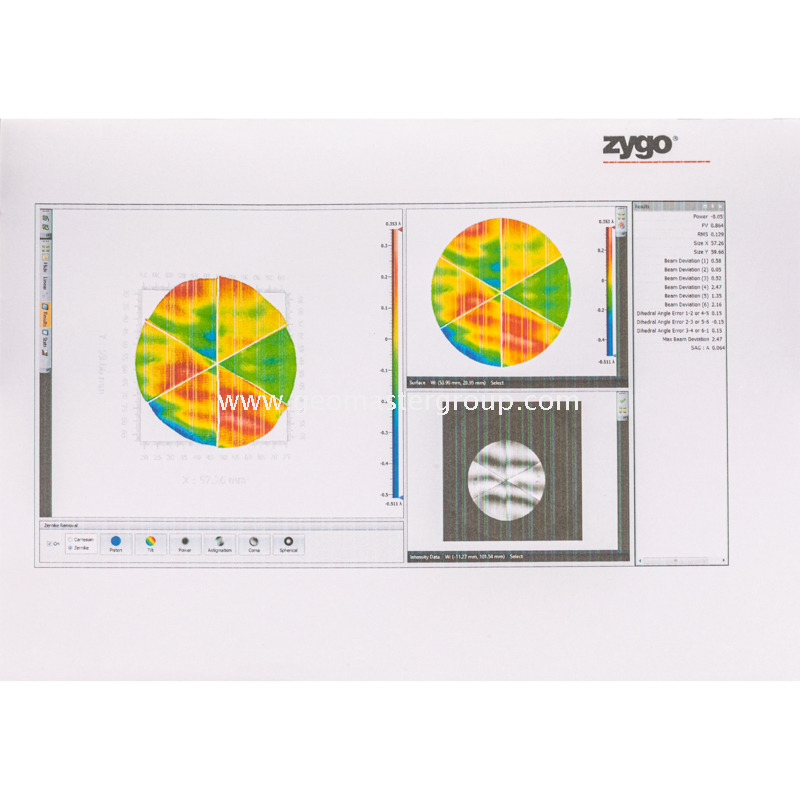

≤5″ arc-seconds, verified by a real-time Zygo interferometer test report included with each unit. This ensures superior angle measurement reliability.

2)Glass Material
Precision-ground optical K9 glass, providing excellent light transmission and minimal distortion.

3)Measuring Range
Up to 2000 m under normal weather conditions, supporting long-distance operations.

4)Prism Offset
Fixed at either 0 mm or –30 mm, contingent on the specific prism holder used, allowing for flexible application setups.

2.Physical Specifications
1)Prism Aperture
62 mm (2.44 in), offering a large effective reflective area for robust signal return.

2)Housing Material
High-grade Polycarbonate (PC), engineered for color-fastness and heat resistance, ensuring structural integrity and long-term appearance under solar exposure.

3)Housing Color
Pantone 121C bright yellow (YEL), highly visible in daylight and low-contrast backgrounds, reducing the risk of misplacement and enhancing survey crew efficiency.

3.Environmental Durability
1)Water-proof (W)
Sealed optical construction prevents moisture ingress, ensuring clear vision and durable performance in humid or wet environments.

2)Copper-coated (CU)
Precision copper coating on the prism's reverse surface seals against moisture and condensation, preserving EDM range and extending service life in demanding field conditions.

3)Antifog-coated (AF)
Advanced hydrophilic antifog coating eliminates condensation, maintaining optical clarity during rapid temperature shifts and high-humidity exposure.

4)Accessories
Includes a white dust-proof cover (optional) and a desiccant agent for additional protection during storage
and transport.

4.Mounting Compatibility

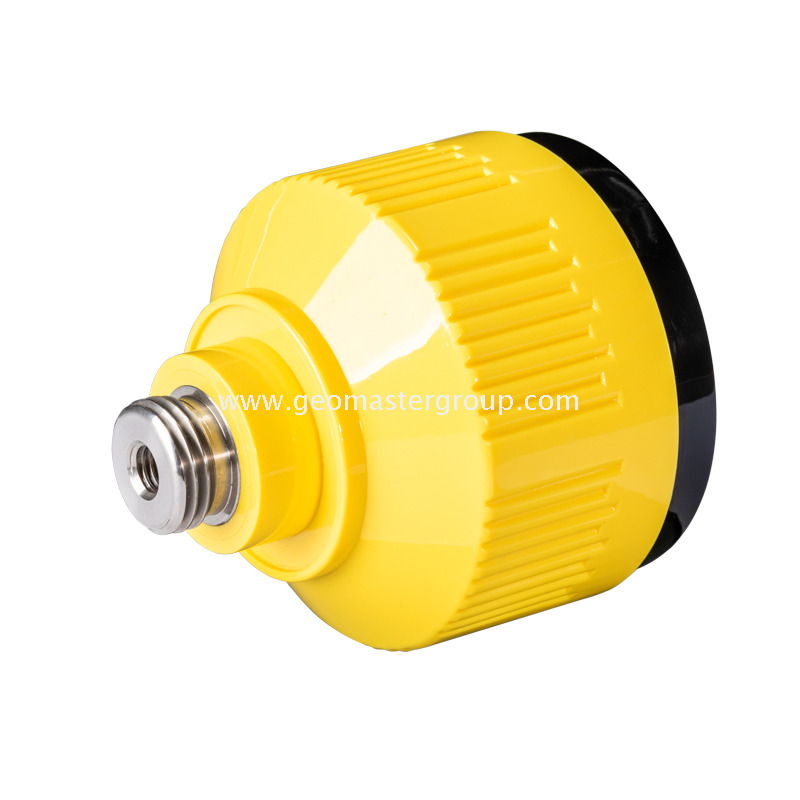

1)Dual Thread System
a)M8 Internal Stainless Steel (SS) Thread

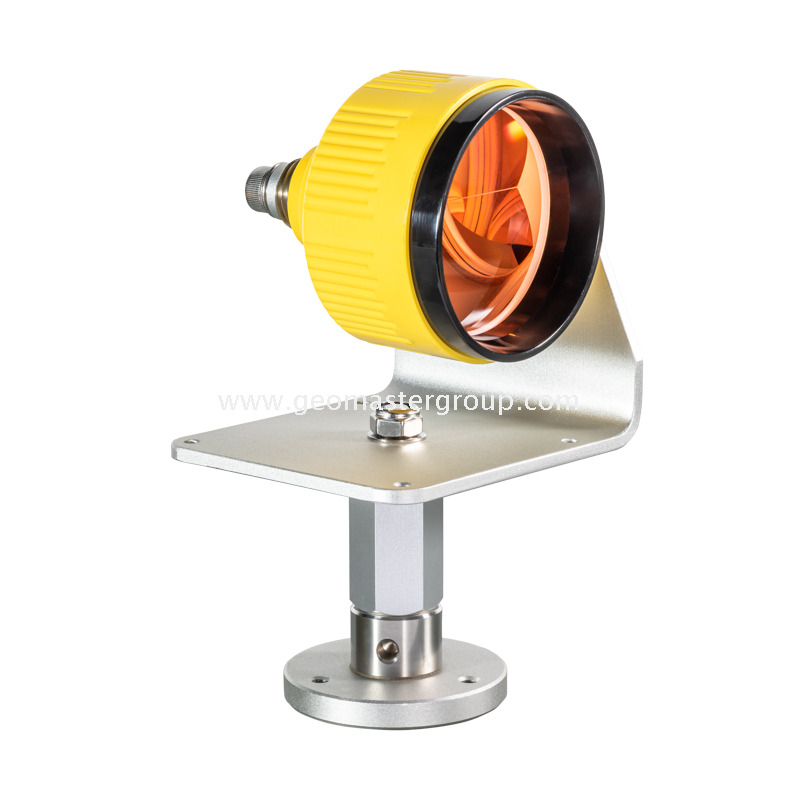

Designed for Geomaster mounting sets (GHT112-8/ALU or GHT112-8/BLK).

b)M20 External Stainless Steel (SS) Thread

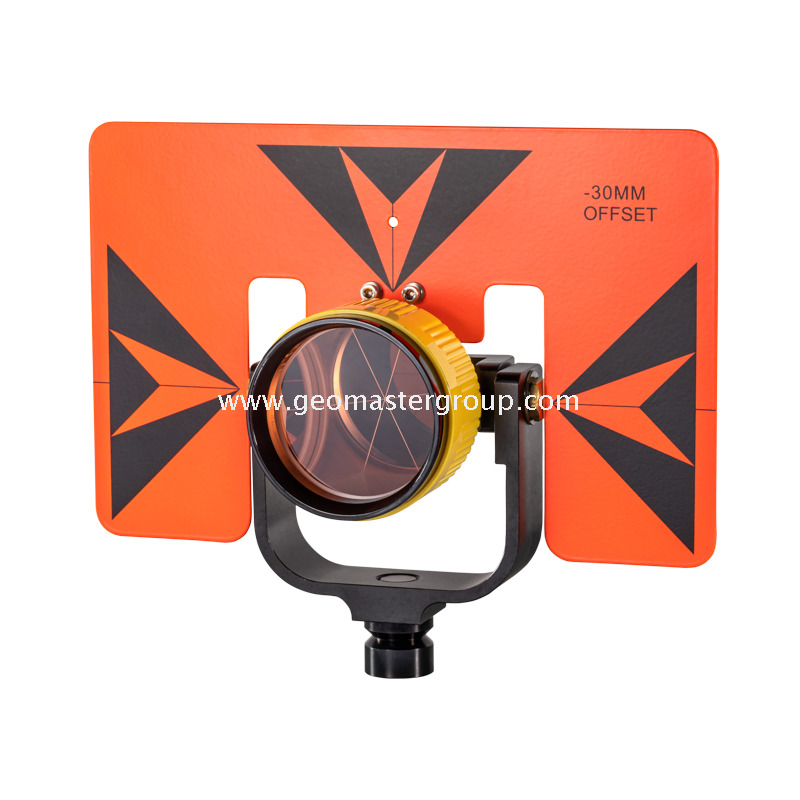

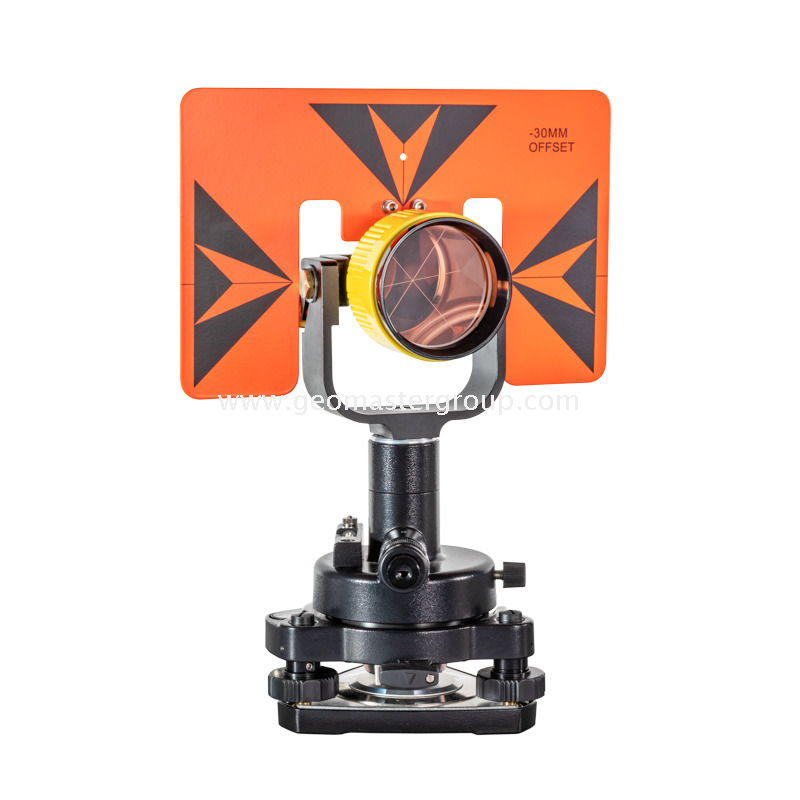

Compatible with most standard prism holders, specifically the GHT112 series with M20 thread, and
Geomaster sets (GHT112-20/ALU or GHT112-20/BLK).

2)Universal Compatibility
Fully interoperable with top-brand surveying instruments, ensuring seamless field integration

Note: Any update would be subject to change without prior notice.(GPR113)
