GEO3240 (Mag.:32x;A.:40mm)
Geomaster
9015900090
Specifications & Features

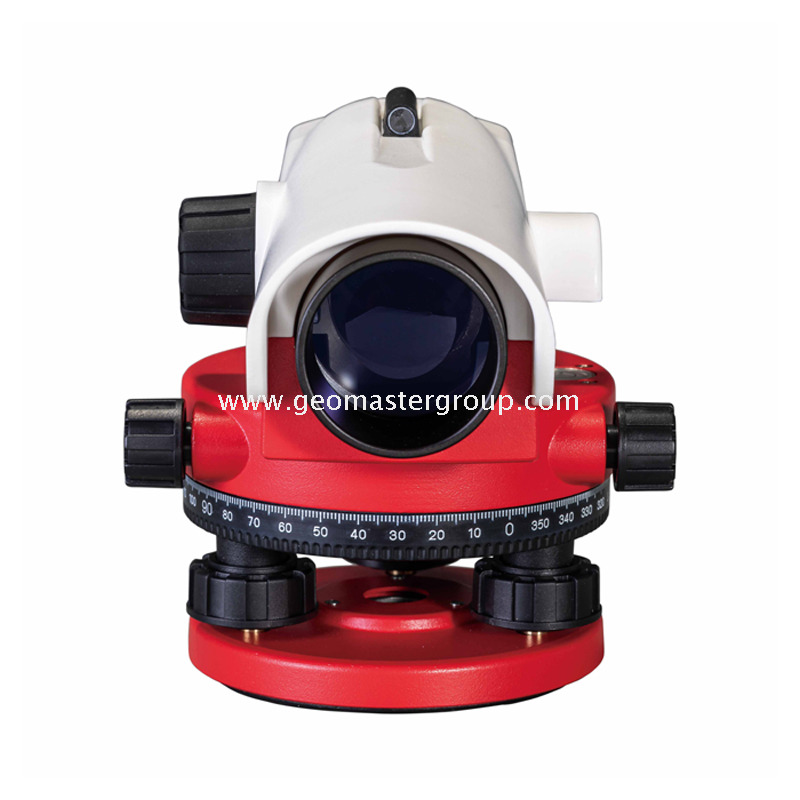

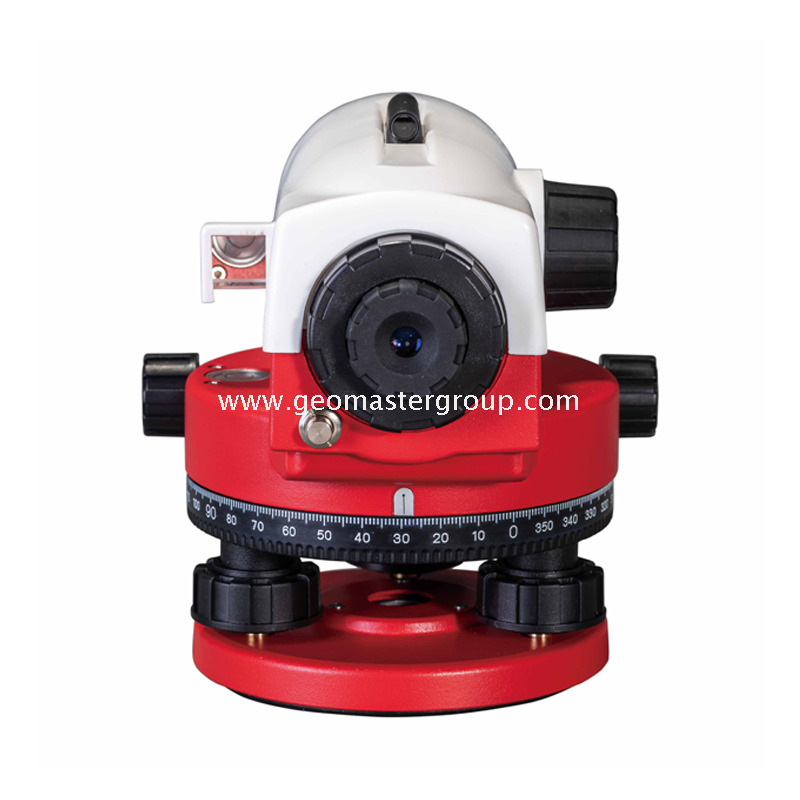

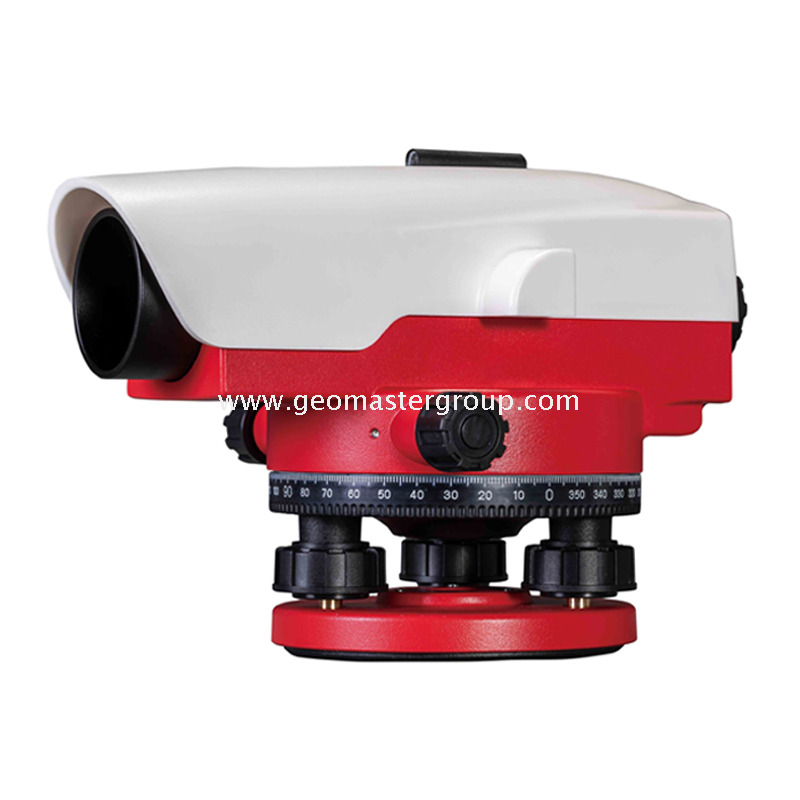

Model: GEO3240
1.Geomaster Automatic Level, replacement of the Swiss-style original Automatic Level N532
2.Telescope Magnification: 32x
3.Accuracy (Standard Deviation for1Km Double-Run Leveling): ±1.0mm (without Micrometer)
4.Objective Aperture: 40mm; multi-coated Objective Lens producing HD Image
5.Image of Telescope: Erect
6.Shortest Focusing Distance: 0.4m
7.Field of View: 1°20´
8.Setting Accuracy: ±0.3"
9.Setting Time: ≤2"
10.Resolution Power: 6"
11.Compensator Type: Air Damping; equipped with a Check Button for protecting, checking, and controlling
12.Working Range: ±15"
13.Multiplication Constant: 100
14.Additive Constant: 0
15.Circular Level: 8'/2mm, offering high precision and great stability
16.Outer Horizontal Circle: 360°/1°; 400gon/1gon available

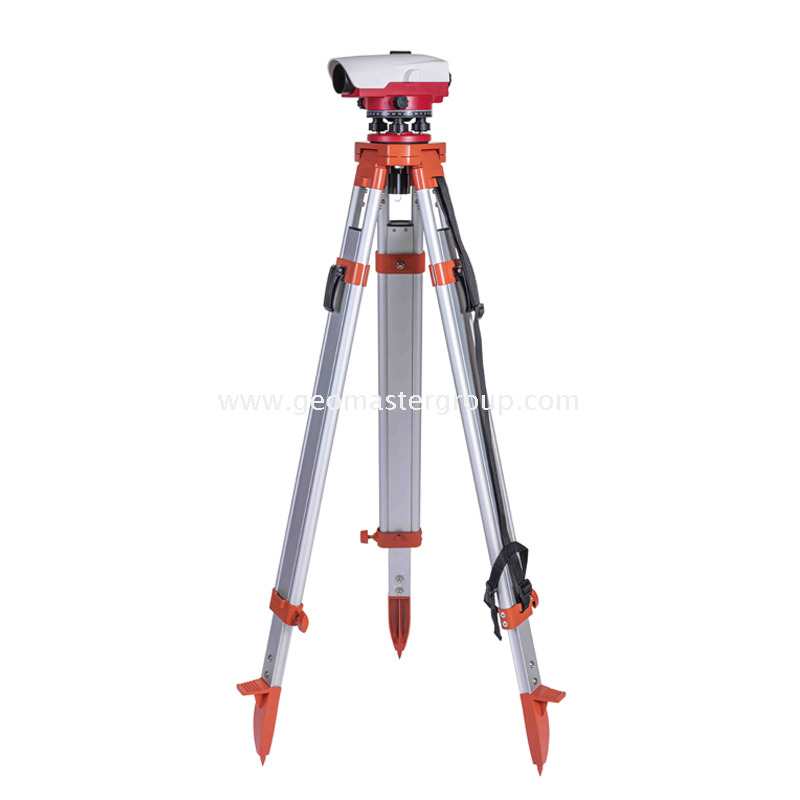

17.Central Thread 5/8" compatible with all present Surveying Tripods
18.IP54, shock-resistant, dust-tight and water-proof for rough working conditions

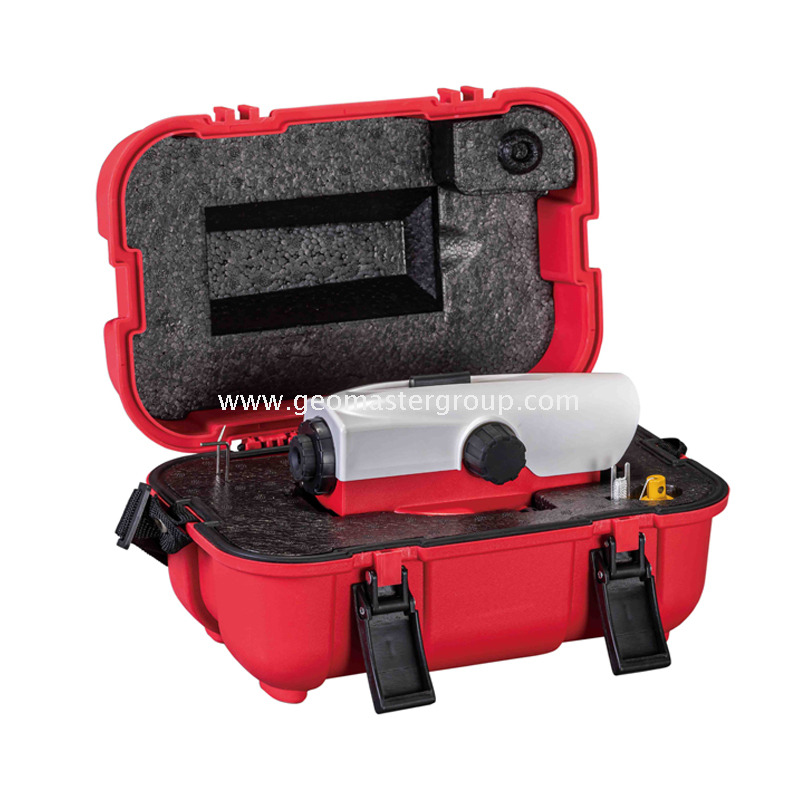

19.Standard Accessories: Adjusting Pin, Desiccating Agent, Hex Key, Plumb Bob, User Manual
20.The following Magnifications are available
32×(GEO3240), 28×(GEO2840), 26×(GEO2640), 24×(GEO2440)
Note: Any updates are subject to occur without prior notice!!
