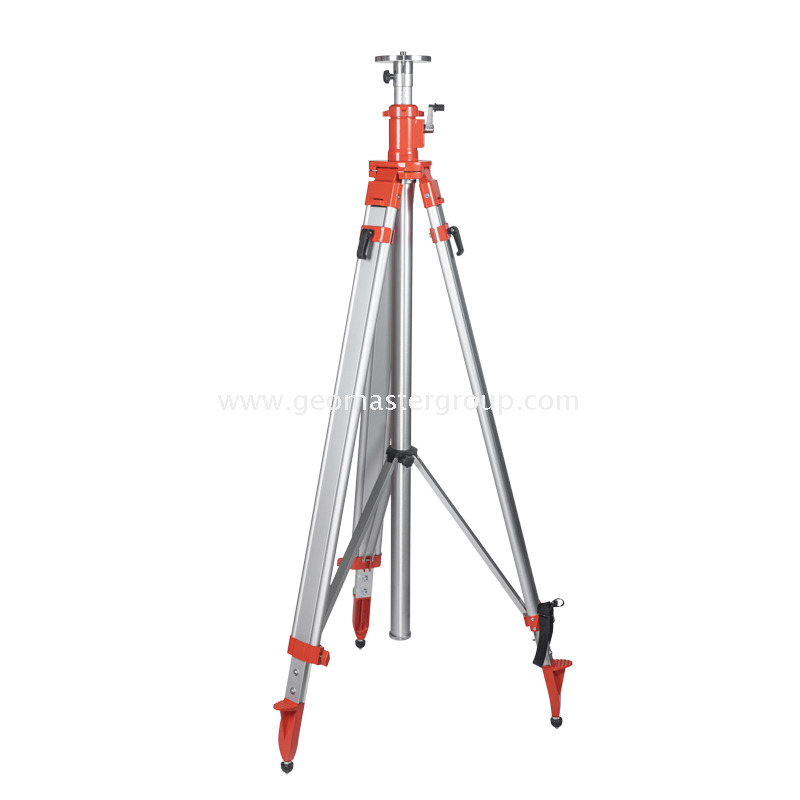

Contractor Elevator Tripod (3.6m)

Specifications & Features
Model: CET300-365ALU-ORG
This ultra-duty aluminum Contractor Elevator Tripod is designed for outdoor surveying and measurement applications. Engineered for rugged durability and consistent operation in all weather conditions, it is made
of construction-grade aluminum alloy to ensure lasting performance on demanding job sites.

1.Height Range
1.64 m (min.) to 3.6 m (max.)

2.Extension Pole (Elevator Center Column)
110-115 cm long, with 1 mm graduation.

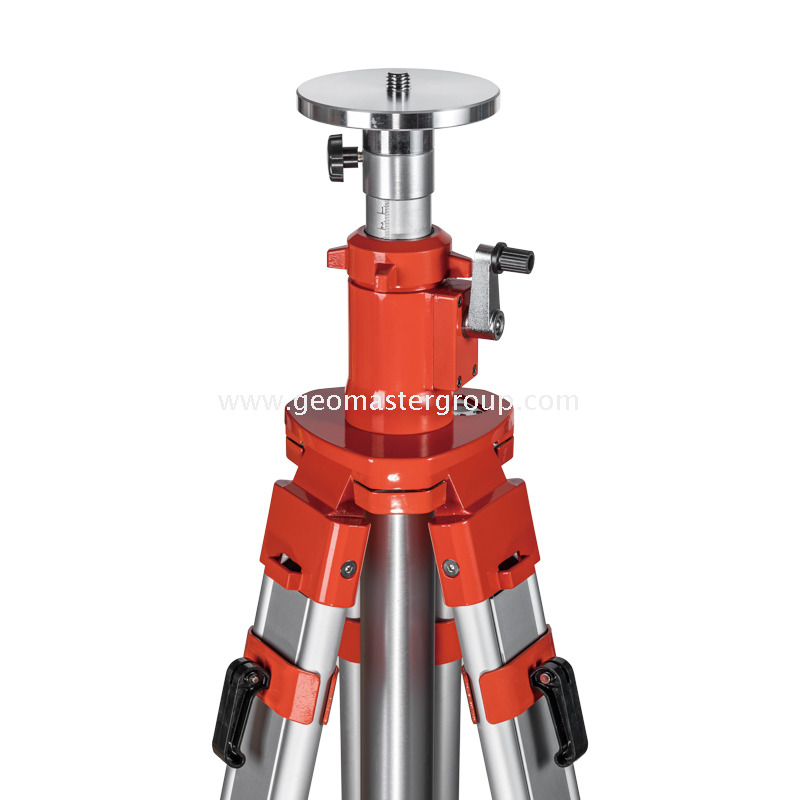

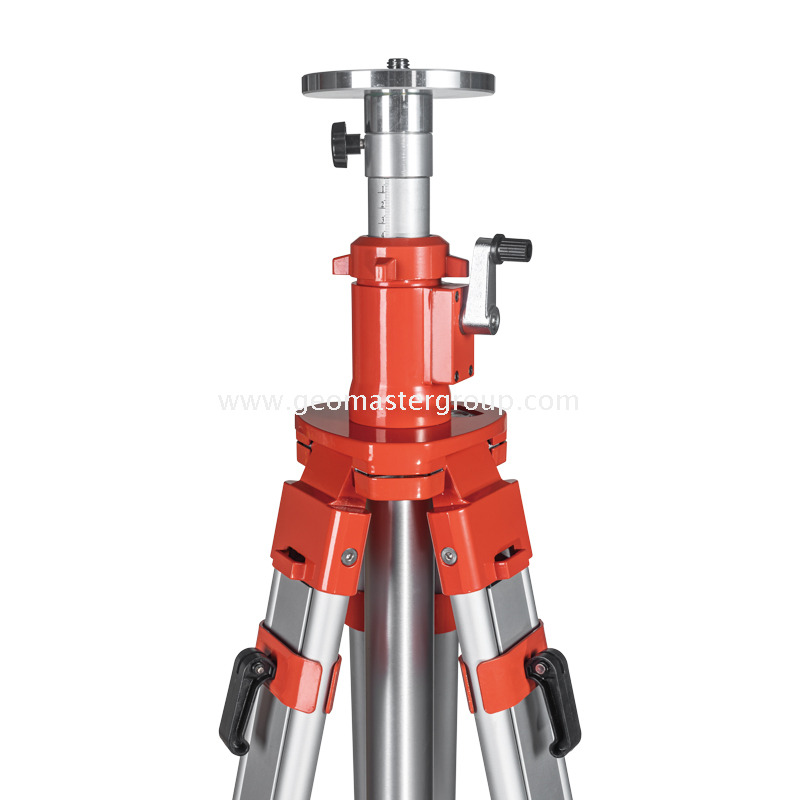

3.Rack-and-Pinion Lift System (Metal Hand Crank)
Allows fast, smooth, stable vertical movement and precise height adjustment.

4.Large Platform (Carrier Base, Support Plate)
126 mm diameter, equipped with a 5/8" external adapter. Provides secure, robust support for heavy surveying instruments, including Laser Trackers, Laser Scanners, Robotic Total Stations, ScanStations, LiDAR Scanners, Theodolites, SLAM Scanners, Laser Levels.

5.Double Locking Mechanism
Equipped with both a quick-release lever and a wingnut clamp, this dual locking system ensures secure, stable locking while respecting the customer’s preferred locking style.

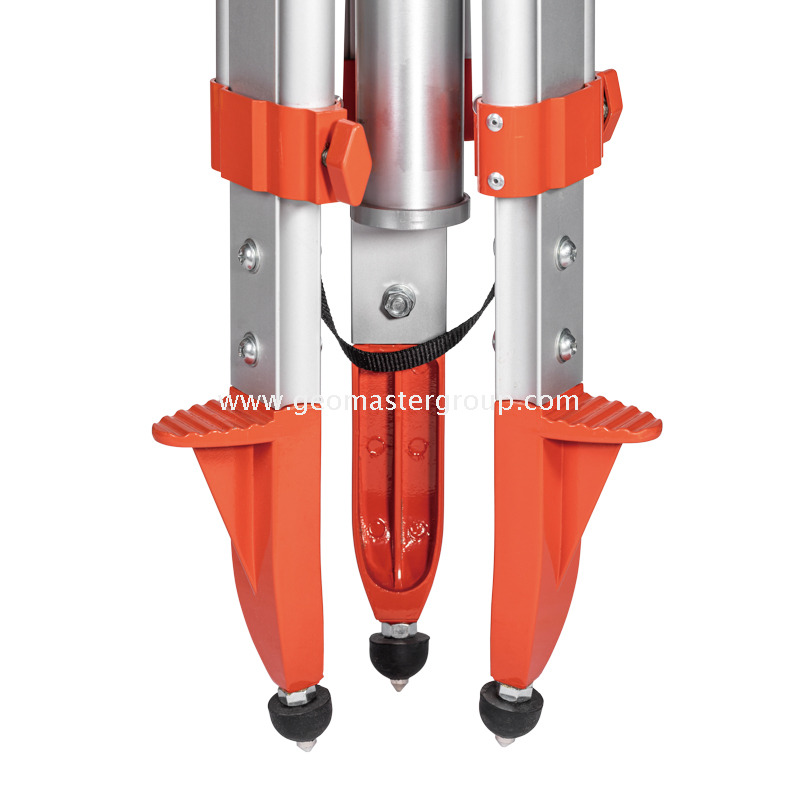

6.Metal Feet
Equipped with Adjustable Gummed Tip Points, suitable for hard, soft, slippery, or uneven surfaces.

7.Circular Bubble (60'/2 mm)
Built into the tripod head for quick leveling, ensuring precise and efficient operation.

8.Available Colours of Metal Parts
Black, Green, Orange, Yellow.
Note: Any updating would be subject to change without prior notice.  RTK Pole, RTK Tripod, DRTK3 Pole, DRTK3 Tripod. DRTK2 Pole, DRTK2 Tripod.
