Highlights
Model: GSR111-175BLK/20-40
1.Geomaster Dual Strut Bipod (GSR111)
2.Geomaster Thumb Release GPS Pole Bipod
3.Height Range: 1.07m to 1.75m
4.Clamping Range: 20-40mm
5.Uncrushable open-clamp Head
6.Quick-release Thumb & Twist Knob Lock
7.Made of black anodized Aluminum (BLK)
8.Durable Carrying Bag
9.For GPS Poles,TLV Poles,Poles,Prism Poles
| Quantity: | |
|---|---|
GSR111-175BLK/20-40
Geomaster
90159000
Specifications & Features
Model: GSR111-175BLK/20-40

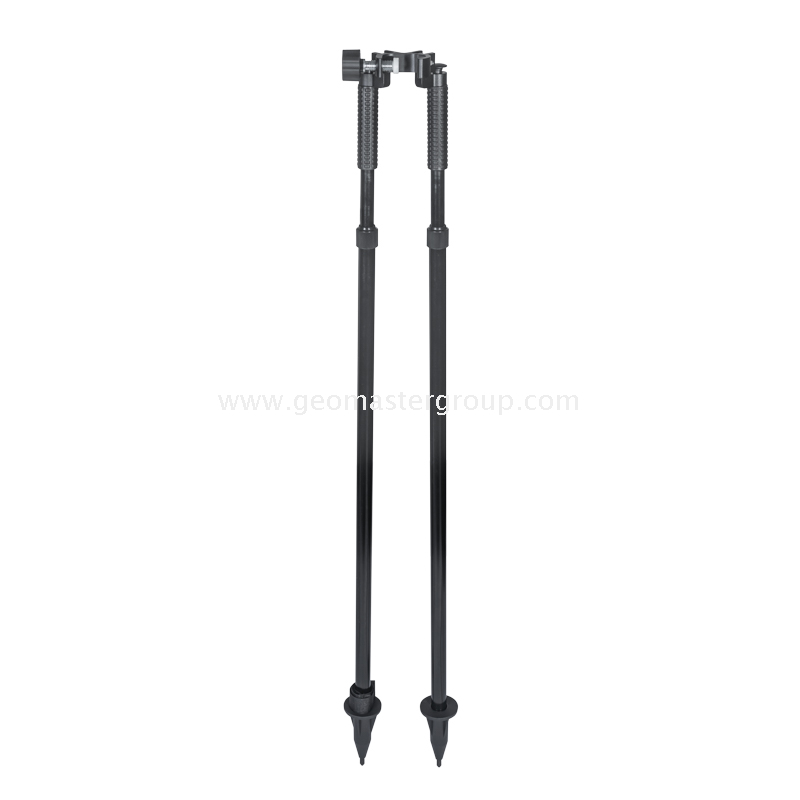

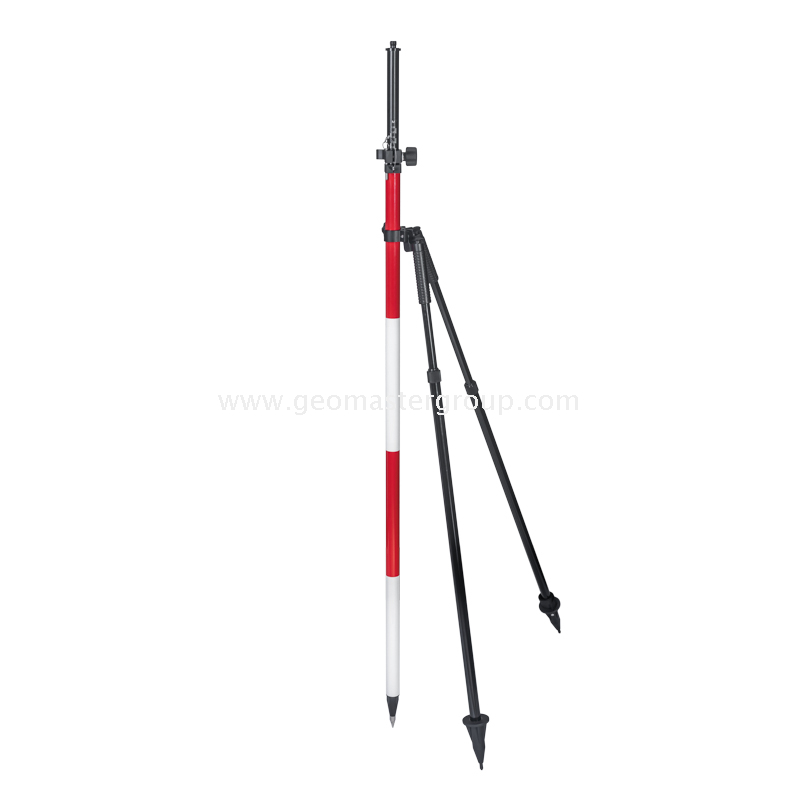

1.Geomaster Thumb Release GPS Pole Bipod,specially designed for accommodating all present free-
standing Surveying Poles and Rods such as Prism Poles,GLS Reflector Poles, Laser Poles, GPS
Antenna Poles,Radio Poles,Range Poles,Rover Poles,TLV Poles,QLV Poles,Robotic Poles
2.Made of heavy-duty black-anodized construction aluminum
3.Maximum Height: extended to 1.75m (5.75ft)
4.Minimum Height: collapsed to 1.07m (3.5ft)
5.Inner Tube Diameter: 19mm
7.Inner Tube Thickness: 1.5mm
8.Outer Tube Diameter: 24mm
9.Outer Tube Thickness: 1.25mm

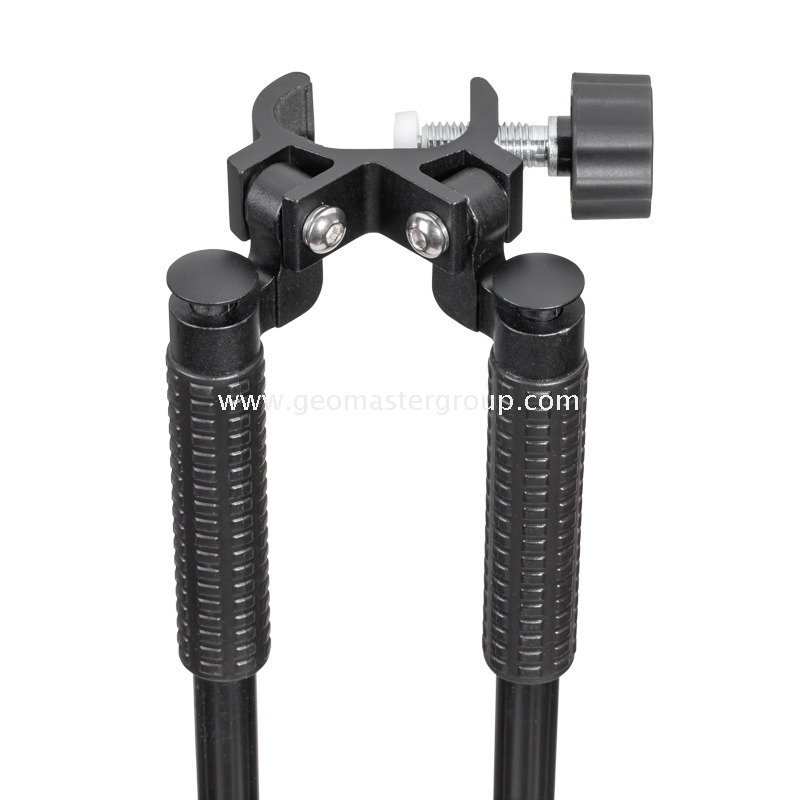

10.Uncrushable open-head (Side-entry) Clamping Range: 20-40mm, suitable for all popularPoles
by installing from the side or through the top

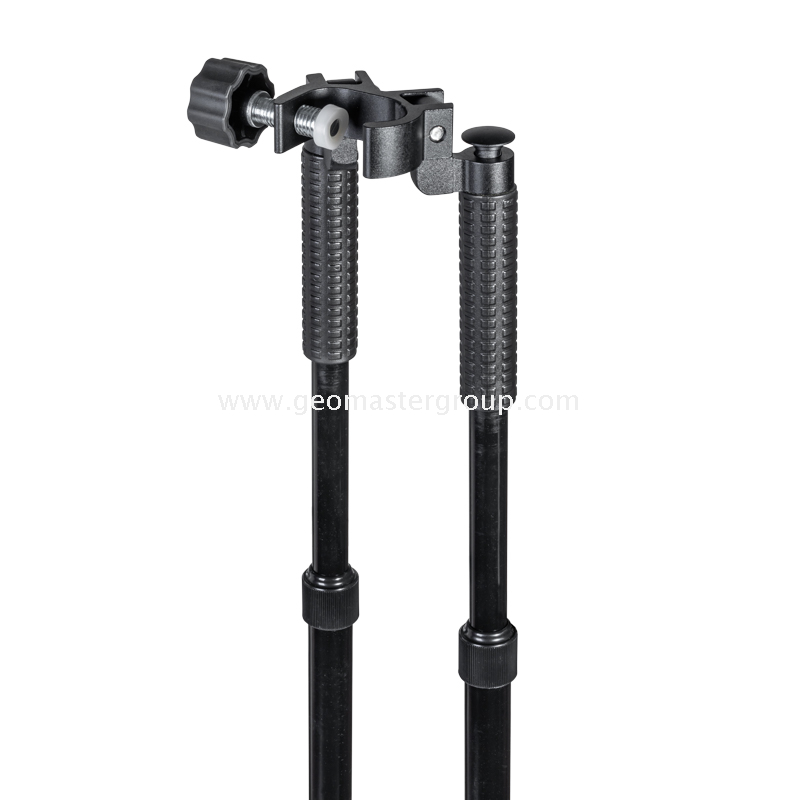

9.Large rubber Twist Knob Locking Mechanism offering fast attaching or detaching
11.Quick-release Thumbs holding the Telescopic Legs at your desired working heights
12.Ergonomically designed black ABS Handle for comfortable and secure gripping

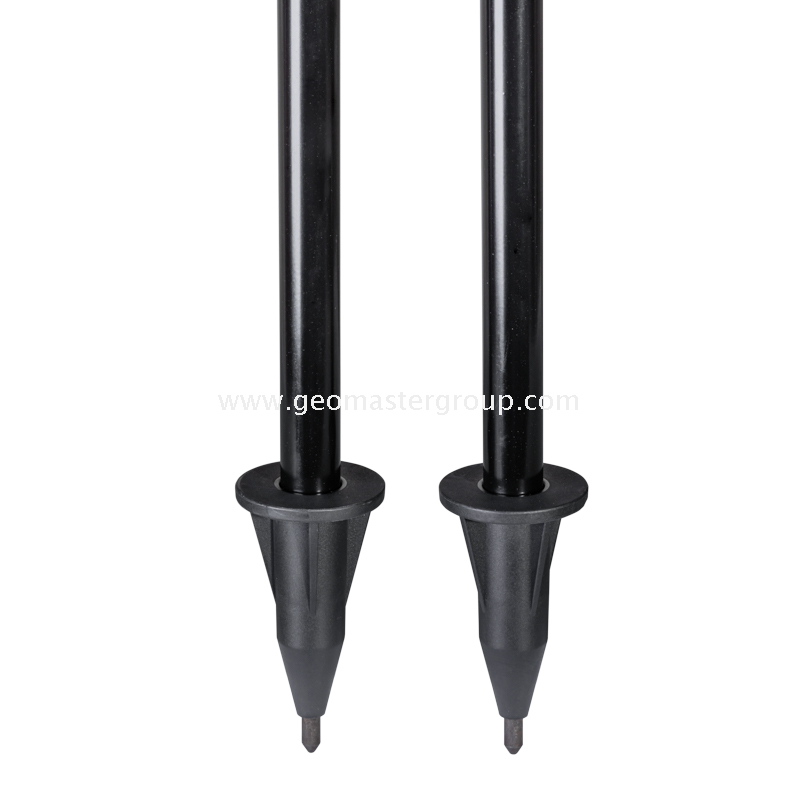

13.Metal Tip Points for easy transfixing to the ground

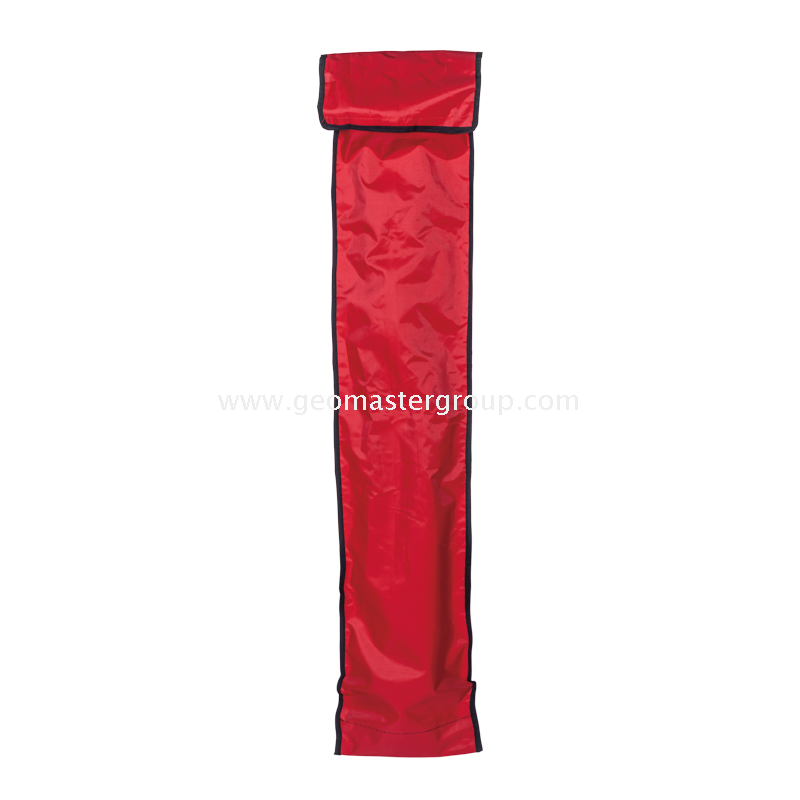

14.Rugged Carrying Bag (N.W.: 220-230g) for carry-around and easy storage
15.Multiple Colors available: Black,Green,Orange,Yellow,Flo Green,Flo Orange,Flo Yellow
Note:Any updating would be subject to change without prior notice.
