Highlights
Model: GRT146-58/120-BLK

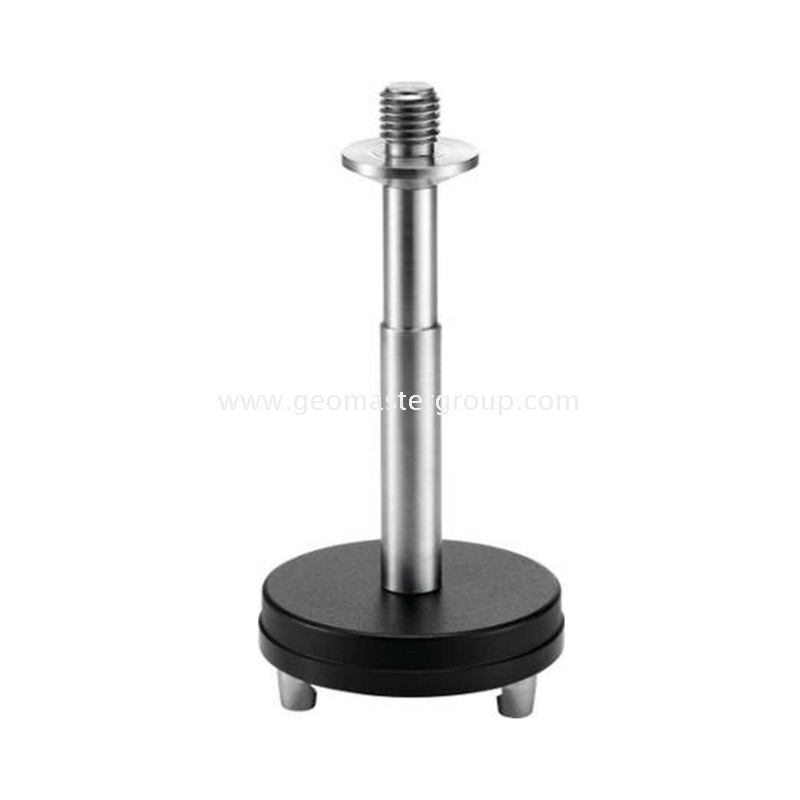

1.Geomaster GPS Fixed Carrier (GRT146)
2.Geomaster Prism Fixed Adapter
3.w.5/8" external Thread
4.Effective Height up to 120mm
5.Color: Black anodized (BLK)
6.For GPS,RTK,Prism Reflectors,Laser Scanner Spheres
7.Compatible w. all GDF Tribrachs & Geomaster Tribrachs
| Quantity: | |
|---|---|
GRT146-58/120-BLK
Geomaster
90159000
Specifications & Features
Model: GRT146-58/120-BLK
1.Geomaster GPS Fixed Carrier, Prism Base, Prism Adapter, Tribrach Adapter
2.Replacement of original Fixed Carrier GRT146 (Pale Green,GRN)
3.Adapter shank made of stainless steel;
4.with 5/8" external Thread, mounting GPS Antennas,RTK,Prism Reflectors,Laser Scanner Spheres,Retro Targets,
Survey Targets....

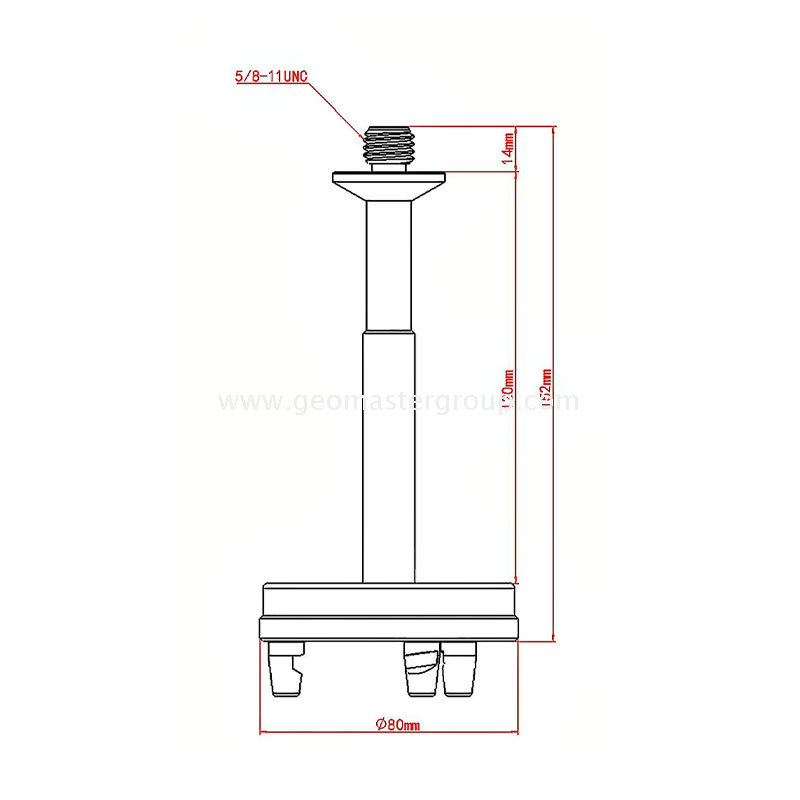

5.Shank Height: 120mm (see the attached sketch)
6.Three-prong Plate Base: 80mm (OD)×18mm (Height)
7.Centering Accuracy: ±1.5mm
8.N.W.: 500-510g
9.Compatible w. all GDF Tribrachs (GDF111,GDF112,GDF322,GDF321...)
10.Compatible w. all SECO & Trimble GPS & Prism Tribrachs
11.Compatible w. all Geomaster GPS & Prism Tribrachs (TS15 & SX10 series)
12.Colors a/v: Black anodized(BLK), Pale Green(GRN)
13.Height a/v from 70mm to 200mm
Note: Any updating would be subject to change without prior notice.
