Highlights
Model: GSR115-175BLK/36-60

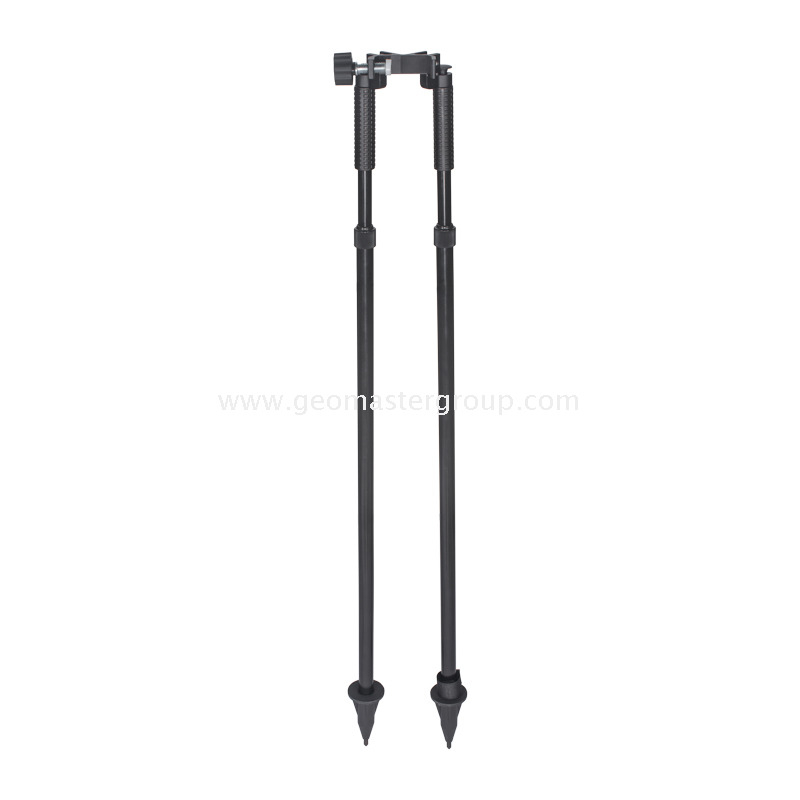

1.Geomaster Dual Strut Support (GSR115)
2.Geomaster quick-release Staff Bipod
3.Height Range: 1.07m to 1.75m
4.Leg Color: black anodized (BLK)
5.Clamping Range: 36-60mm
6.Head Lock: Black ABS Lock Knob
7.Rugged Carrying Bag

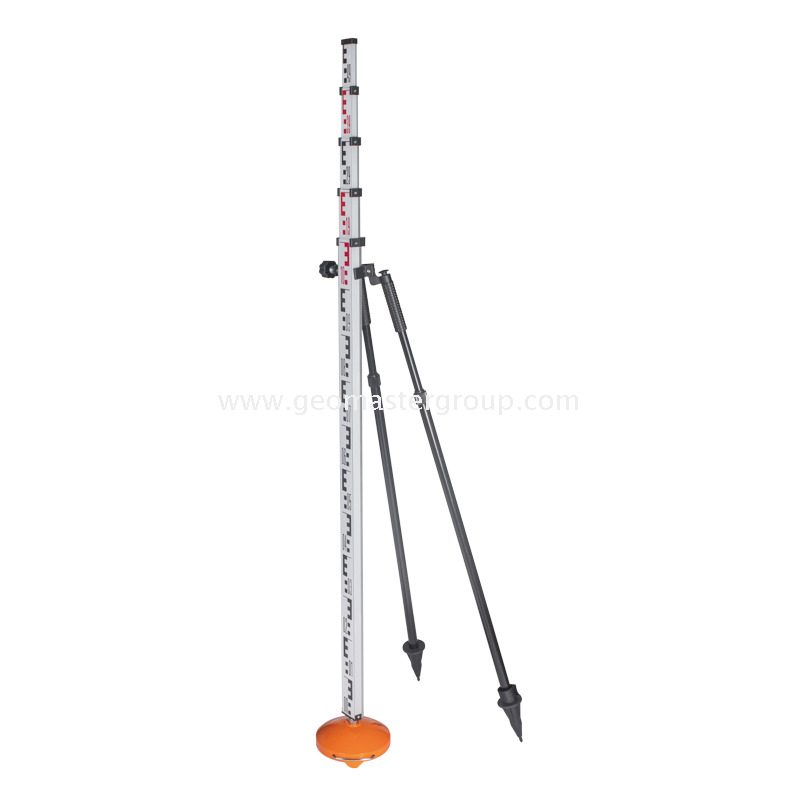

8.For medium-duty Leveling Staffs & Leveling Rods
| Quantity: | |
|---|---|
GSR115-175BLK/36-60
Geomaster
901580000
Specifications & Features
Model: GSR115-175BLK/36-60

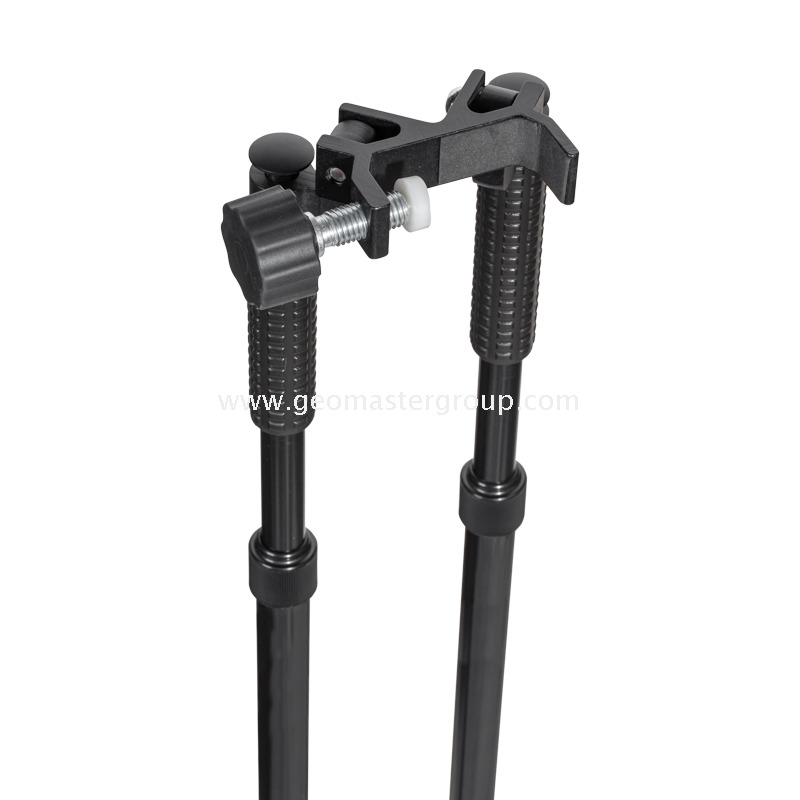

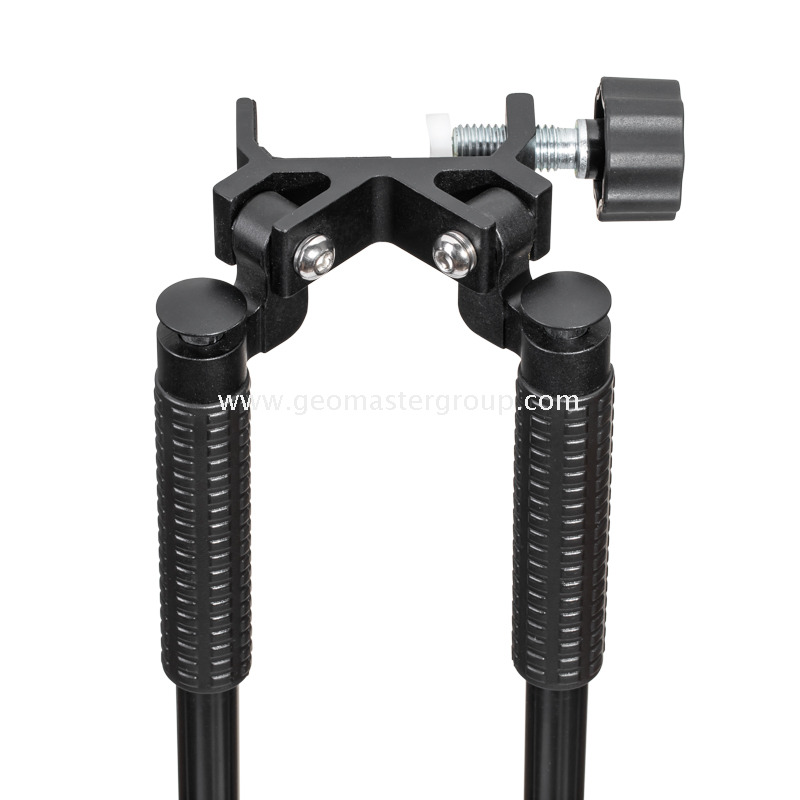

1.Head Style: Rectangular Thumb Screw Head
2.Made of heavy-duty black-anodized construction aluminum
3.Minimum Height: collapsed to 1.07m (3.5ft)
4.Maximum Height: extended to 1.75m (5.75ft)
5.Inner Tube Diameter: 19mm
6.Inner Tube Thickness: 1.5mm
7.Outer Tube Diameter: 24mm
8.Outer Tube Thickness: 1.25mm
9.Leg Locking System: Thumb Release
10.Leg Color: black anodized (BLK)
11.Head Clamping Range: 36-60mm
12.Equipped with adjustable rectangular Thumb Screw Head compatible with most medium-
duty Leveling Rods/Staffs (Aluminum, Fiberglass, Invar, Bar-code, Digital...)
13.Thumb Release Locking System for easy and fast locking,unlocking and setting up the desired
working heights

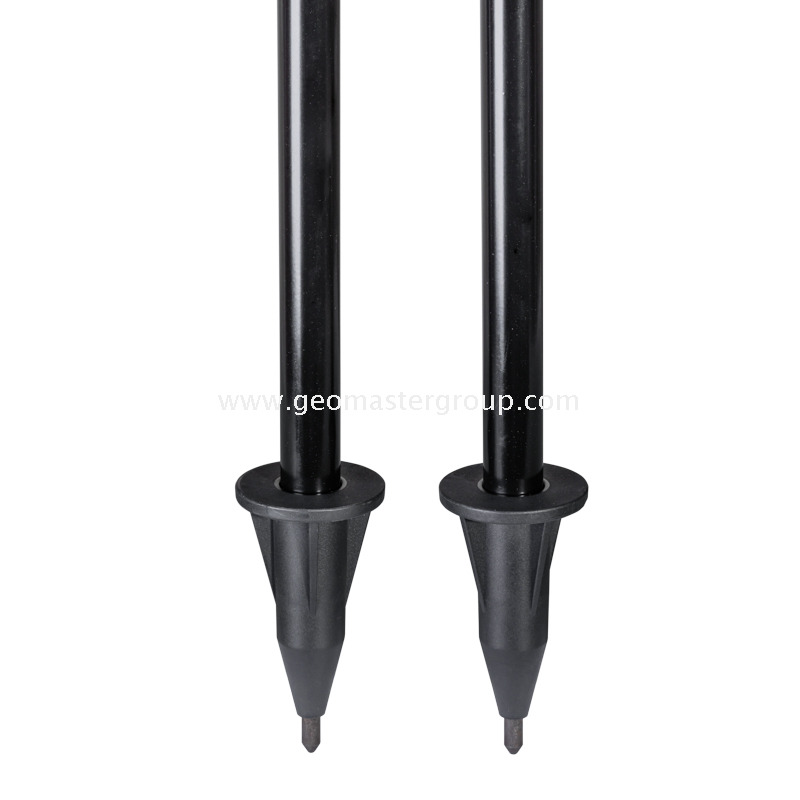

14.Metal Feet Tip-toes easy transfixing to the ground and ensuring stability on hard, slippery,
or uneven surfaces
15.Ergonomically designed black ABS Handle for comfortable and secure gripping
16.Strong Carrying Bag (290g) for secure and convenient carrying and transport
17.Leveling Staff Ground Plate/Change Plate (GPS) for option
18.Multiple Colors available: Black (BLK),Regular Yellow (YEL),Regular Orange (ORG),Fluorescent
Yellow (Flo Yellow,FLY),Fluorescent Orange (Flo Orange,FOR)
Note:Any updating would be subject to change without prior notice.
