Model: DQL-16Z

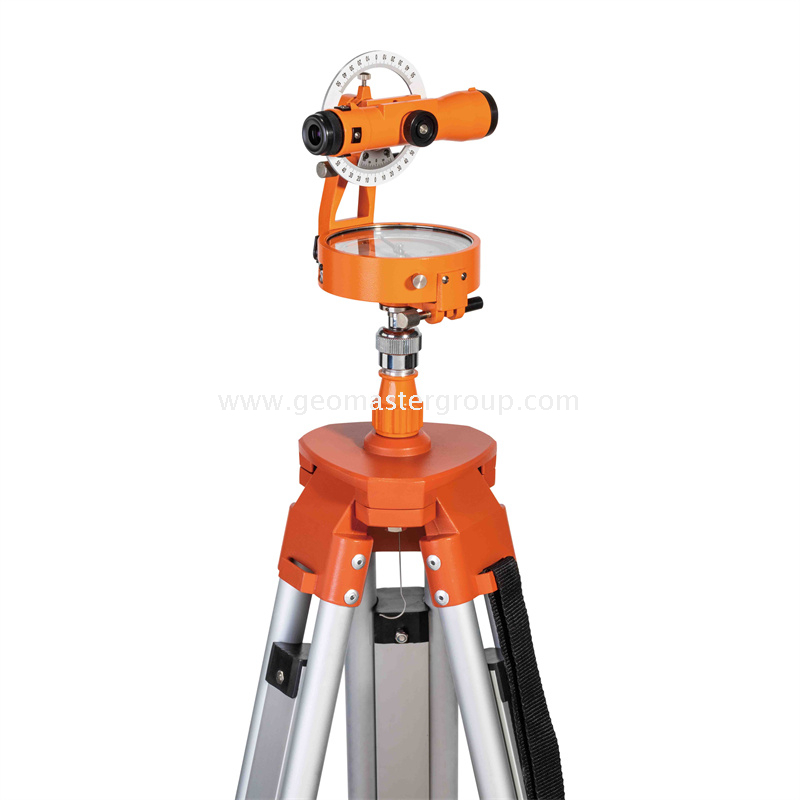

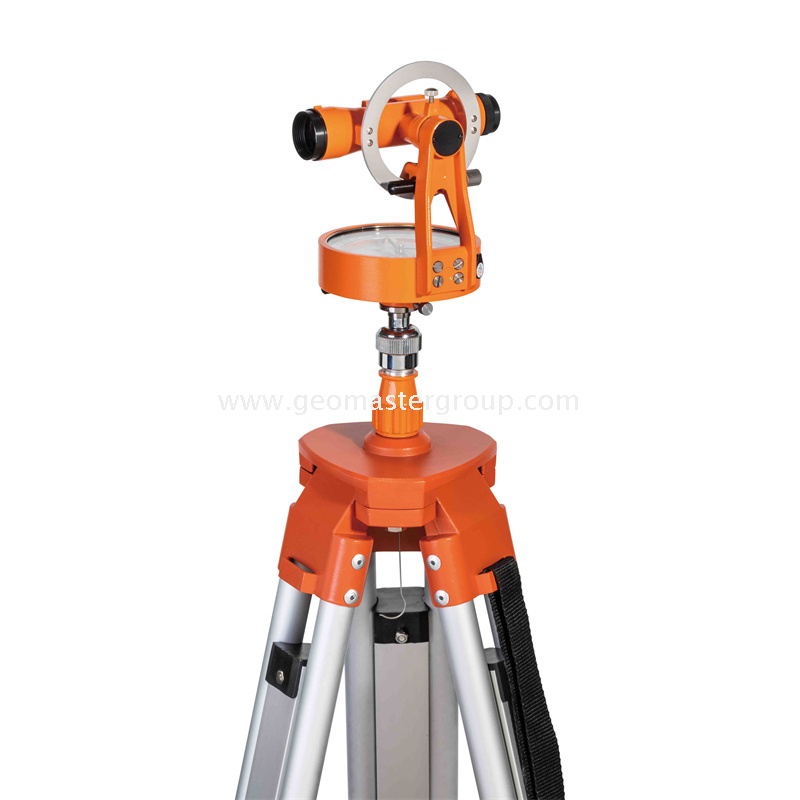

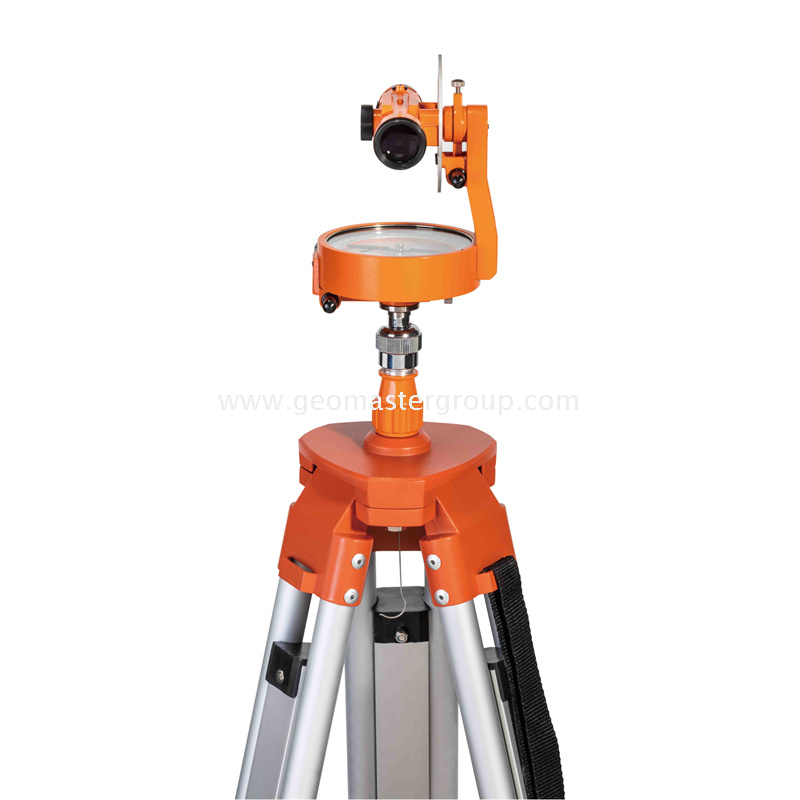

1.Precision Optical Compass
2.Magnification: 16x
3.Image: Erect
4.w.HZ & V.Verniers

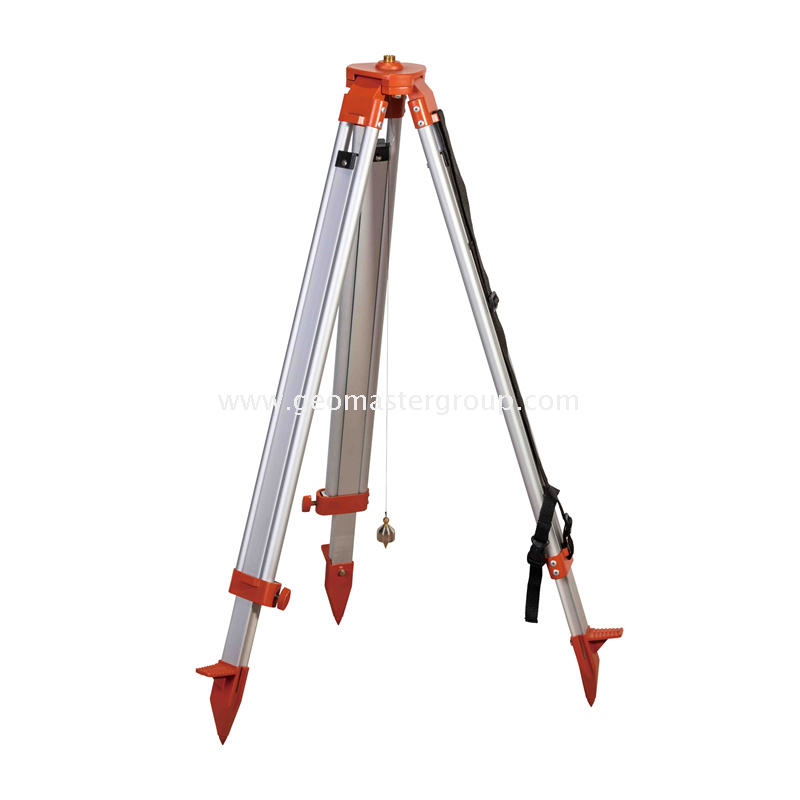

5.w.Aluminum Tripod

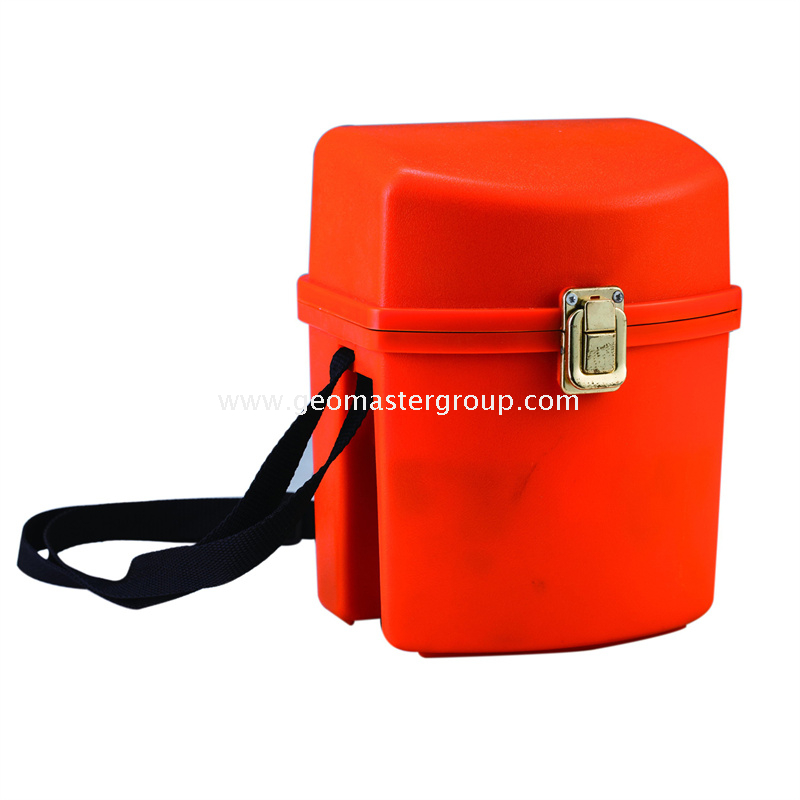

6.w.ABS Carrying Case
| Quantity: | |
|---|---|
DQL-16Z
Geomaster
90140000
Features and Specifications
Model: DQL-16Z
For forestry resource surveying, agriculture, hydraulic engineering, geology and etc.: distance, differential altitude, azimuth orientation, slope angle, tree’s height or diameter and etc.
1.Telescope
1)Magnification:16x
2)Image:Erect
3)Tube Length:143-160mm
4)Aperture:22mm
2.Field of View
2º30'
3.Resolution Power
11"
4.Multiplication Constant
50,100
5.Additive Constant
0
6.Shortest Focusing Distance
2.5m
7.Measuring Range
±50º
8.Plate Bubble Accuracy
20'±5'/2mm
9.Horizontal Dial (HZ. Circle)
1)Dial Diameter: 81-96mm
2)Needle Length: 67mm (2.64")
3)Dial Range:0-360º
4)Dial Min.Graduation: 1º
5)HZ.Vernier Range: 0-30-60'
6)HZ.Vernier Min.Graduation: 5'
10.Vertical Dial (V. Circle)
1)Dial Range: ±50º
2)Dial Min.Graduation: 1º
3)V.Vernier Range: 60-30-60'
4)V.Vernier Min.Graduation: 5'
Note: Any updates would be subject to change without prior notice.(Francis Barker M88，Francis Barker M73)
