Highlights

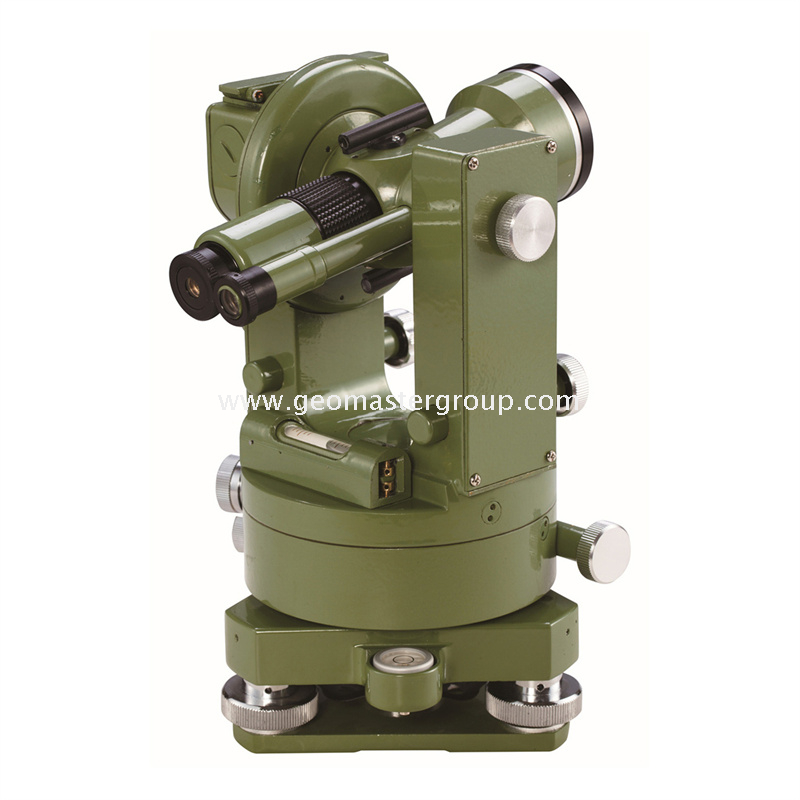

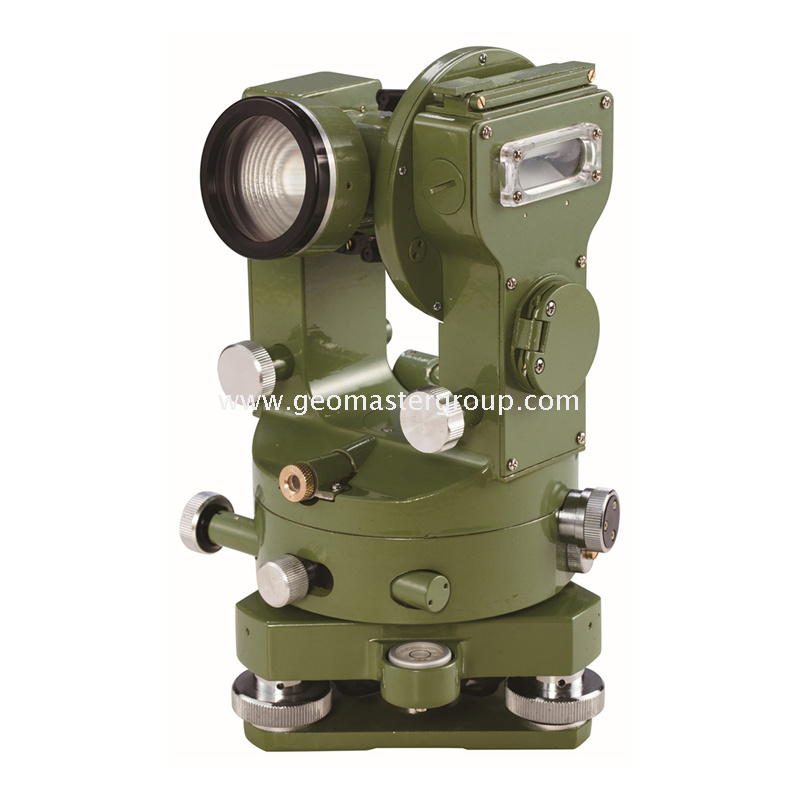

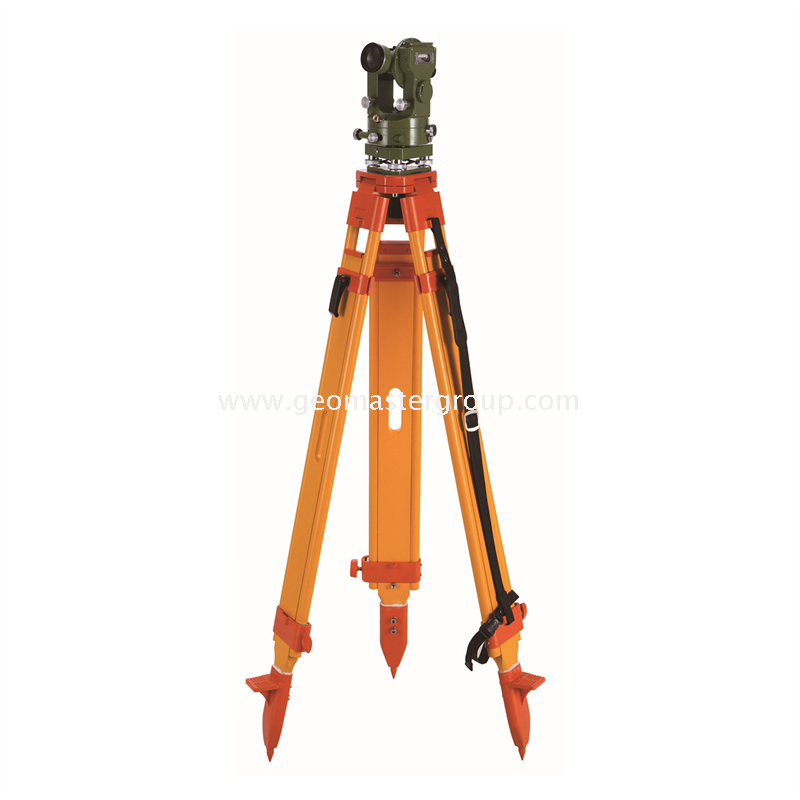

Model: MET-600E
1.Horizontal Accuracy: ±6"
2.Vertical Accuracy: ±10"
3.Magnification: 30x
4.Objective Aperture: 40mm
5.Shortest Focusing Distance: 2m
6.Reading Microscopes: 28x/28x

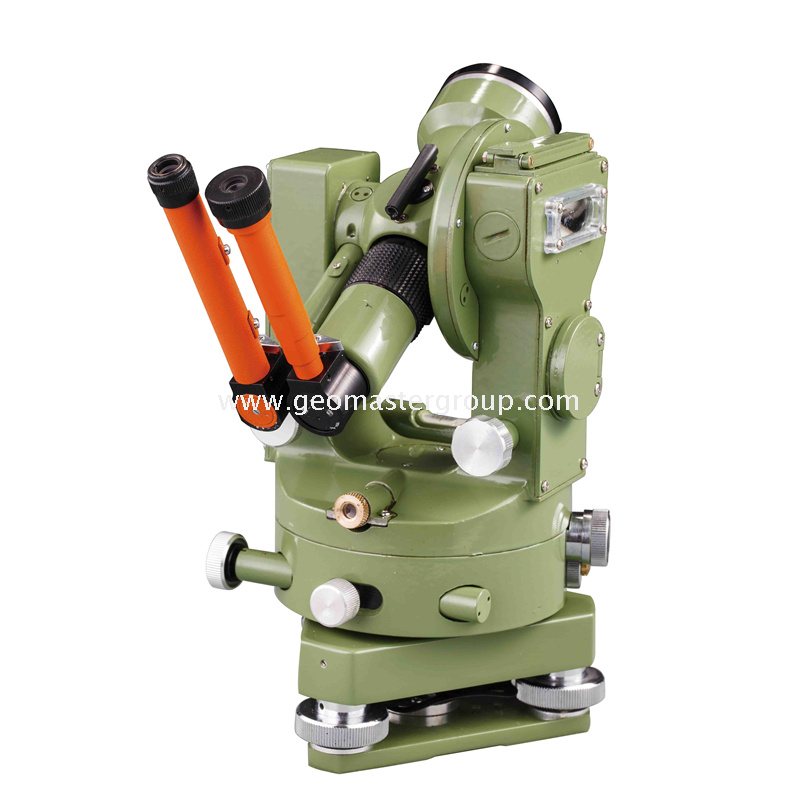

7.Diagonal Eyepiece:available
| Quantity: | |
|---|---|
MET-600E
Geomaster
90152000
Specifications
Model: MET-600E
1.Accuracy
1)HZ. Standard Deviation in Face Left & Face Right: ±6"
2)V. Standard Deviation in Face Left & Face Right: ±10"
2.Telescope
1)Image: Erect
2)Magnification: 30x
3)Effective Objective Aperture: 40mm
4)Tube Length: 170mm
5)Shortest Focusing Distance: 2.0m
6)Field of View: 1º20'
7)Multiplication Constant: 100
8)Additive Constant: 0
9)Resolution Power: 3"
3.Circles
1)Horizontal: 98mm (Dia.)
2)Vertical: 78mm (Dia.)
3)Graduation: 1°
4.Reading Microscope
1)Horizontal System: 28×
2)Vertical System: 28×
3)Min. Interval: 1'
4)Estimated Reading: 0.1'
5.Bubble
1)Circular: 8'/2mm
2)Plate: 30"/2mm
6.Optical Plummet
1)Magnification: 0.85-1.7×
2)Focusing Range: 0.8-1.5m
3)Field of View: 4°
7.Standard Accessories

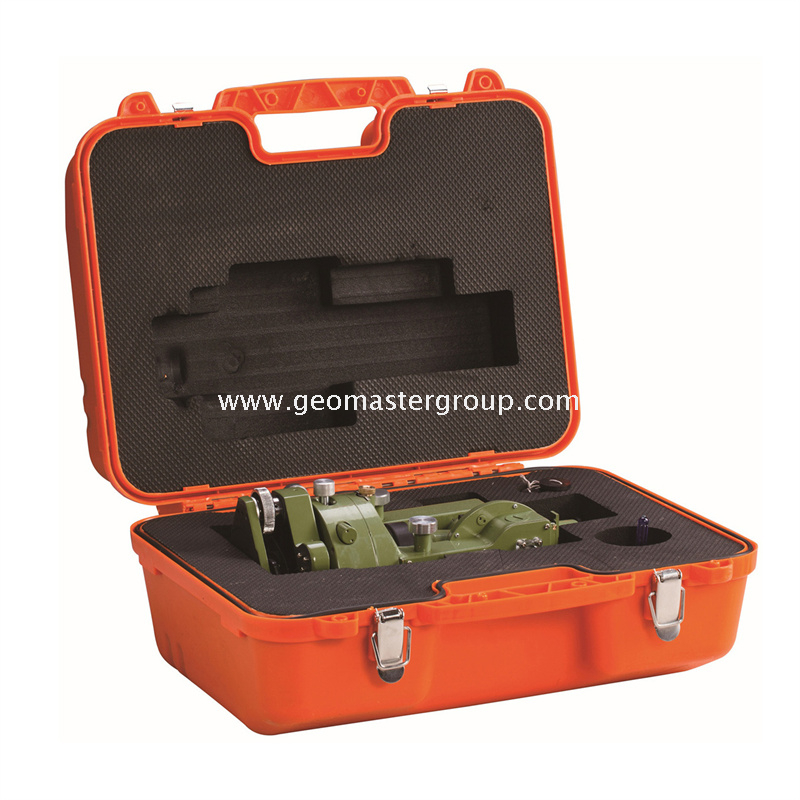

Adjusting Pin,Drying Agent,Lens Cap,Soft Brush,Plumb Bob, Flannel, Screwdriver, Sunshade, User Manual
8.Accessory available

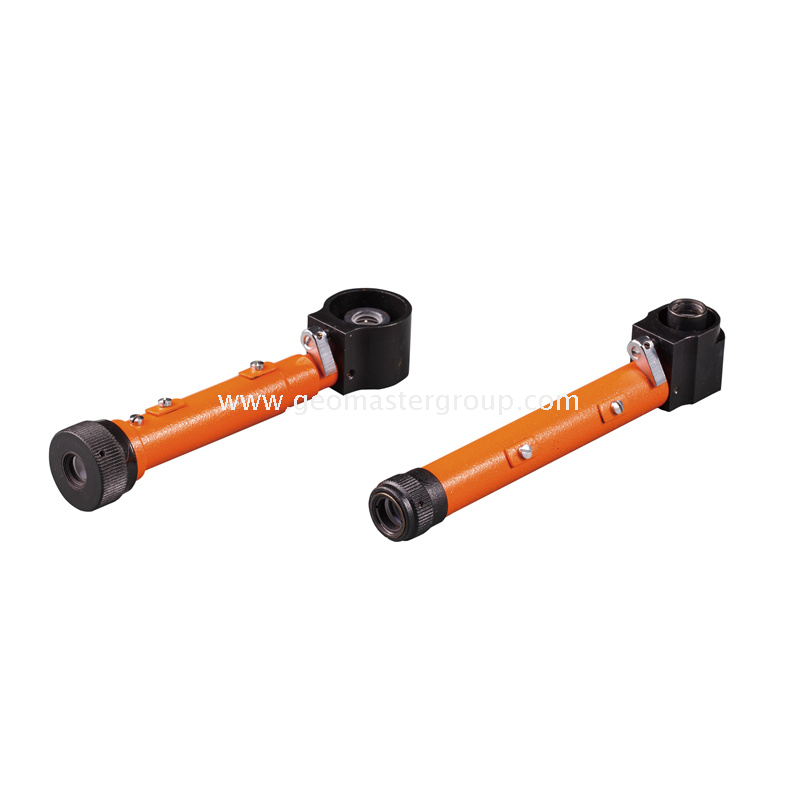

Diagonal Eyepiece CF2: N.W.: 142g; G.W.: 257g
Note:Any updating would be subject to change without prior notice.
