Highlights
Model: DQL-16A
1.Precision Global Pocket Compass/Lensatic Compass
2.Replacement of Sunnto KB-14
3.Optical Reading for higher Accuracy
4.Bearing and Direction Measuring
5.Hand-held,Precision and Professional
6.w.Nylon Carrying Bag
| Quantity: | |
|---|---|
DQL-16A
Geomaster
90140000
Features and Specifications

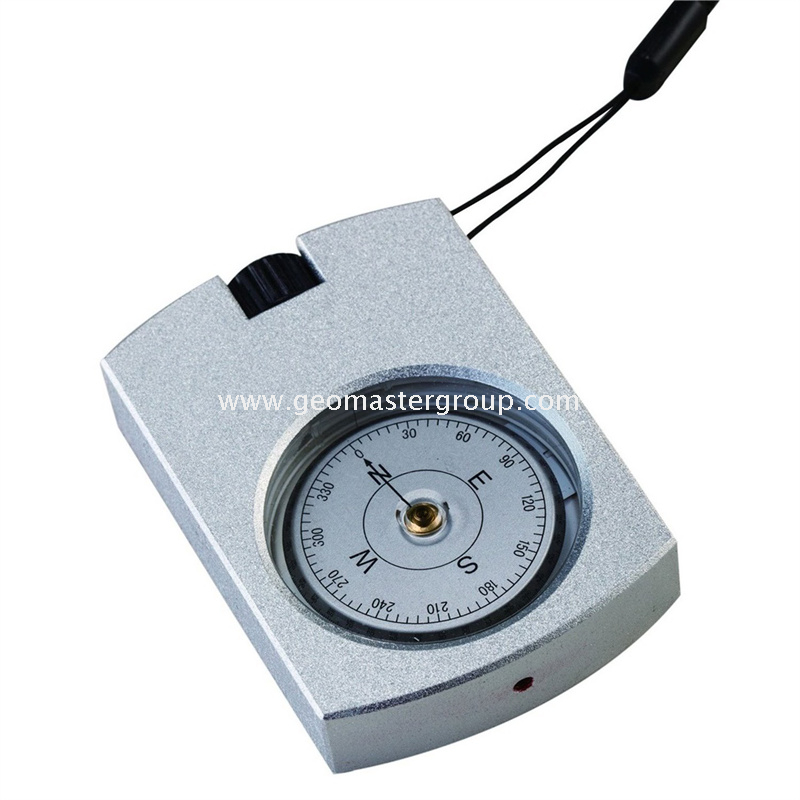

Model: DQL-16A
Equivalent to and replacement of hand-held Sunnto KB-14 (360R G Compass) with high accuracy when
taking direction and measuring bearing all overall the world by Architects, Cartographers, Engineers,
Foresters, Geologists, Miners, Surveyors and many others
1.Sighting System
1)Optical Reading (Lensatic/Prismatic) for more accurate reading
2)Liquid-damping for stable and efficient operation
3)Without Declination Adjustment
2.Compass Dials
1)Top Circle: Azimuth: 0-360º; Interval: 10º
2)Side Circle: Reversed: 0-360º; Interval: 1º; Estimated Accuracy: ± ⅓°
3)Equipped with Saphire Bearing
4)Diopter adjustable (Optical Adjustment)
3.Housing,Needle
1)Anodized aluminum Housing: heavy-duty and corrosion-resistant
2)Needle Cards: immersed in a clear, low-viscosity liquid damping for smooth, vibration-free movement.
3)Viewing Cover: Acrylic,anti-crash

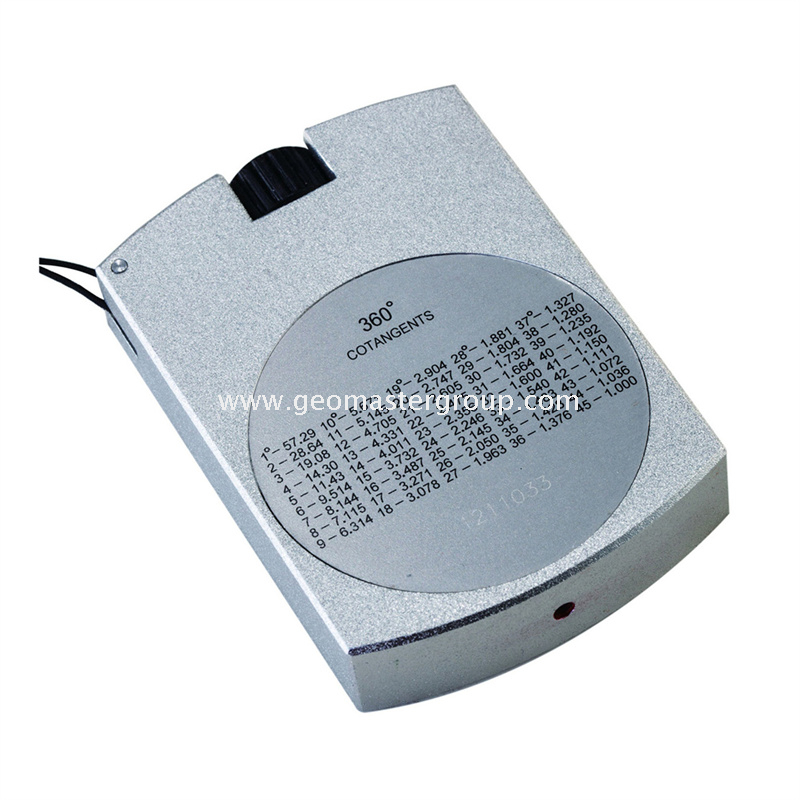

4)Cotangent Table printed on the back
4.Vibration-damping Liquid
Filled with white mineral oil
5.Color
Standard Color: Aluminum-powdered color; Black, Army Green or Camouflage available
6.IP
Fully-sealed; water-proof, dust-proof and shock-proof
7.Ambient/Storage Temperature
-20℃~40℃ (normal-temperature storage suggested)
8.Accessories
Lanyard, Nylon Pouch,Quick User Guide
Note: Any updates would be subject to change without prior notice.(Francis Barker M88，Francis Barker M73)
