GRP48-104C2-05Cu
Geomaster
90159000
Specifications & Features

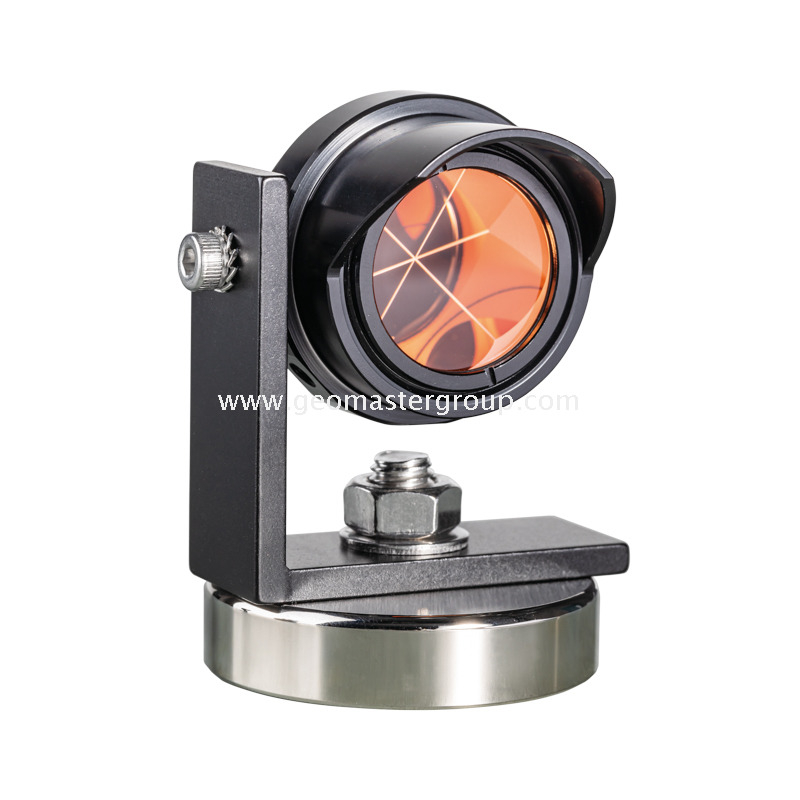

Model: GRP48-104C2-05Cu
This Rail Prism Kit includes Magnetic Rail Prism Base GPB48-30CSK and Rain Shelter L-bar Prism
GMP104C2-05Cu
1.Magnetic Rail Prism Base: GPB48-30CSK
1)Baseplate Diameter: 48mm
2)Baseplate Thickness: 9.5mm
3)Baseplate Center Hole: M8
4)Countersunk Bolt (CSK): M8×30mm
5)Fixing L-bar and Right-angle Monitoring Prisms onto Rail Tracks or other metal working surfaces
6)Strong Ring Magnet (NdFeB) ideal for metal construction surveying (railways, steel bridges, steel structures, etc.)
2.Rain Shelter Prism GMP104C2-05Cu
1)Trimble-style L-bar Prism w. Rain Shelter
2)Detachable Rain Cover (C): 12mm
3)L-bar Size: 3"×3"
4)Prism Aperture: 25.4mm
5)Prism Accuracy: ≦5" (w. zygo Report)
6)Copper-coated (Cu), waterproof (W)
7)Measuring Range: up to 1000m
3.Customization services a/v
1)Baseplate Diameter: 60-100mm
2)Baseplate Colors: chrome-plated (CR),black-anodized (BK), natural anodized (NA)
3)CSK Bolt Length: 25mm~100mm
4)Prism Accuracy: 3",5",8"
5)Prism Coating: non-coated, Copper-coated (Cu) ,Silver-coated (Ag), Antireflective coating (AR), Aluminum-coated (Al)
Note: Any updates would be subject to change without prior notice.
