English
 |
Highlights
Model: Getac-003RND
1.Geomaster Tablet Accessories (Getac-003)
2.Round Base for Rugged Tablets
3.AMPS Mount for Rugged Geo-Tablets
4.ABS Ball Head: Dia.38.1mm (1.5")
5.Round Aluminum Base O.D.: 62mm (2.44")
6.Fixing Holes: 7×M5.3
7.Fit for wooden or hard Working Surfaces
8.Compt.with Rugged Tablets (w.1.5" double-socket ARM)
| Quantity: | |
|---|---|
Getac-003RND

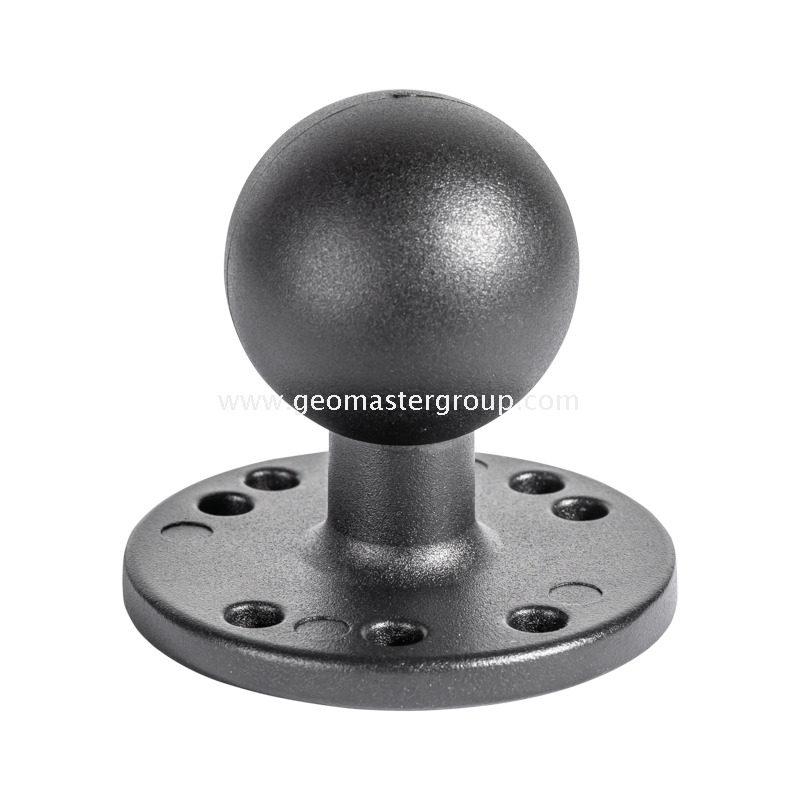

Features and Specifications
Model: Getac-003RND
1.Geomaster Tablet Accessories (Getac-003)
2.Round Base/Plate for Rugged Geo-tablet Holder/Bracket
3.Ball Head Diameter: 1.5" (38.1mm)
4.Round Base O.D.: 62mm (2.44")
5.Round Base Thickness: 5.8-6mm
6.Fixing Holes: M5.3 × 7 (excluding self-drilling Screws) matching the AMPS Industry Standard Hole Spacing
1)4 Holes spacing 30x 38mm(1.181 "x 1.496"),
2)3 Holes spacing 120 ° and diameter 46mm(1.812 ")
7.Material:
1)Ball Head: High strength Composite Nylon
2)Round Base: black-anodized Alloy Aluminum
8.N.W.: 90-95g (excluding self-drilling Screws)
9.Fixing rugged Geo-tablets (with 1.5" double-socket ARM) onto the wooden or other hard working surface
Note: Any updating would be subject to change without prior notice!Note:
