Highlights
Model: Getac80-029SC/204
1.Geomaster Rugged Tablet Mount Kit (Getac80)
2.ABS Balls' Head Diameter: 38.1mm (1.5")
3.Rugged Geo-Tablet Mount Getac-80
4.Clamping Range: 240~300mm (wide)
5.Threaded Ball Adapter Getac-029SC/204
6.Mounting Thread: 1/4" (Dia.)×7mm (L)
7.Tripod Bracket GHT58-204
8.Fixing Holes: 2×5/8" & 2×1/4" & 204mm (H.)
9.Fit for most common Surveyor Tripods
| Quantity: | |
|---|---|
Getac80-029SC/204
Features and Specifications
Model: Getac80-029SC/204

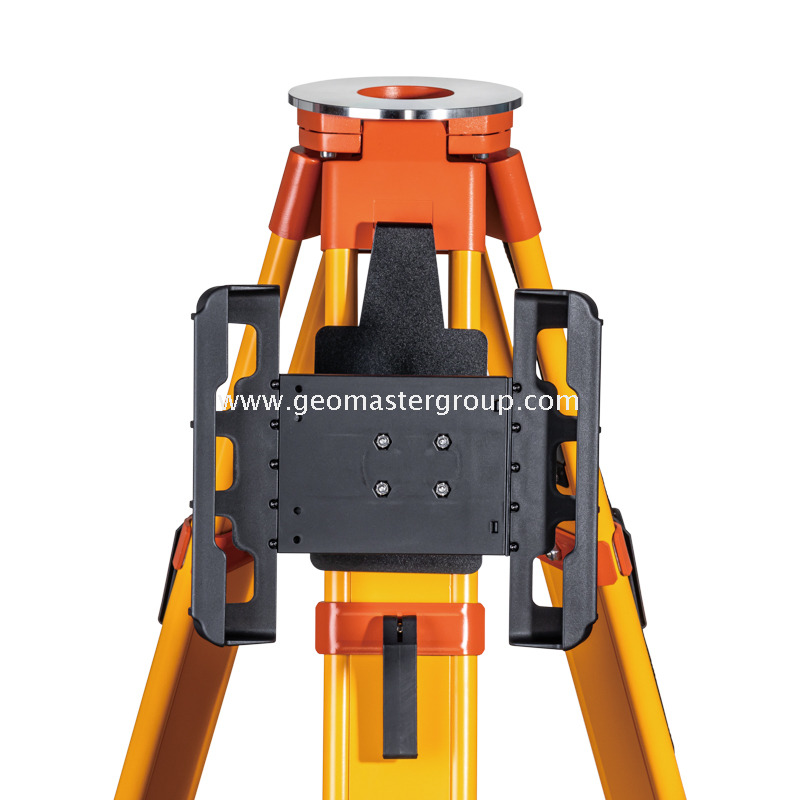

This Rugged Tablet Mount Kit includes Rugged Geo-Tablet Mount Getac-80, Threaded Ball Adapter
Getac-029SC/204, and Tripod Bracket GHT58-204

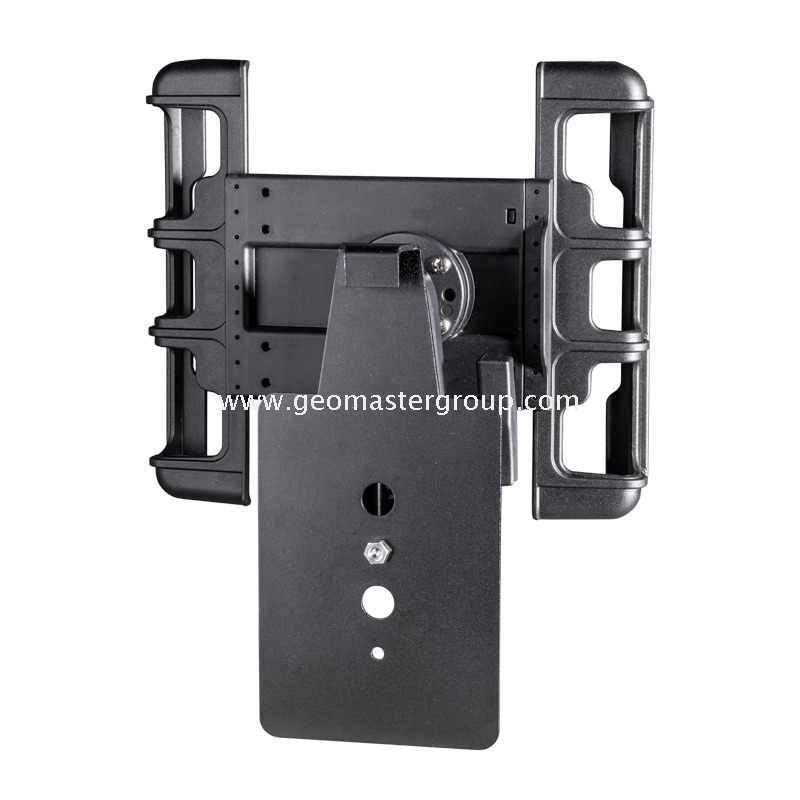

1.Rugged Geo-Tablet Mount Getac-80
1)Dimensions: 240~300mm (long) × 220mm (wide) × 24mm (thick)
2)Clamping Range: 240~300mm
3)N.W.: 465-470g
4)Payload (with 1.5" Ball Adapter): ≦3kg
5)Material: high-strength Composite Nylon
6)Equipped with 1.5" Ball Adapter and detachable Double Socket Arm Getac-15A (15cm long) to connect diversified 1.5" Ball Adapters, Bases and Clamps

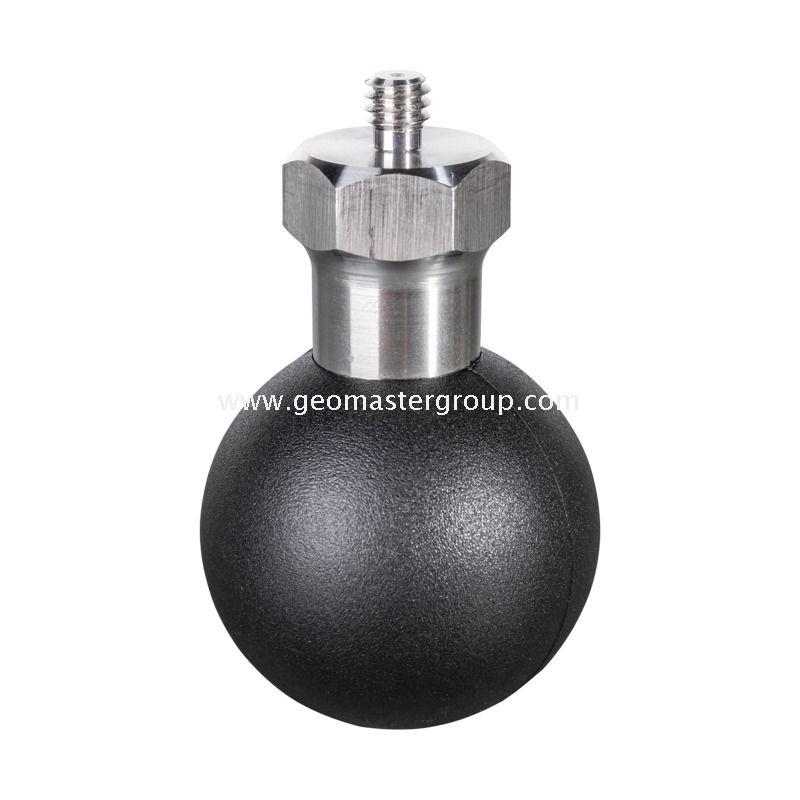

2.Threaded Ball Head Adapter Getac-029SC
1)Anti-slip Ball Head Diameter: 1.5" (38.1mm)
2)Stainless Steel Mounting Thread: 1/4" (Diameter)×7mm (Length)
3)N.W.: 100-105g
4)Fit for Working Surfaces with 1/4" Fixing Hole and Tripod Bracket GHT58-204

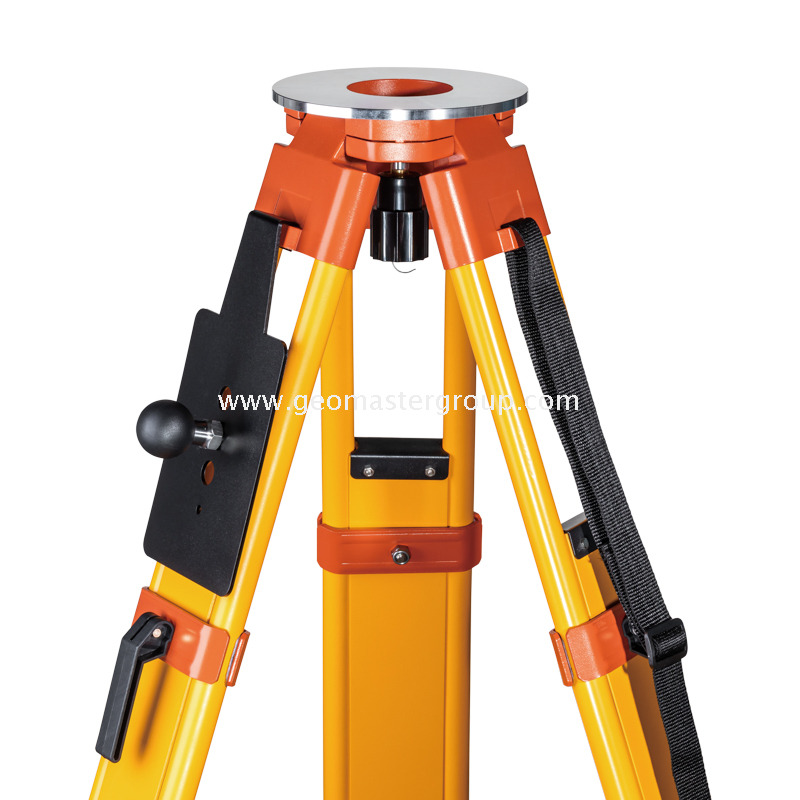

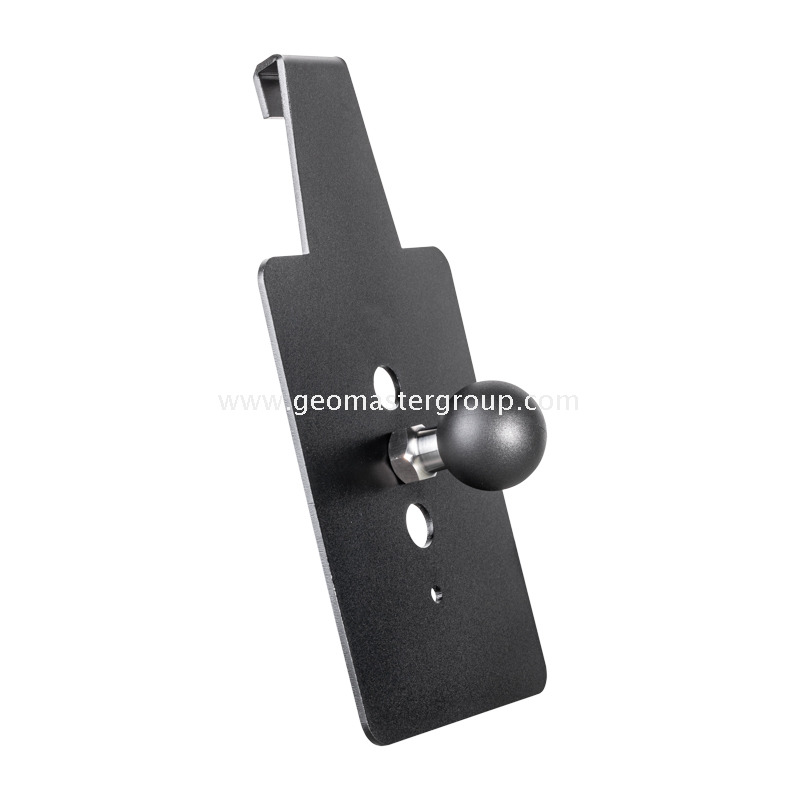

3.Tripod Bracket GHT58-204
1)Fixing Holes: 2×5/8" & 2×1/4"
2)Dimensions: 204mm (H.)×3mm (T.)
3)N.W.: 190-195g
4)Material: black e-coating Aluminum Alloy
5)Hooking onto the Strap Slots on the Tripod Hinge
6)Fit for all present Surveying Tripods (Aluminum Tripods, Wooden Tripods, Fibreglass Tripods, Hybrid Tripods)
with a Strap Slot of 26~28mm (wide)×10~15mm (high)×5~6mm (thick,gap)
Note: Any updates may be subject to change without prior notice!
