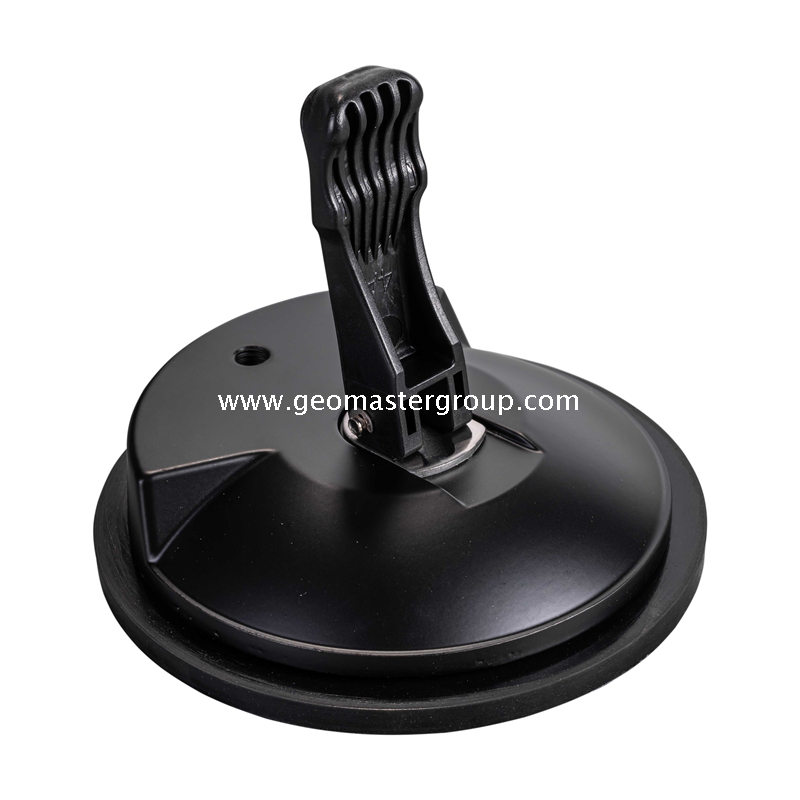

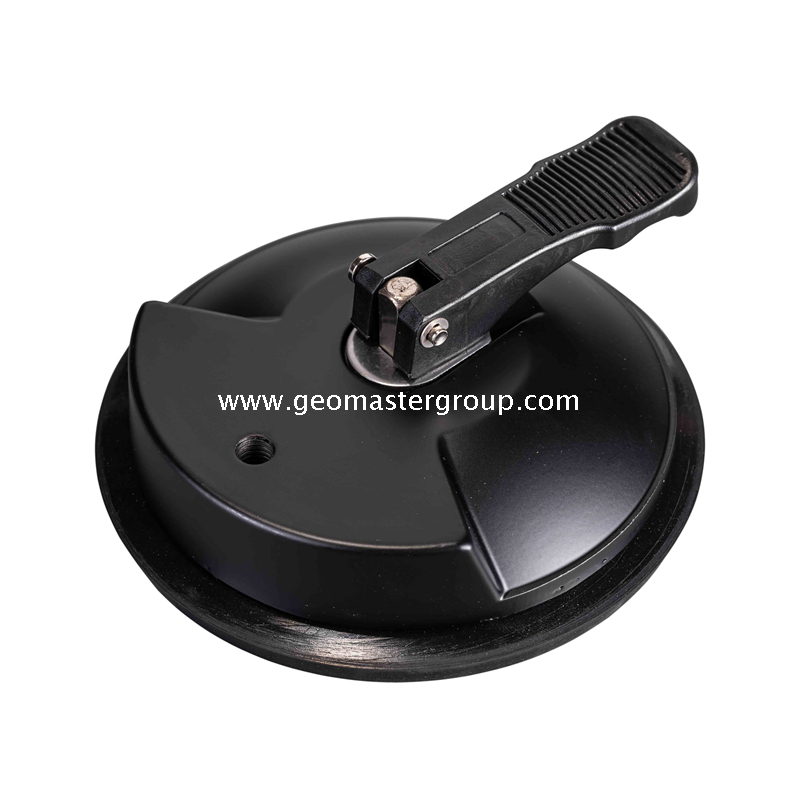

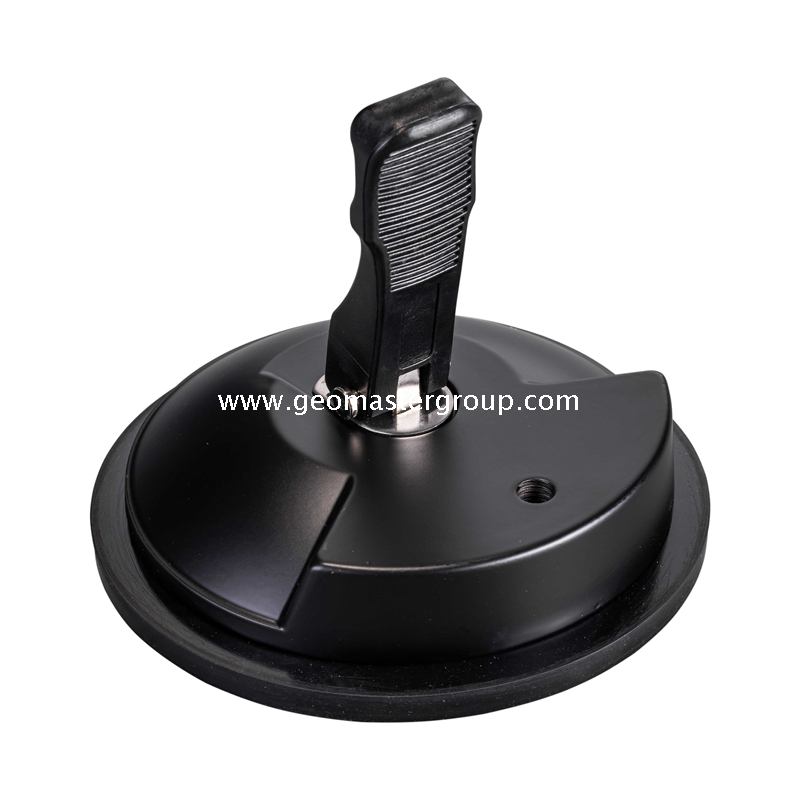

Suction Cup (125mm)

Specifications
Model: PSC125-110/8
1.Suction Pad (Plate): made of Rubber (BNR)
2.Suction Pad (Plate) Diameter: 125mm±1mm
3.Connecting Bore Hole: built-in M8 Thread (10mm high)
4.Suction Cup: made of steel
5.Suction Cup Diameter: 110mm±1mm; Height: 20mm
6.Suction Hand Lever: made of ABS, 6.5cm long
7.Suction Force (Loading Capacity): up to 15kg
8.N.W.: 325-330g

Features
Model: PSC125-110/8
1.Specially designed to hold M8 internal-threaded Geomaster Geo-bases
2.Holding light-weighted Surveying Items such as Monitoring Prisms (Circular Prisms, Mini Prisms, Robotic Prisms),
Prism Holders,Retro Targets,Reference Spheres,Laser Scanner Spheres,Laser Scanner Targets,Spherically
Mounted Reflective (SMR), Survey Targets, etc
3.Widely used on all smooth working surfaces (Floors, Glass Fronts,Windows, Marble, Metal Surfaces,coated or
painted Surfaces,Hard Plastic Surfaces....)
4.Free removing without leaving residues after Monitoring, Laser Scanning, Surveying..
5.Suction Pad (BNR Plate) Diameters available: 55mm, 75mm, 100mm, 125m

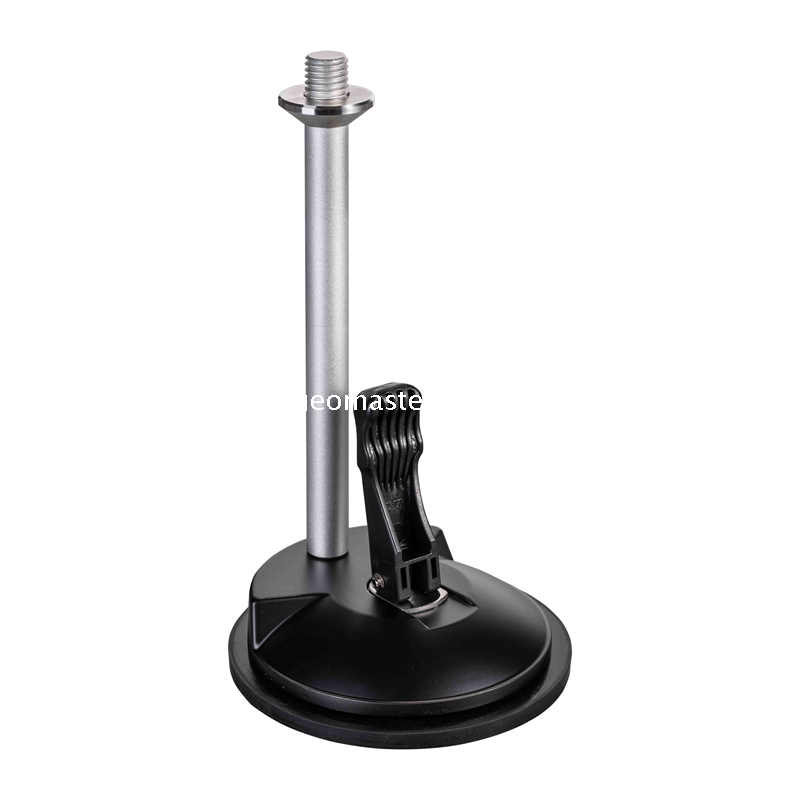

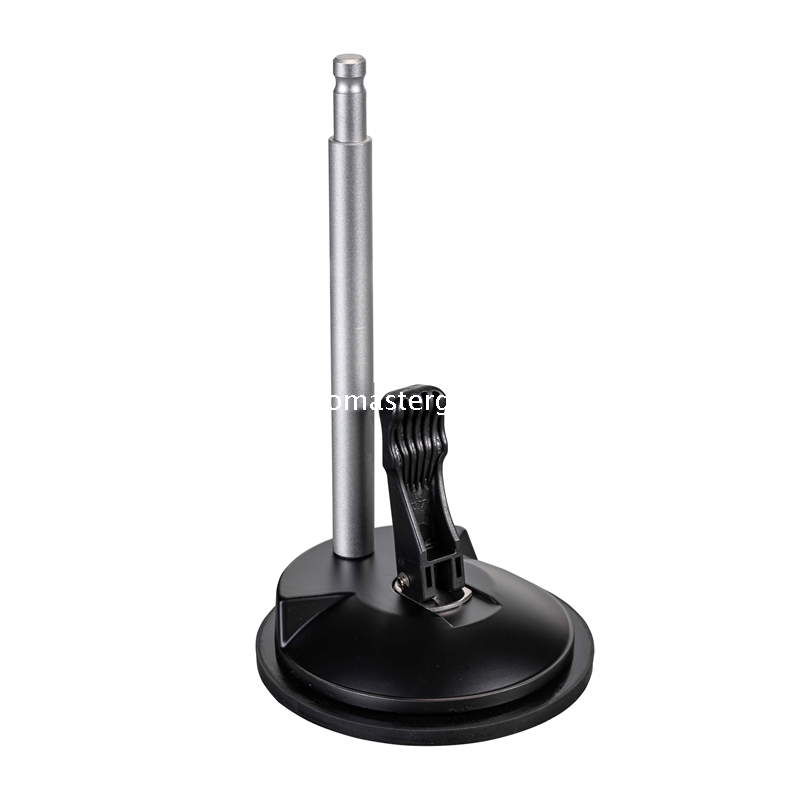

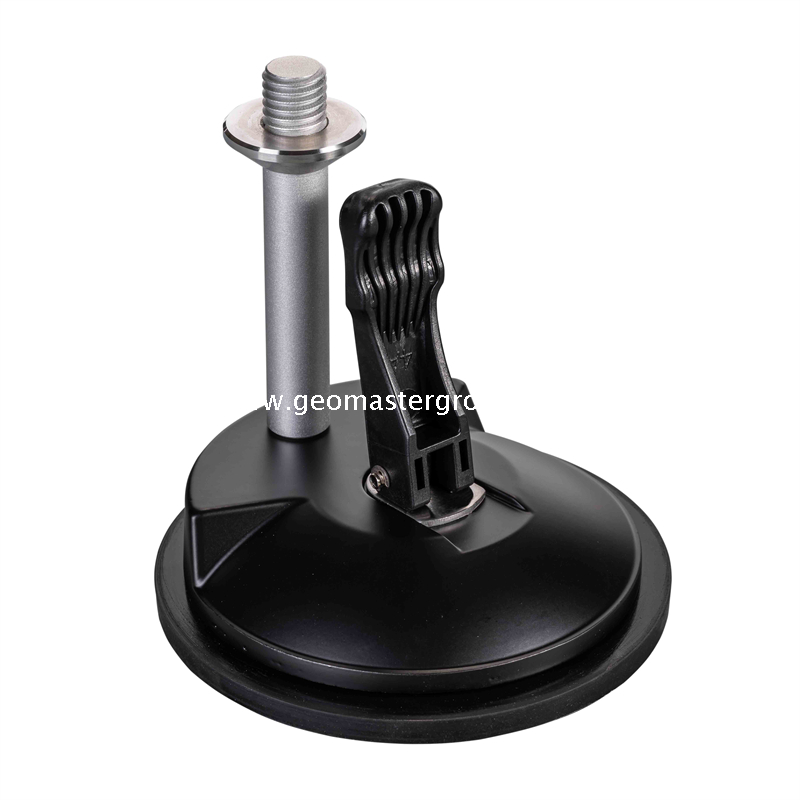

6.Prism Mount Adapters (ADP) available: ADP8-58/70,ADP8-58/200,ADP8-12/70,ADP8-12/200

Note: Any updating would be subject to change without prior notice.
