Model: GLS36-360TLV
1.Geomaster Twist Lock Prism Pole (GLS36)
2.Extended Length: 3.6m,3 sections
3.Twist Lock Knob with Vial (TLV)
4.Inner Tube Graduation: cm
5.Graduations by silk-screening printing
6.Brass Adapter 5/8" Thread & Carrying Bag
7.For Prism Reflectors,Retro Targets,Scanner Spheres
| Quantity: | |
|---|---|
GLS36-360TLV
Geomaster
90159000
Specifications & Fetures

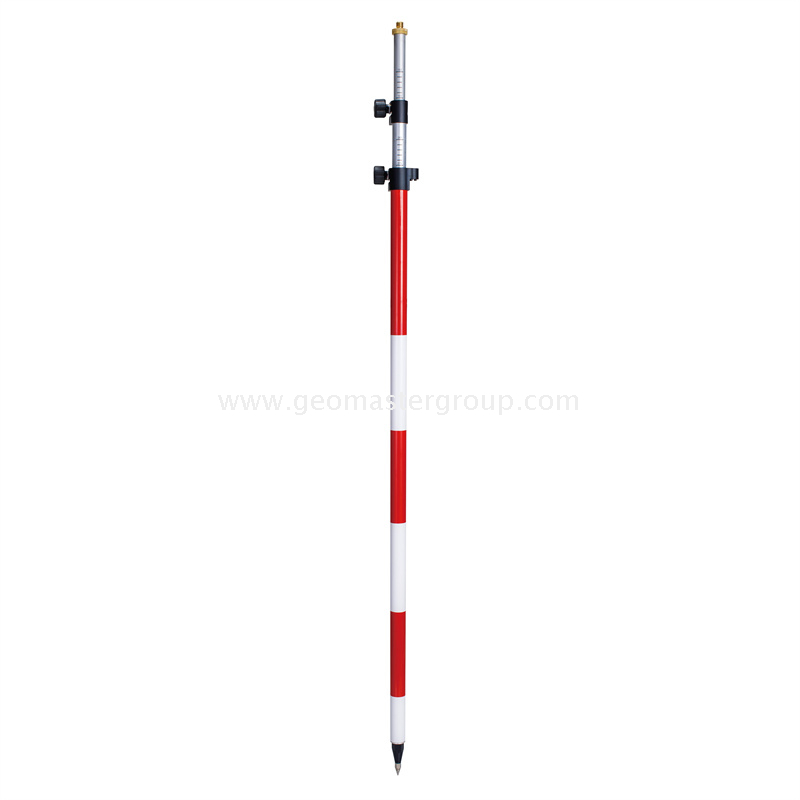

Model: GLS36-360TLV
1.Maximum Length: extended to 3.6m (11.81ft)
2.Minimum Length: collapsed to 1.50m (4.90ft)
3.Tube Sections: 3
4.Inner and Outer Tubes made of light-weight corrosion-resistant and wear-resistant construction Al.
5.Tube Locking Style: Twist Lock Knob with Vial (TLV),securely holding and quickly releasing the sections
at your desired working height
6.Soft-rubber Locking Knob easy to tighten or loosen

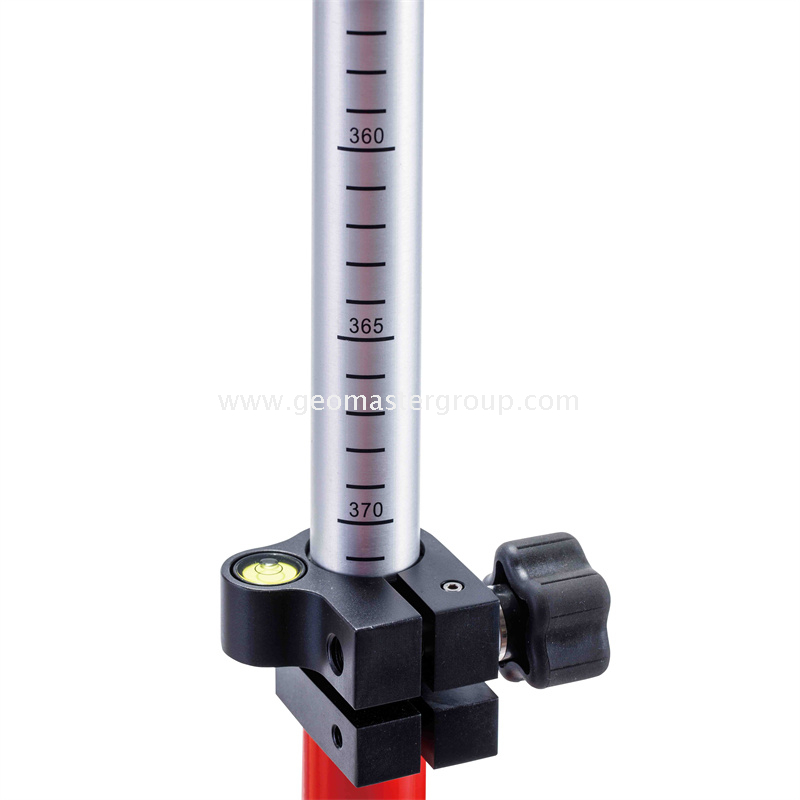

7.Adjustable Level Vial (40'/2mm) built-in the Twist-Lock for quick leveling and calibration
8.Inner Tube (Top section,Aluminum paint) with permanent silk-screened single Metric Graduation (cm)
9.Outer Tube (Bottom section): 34.6mm(D)×1.35mm(T) with 20cm bright red-white color for fast
locating your surveying or monitoring mark

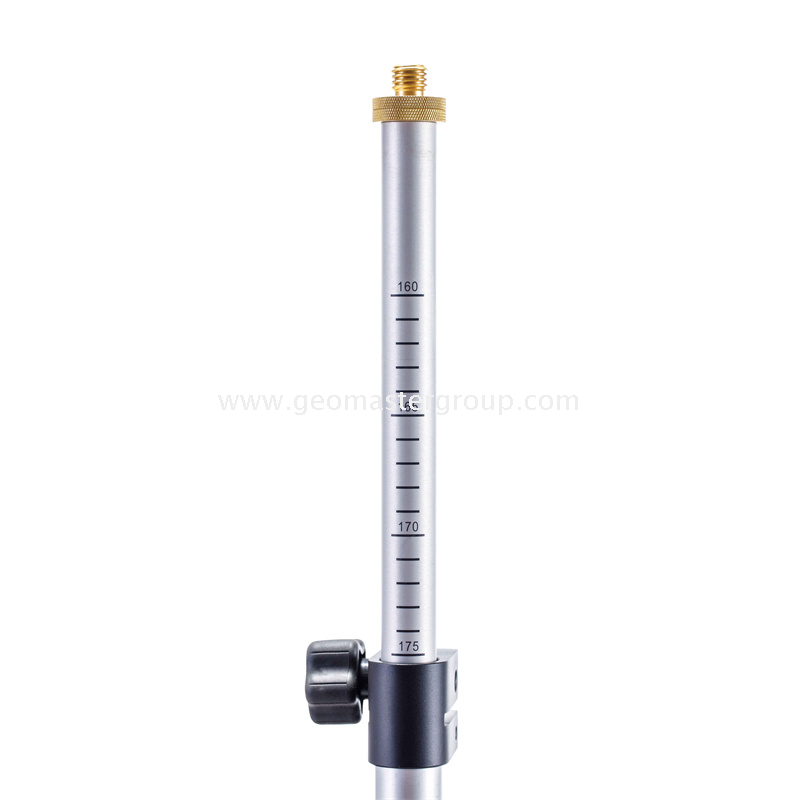

10.Installed with 5/8"×11 external Adapter (brass, double-locking, adjustable, top-threaded), compat.
with most light-weight Surveying Instruments and Accessories (with 5/8"×11 female Adapter) such
as Prism Targets, 3D Scanner Targets, 3D Scanner Spheres, Retro Targets, GNSS/GPS receivers, etc

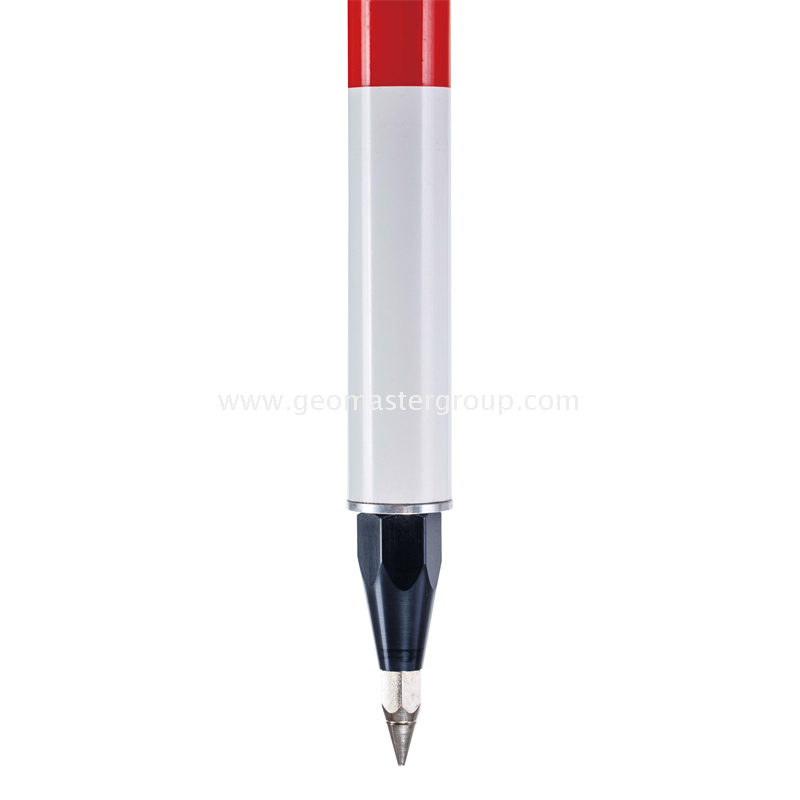

11.Durable detachable Tip Point for easy transfixing to the ground
12.Coming with red soft Carrying Bag for carry-around during surveying

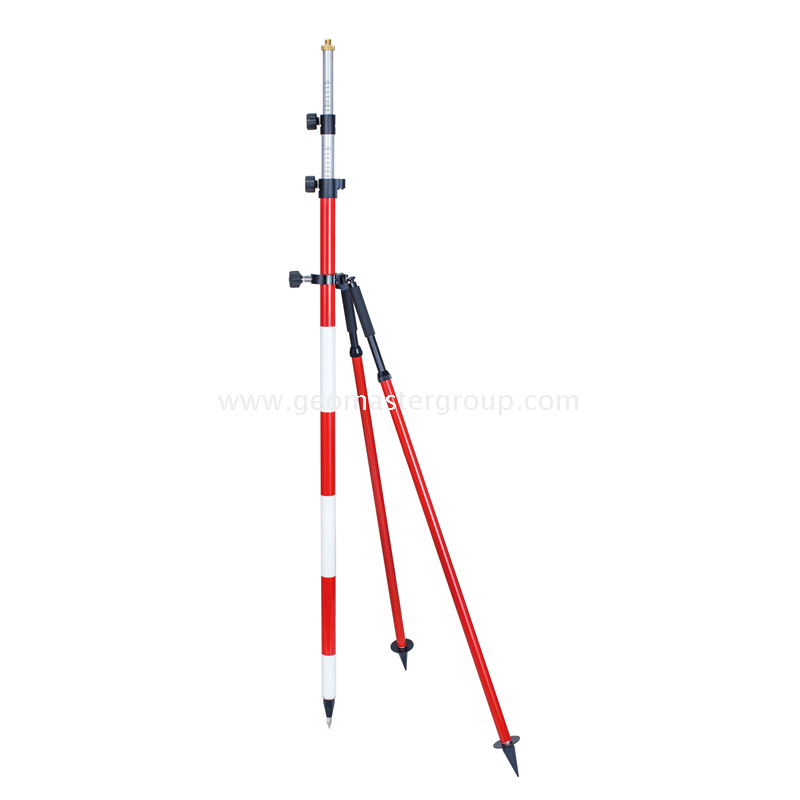

13.Compatible with most Prism Tripods, GPS Tripods or GPS Bipods
Note: Any updating would be subject to change without prior notice.
