Highlights
Model: GST20-25F1/Flo
1.Geomaster Surveying Tripod (GST20)
2.Heavy-duty Birch Wood Tripod
3.Height Range: 112-176cm (44-69.3")
4.Flat Triangle Head (F) & Single Hand Hole
5.Metal Hardware Color: Black
6.Dual Locks: Quick Clamps & Side Twist Locks
7.Legs Color: Fluorescent Green (Flo-GN)
8.Central Screw Thread 5/8" w.Hook for Plumb Bob
9.For Theodolites,Robotic Total Stations,Laser Scanners
| Quantity: | |
|---|---|
GST20-25F1/Flo
Geomaster
90159000
Specifications & Features
Model: GST20-25F1/Flo

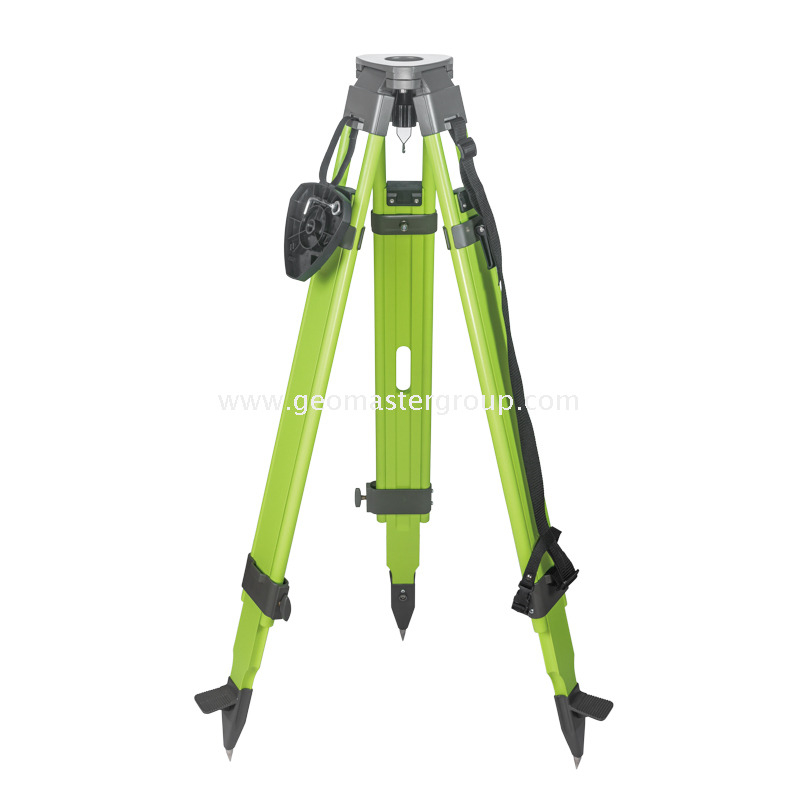

1.Geomaster heavy-duty kiln-dried Birchwood Surveying Tripod GST20, ideal for mounting a variety of
heavy-weight Surveying and Construction Instruments such as Electronic Theodolites, Digital Theodolites,Optical Theodolites, Reflectorless Total Stations, Robotic Total Stations, ScanStations,
3D Laser Scanners, Laser Trackers,LiDAR Scanners,Heavy-duty Rotating Levels
2.Height Range: 112-176cm (44-69.3")
3.Head Type: Flat Triangle Head (F)
4.Head Size: 160mm (OD)
5.Head Bore: 56mm (ID)

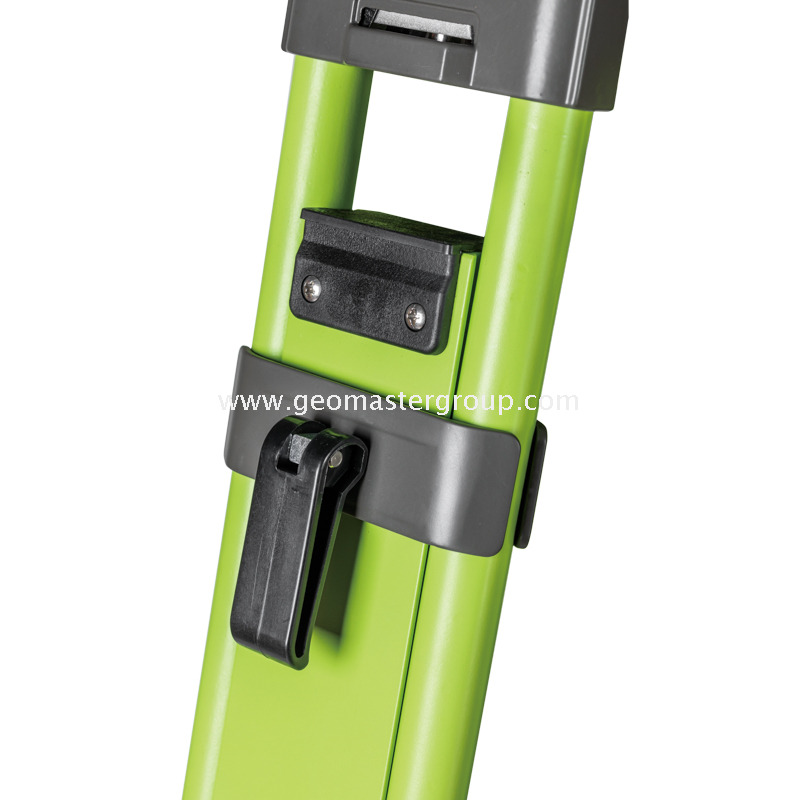

6.Lock Style: Dual Locks (Top Quick-release Clamps+Bottom Side Twist Locks) for long secure holding and
stable supporting
7.Legs Color: Fluorescent Green (Flo-GN) highly visible in poorly illuminated environments
8.All-metal Hardware (Black Color) to ensure durability and long life even under the toughest working sites
9.Single Hand Hole for easy and safe carrying around

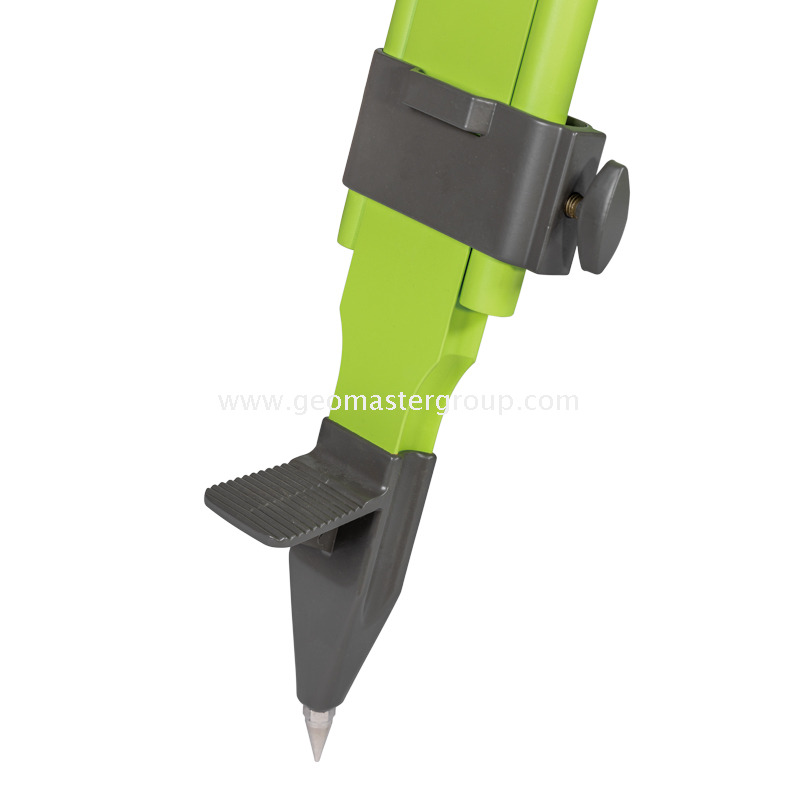

10.Metal pointed tip-toe for hard, slippery, soft, wet and rugged surfaces
11.Central Connecting Screw with 5/8" Thread and Hook for Plumb Bob
12.Robust poly-webbing Shoulder Strap for easy carrying and transport
13.Tripod Floor (Security Stand,Tripod Star) GST4-600 series available
Note: Any updating would be subject to change without prior notice.
