Highlights
Model: AK-330G

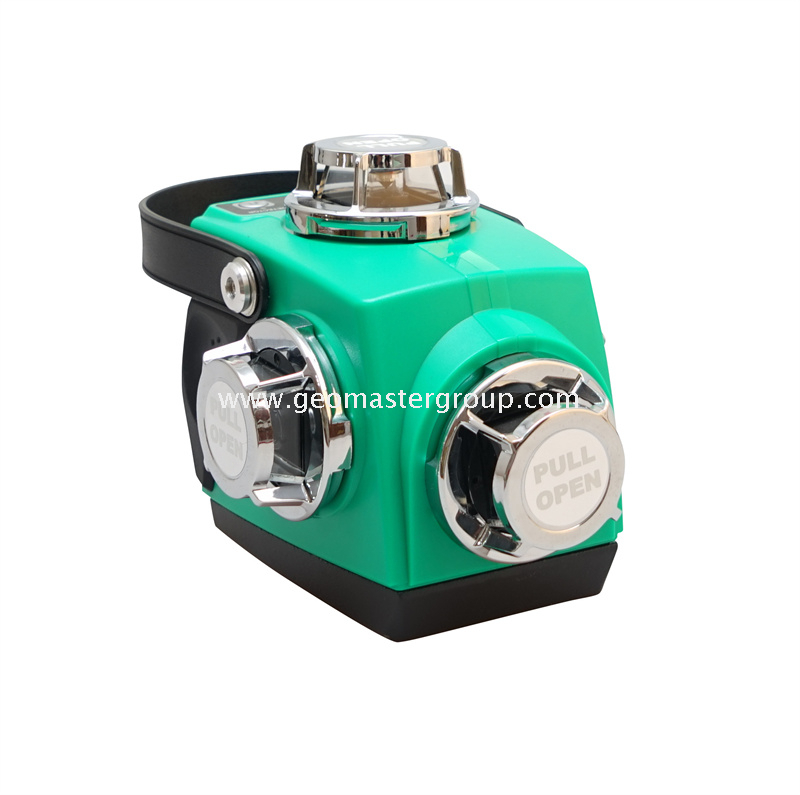

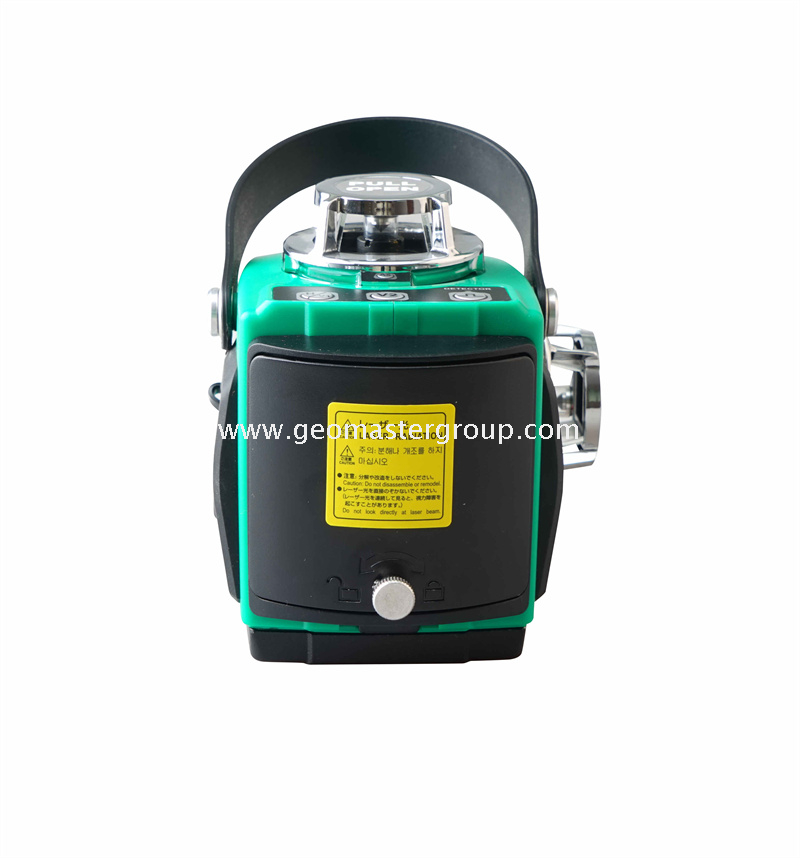

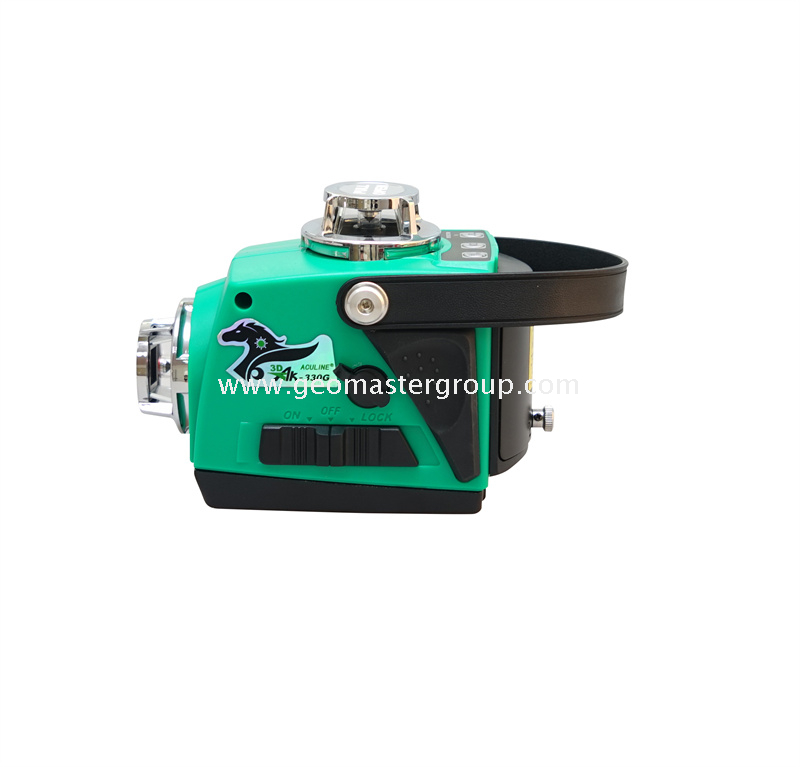

1.Green Beam Laser Level (3D,12 Lines)
2.Pendulum Self-Leveling Range ±3°
3.Working Ranges: 40m
4.Accuracy: ±1mm/5M
5.Shortest Distance to Wall: 5mm

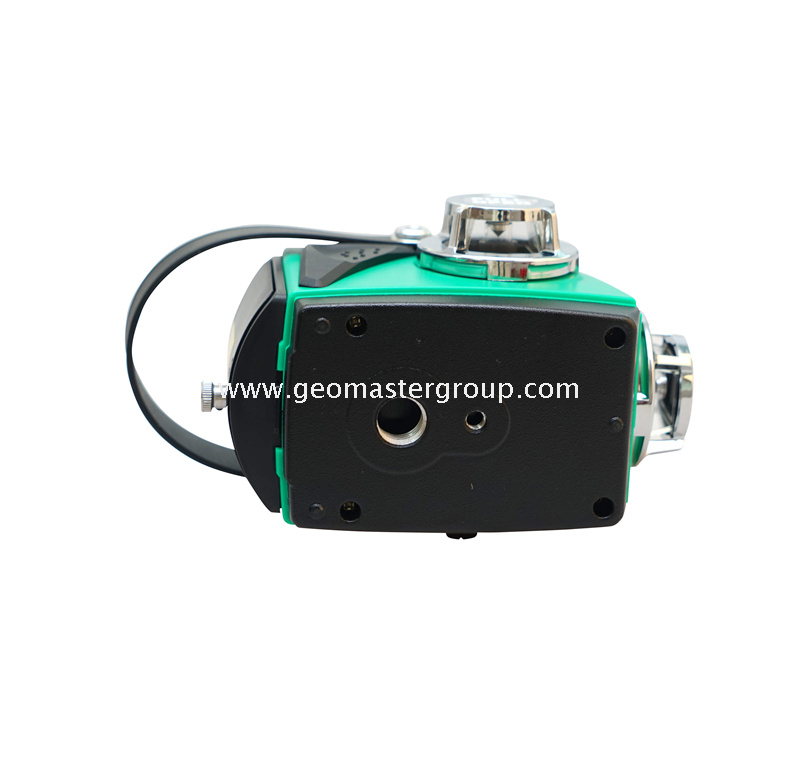

6.Dual Tripod Threads 5/8"-11 & ¼"-20
7.Power Charger,Battery Pack,Mount Base,Carrying Case
| Quantity: | |
|---|---|
AK-330G
Geomaster
9015900090
Specifications
Model: AK-330G

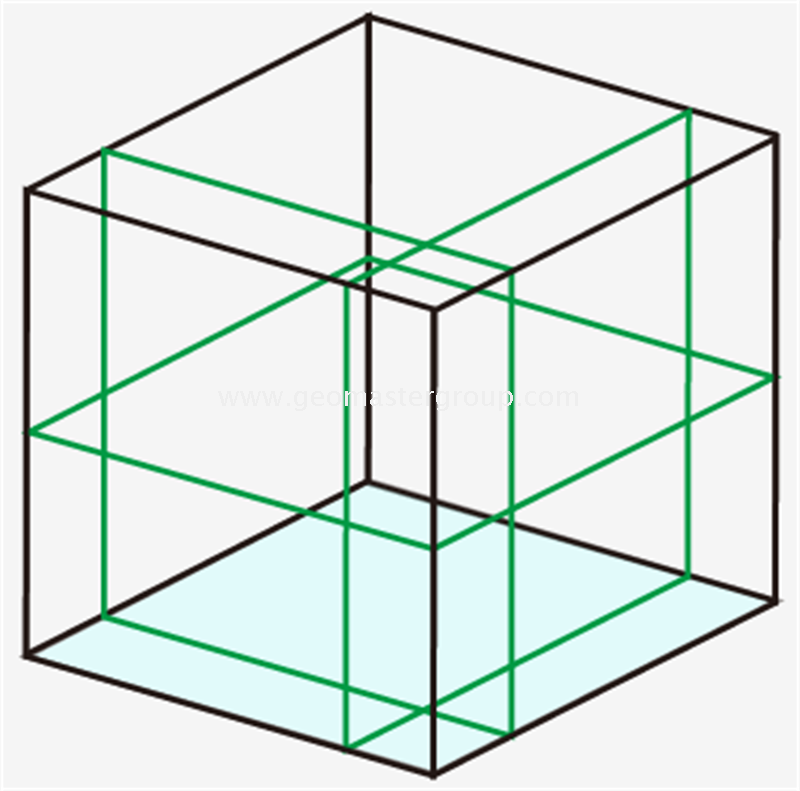

1.Laser Beam Color: 12 Green Lines
2.Self-Leveling Mode: by Gravity Pendulum
3.Self-leveling Range: ±3°
4.Self-Leveling Time: <5 sec
5.Working Range: 40m ((Illuminance 250Lux)
6.Accuracy: ±1mm/5M
7.Shortest Distance to Wall: 5mm
8.Tilting Mode: Yes
9.Pulse 5.5KHZ
10.Laser Source: Class 2, 615-630nm,30mW; 360° Cone type
11.Power Supply
1)AC/DC Power Charger LB5042 (Input: AC110-240v; Output: DC12v)
2)Battery Life: all beams on working status,
(1)Dry Cells AA×4, lasting for 2 hours (strong beam mode) and 4 hours (econo mode)
(2)Lithium Battery, lasting for 6 hours (strong beam mode) and 12 hours (econo mode)
12.Operating Temperature: (－)10℃ ~ 45℃
13.Storage Temperature: (－)20℃ ~ 50℃
14.Dual Tripod Threads: 5/8"-11 and ¼"-20
15.Standard Outfits: Power Supply Charger (Adapter AC-DC), Lithium Battery Pack,USB C
Power Cable, Green Laser Goggles, Laser Level Base A863Z-1/4, Aluminum Carrying Case
Features
Model: AK-330G
1.Green Beam Laser Level (3D,12 Lines) for indoor construction and decoration projects (Doors, Windows, Closets, Ceilings, Floors, Walls, Pipes....)
2.Glittering Alert in case of exceeding the self-leveling range
3.Equipped with 5/8"-11 female Thread, compatible w. all Tripods (w. 5/8" -11 male Adapters or Central Connect Screws) like Laser Tripods and Surveying Tripods (Aluminum Tripods,Wooden Tripods,Fiberglass Tripods)
4.Installed with ¼"-20 female Adapter, compatible w. all light-duty Laser Tripods and Camera Tripods (w. ¼" male Adapters or Central Connect Screws): LTD-1201, LDT-1202, LTD-1203, LTD-1204, LTD-06, LTD-07
5.Coming with rugged Aluminum Carrying Case for easy carrying and secure storage
Note: Any updating would be subject to occur without prior notice!!
