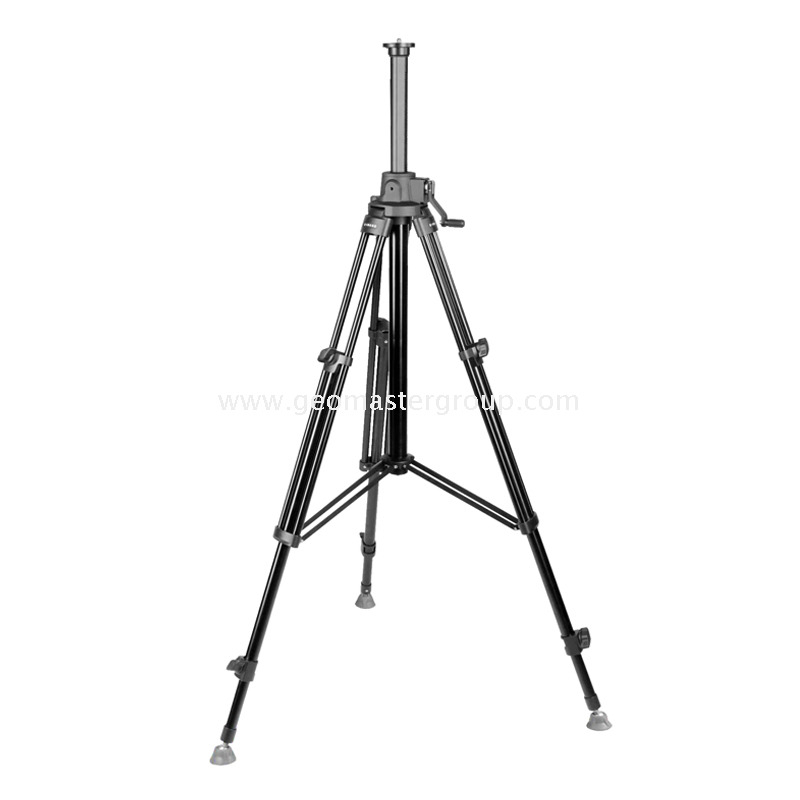

All-Terrain Pro Tripod

Specifications & Features
Model: GPT12-230
Constructed from construction-grade aluminum alloy for rugged durability and consistent operation in all weather conditions, this heavy-duty tripod is designed for both indoor and outdoor use, supporting and
holding appliances on demanding job sites.

Its geared center column enables precise and fast height extension while delivering exceptional rigidity and eliminating wobble for stable operation.

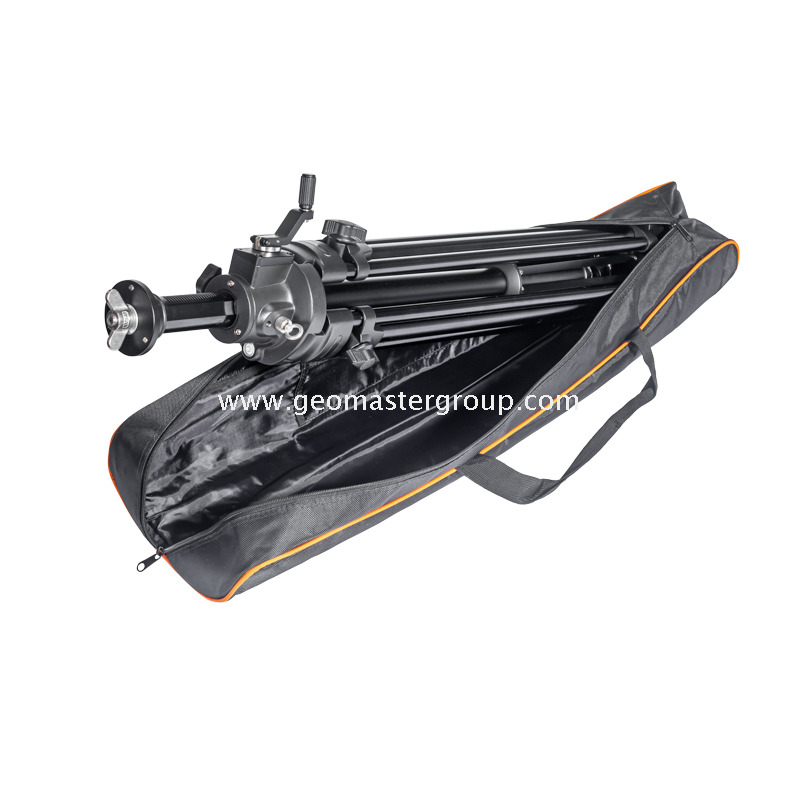

The tripod also features a built-in bubble level, rubber feet with retractable spikes for uneven terrain, and includes both a mid-level spreader and a padded carrying case.

1.Height Range
84cm (retracted) to 230cm (extended); N.W.: 4.8kg

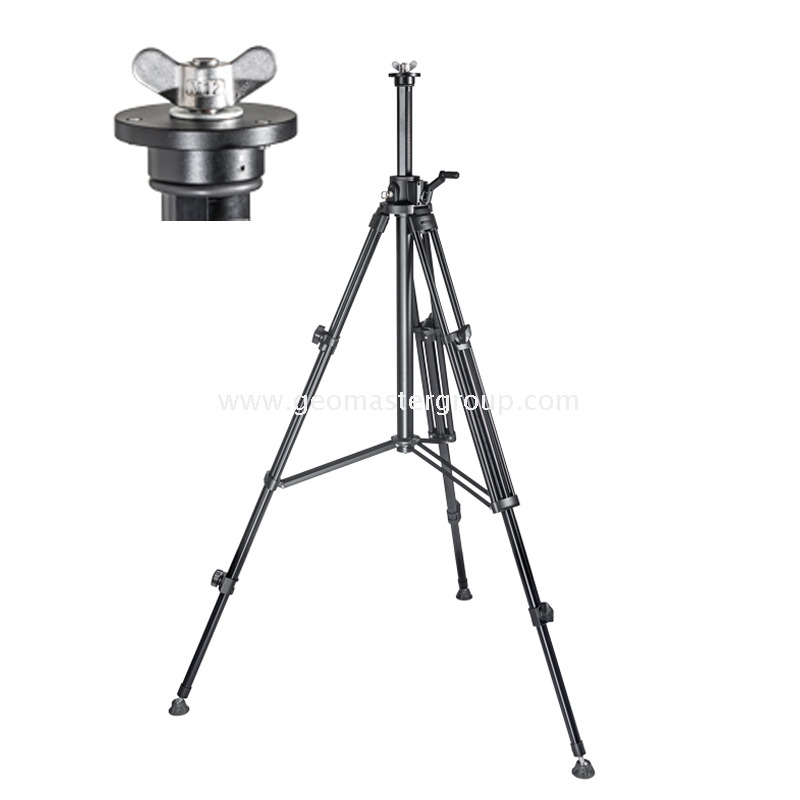

2.Mounting Platform (Mounting Plate)
1)Color: black anodized.
2)Outer Diameter: 7cm, maintaining sufficient structural robustness for demanding applications.
3)External Thread (Adapter): M12 threaded stud, 20 cm overall length

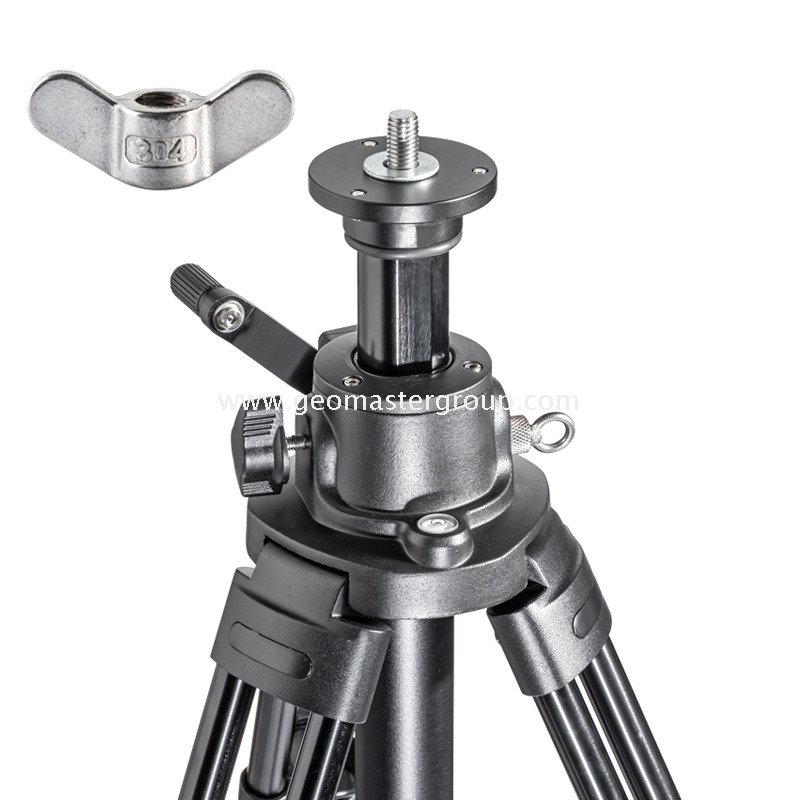

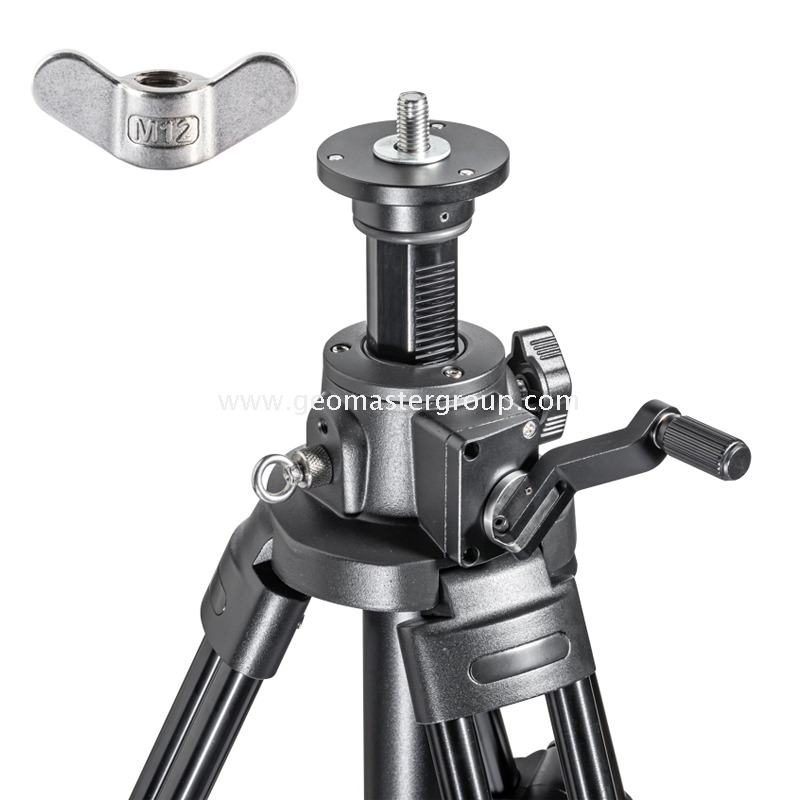

4)Locking Style: galvanized wing nut with female M12 thread.
5)Adapters 3/8" and 5/8" available.

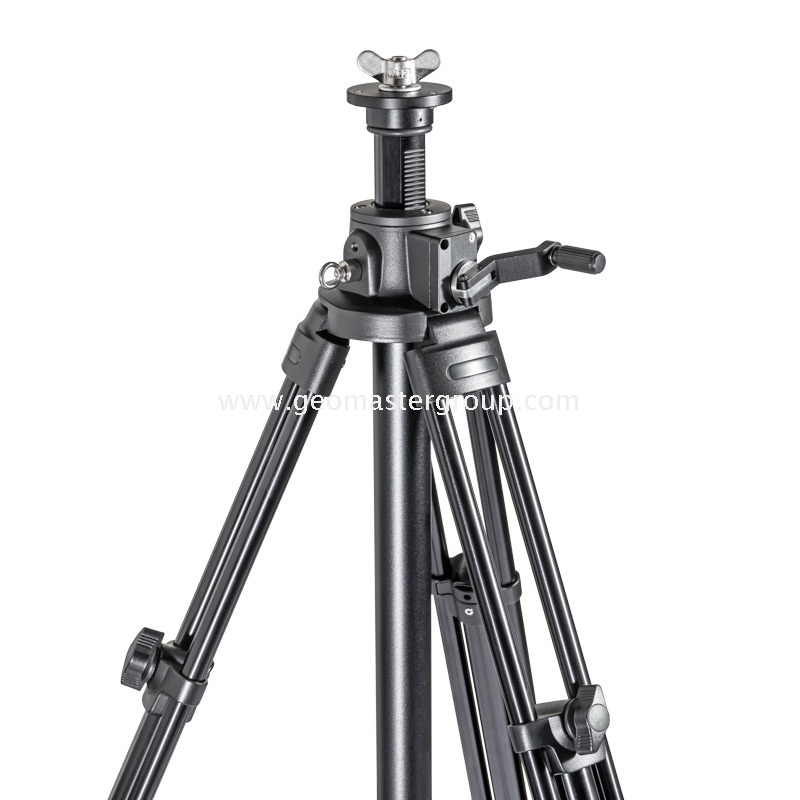

3.Geared Center Column (Extension Pole)
1)Elevation Range: 43cm, accommodating a variety of shooting heights and angles.

2)Locking Mechanism: twist-lock knob delivers powerful and reliable locking force, ensuring the column remains secure
at any selected height.

3)Operational Benefit: This design enables precise, controlled height adjustments while maintaining stability and
wobble-free operation throughout the elevation range.

4)Rack-and-Pinion Lift System: A metal hand crank drives the rack-and-pinion system, allowing fast, smooth, and stable vertical movement with fine-tuned height control.

4.Payload Capacity
Up to 12 kg, supporting most standard heavy portable instruments commonly used in the field.

5.Circular Bubble (60'/2 mm)
Built into the tripod head for quick leveling, ensuring precise and efficient operation.

6.Leg Locking
1)Locking Mechanism
The leg locking system features a super-locking structure engineered to deliver exceptional holding strength and prevent unintended slippage.

2)Ergonomic Operation
The ergonomic design of the lock allows for quick, comfortable, and fatigue-free height adjustments, even during
extended use.

3)System Benefit
This combination of robust locking force and user-friendly operation enables efficient setup, takedown, and real-time repositioning in dynamic shooting environments.

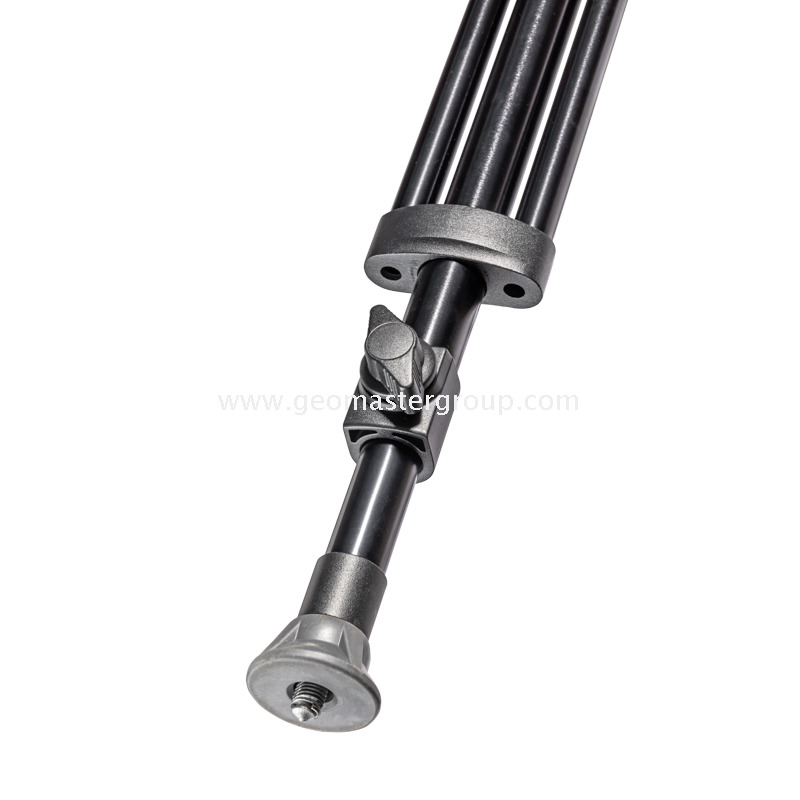

7.Retractable spiked tripod foot
1)Dual-Terrain Design
The retractable spiked tripod foot features adjustable gummed tip points and a dual-mode design, providing secure placement on hard, soft, slippery, or uneven surfaces without requiring field replacement of the entire foot assembly.

2)Rubber Shoe
The wide, non-slip rubber shoe delivers stable, scratch-free grip on smooth or hard indoor floors, making it ideal for
studio or indoor use.

3)Metal Spike
The retractable stainless steel spike is exposed by twisting the rubber foot, allowing the tripod to dig into soft terrain
such as grass, sand, or snow for a secure and stable hold.

Note: Any updaties would be subject to change without prior notice.
