Highlights

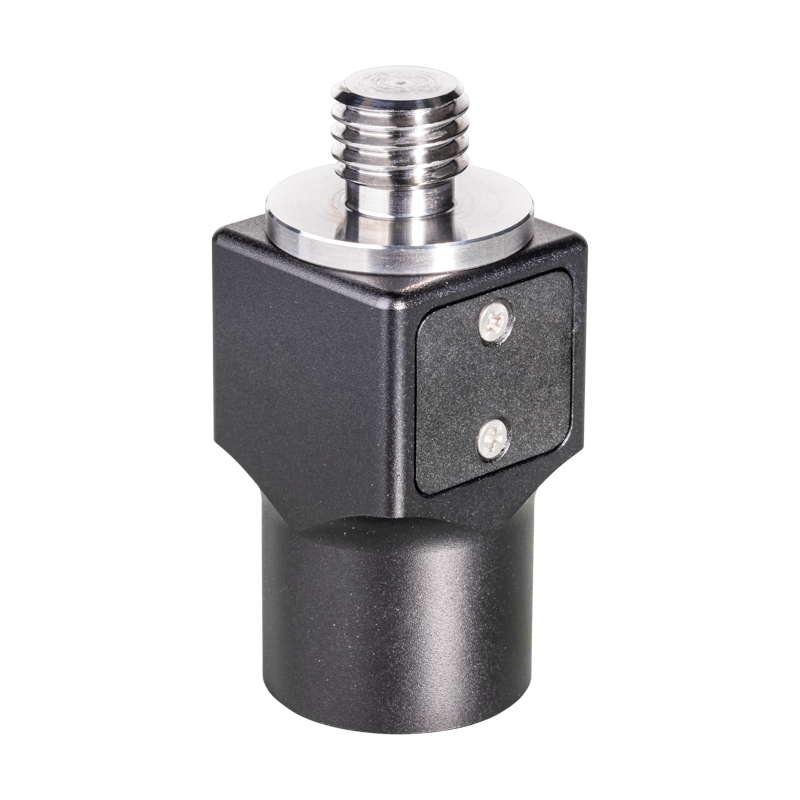

Model: GAD31-60
1.Geomaster anti-rotating Quick Release (GAD31)
2.Geomaster 5/8" to 5/8" Rover Pole Adapter
3.Quick Release Tip: 5/8" Male Thread
4.Quick Release Base: 5/8" Female Thread
5.Quick-release Press Button
6.Effective Height: 60mm

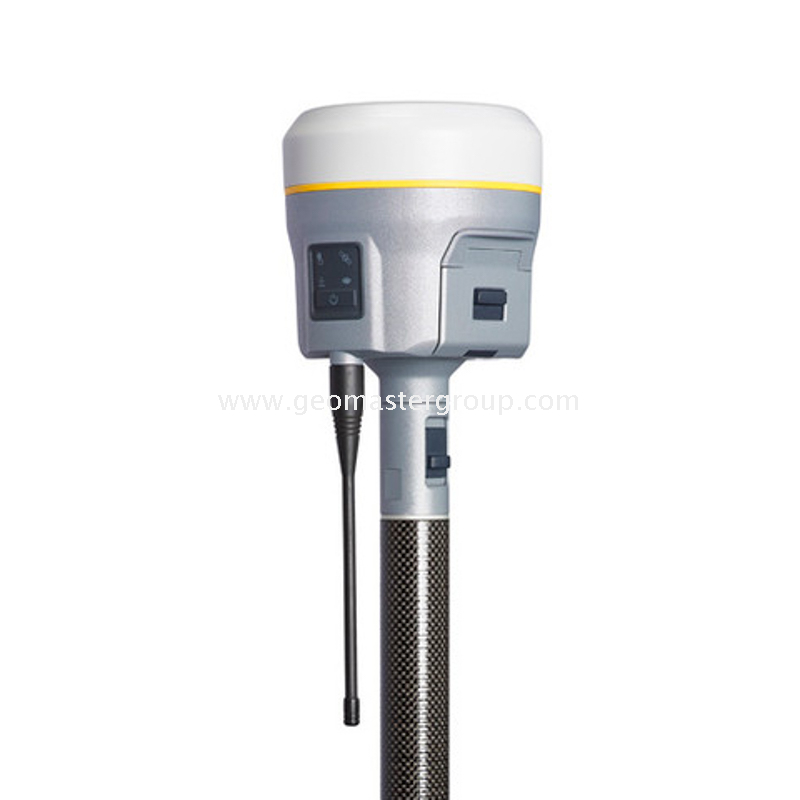

7.For GPS & GNSS Receivers & Rovers
8.Comp.with GPS Poles,Prism Poles,Laser Poles...
| Quantity: | |
|---|---|
GAD31-60
Geomaster
90159000
Specifications & Features
Model: GAD31-60

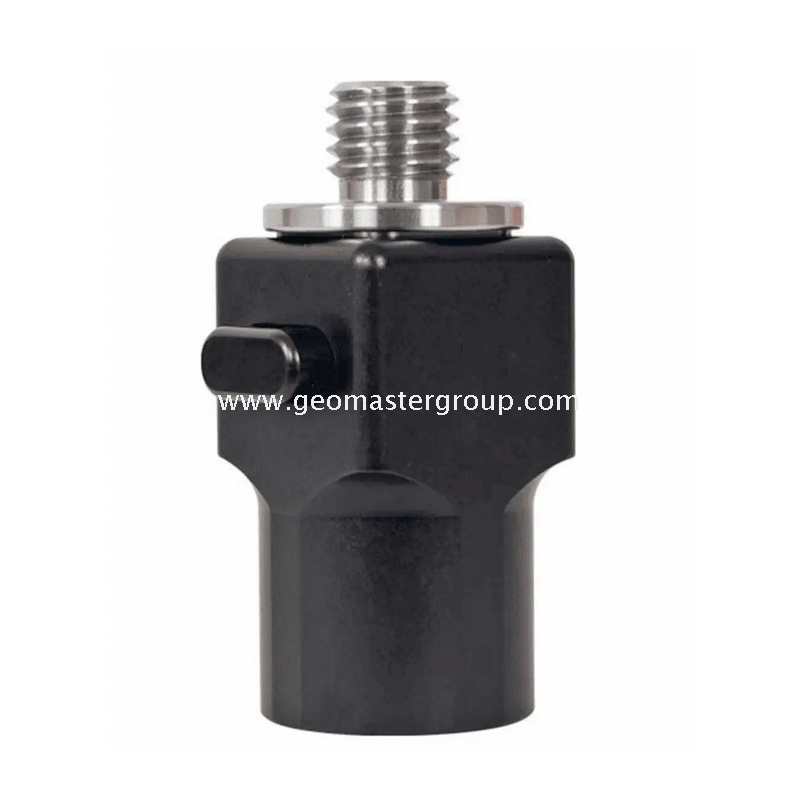

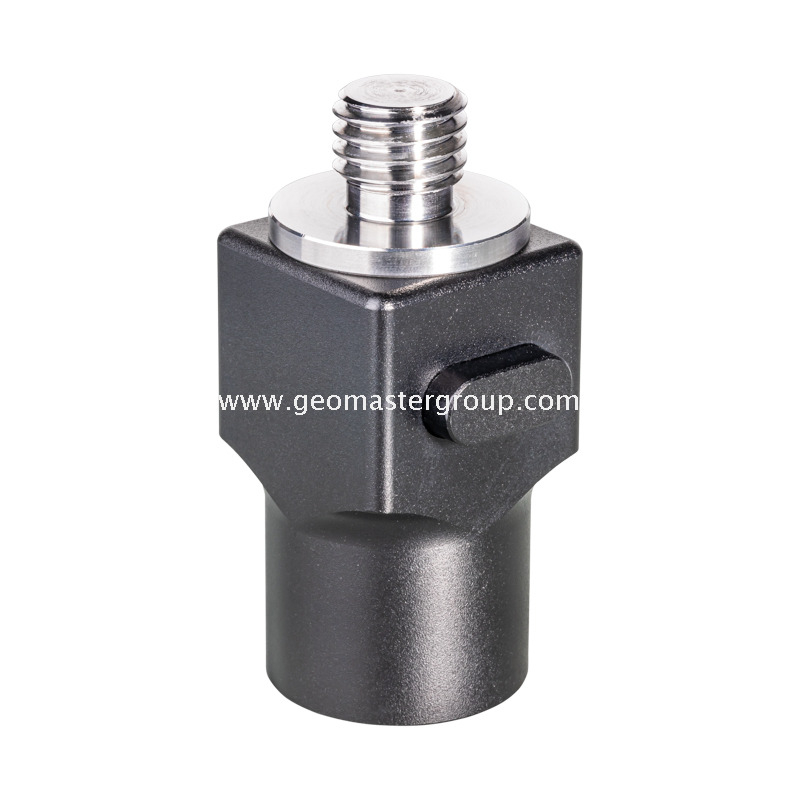

1.This Seco-like anti-rotating heavy-duty Quick Release Assembly (H: 60mm) is designed for simple,
quick and safe removal of the GNSS Receiver from the Surveying Poles(with 5/8" external Adapter,
GPS Poles,Rover Poles,Prism Poles,Laser Poles,Range Poles),ensuring a solid, stable attaching and
detaching between the Surveying Pole and Receiver.
2.Effortlessly converting any GNSS Receiver or Prism Reflector with 5/8"×11 Female Thread to a Quick
Release attaching and detaching

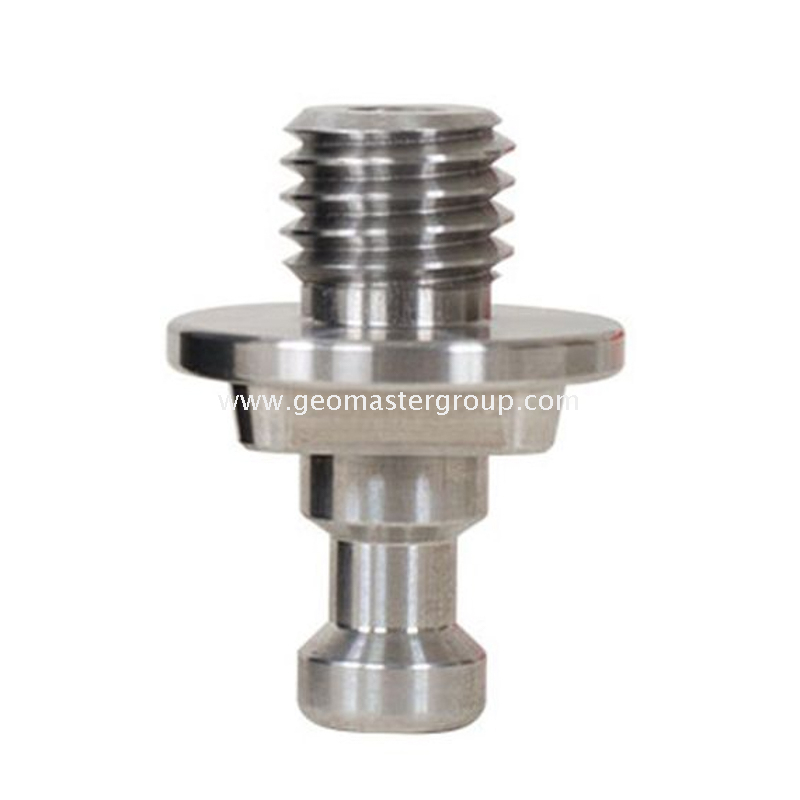

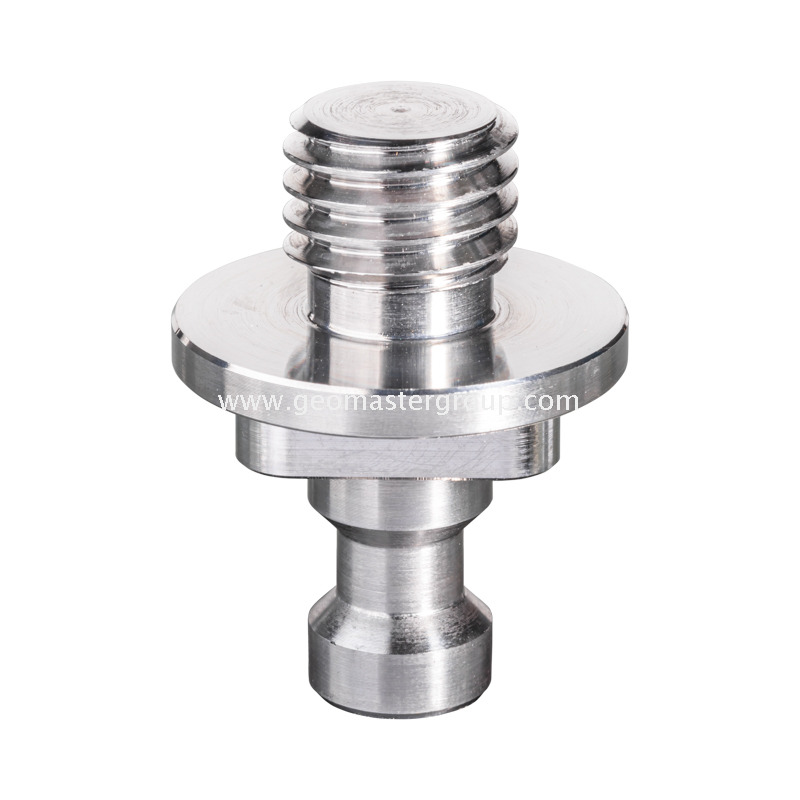

3.Quick Release Tip (Inner Adapter/Top Adapter)
Non-rotating Stainless Steel; 5/8" Male Thread to Female Spigot; Your GNSS Receiver or Prism
Reflector is screwed onto this Quick Release Tip. With a push of the Press Button your Receiver
or Prism will automatically separate from the Base

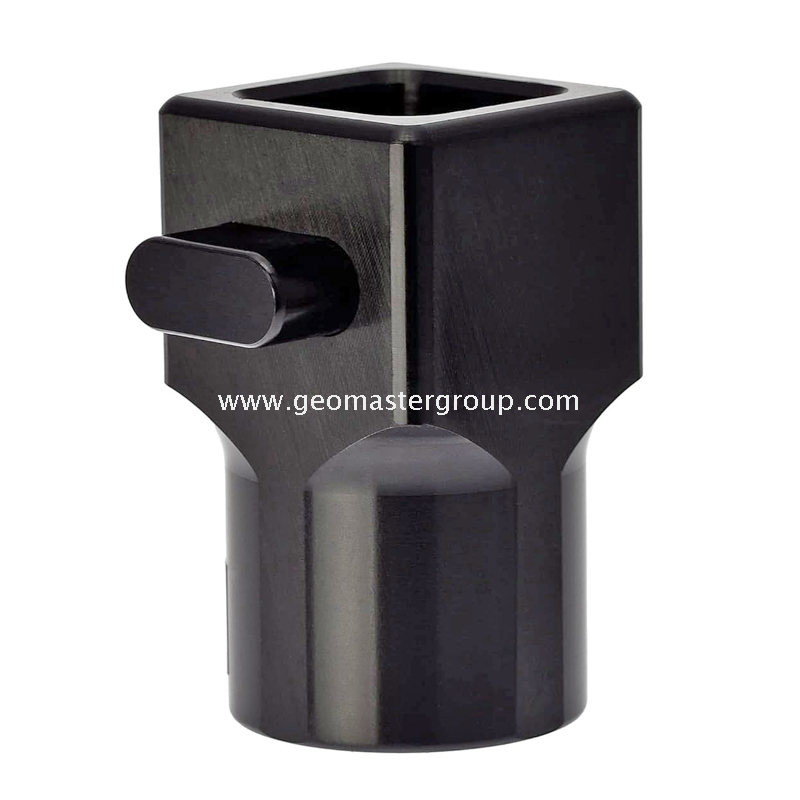

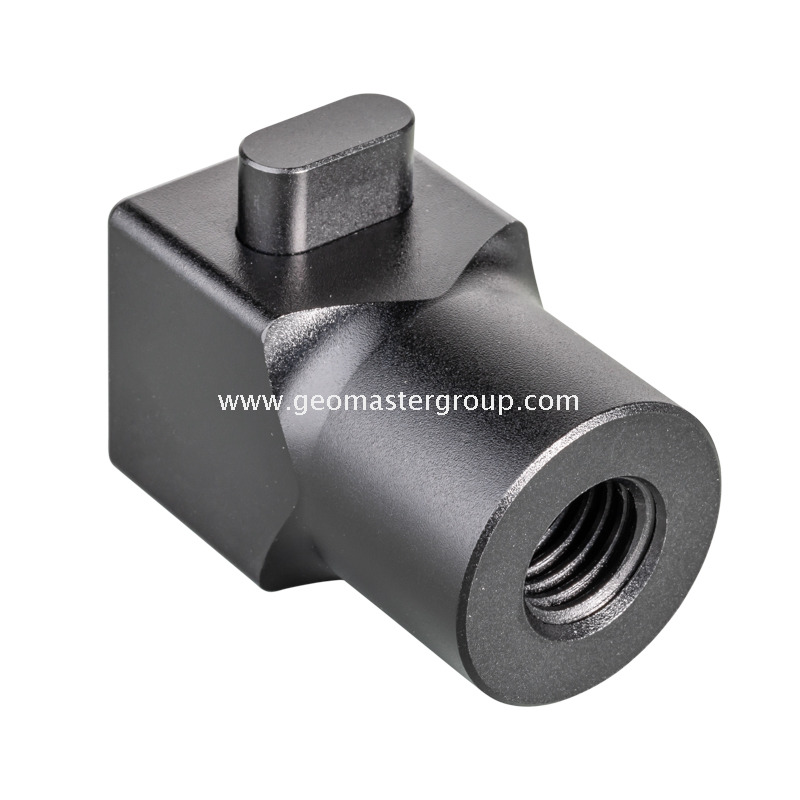

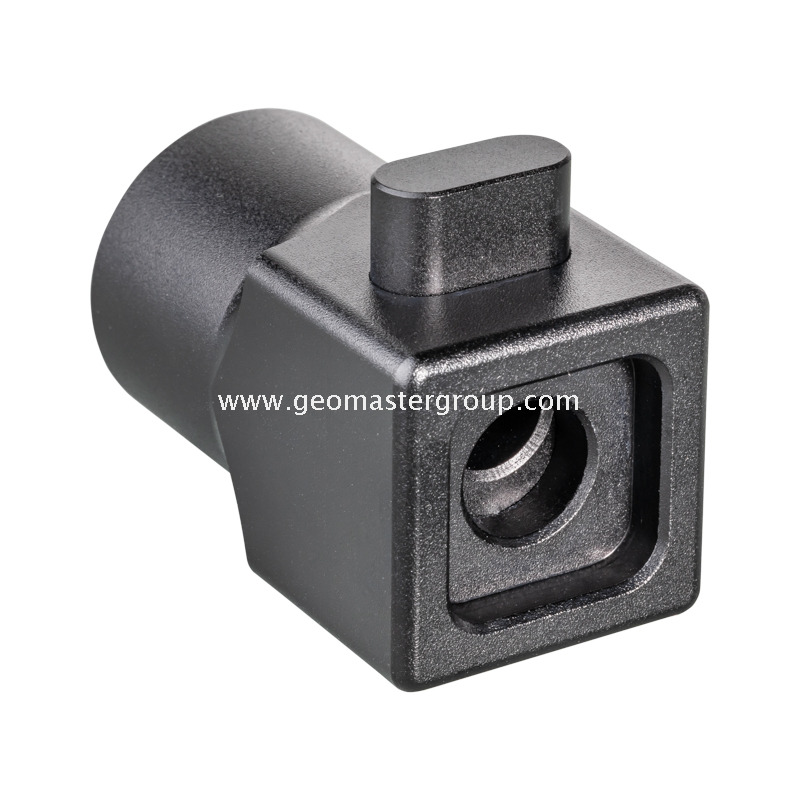

4.Quick Release Base (Outer Adapter/Bottom Adapter)

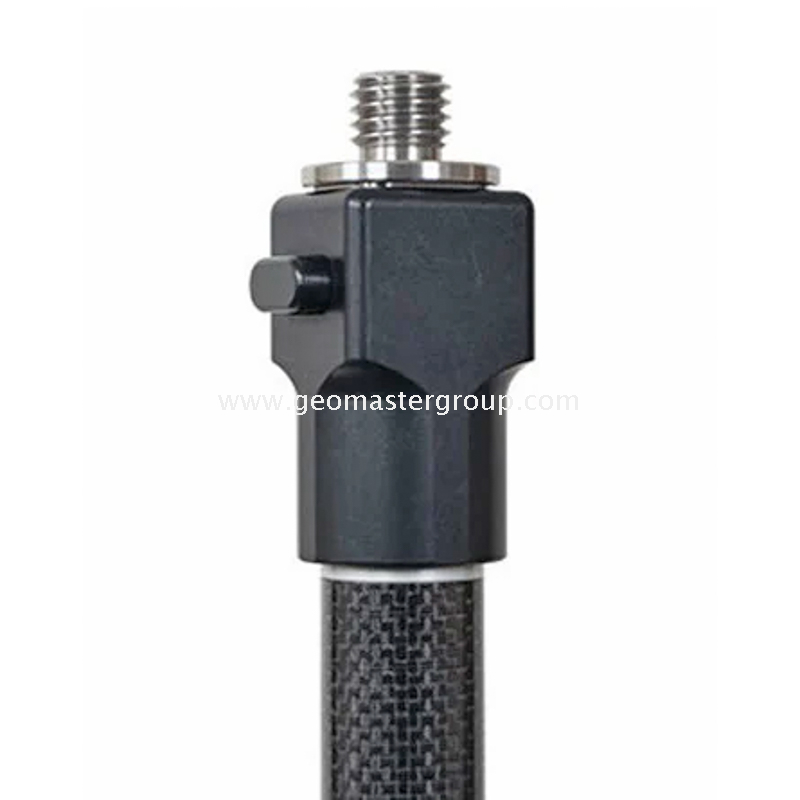

Black-anodized Aluminum; Female Spigot to 5/8" Female Thread; It’s screwed onto the Male Thread
of your Surveying Pole (GPS Rod,Prism Pole or Laser Pole)
5.Replacement of original anti-rotating Quick Release 5111-04
6.Height: 60mm (excluding Thread) to 76mm (including Thread)
7.Heavy-duty Construction holding up 8.5kg
8.N.W.: 160g (Base: 110g; Tip: 50g)
9.For GPS & GNSS Receivers & Rovers
10.Comp.with most common Surveying Poles with 5/8" Male Thread (GPS Poles, Rover Poles, Antenna
Pole Extensions,Prism Poles,Laser Poles...)
Note: Any updating would be subject to change without prior notice.
