Highlights
Model: R10/R12-0.05
1.Geomaster GPS Quick Release Adapter (R10/R12)
2.Replacement of Quick-release Adapter 89845
3.Effective Height: 0.050m (0.164ft)
4.Outer Diameter: 32mm
5.Top Adapter: For R10,R12,R12i
6.Bottom Thread: internal 5/8" ×11
7.For Trimble GNSS Receivers R10,R12,R12i...
8.Comp.with GPS Poles,Prism Poles,Laser Poles...
| Quantity: | |
|---|---|
R10/R12-0.05
Geomaster
90159000
Specifications & Features
Model: R10/R12-0.05
1.This Trimble-like Quick Release Adapter (0.05m) is designed for simple and safe removal of the
Receiver from the Surveying Poles(with 5/8" external Adapter, GPS Poles,Rover Poles,Prism Poles,
Laser Poles,Range Poles),ensuring a solid, stable connection between the Surveying pole & Receiver.
2.Relacement of Trimble original Quick Release Adapter 89845-00
3.Effective Height: 0.050m (0.164ft)
4.Total Height: 0.07m
5.Outer Diameter: 32mm
6.Top Adapter: For R10,R12,R12i

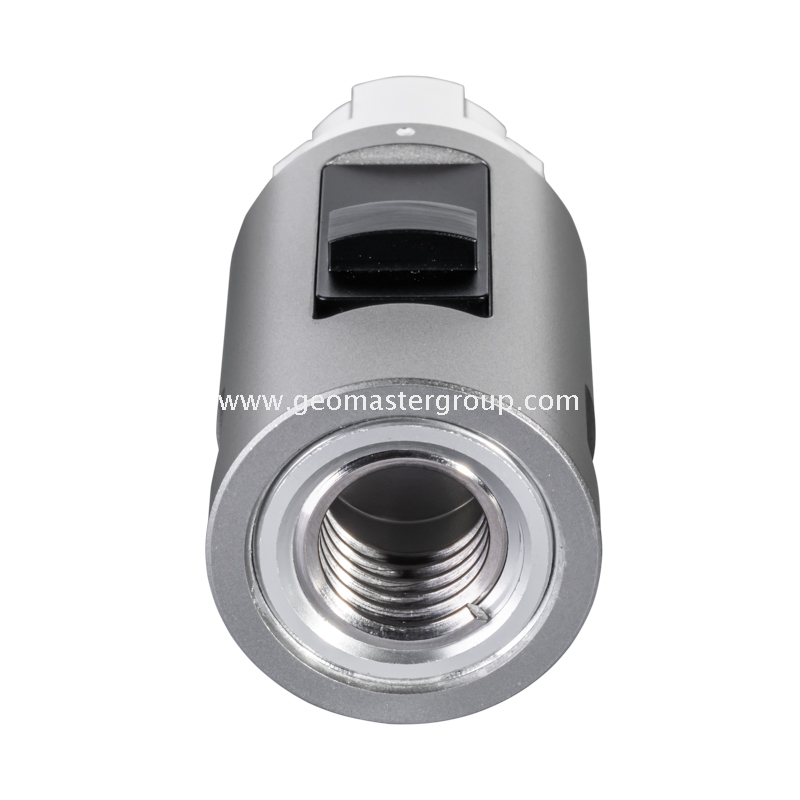

7.Bottom Socket: internal 5/8" ×11
8.Material: quality Aluminum Alloy
9.N.W.: 95-97g
Note: Any updating would be subject to change without prior notice.
