Highlights

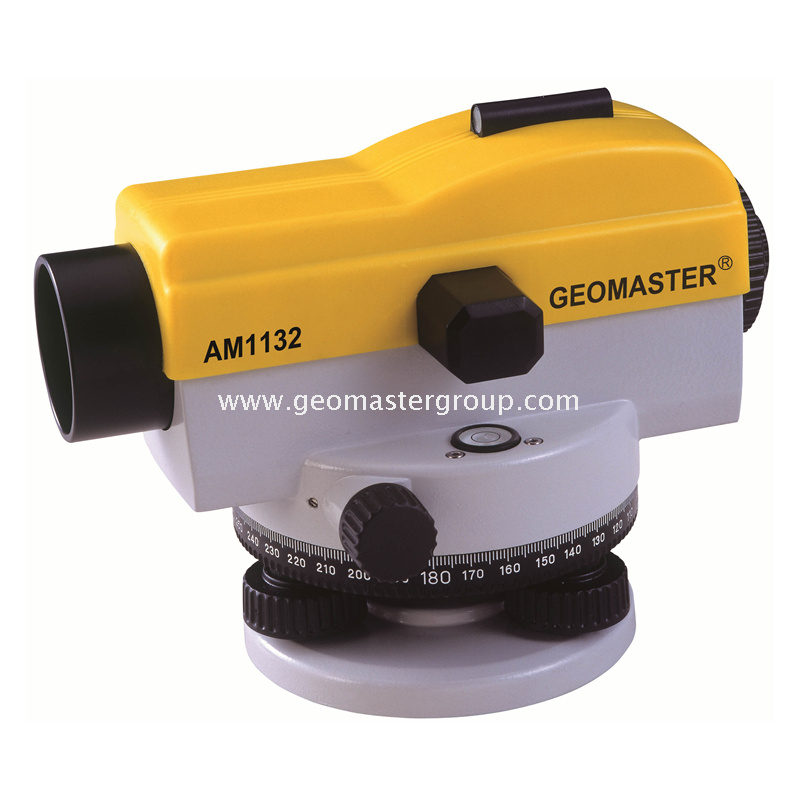

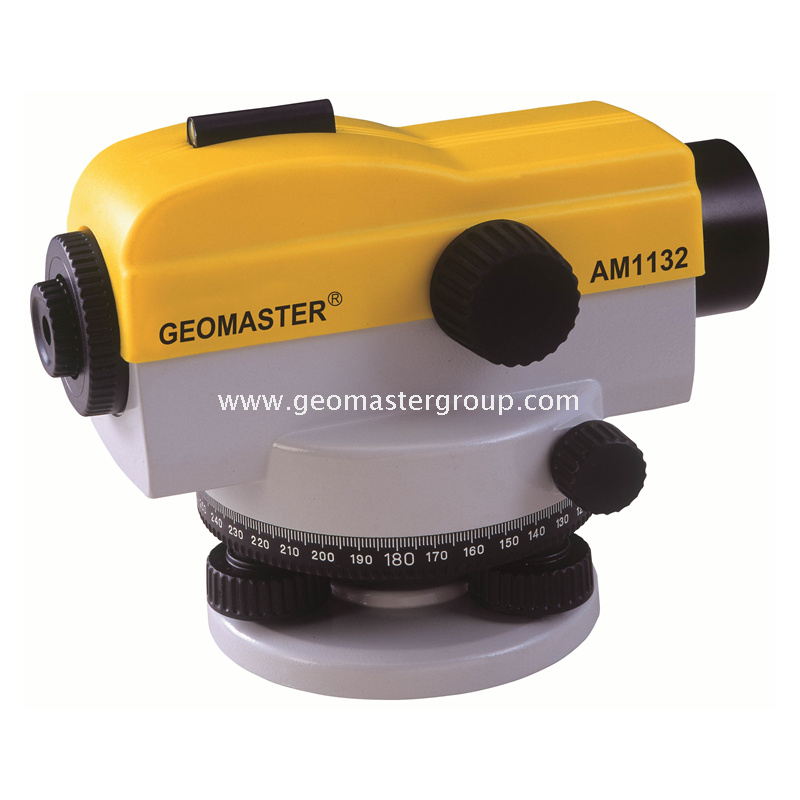

Model: AM1132
1.Magnification: 32x
2.Accuracy: ±1.0mm
3.Objective Aperture: 40mm
4.Air Damping Compensator
5.Outer Circle: 360º/1°or 400gon/1gon
6.w.Plumb Bob/Plastic Case
7.w. 5/8" Thread for all Surveying Tripods
| Quantity: | |
|---|---|
AM1132
Geomaster
90318090
Specifications & Features
Model: AM1132
1.Magnification: 32x
2.Accuracy (Standard Deviation for1Km Double-Run Leveling): ±1.0mm (without Micrometer)
3.Objective Aperture: 40mm
4.Image of Telescope: Erect
5.Length of Telescope (from Objective to Eyepiece): --
6.Shortest Focusing Distance: 0.65m
7.Field of View: 1°20´
8.Setting Accuracy: ±0.3"
9.Setting Time: ≤2"
10.Resolution Power: 4.2"
11.Compensator Type: Air Damping
12.Working Range: ±15"
13.Multiplication Constant: 100
14.Additive Constant: 0
15.Sensitivity of Circular Level: 8"/2mm
16.Horizontal Outer Circle: Optional: 360°/1° or 400gon/1gon
17.Ambient Temperature: －20℃ ~ ＋45℃
18.Recommended Staff: Please refer to "Leveling Staffs & Bipods"
19.Recommended Tripod: Please refer to "Surveying Tripods"
20.Standard Accessories: Adjusting Pin,Desiccating Agent,Hex Key,Plumb Bob,User Manual
Note: Any updating would be subject to occur without prior notice!!
