Highlights
Model: CLR290-360
1.Geomaseter Ceiling Laser Rod (CLR290)
2.Max Height: 3.6m, 5 sections
3.Printed in 5mm Graduations
4.Mounting Bracket w. 5/8" and 1/4" Adapters
5.With heavy-duty Carrying Bag
6.Laser Pole Tripod TRI75-520/920 a/v
7.Yellow,Red,Black-Yellow & Black-Red a/v
| Quantity: | |
|---|---|
CLR290-360
Geomaster
90159000
Features and Specifications
Model: CLR290-360

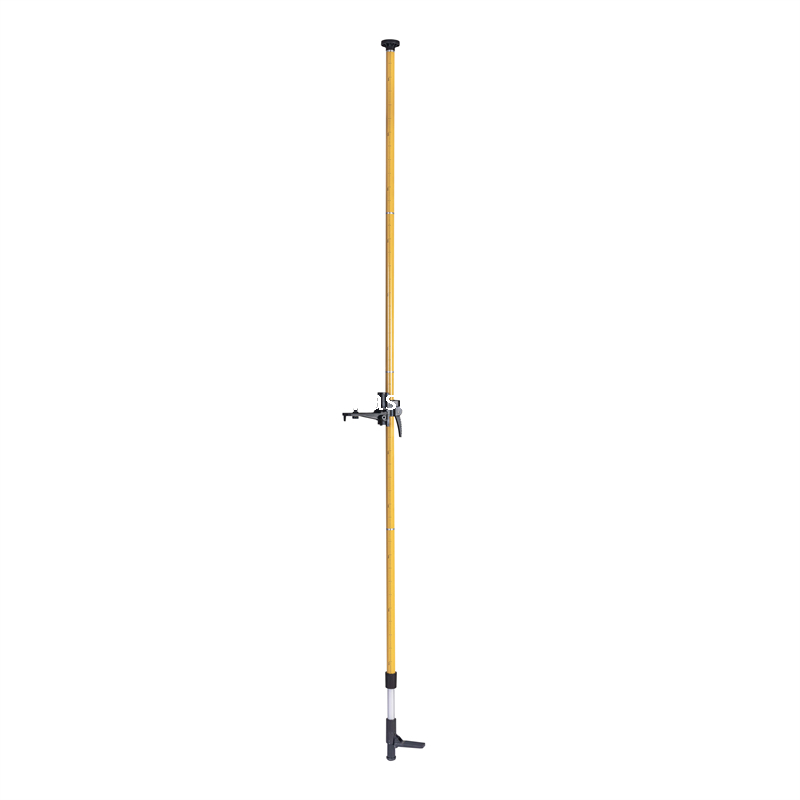

1.Geomaster Aluminum Construction Laser Rod (CLR290)
2.Replacement of Johnson Level Floor-to-Ceiling Interior Laser Pole 40-6300
3.Specially designed to support indoor medium-duty or heavy-duty Laser Levels

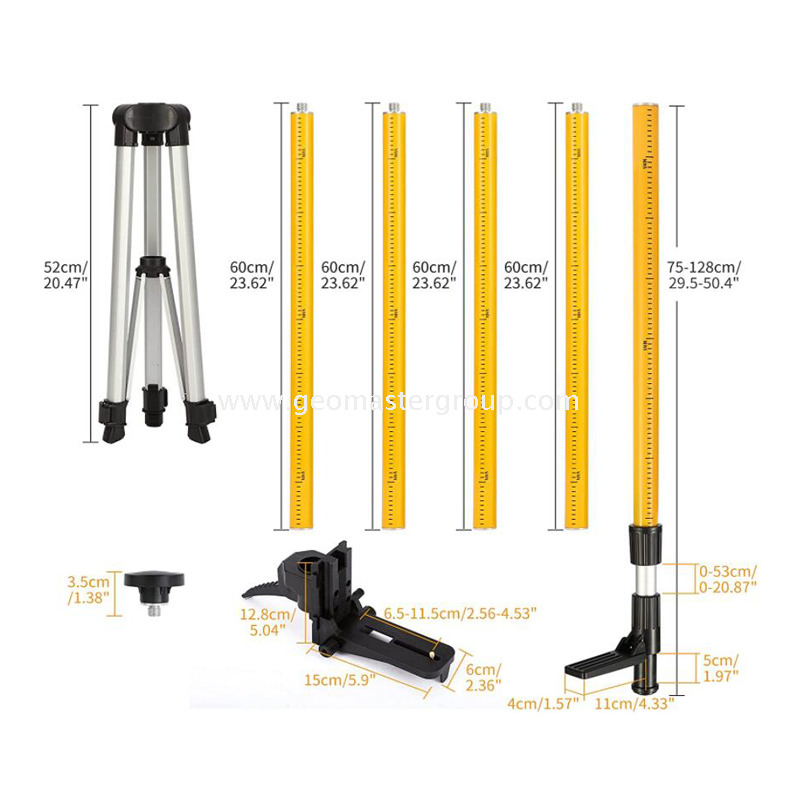

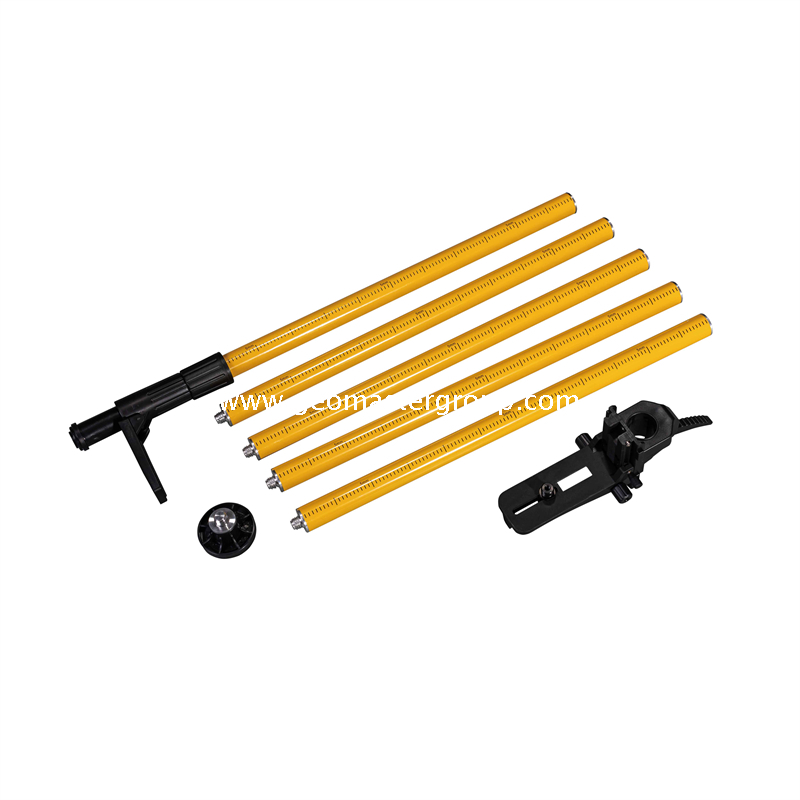

4.Max Height & Sections: 3.6m, 5 sections
1)Bottom Section (Section 1): 75-128cm (29.5-50.4")
2)Sections 2/3/4/5: 60cm (23.62") long respectively; easy to assemble and adjust
5.Outer Diameter of Pole Tube: 32.26mm (1.27")
6.Mounting Bracket Socket Diameter: 32.50mm (1.279")
7.Pole printed in 5mm Graduations
8.Connecting & Locking Style: Screw-in+Telescopic

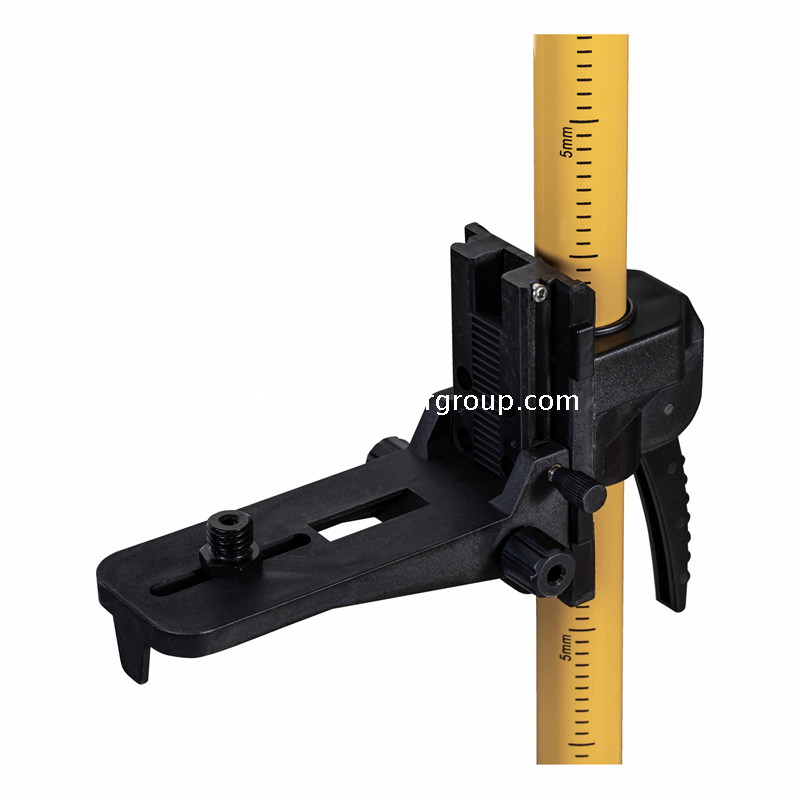

9.Mounting Bracket: made of heavy-duty engineering Plastic; with 5/8" and 1/4" Adapters
compatible with most surveying & measuring instruments and tools
10.Mounting Bracket Payload: ≤10kg
11.Pole Colors available, Yellow,Red, Black-Yellow,Black-Red
12.Reinforced Carrying Bag (Red or black) for carry-around during surveying
13.Each End Piece made from heavy-duty Plastic to ensure extra durability

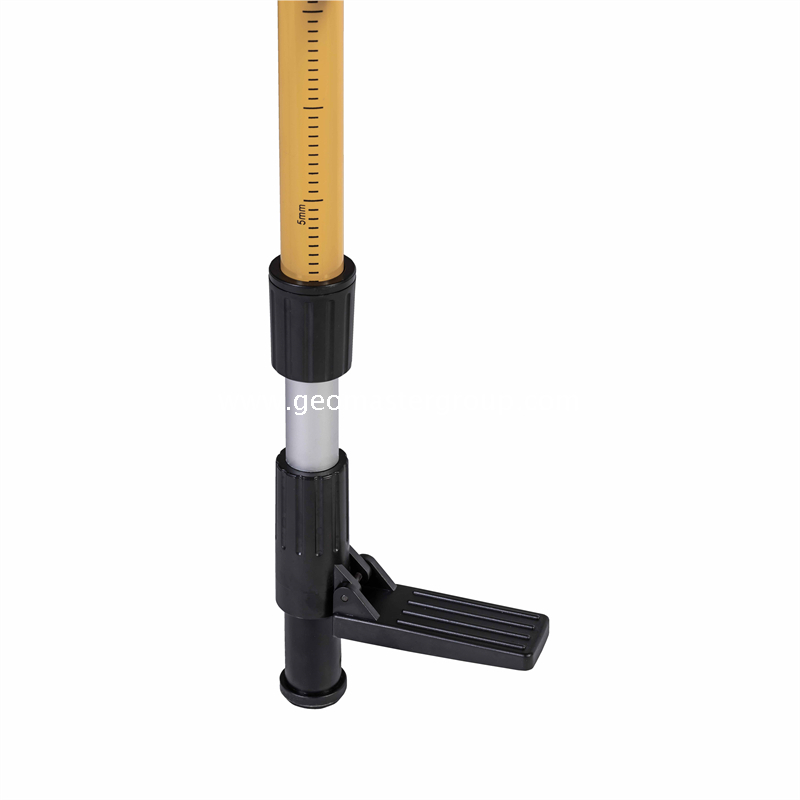

14.Spring-loaded Bottom End offering tight compression from floor to ceiling.

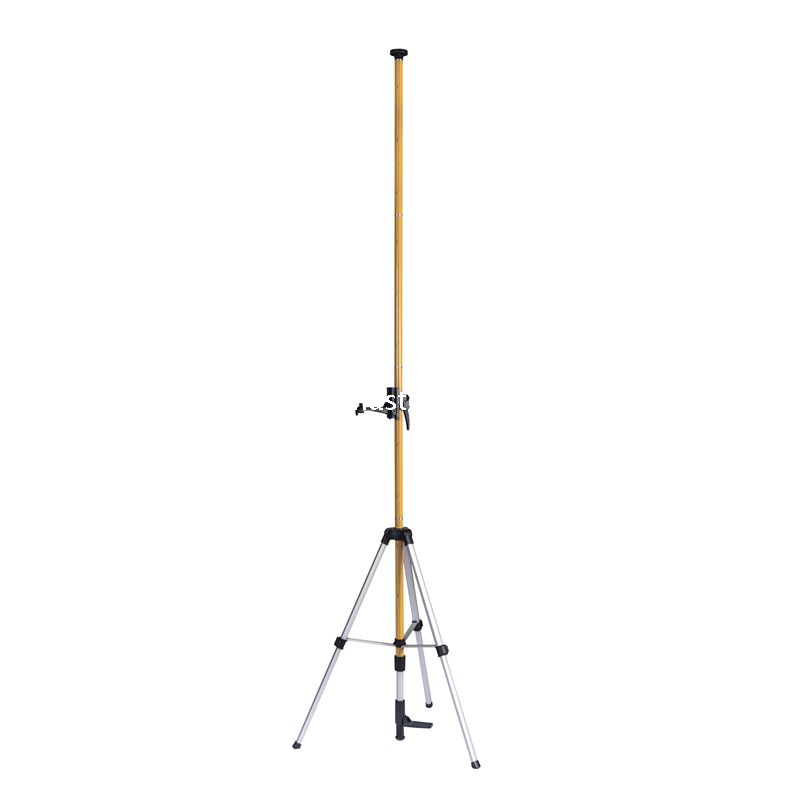

15.Laser Pole Support Tripod TRI75-520/920 for option
16.Customization service available
Note: Any updating would be subject to change without prior notice.
