Highlights
Model: GPR113-05/ORG

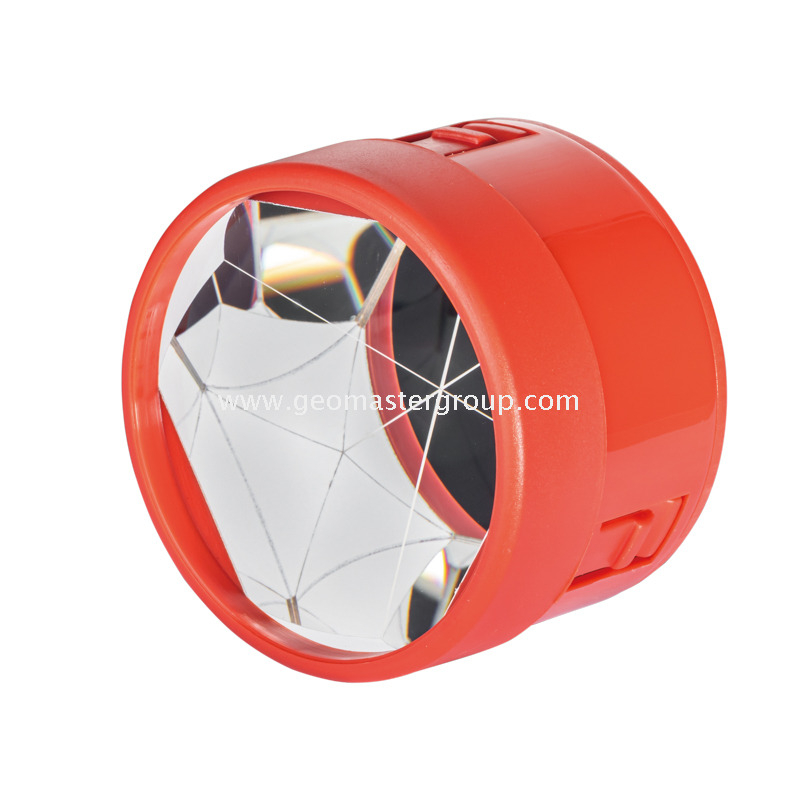

1.Geomaster Circular Prism Reflector (GPR113)
2.Prism Accuracy: ≤5" (with zygo Report)
3.Prism Aperture: 64.4mm (25.4 inch)
4.Prism Offset: 0mm
5.Polymer Canister Color: Orange (ORG)
6.Measuring Range: up to 2000m
7.Non-coated, non-waterproof
8.Fitting original Prism Holders GPH1,GPH3,GPH1A
| Quantity: | |
|---|---|
GPR113-05/ORG
Geomaster
90159000
Features & Specifications
Model: GPR113-05/ORG
1.Geomaster Circular Prism Reflector (GPR1)
2.Designed for efficient and accurate surveying and monitoring purposes (Theodolites,Total Stations, MultiStations, ScanStation,Laser Trackers, Laser Scanners)
3.Prism Accuracy: ≤5",enclosed with a real-time Testing Report generated by Zygo
4.Prism Aperture×Height: 64.4mm (2.54 inch)×39.6mm (1.56inch)
5.Prism Offset: 0
6.Prism Material: precision-ground Optical Glass K9
7.Measuring Range: up to 2000m (under normal weather conditions)
8.Equivalent to and replacement of Original Prism Reflector GPR1

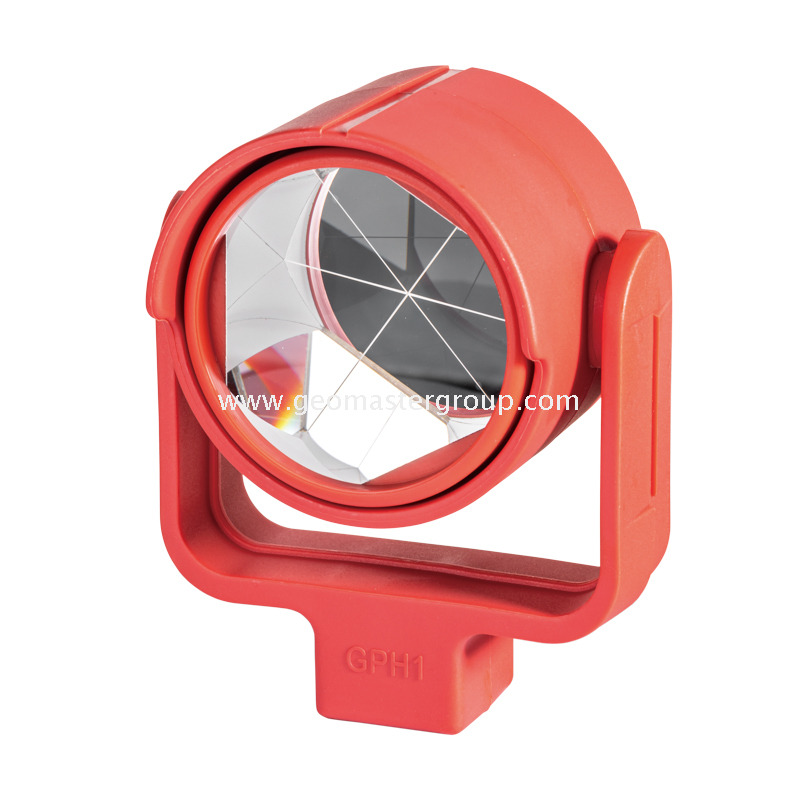

9.Fits all Original Prism Holders GPH1, GPH1A, GPH3, GPR111, GPR121
10.Compatible with original Prism Reflector Poles GLS11, GLS12, GLS13, AP20 AutoPole....
11.Canister (Housing): made of orange polymer (ORG)
12.Four Prisms packed into a red or yellow padded nylon carrying bag for easy and secure transport
13.Each prism coming with a white dust-proof Cover
Note: Any update would be subject to change without prior notice.(GPR113)
