GMP004-25.4WHT-200
Geomaster
9015900090
Specifications
Model: GMP004-25.4WHT-200

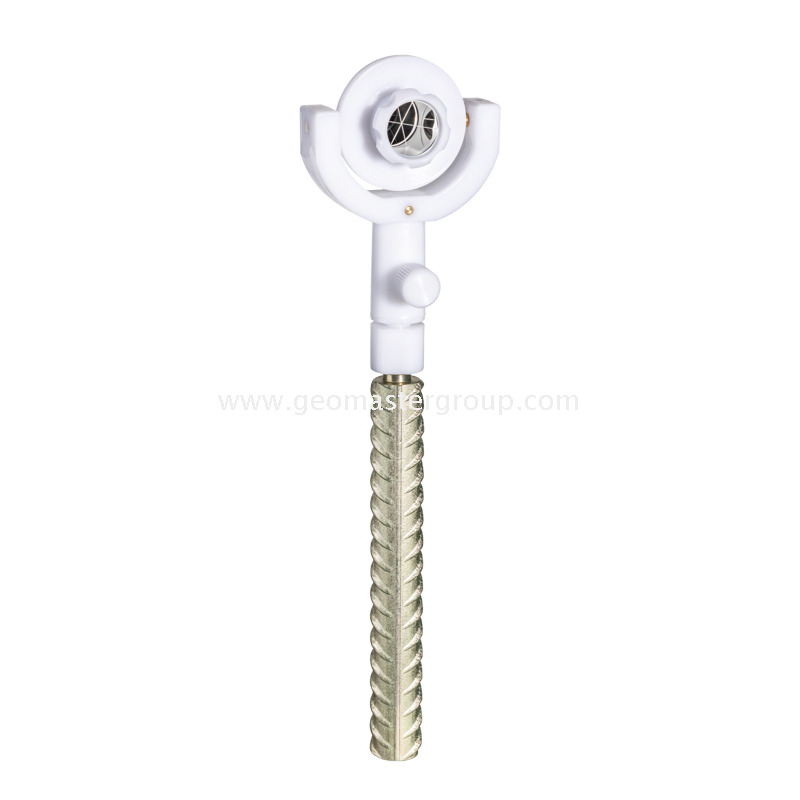

This convergence bolt assembly is designed for precise short-range measurement and permanent surveying applications. The set consists of the Mini Prism Set (GMP004-0/30-25.4/WHT) and the Convergence Bolt (Bolt58-200).

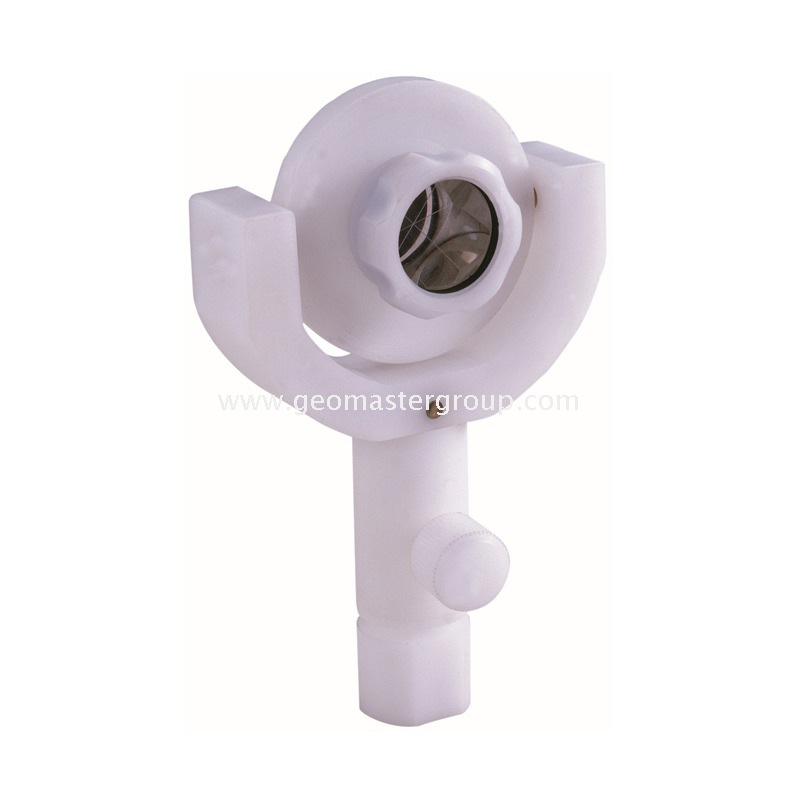

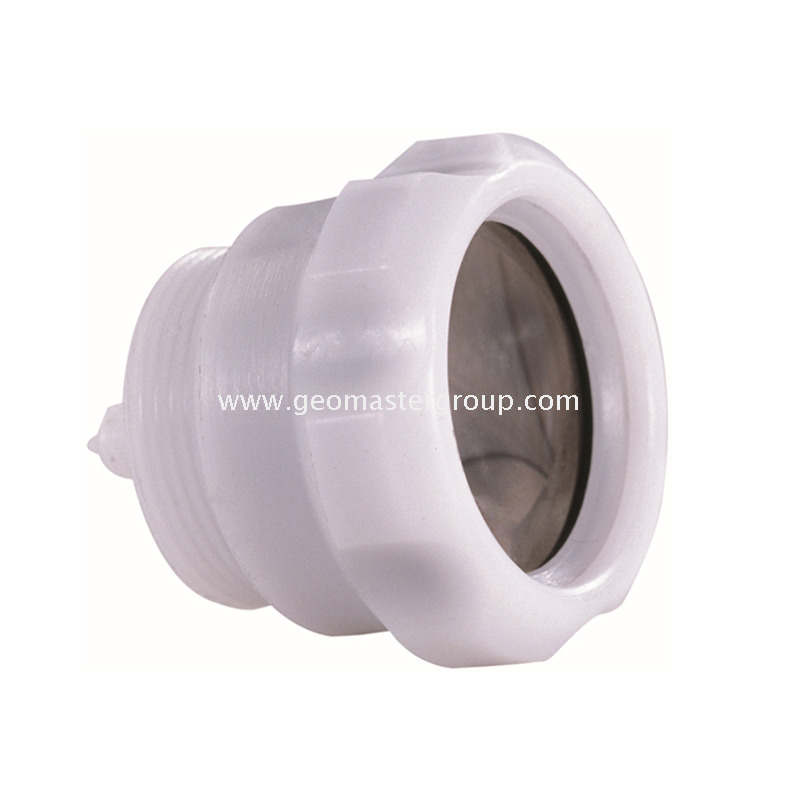

1.Mini Prism Set: GMP004-0/30-25.4/WHT
1)Prism Constant: 0mm or -30mm
2)Prism Aperture: 25.4mm (1inch)
3)Prism Accuracy: ≦5"
4)Silver-coated (Ag), water-proof

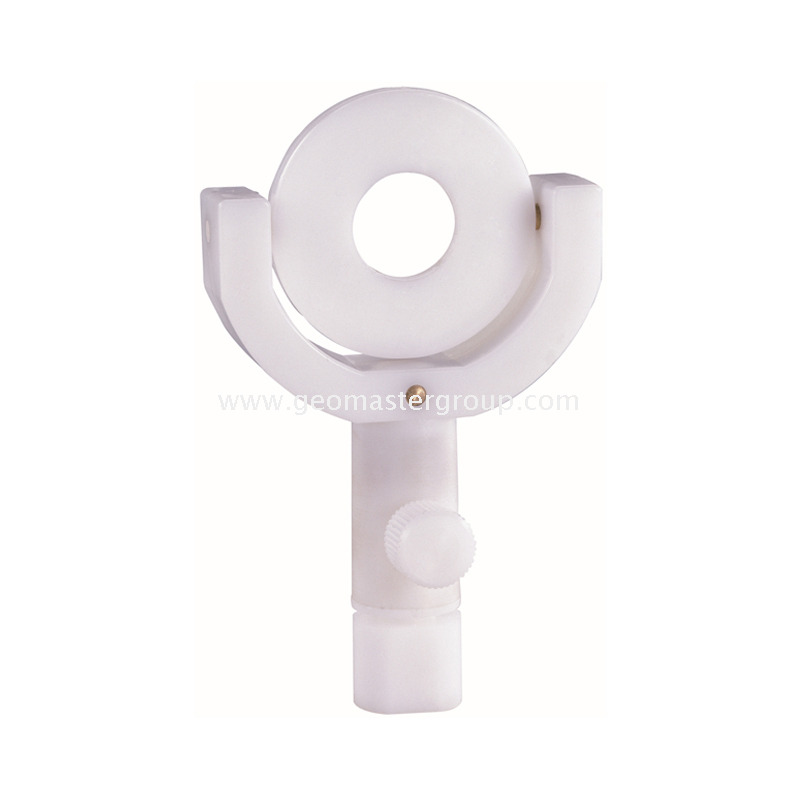

5)Tilting Prism Holder (Yoke Holder): white Polymer
6)Quick-release Adapter from Swiss-style Stub (12mm×52mm×25mm) to female Thread (5/8"×11)
7)Measuring Range: up to 1000m (depending on Surveying Instruments,orthogonal viewing...)
8)N.W.: 160-165g

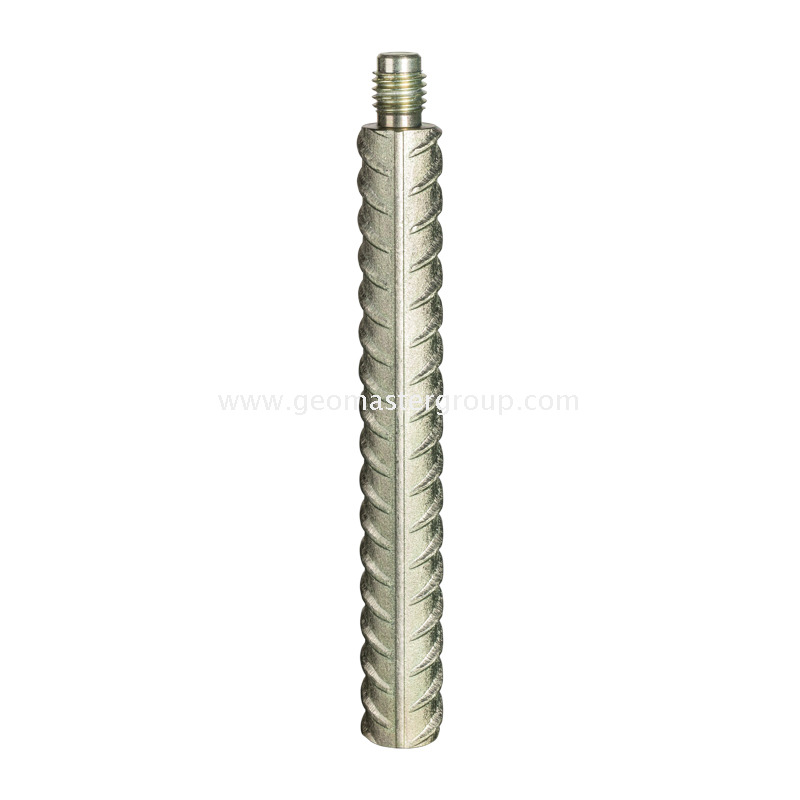

2.Galvanized Convergence Bolt (Re-bar Bolt): Bolt58-200
1)Material: Galvanized Steel Re-bar
2)Bolt Diameter: 20-22mm
3)Bolt Adapter: male 5/8"
4)Overall Height: 200mm; 150mm, 200mm, 250mm, and 500mm available
5)For Prism Holder & Targets w. 5/8" female Thread
6)For Bi-reflex Targets w. 5/8" female Thread

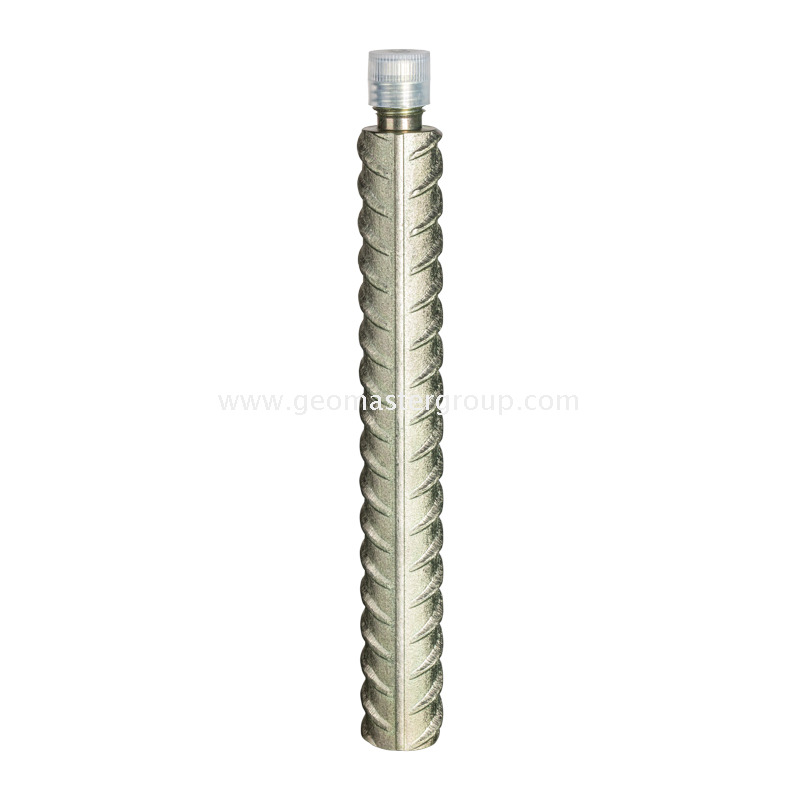

7)With a white PVC protective Cap
8)N.W.: 550g
Note: Any updating would be subject to change without prior notice.
