GRT144-470WHT/WH-200
Geomaster
9015900090
Specifications
Model: GRT144-470WHT/WH-200

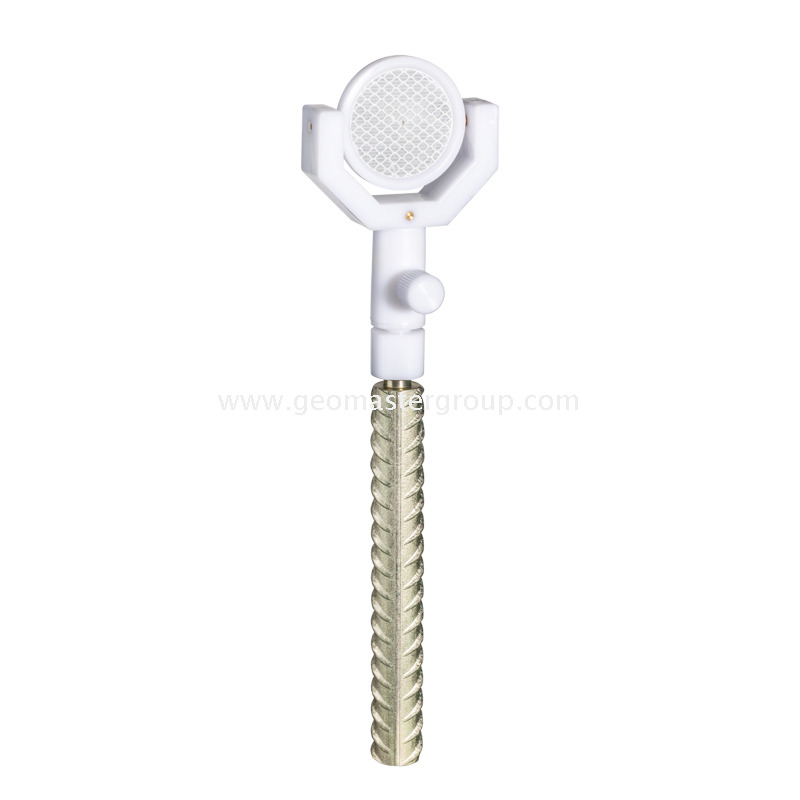

This convergence bolt assembly is designed for precise short-range measurement and permanent surveying applications. The set consists of the Bi-reflex Target (GRT144-470WHT-WH) and the Convergence Bolt (Bolt58-200).

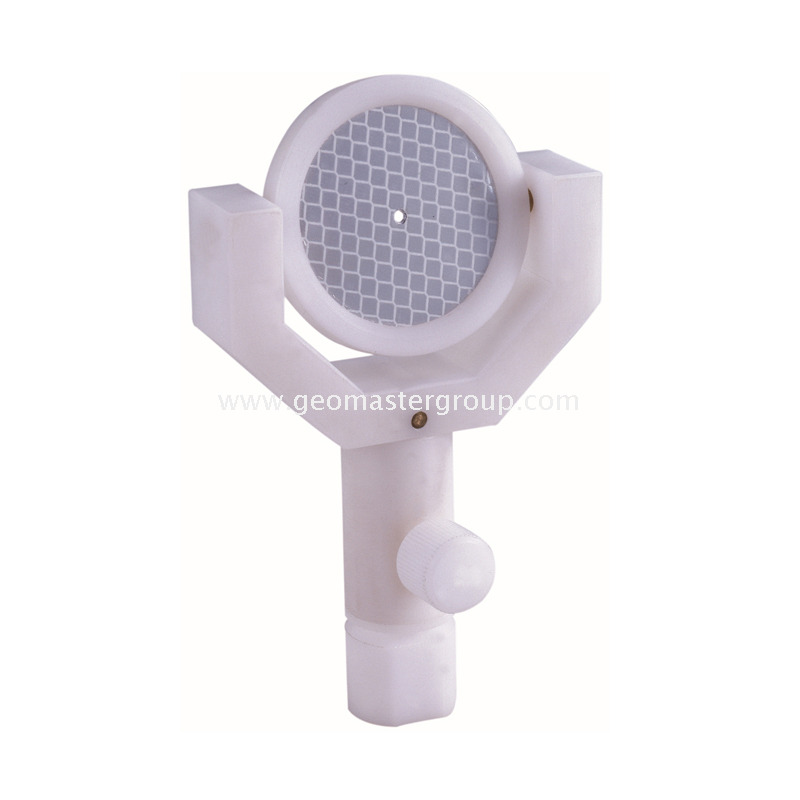

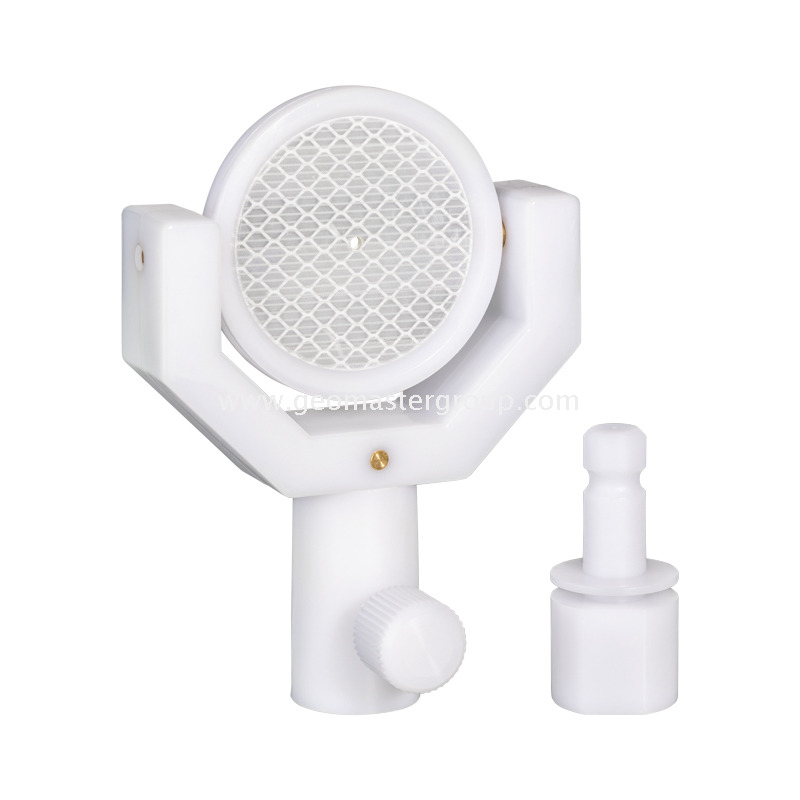

1.Dual-sided Retro Sheet (Anti-crack Bi-reflex Reflective Tape): GRT144-470WHT-WH
1)Bi-reflex, double-sided Retro Reflective
2)Sheeting Style: Diamond Pattern
3)Retro Sheet Diameter & Color: 47mm, White (WHT)
4)Tilting Sheet Holder (Yoke Holder): White Polymer
5)Quick-release Adapter from Swiss-style Stub (12mm×52mm×25mm) to female Thread (5/8"×11)
6)Measuring Range: up to 150m (depending on Surveying Instruments,orthogonal viewing...)
7)N.W.: 125-130g

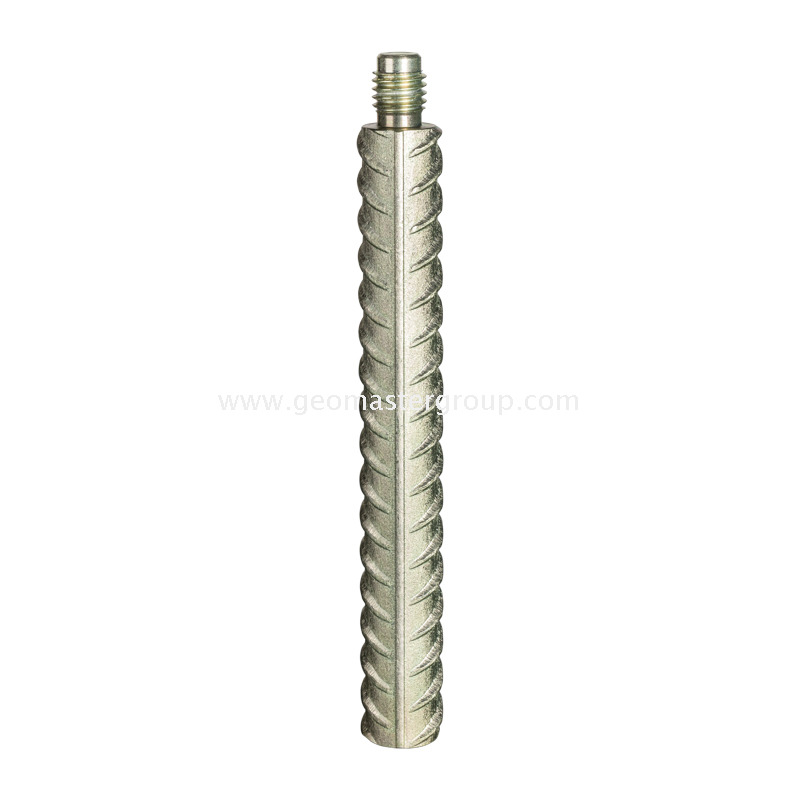

2.Galvanized Convergence Bolt (Re-bar Bolt): Bolt58-200
1)Material: Galvanized Steel Re-bar
2)Bolt Diameter: 20-22mm
3)Bolt Adapter: male 5/8"
4)Overall Height: 200mm; 150mm, 200mm, 250mm, and 500mm available
5)For Prism Holder & Targets w. 5/8" female Thread
6)For Bi-reflex Targets w. 5/8" female Thread

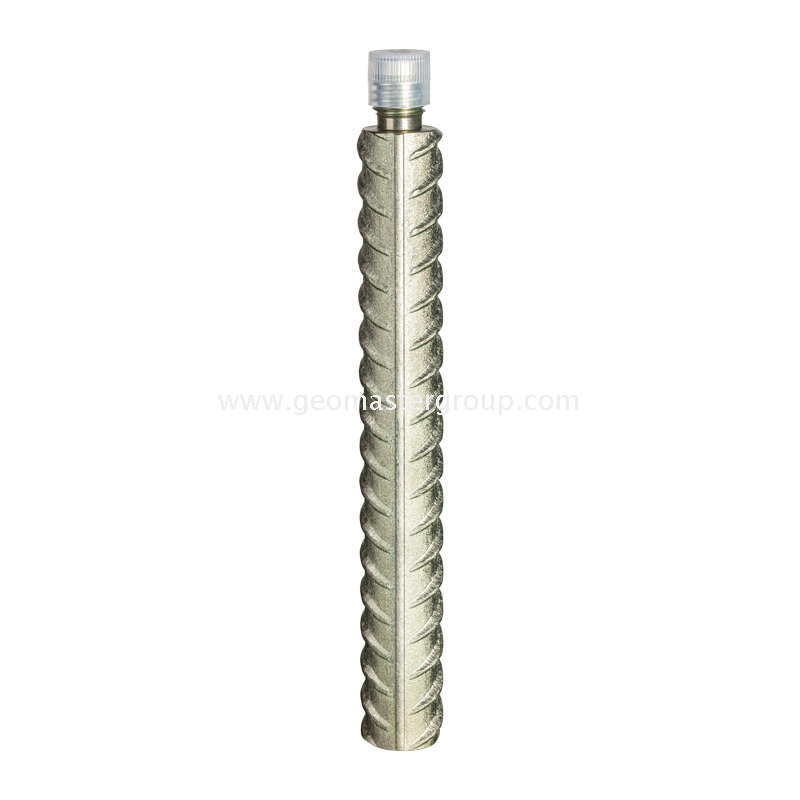

7)With a white PVC protective Cap
8)N.W.: 550g
Note: Any updating would be subject to change without prior notice.
