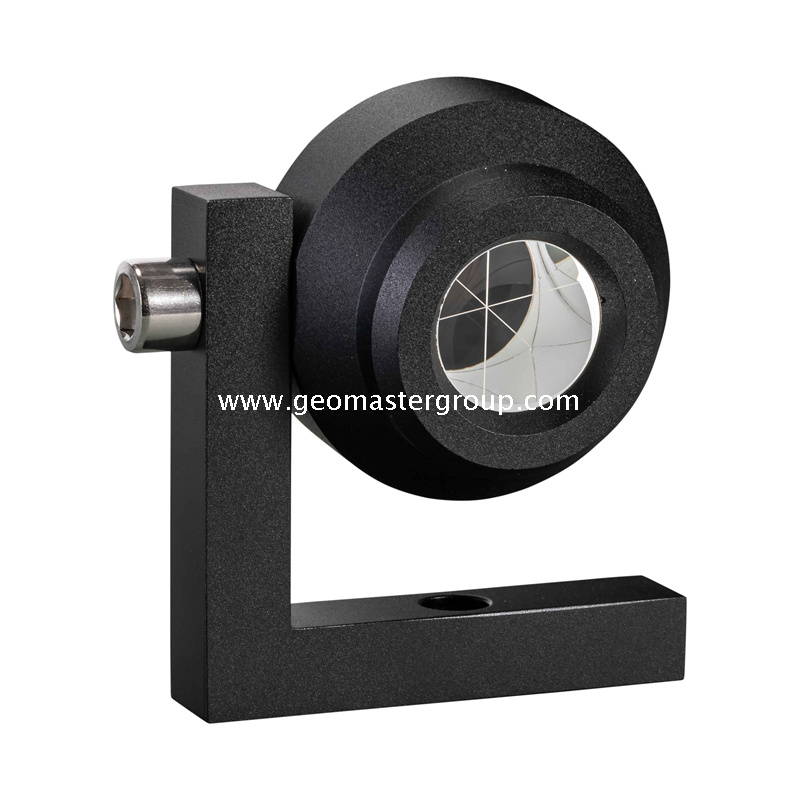

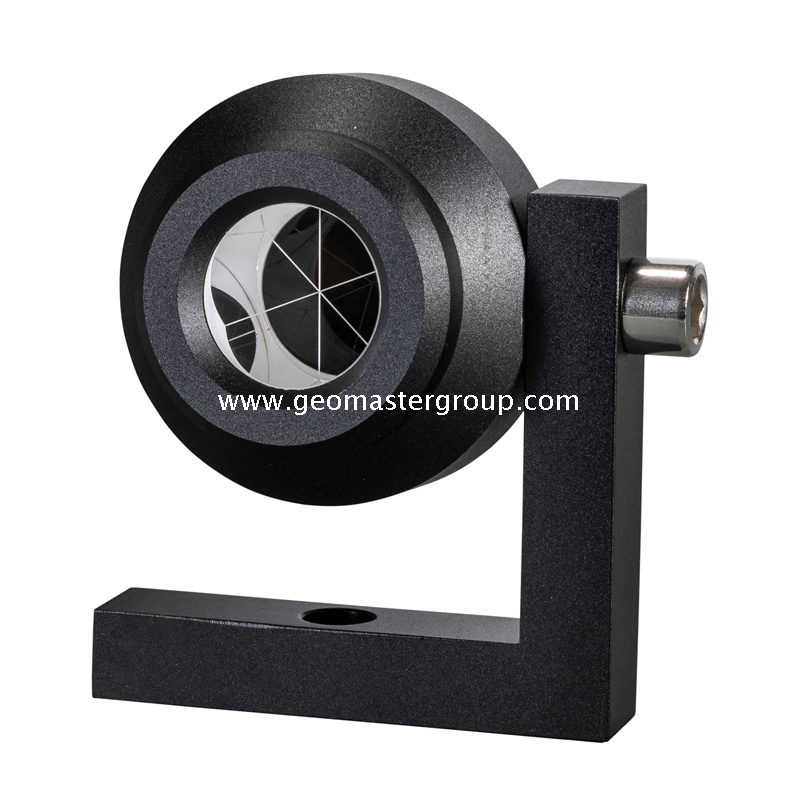

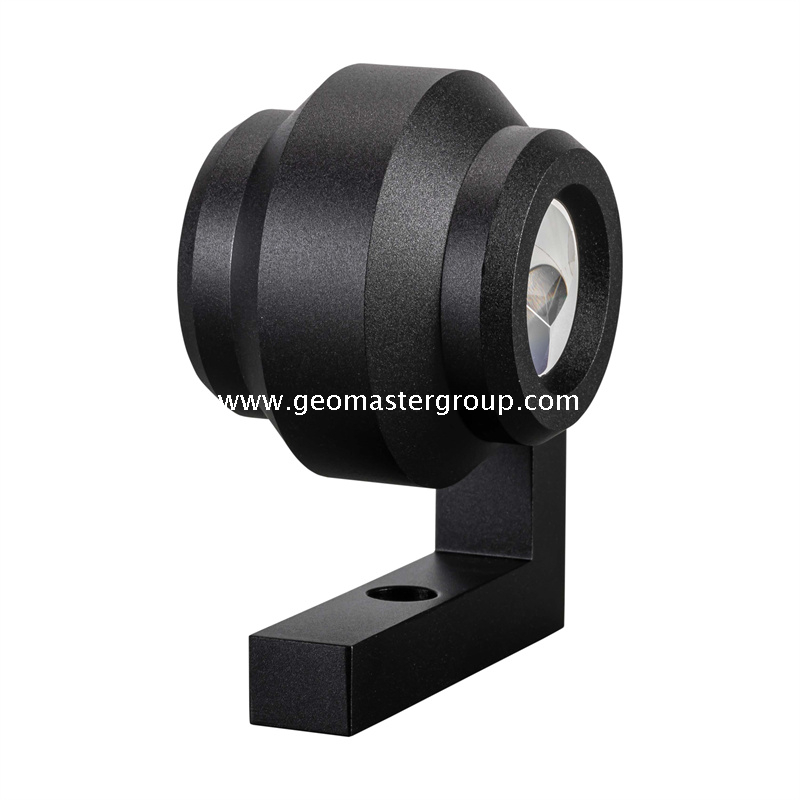

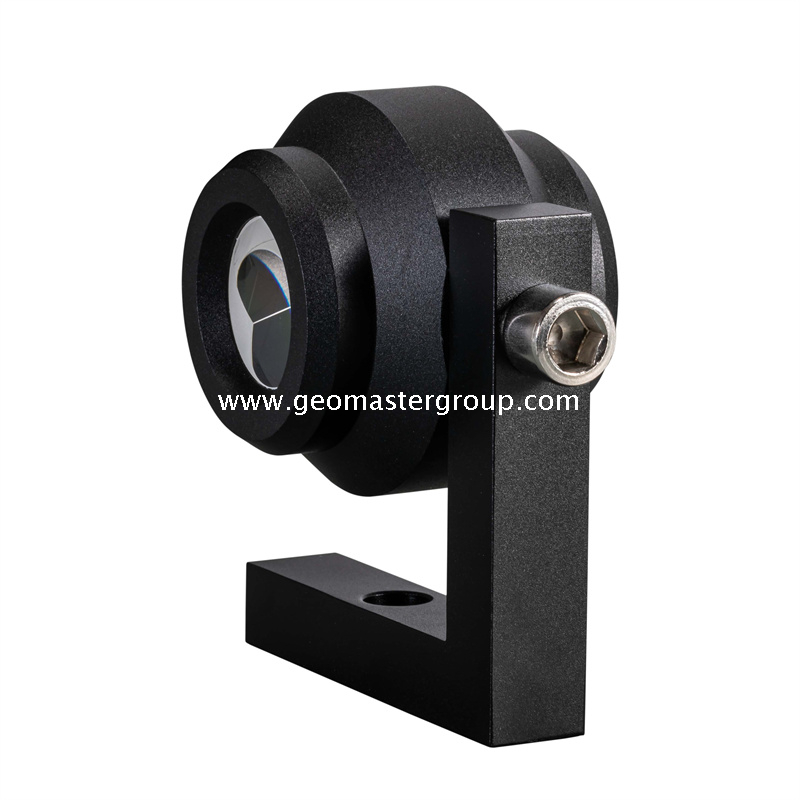

Double-sided L-bar Prism

Highlights
Model: GMP104D-254Ag/3,GMP104D-254Ag/5
1.Geomaster Mini Prism (GMP104D)
2.L-bar Monitoring Mini Prism
3.Replacement of Original GMP104,GMP004
4.All-metal,Double-sided (D)
5.Prism Aperture: 25.4mm
6.Silver-coated (Ag), water-proof
7.Prism Accuracy: ≦3",5"
8.Measuring Range: up to 1200m

Availability:
Quantity:
  • GMP104D-254Ag

  • Geomaster

  • 9015900090

Specifications
Model: GMP104D-254Ag/3,GMP104D-254Ag/5
1.Geomaster L-bar Mini Prism (GMP)
2.Mini Prism Effective Aperture: 25.4mm (1 inch)
3.Prism Accuracy:
1)GMP104D-254Ag/3: 3"
2)GMP104D-254Ag/5: 5"
4.Central Height:
5.Prism Constant: -24mm
6.Silver-coated (Ag) and water-proof (sealed in metal Canister)
7.Prism Reflectivity: 95%
8.Prism Surface Finish: 60~40
9.Measuring Range: up to 1200m (under normal weather condition)

Features
Model: GMP104D-254Ag/3,GMP104D-254Ag/5
1.Equivalent to and replacement of original GMP104 or GMP004
2.Double-sided quality Mini Prisms for more efficient and precise monitoring
3.Hermetically sealed in black anodized Aluminum Housing,dust-proof, moisture-proof and water-proof for rough working environments
4.Sturdy Aluminum Holder L-bar: 3"×3", w.1 Hole (Diameter 10mm) mounting on different surfaces or places, temporary
or permanent
5.Customization services a/v
1)Prism Accuracy: 3",5",8"
2)Prism Aperture: 38.1mm (1.5inch), 25.4mm (1inch), 12.7mm (0.5inch)
3)Prism Coating: non-coated,Copper-coated (Cu),Silver-coated (Ag), Anti-reflex coating (AR), Aluminum-coated (Al)
4)L-bar Colors: blackening anodized or white anodized

Note:
Any updating would be subject to change without prior notice.


Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,
Reality Capture,SLAM Survey,Surveying Prism,360-deg Prism,90-deg Prism,Cats Eye Prism,Mini Prism, Mini Prism Set,Mini Prism System,Monitoring Mini Prism,Monitoring Prism,Prism Reflector,Reflector Prism,Road Monitoring Prism,Road Prism,Road Stud,Robotic Prism,Robotic Prism,Robotic Prism Station,Rotating Prism,Stakeout Mini-Prism, Traverse Prism Kit,
Traverse Prism System,Tunnel Prism, Drone Prism, UAV Prism,GPS Prism,Laser Prism,Scanner Prism, 3D Prism, Target Prism, Optical Glass,Optical Prism, Optical Square,Led Flashing
Prism, Flashing Prism, Strobe Prism,Tunnel Prism,Construction Prism,Subway Prism,L-bar Prism, L-bar Mini Prism,U-bar Prism,U-bar Mini Prism, U-bar Monitoring Prism,Dual Prism,Dual
Sided Prism,45-deg Mini Prism,GMP Prism,Road Prism,Circular Road Prism,Square Road Prism,Road Stud,Mini Prism Pack,Ball Prism,Ball Mini Prism,Sliding Prism,Sliding Mini Prism,
Spherically Mounted Retro Reflector (SMR), Red Ring Reflector (RRR),Laser Tracker,Spherical Prism,Spherical Reflector,Railshoe,Rail Shoe,Reflective Sphere Prism,Premier Prism
(Brunson, Faro, Geomax, GeoSLAM, Leica, Nikon, Pentax,Riegl,SECO,Sokkia,Stonex,Topcon,Trimble,Zeb,Geomaster)

Packing Details
Model: GMP104D-254Ag/3,GMP104D-254Ag/5
1.N.W.: 278g (the whole set) and 336g (w.soft Bag)
2.Qty./CTN: 40pcs
3.G.W./CTN: 17kg
4.Size/CTN: 0.033cbm(41cm×28cm×29cm)
