Highlights

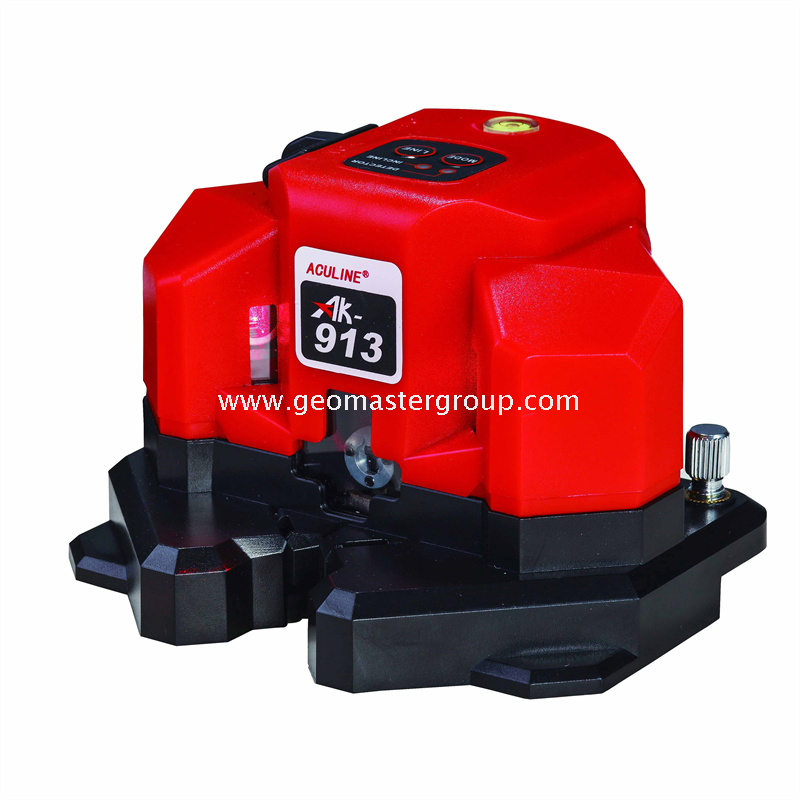

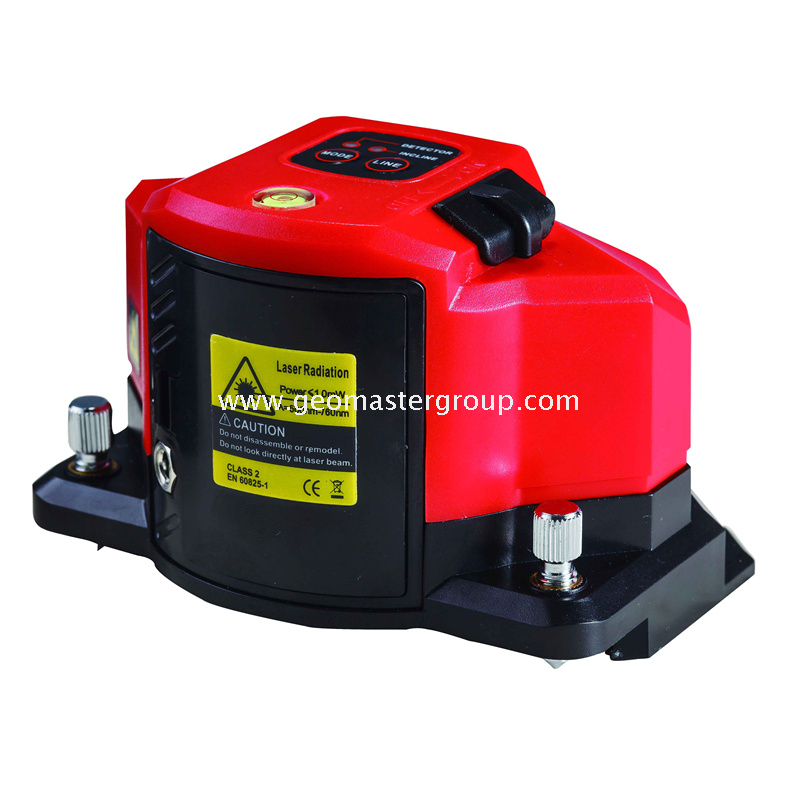

Model: AK-913
1.Self-leveling Red Floor/Wall Line Laser Level
2.Self-Leveling Range ±3°
3.Floor Beam Range up to 10m
4.Line Accuracy ±1mm/5m
5.Tripod Thread ¼" to 5/8"
6.IP54,Circular Bubble & Carrying Bag
| Quantity: | |
|---|---|
AK-913
Geomaster
9015900090
Specifications
Model: AK-913
1.Laser Beam: Red color, on the floor or on the wall (w.Tripod)
2.Self-Leveling Mode: Magnetic Damping
3.Self-Leveling Range: ±3°
4.Self-Leveling Time: <5 sec
5.Working Mode: in-door
6.Working Range:
1)Floor Beam: 10m (Illuminance:180Lux)
2)Cross Beam: 20m (Illuminance:180Lux)
7.Lines: 1 Cross Line on the Floor and 1 Cross Line on the wall when with tripod
8.Line Accuracy: ±1mm/5m
9.Line Width: <2.5mm/5m
10.Horizontal Beam Angle: >80°
11.Vertical Beam Angle: >100°
12.Laser Source: 635nm, Class II, <5mW
13.Power Supply: Alkaline Batteries: 3×AA×1.5v,lasting for 10-15 hours
14.Operating Temperature: (－)10℃ ~ 40℃
15.Storage Temperature: (－)20℃ ~ 50℃
16.IP Protection: IP54: Shock-resistant, dust-tight and water-proof

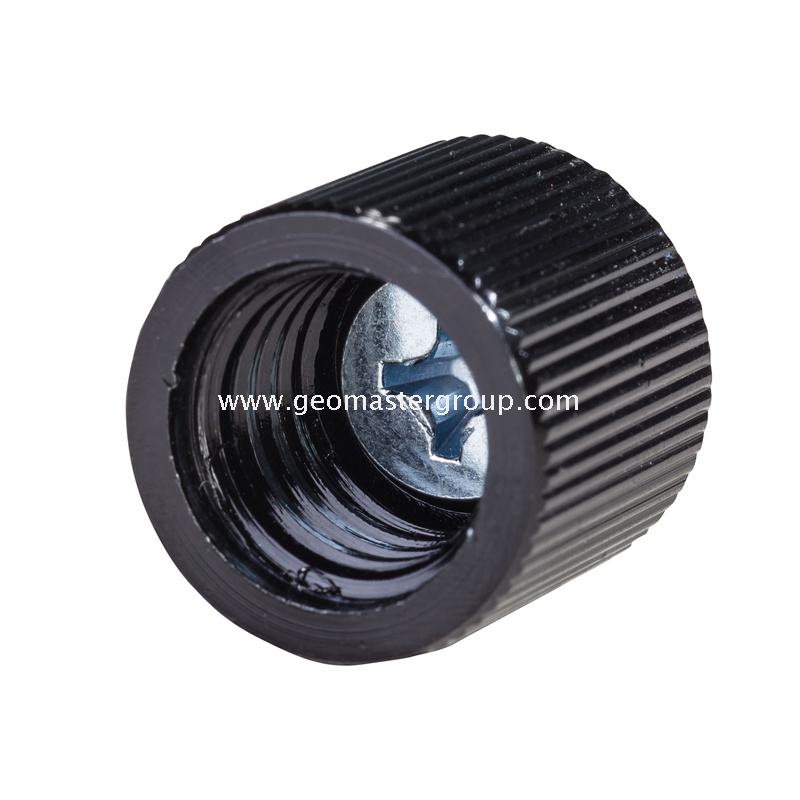

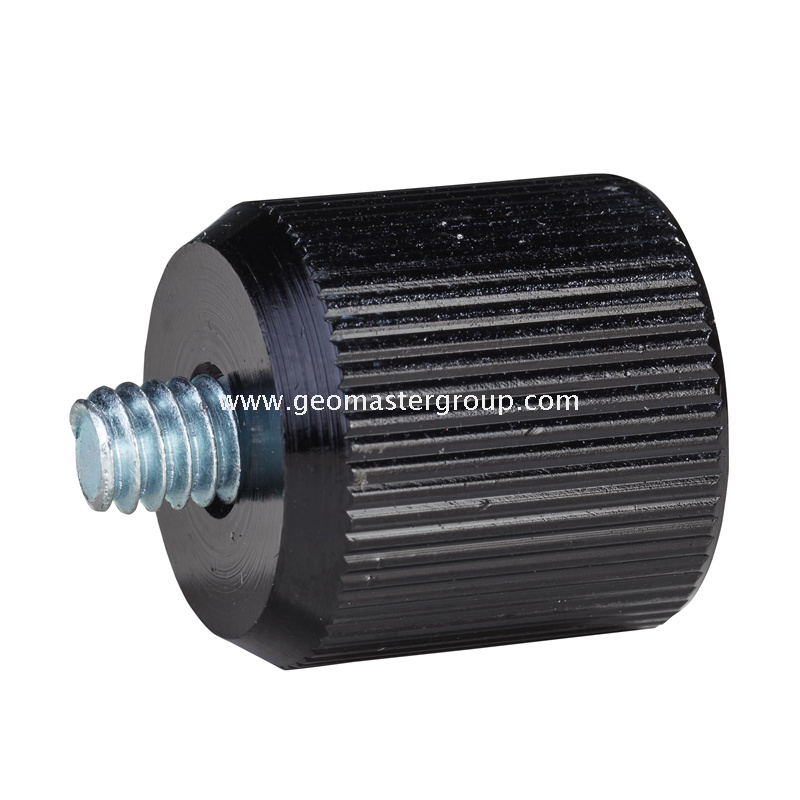

17.Tripod Thread: ¼"-20; with ¼" to 5/8"-11 female Adapter
18.Circular Bubble: 8'/2mm
Features
Model: AK-913
1.Red Laser Level designed for flooring (incl. tile, stone, brick, carpet, hardwood,etc)
2.Top-mounted adjustable Circular Bubble for fast centering and self-leveling
3.Glittering in case of exceeding the self-leveling range
4.Anti-vibration designing suitable for different working conditions
5.IP54, shock-resistant, dust-tight and water-proof for rough working conditions

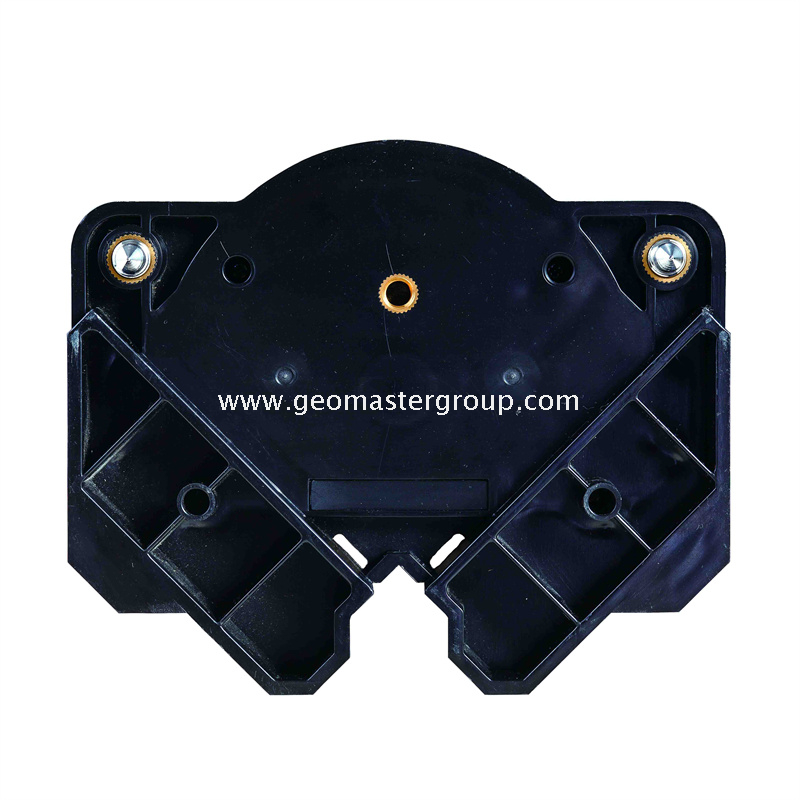

6.Installed with Female Brass Thread (¼"-20), compatible w. all light-duty Laser Tripods and Camera Tripods (w. ¼"
male Adapters or Central Connect Screws): LTD-1201, LDT-1202, LTD-1203, LTD-1204, LTD-06, LTD-07
7.Equipped with ¼"-20 to 5/8"-11 Adapter, compatible w. all Tripods (w. 5/8" -11 male Adapters or Central Connect
Screws) like Laser Tripods and Surveying Tripods (Aluminum Tripods,Wooden Tripods,Fiberglass Tripods)

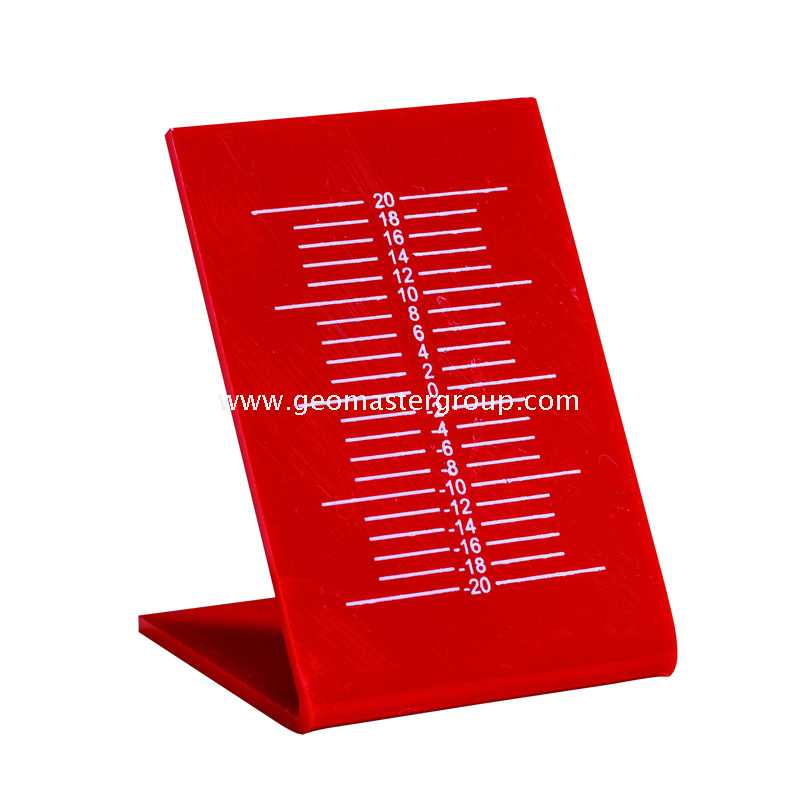

8.Coming with Floor Target and rugged Carrying Bag for easy carrying and secure storage
Note: Any updating would be subject to occur without prior notice!!
