Hybrid Tripod (Round Head,Twist Lock)

Highlights
Model: GST120-08R1/BLK

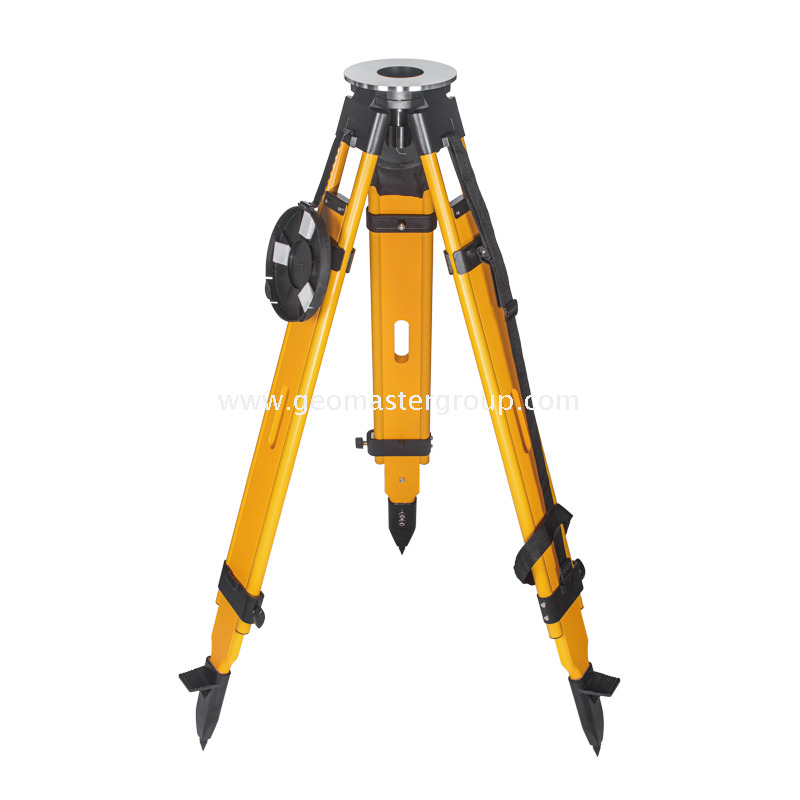

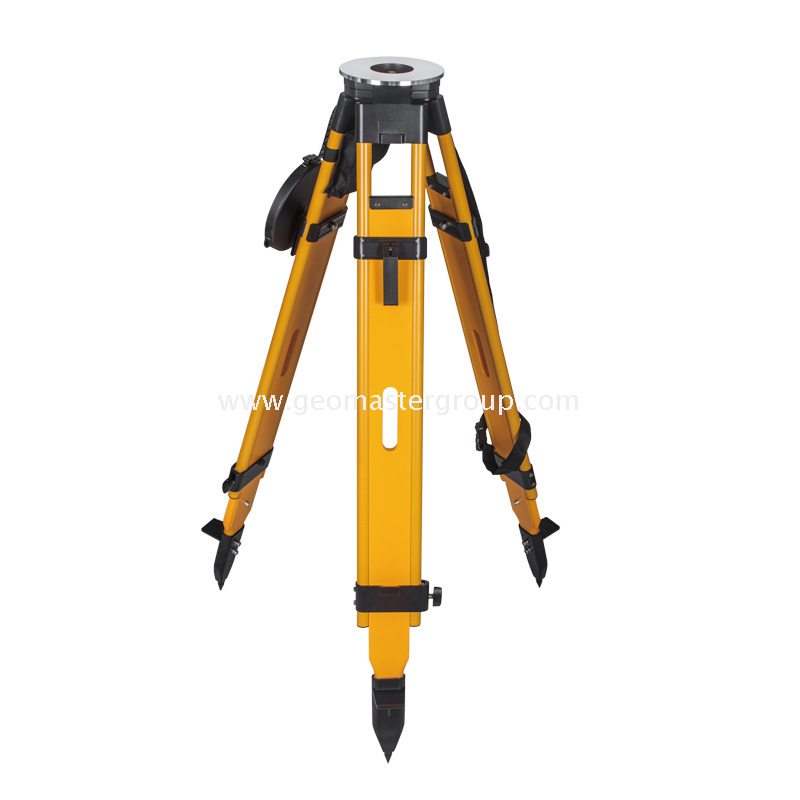

1.Geomaster Hybrid Surveying Tripod (GST120)
2.Heavy-duty Wood and Fibreglass Tripod
3.Height Range: 112-173cm (44-68")
4.Large Round Head (R) & Triple Hand Holes
5.Metal Hardware Color: Black (BLK)
6.Dual Locks: Quick Clamps & Side Twist Locks
7.Central Screw Thread 5/8" w.Hook for Plumb Bob
8.Shoulder Carrying Straps,Dust Cover & Tool Kit
9.For Theodolites,Robotic Stations,Laser Scanners

Availability:
Quantity:
  • GST120-08R1/BLK

  • Geomaster

  • 90158000

Specifications & Features
Model: GST120-08R1/BLK
1.Geomaster heavy-duty round-head wood and Fibreglass Hybrid Surveying Tripod GST120, ideal for
mounting a variety of
 heavy-weight Surveying and Construction Instruments such as Electronic Theodolites, Digital Theodolites,Optical Theodolites,Reflectorless Total Stations,Robotic Total
Stations, ScanStations,3D Laser Scanners,Laser Trackers,LiDAR Scanners,Rotating Laser Levels
2.Height Range: 112-173cm (44-68")

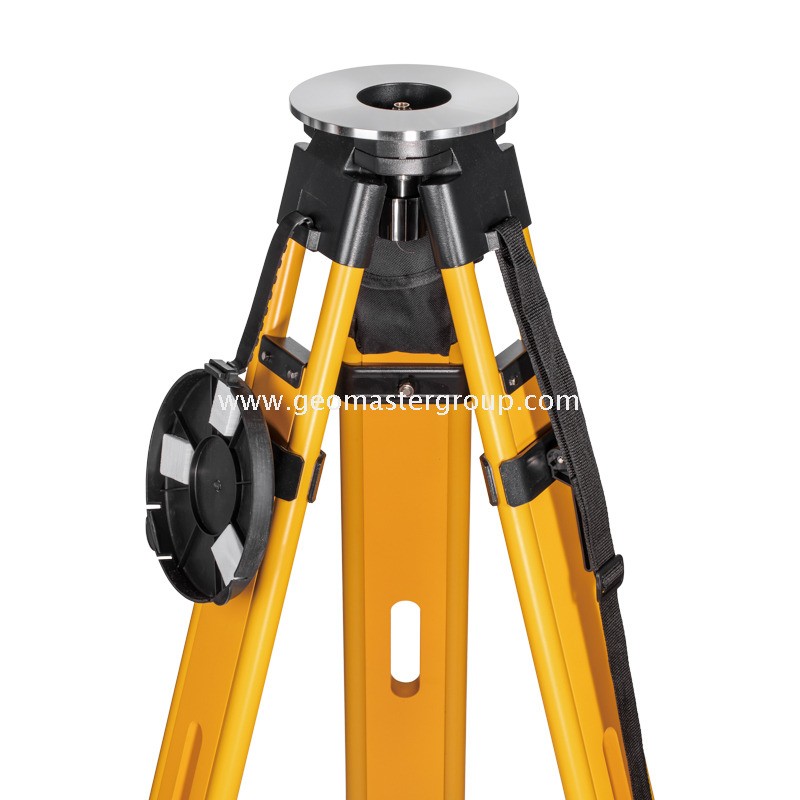

3.Head Type: Large Round Head (R)
4.Head Size: 167mm (OD)
5.Head Bore: 68.5mm (ID)
6.Lock Style: Dual Locks (Top Quick-release Clamps+Bottom Side Twist Locks) for long secure
holding and stable supporting
7.Tool Kit (an Open-end Wrench and an Allen Wrench) for making quick adjustments for instant use
8.All-metal Hardware (Black Color) to ensure durability and long life even under the toughest working sites
9.Triple Hand Holes for easy and safe carrying around
10.Black ABS Dust Cover protecting tripod head from being scratched or damaged

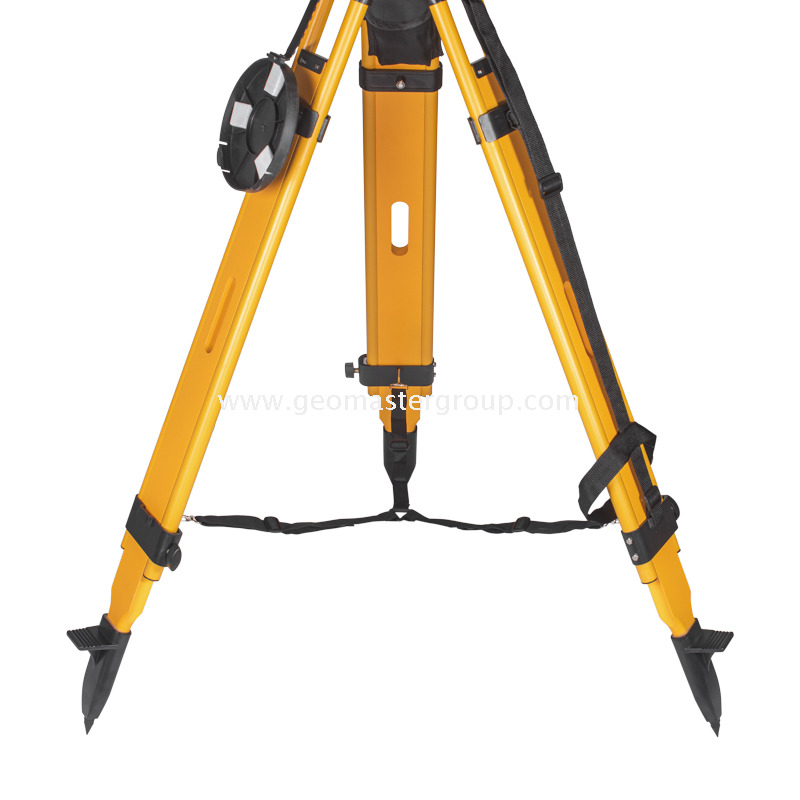

11.Metal pointed tip-toe for hard, slippery, soft, wet and rugged surfaces
12.Central Connecting Screw with 5/8" Thread and Hook for Plumb Bob

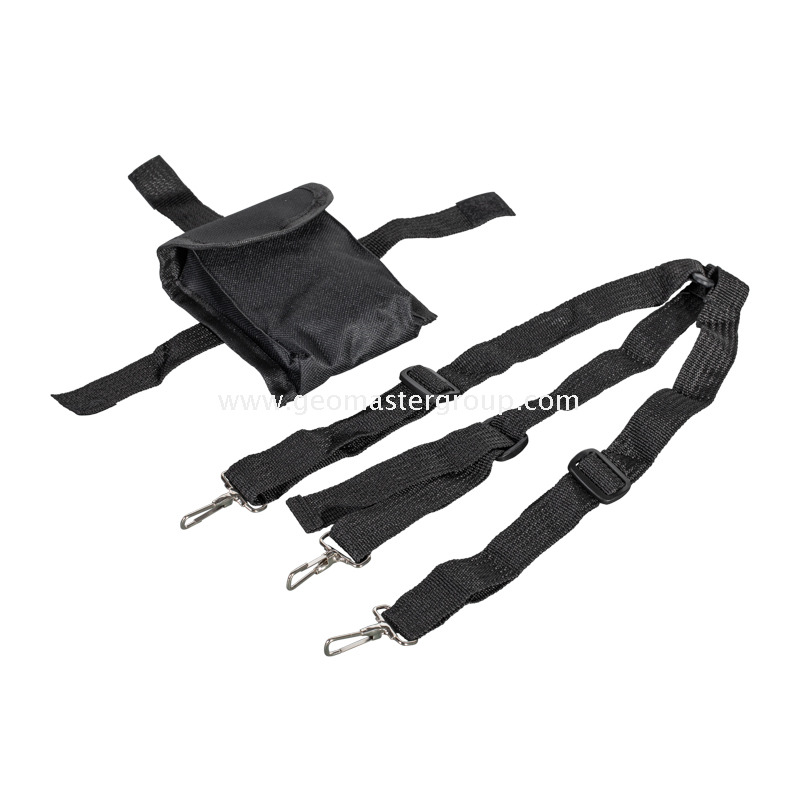

13.Robust poly-webbing Shoulder Strap for easy carrying and transport
14.Leg Colors available: Orange Yellow, Fluorescent Yellow (Flo-Yel)

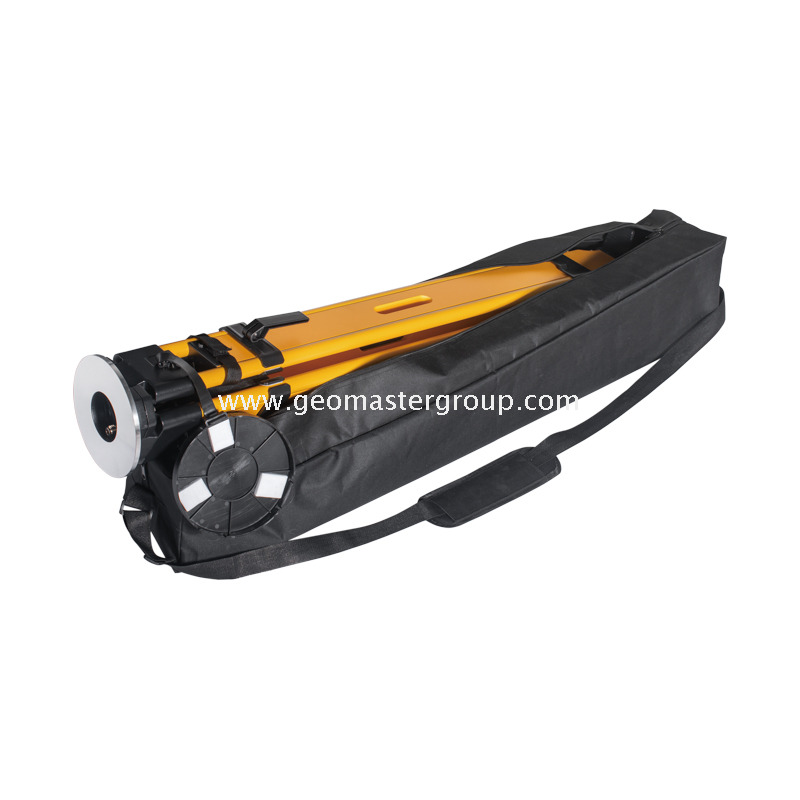

15.Tripod Floor Guide (GSR4-600) and Carrying Bag (Geobag-1100) available
Note: Any updating would be subject to change without prior notice.

Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,SLAM Survey,Geosystems,
Reality Capture,RTK, Surveying Tripod, Surveyor Tripod, GPS Tripod,GPS Pole Tripod,
GNSS Tripod, Aluminum Tripod, Fiberglass Tripod, Wooden Tripod, Carbon Tripod, Portable Tripod, Elevating Tripod, Elevator
Tripod,Contractor Tripod, Builder Tripod,Disto Tripod,Camera Tripod,Level Tripod,Theodolite Tripod, Laser Scanner Tripod, Laser Tracker Tripod, Robotic Tripod, Laser Tripod,Prism Tripod,Surveying Bipod,GPS
Bipod,GPS Pole Bipod,Prism Pole Bipod,Leveling Rod Bipod, Bipod Bracket, Tripod Bracket, 5218 Tripod, Tripod 5218,GLS11, GLS12, GLS13,GLS14,GLS30,GLS31, GLS51,GLS111,GLS112,GLS115,GLS51,GLS52,
GLS53,GLS54,GSR111,GSR115,GST05, GST05L,GST20, GST20-9,GST120-9,GST103,GST101,GST40,GST80,CTC290,CPT104,BLK360,GST29,GST40,TLV Pole,QLV Pole,Robotic Pole,Flo Green Tripod,Flo Orange Tripod,
Flo Yellow Tripod,Fluor Tripod,Construction Elevator Tripod,CTC290,CET103,CET270,CET300,TRI100,TRI120,TRI70,Rugby Tripod,Alligator Clamp Tripod,Alligator Grip Tripod (Bernsten, Brunson, Bosch,Dewalt,
CST/Berger,David White,Faro, Geomax, GeoSLAM, Hilti,Johnson,Leica, Nikon, Pentax, PLS,Riegl,Rothbucher, Specto, SECO, Stabila,Stonex, Surphaser, Teledyne, Trimble, Z+F,Zeb, Zeiss,Geomaster)

Packing Details
Model: GST120-08R1/BLK
1.N.W./CTN: 7.5-7.9kg
2.Qty./CTN: 1pc
3.G.W./CTN: 9.5
-10kg
4.Size/CTN: 0.065cbm(122cm×23cm×23cm)
