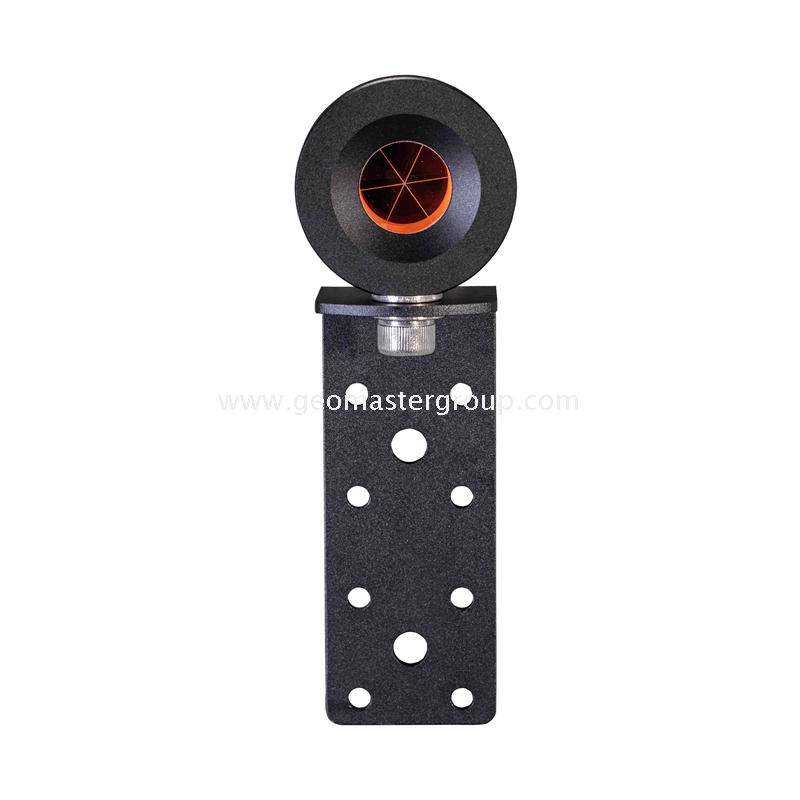

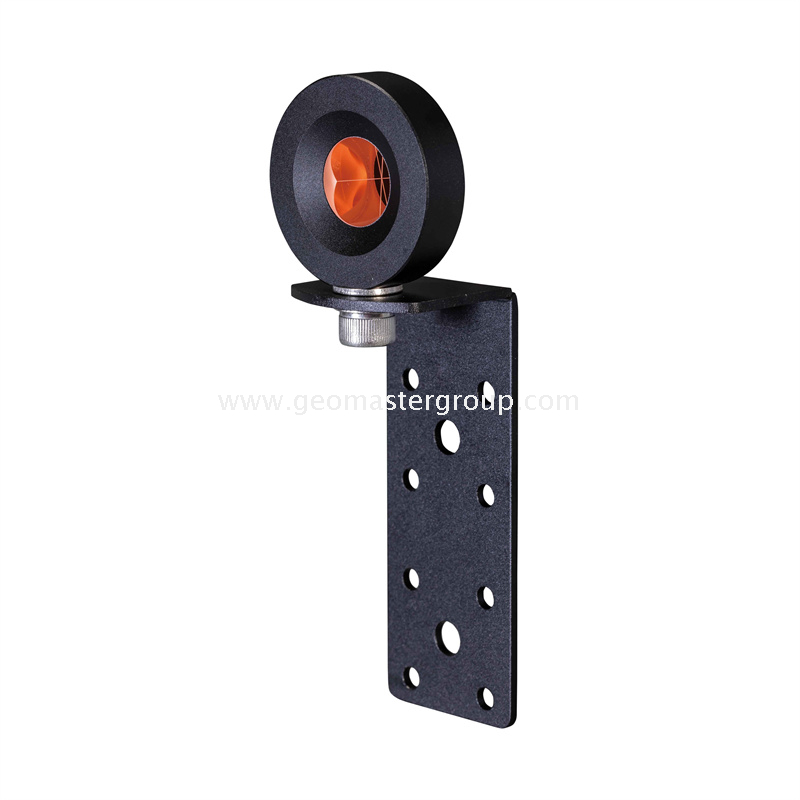

L-bar Monitoring Prism

Highlights
Model: GMB-104G
1.L-bar Monitoring Prism
2.Replacement of Leica-style GMP104
3.Prism Effective Aperture: 25.4mm
4.Prism Accuracy: 5"
5.Copper-coated, water-proof
6.Measuring Range: up to 800-1000m

Availability:
Quantity:
  • GMB-104G
  • Geomaster
  • 90318090

Specifications
Model: GMB-104G
1.Accuracy: 5"
2.Mini Prism Effective Aperture: 25.4mm (1 inch)

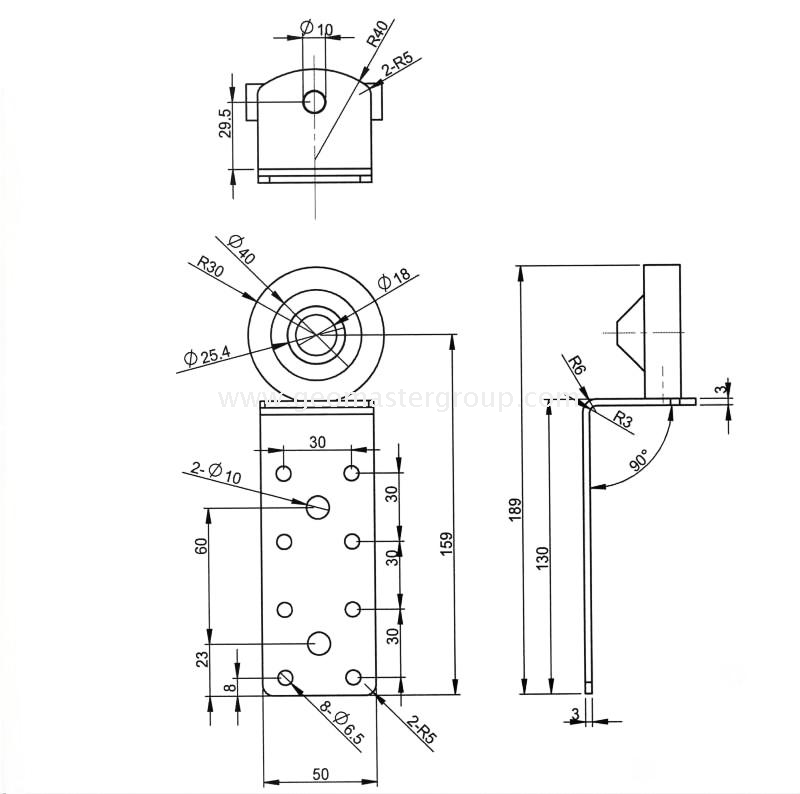

3.Central Height: 159mm (as shown in sketch)
4.Prism Constant: depending on mounting positions
5.Copper-coated and water-proof (sealed in metal Canister)
6.Prism Reflectivity: 95%
7.Prism Surface Finish: 60~40
8.Measuring Range: up to 1000m (under normal weather condition)

Features
Model: GMB-104G
1.Replacement of Leica-style GMP104-L
2.Different Accuracy (3/5/8 arc seconds) available to meet various surveying and monitoring tasks
3.Copper-coated: standard;
4.Silver-coated or Aluminum-coated available
5.Hermetically sealed in black anodized Aluminum Housing,dust-proof, moisture-proof and water-proof for rough
working
environments

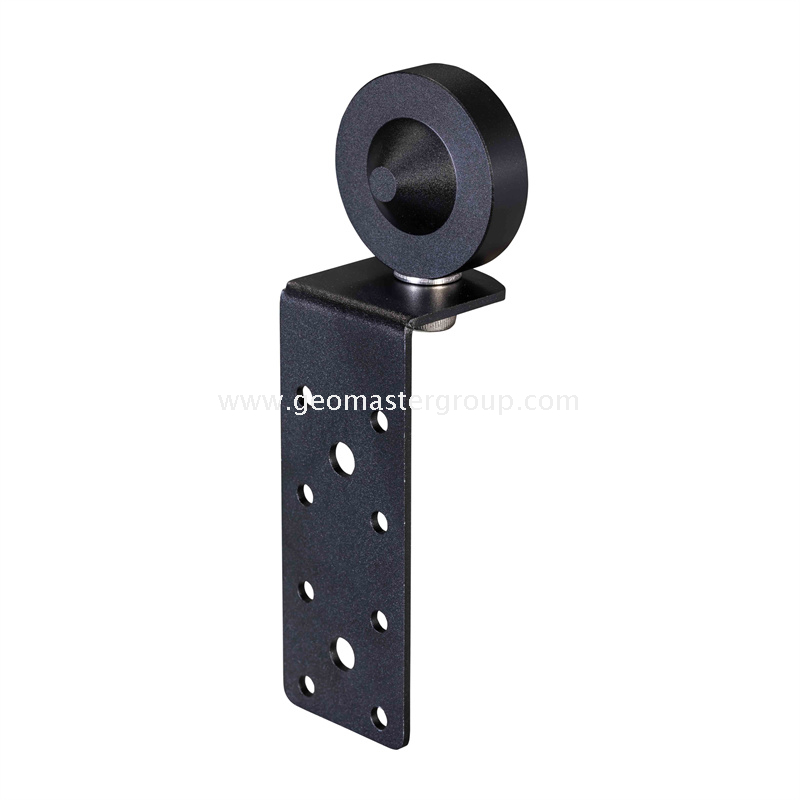

6.Sturdy Aluminum Holder L-bar with different Fixing Holes to meet desired working heights
1)Mounting Plate: 130mm(H)×50mm(W)×3mm(T.)
2)Mounting Seat: 25.9mm(W)×3mm(T.)
3)2 major Fixing Holes (Dia.10) and 8 minor Fixing Holes(Dia.6.5)
7.Customization service available: Different Heights, Magnetic Mounting Plate

Note: Any updating would be subject to change without prior notice.


Related Names
Surveying Equipment,Surveying Instrument,Surveying Accessories,Surveying Prism,360-deg Prism,90-deg Prism,Cats Eye Prism,L-bar Prism,Mini Prism,Mini Prism Set,
Mini Prism System,Monitoring Mini Prism,Monitoring Prism,Prism Reflector,Prism Station,Reflector Prism,Road Monitoring Prism,Road Prism,Road Stud,Robotic Prism,
Robotic Prism,Robotic Prism Station,Rotating Prism,Stakeout Mini-Prism, Traverse Prism Kit,Traverse Prism System,Tunnel Prism, Drone Prism, UAV Prism,GPS Prism,
Laser Prism,Scanner Prism, 3D Prism, Target Prism, Optical Glass,Optical Prism, Optical Square,Led Flashing Prism, Flashing Prism, Strobe Prism,Geomax Prism,
Leica Prism,Nikon Prism,Pentax Prism,Sokkia Prism,Topcon Prism,Trimble Prism,Geomaster Prism
,Tunnel Prism,Construction Prism, Subway Prism,U-bar Prism,U-bar
Mini Prism, U-bar Monitoring Prism,Dual Prism,Dual Sided Prism,TBM

Packing Details
Model: GMB-104G
1.N.W.: 200-205g
2.Qty./CTN: 50pcs
3.G.W./CTN: 12kg
4.Size: 0.02cbm(45cm×20cm×22cm)
