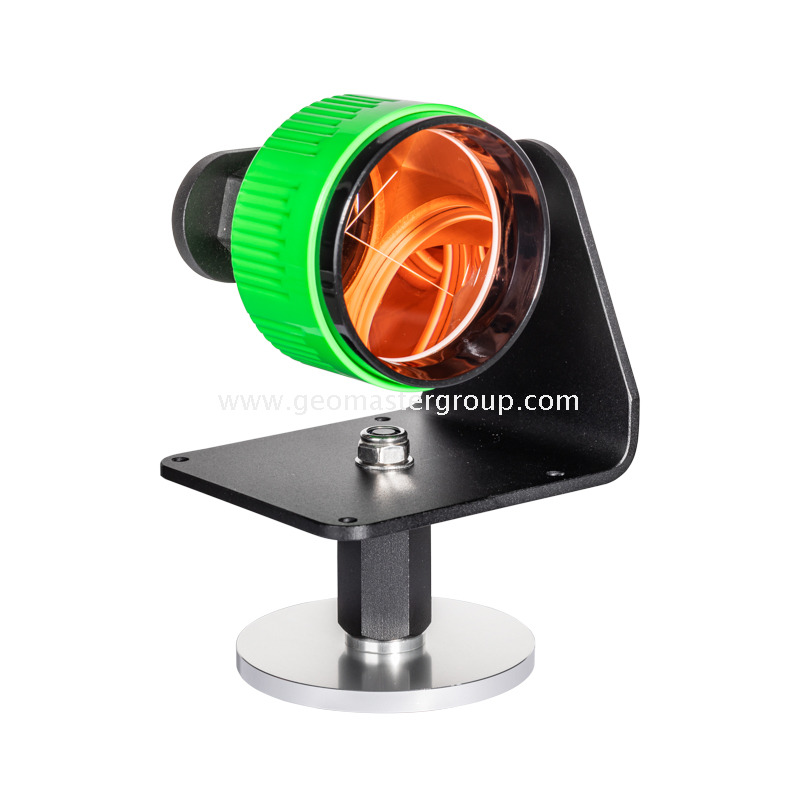

L-bar Prism (GHT112-20BK,Neon Green Prism)

Features & Specifications
Model: GPR112-20BK-NG05-Cu
This L-bar Monitoring Prism Kit includes L-bar Prism Mounting Set GHT112-20/BK and Prism Reflector
GPR112-NG05/Cu-W

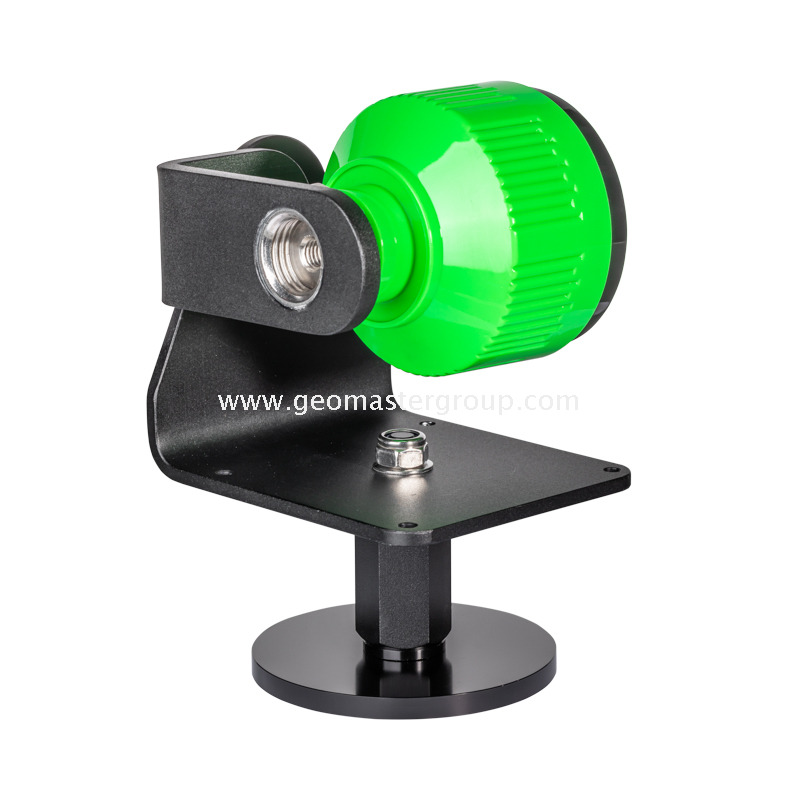

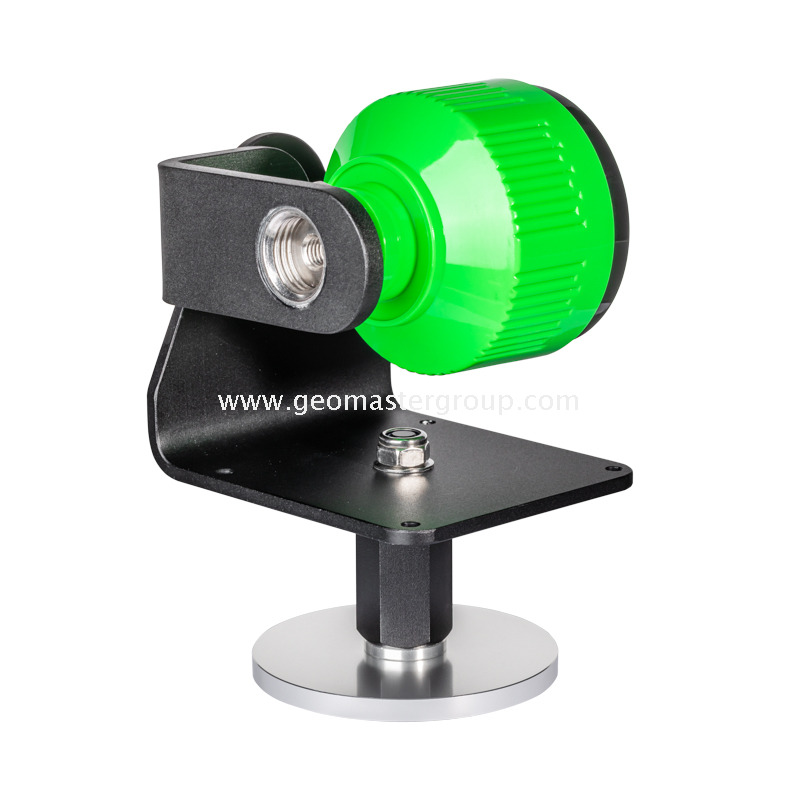

1.L-bar Prism Mounting Set GHT112-20/BK
1)Replacement of original Prism Mounting Set GHT112
2)Material: black anodized Aluminum (BK)
3)w. M20 Hole on L-bar for fixing Surveying Prism Reflectors
4)w. Hex Adapter ADP112-8/8BLK (external M8 to internal M8)
5)w. Hex Adapter ADP112-8/58BLK (external M8 to internal 5/8")
6)Fully compatible with original Prism Reflector GPR112 (Nitrogen-filled)
7)Magnetic Mount Bases MMB60 series for option

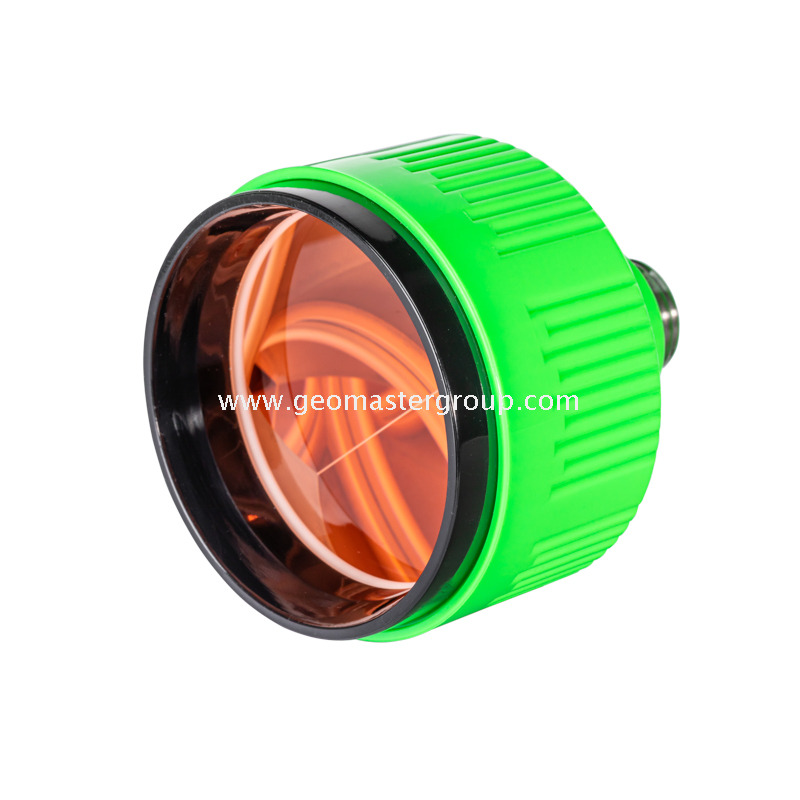

2.Water-proof Prism Reflector GPR112-NG05/Cu-W
1)Canister Color: Pantone 802C Neon Green (NG)

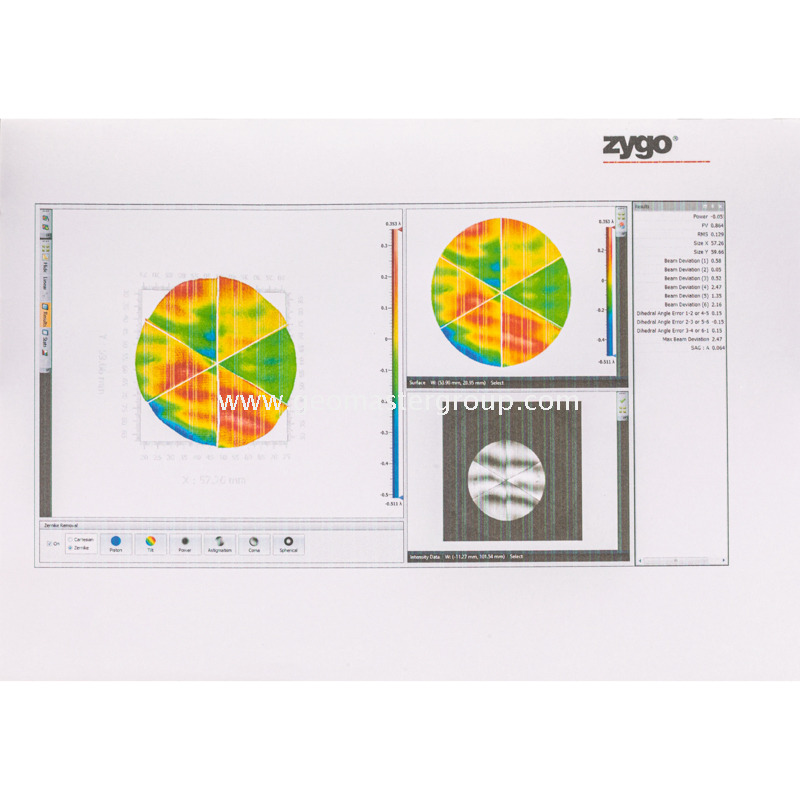

2)Prism Accuracy: ≤5" (w. zygo-generated real-time Report)
3)Prism Aperture: 62mm (2.44 inch)
4)Measuring Range: up to 2000m (under good weather conditions)
5)Waterproof (W), Copper-coated (Cu)
6)M8 internal THD for Prism Mounting Set (GHT112-8)
7)M20 external THD for Prism Mounting Set (GHT112-20)

3.Customization services a/v
1)Prism Accuracy: 2",3",5"
2)Prism Coatings: Copper-coated (Cu), Silver-coated (Ag), Antifog (AF), Antireflective coated (AR),
Aluminum-coated (AL), non-coated
3)Prism Canister Colors: Black, bright Red, bright Yellow (same as original GPR112), Neon Green...
4)Mounting Set Colors: black anodized (BK) or natural anodized (AL)
5)Geo-adapters & Geo-bases
Note: Any updates would be subject to change without prior notice.
