GPB48-30CSK
Geomaster
90159000
Specifications & Features
Model: GPB48-30CSK

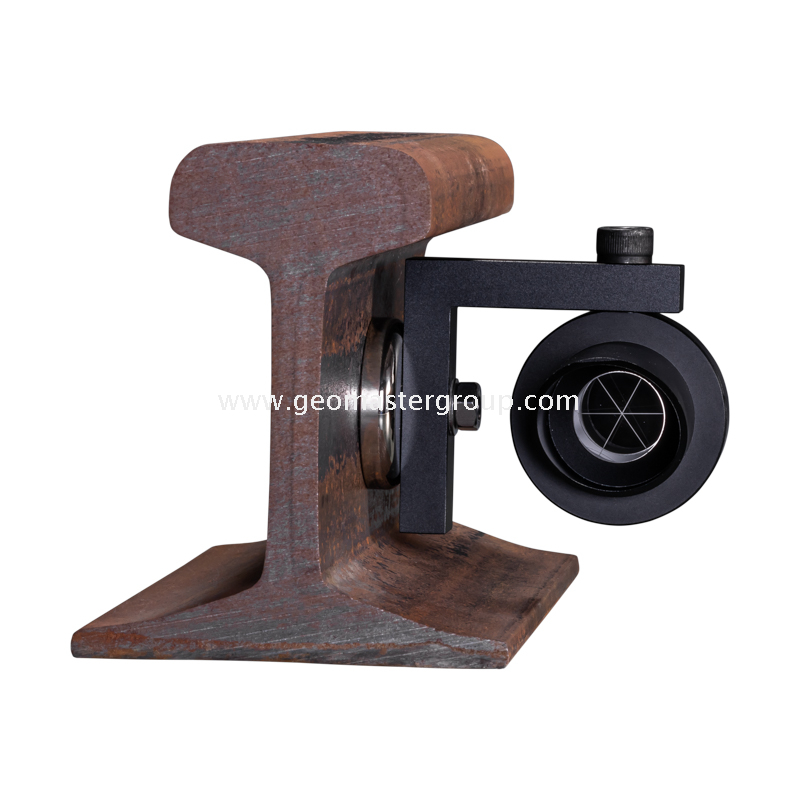

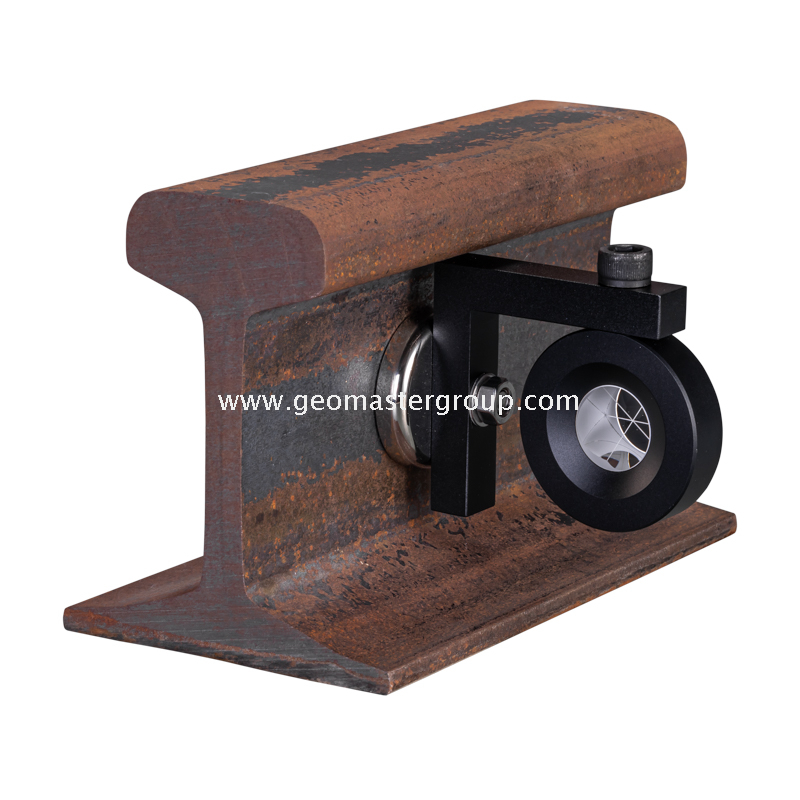

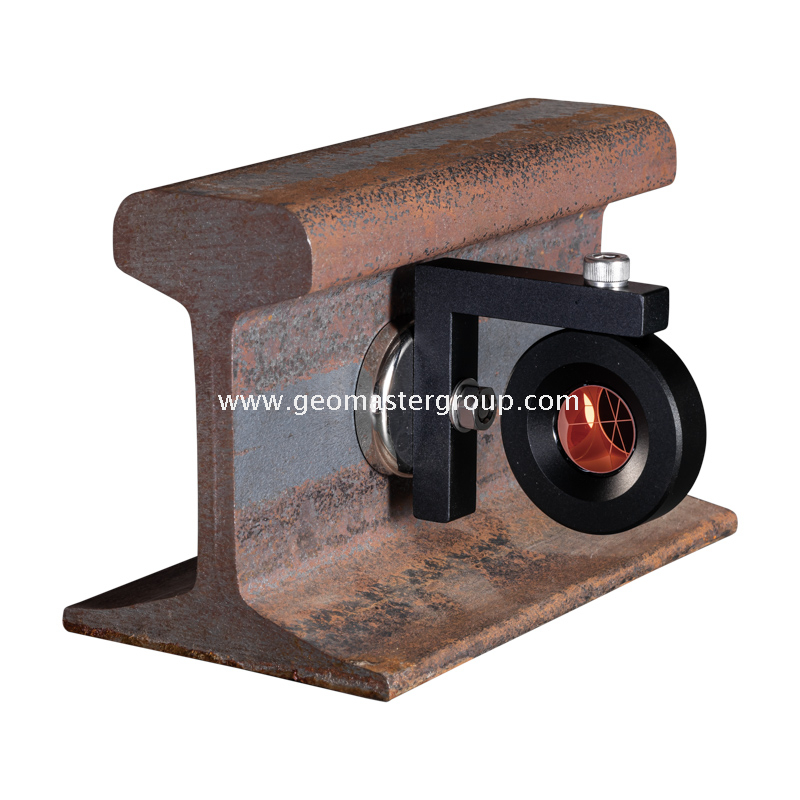

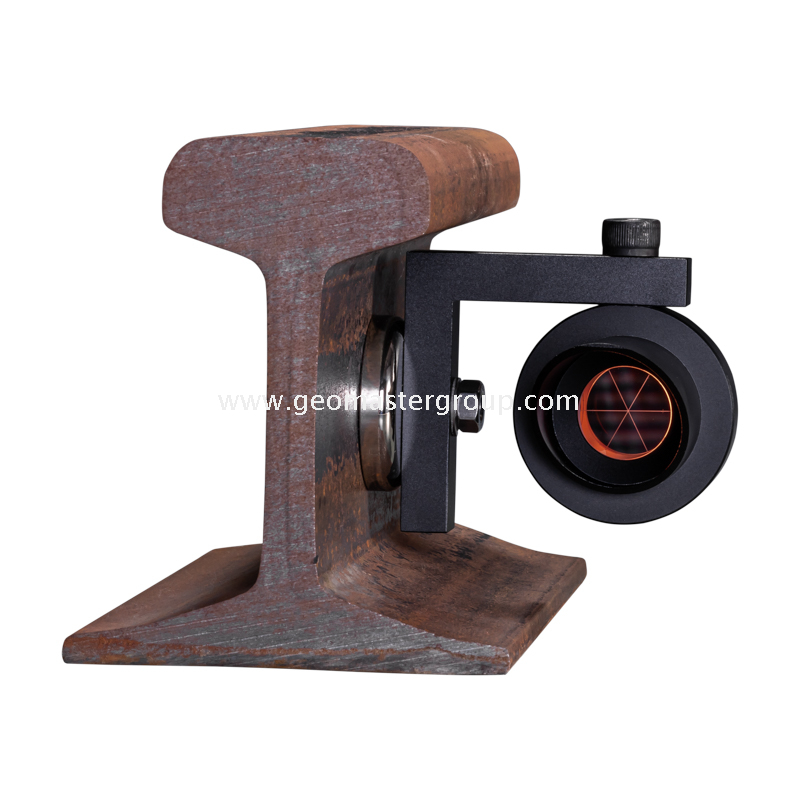

1.Geomaster Magnetic Rail Prism Base (GPB48)

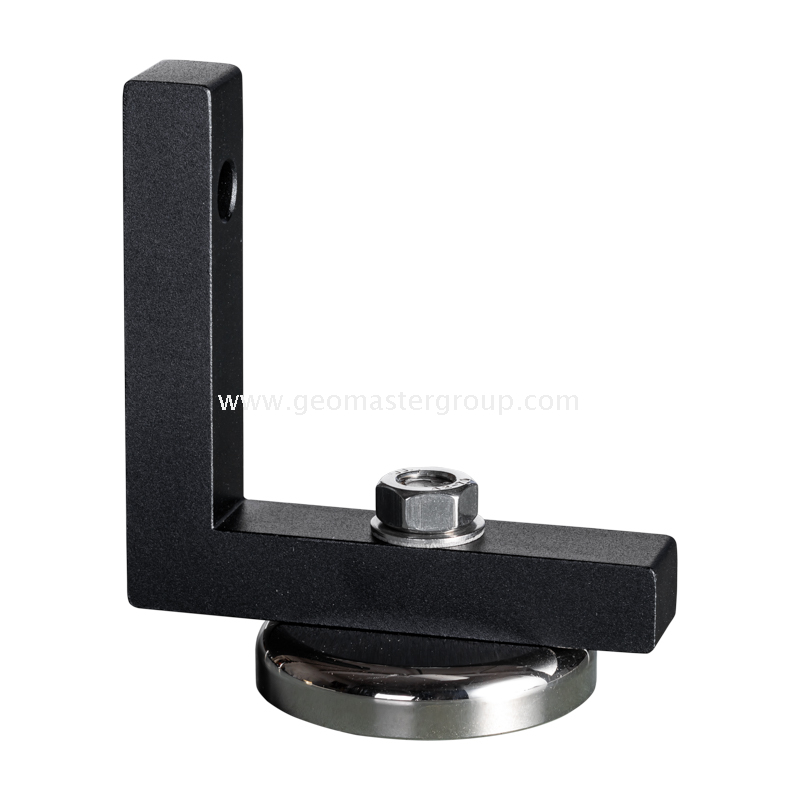

2.Designed for fixing L-bar Mini Prisms (Right-angle Min Prisms), esp. GMP104A series, GMP104C series,
GMP104D series and GPM104E series, onto Rail Tracks for railway surveying or onto Rock Slopes for Slope
stability monitoring

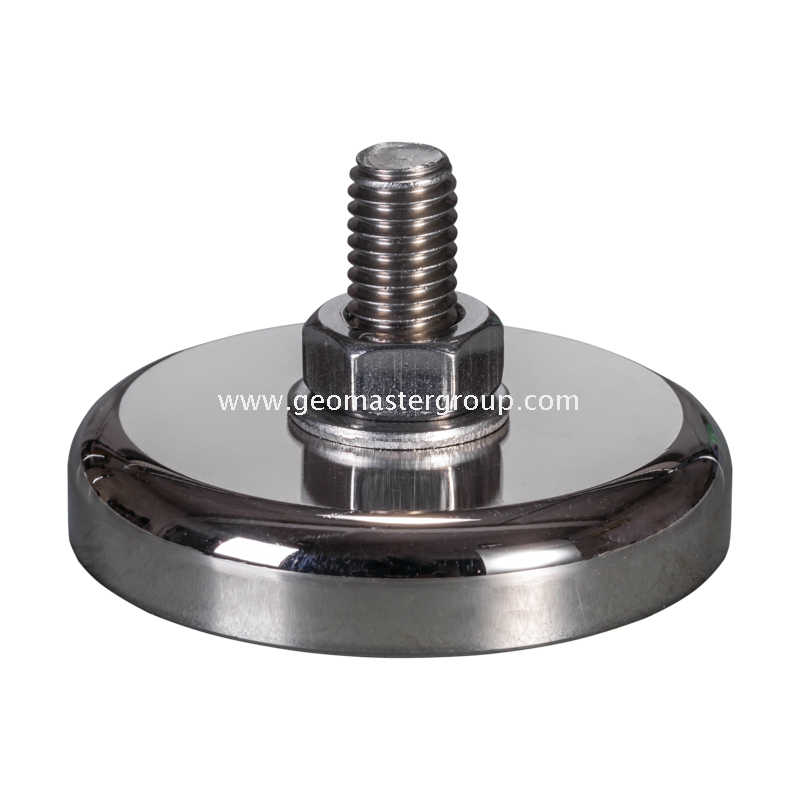

3.Chrome-plated Base Dimensions: 48mm (O.D.) × 9.5mm (T.)
4.Baseplate Central Hole Diameter: M8
5.Countersunk Bolt CSK8-30: M8×30mm; N.W.: 9g
6.N.W.: 130-135g (excluding GMP104 L-bar Mini Prism)
7.Strong Ring Magnet (NdFeB) ideal for metal construction surveying, such as railway, steel bridges, steel structures,etc.
8.Customization services available:
1)Baseplate Diameter: 60-100mm
2)Baseplate Colors: chrome-plated (CR),black-anodized (BK), natural anodized (NA)
3)CSK Bolt Diameters: M6, M8, M10
4)CSK Bolt Length: 25mm~100mm
Note: Any updating would be subject to change without prior notice.
