Model: PT-2840

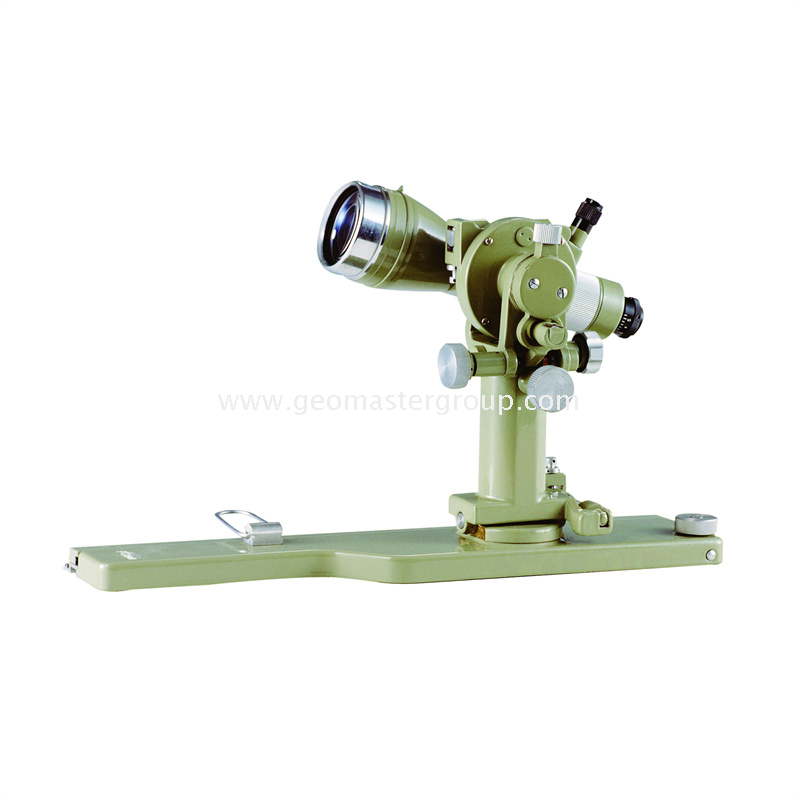

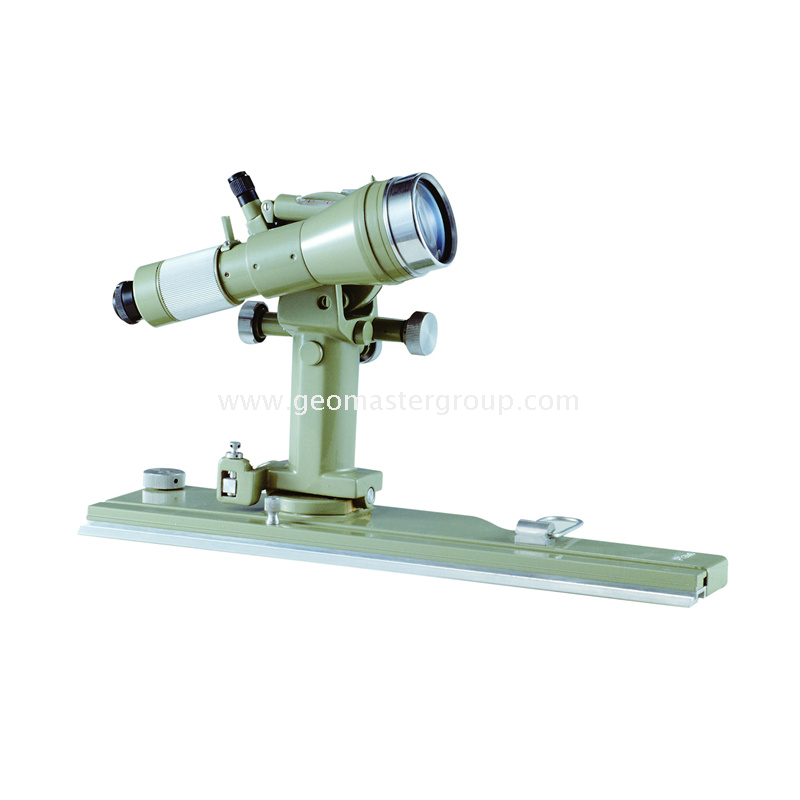

1.Plane-table Optical Alidade
2.Replacement of Wild Alidade K2
3.Reversed Image, 28x Telescope

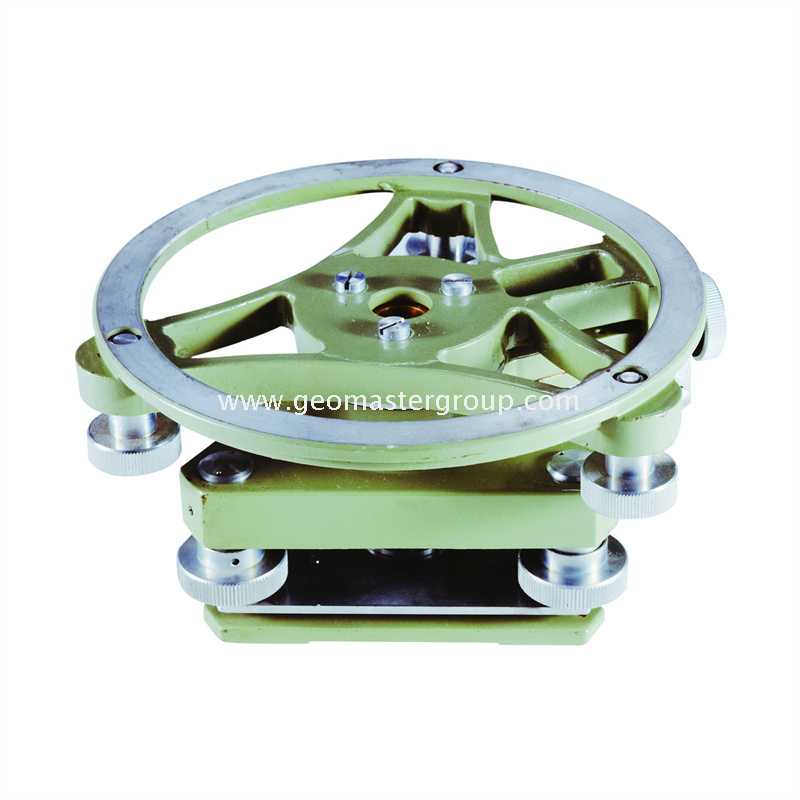

4.Plane Table

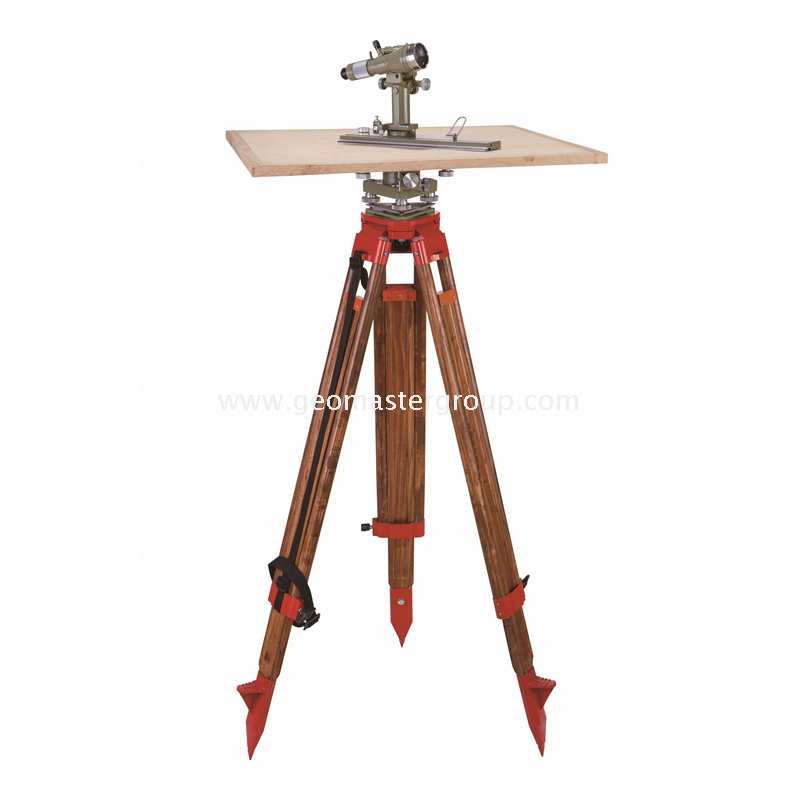

5.Wooden Tripod

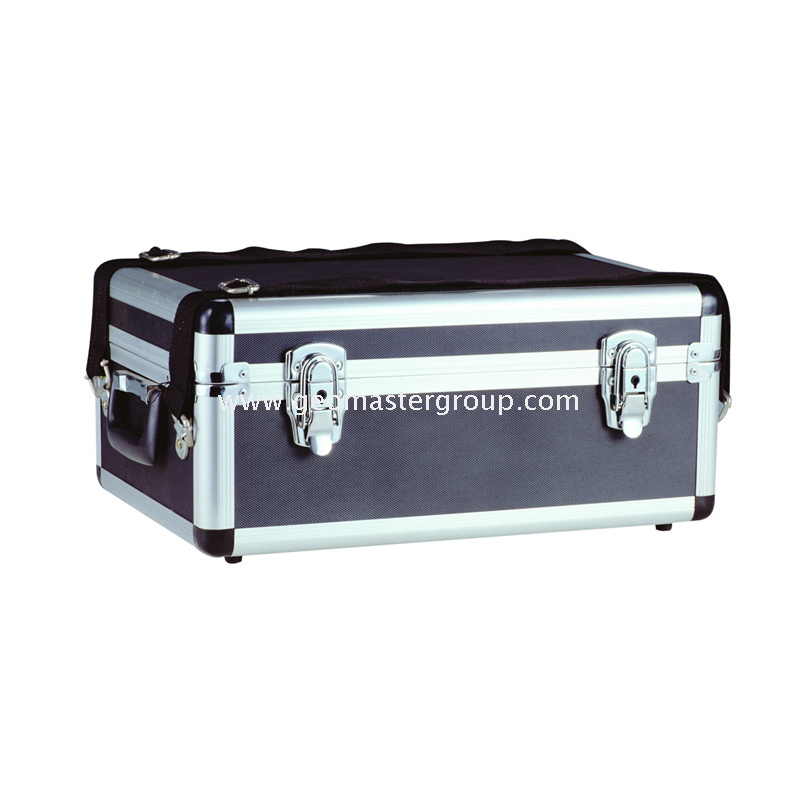

6.Tool Kit
| Quantity: | |
|---|---|
PT-2840
Geomaster
90158000
Specifications
Model: PT-2840
Geodetic Instrument,Replacement of “The 1953 Wild Heerbrugg K2 Alidade”.Specially designed for topographic surveying by graphic methods. It can also measure horizontal distance and elevation. It has found a wide application in the field of surveying teachings.
1.Accuracy
1)Standard Deviation of measured topography at 100m: ±3dm
2)Standard Deviation in Vertical Measurement of Angle: Outdoor: ±30"; Indoor: ±20"
2.Telescope
1)Image of Telescope: Reversed
2)Magnification: 28x
3)Clear Objective Aperture: 40mm
4)Shortest Focusing Distance: 2m
5)Resolution Power: 1°20'
6)Multiplication Constant: 100
7)Additive Constant: 0
3.Bubbles
1)Vertical Plate Bubble: 30"/2mm
2)Column Plate Bubble: 60"/2mm
3)Independent Circular Bubble: 8"/2mm
4.Glass Circle
1)Min. Vertical Graduation: 1°
2)Vertical Vernier: 10', estimated to 1'
5.Sliding Ruler
1)Length: 350mm
2)Working Length: 500mm
3)Movable Range: 0-25mm
4)Scale Ratio available: 1:500; 1:1000; 1:2000
6.Accessories
Independent Circular Bubble, Compass, Plumb Bob, Sunshade, Magnifier, Eyepiece, Dividers, Screwdriver, Adjusting
Pins, Soft Brush, Dryer, Self-feed Lubricator, User Manual
Note: Any updating would be subject to change without prior notice!
