Highlights
Model: GPR113-05Cu/gzt4
1.Geomaster Premier Prism Assembly
2.Geomaster Single Prism w. Holder & Target
3.Single Prism Reflector: GPR113-05
4.Prism Accuracy: ≤5" (with zygo Report)
5.Copper-coated (Cu), non-waterproof
6.Orange Polymer Prism Holder: GPH1-ORG
7.Tilting Metal Prism Target: GZT4
8.Compatible with original Prism Poles GLS series
| Quantity: | |
|---|---|
GPR113-05Cu/gzt4
Geomaster
90159000
Features & Specifications
Model: GPR113-05Cu/gzt4

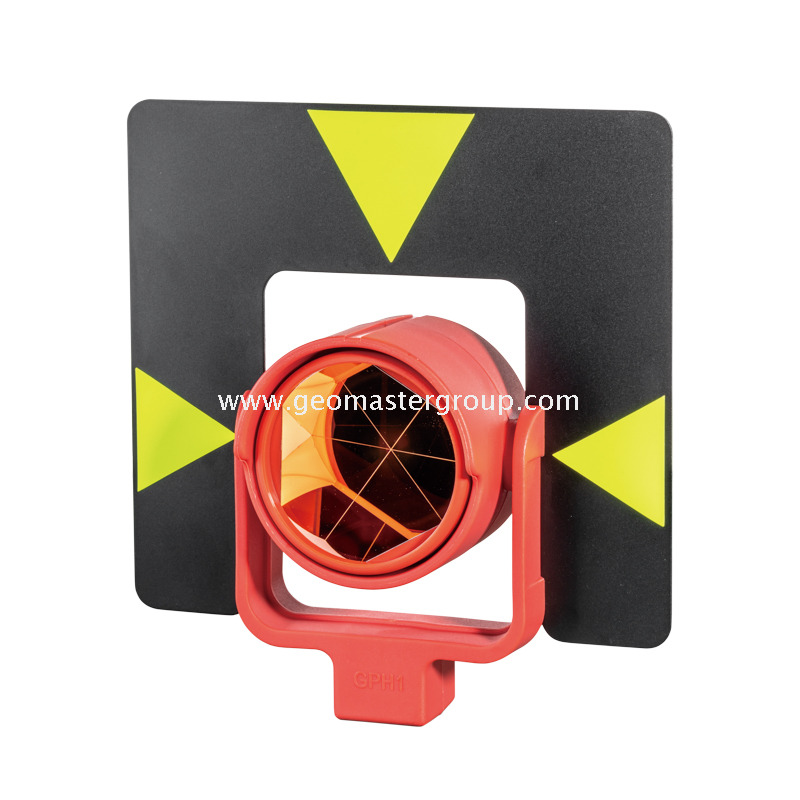

This Premier Prism Assembly includes Circular Prism Reflector GPR113-05Cu, Single Prism Holder GPH1-ORG
and Prism Target Plate GZT4

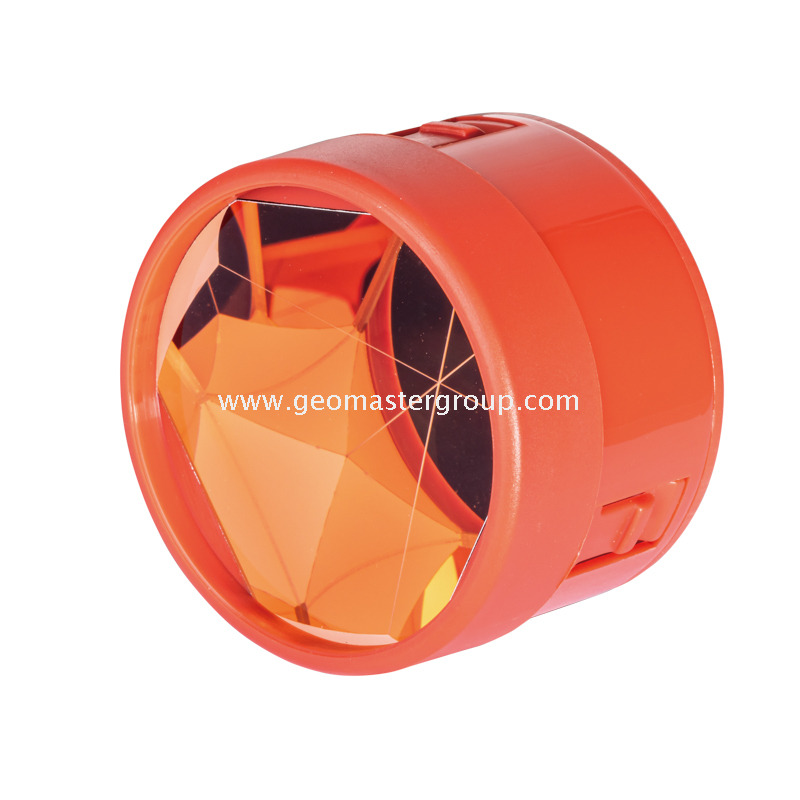

1.Circular Prism Reflector: GPR113-05Cu
1)Single Circular Prism Reflector (GPR113)
2)Prism Accuracy: ≤5" (with zygo Report)
3)Prism Aperture: 64.4mm (25.4 inch)
4)Copper-coated (Cu), non-waterproof
5)Canister Color: Orange Polymer (ORG)
6)Measuring Range: up to 2000m (under normal weather conditions)|
7)N.W.: 160-170g

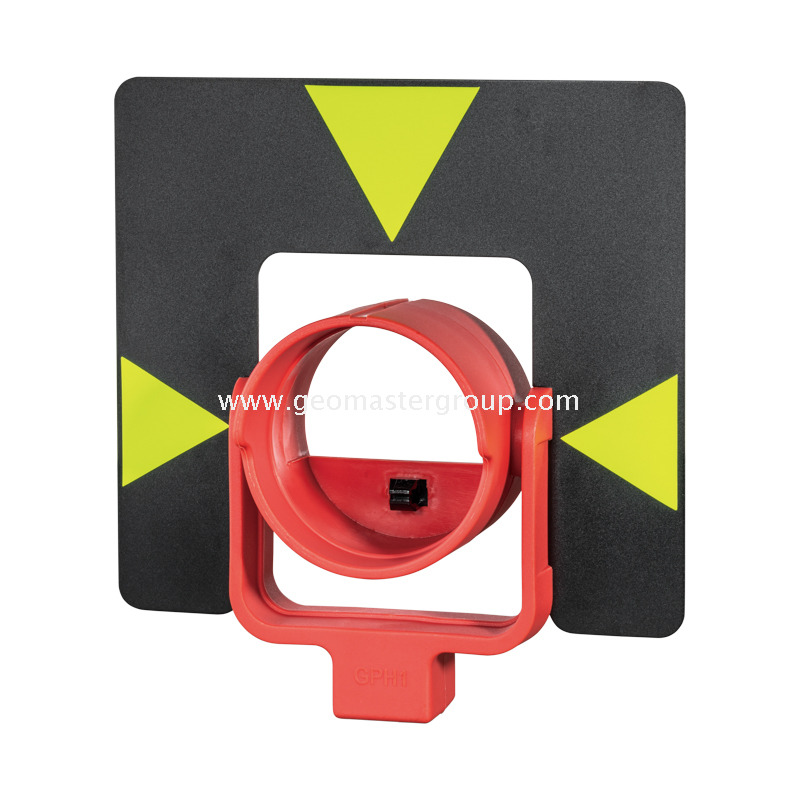

2.Prism Holder & Target: GPH1-ORG/gzt4

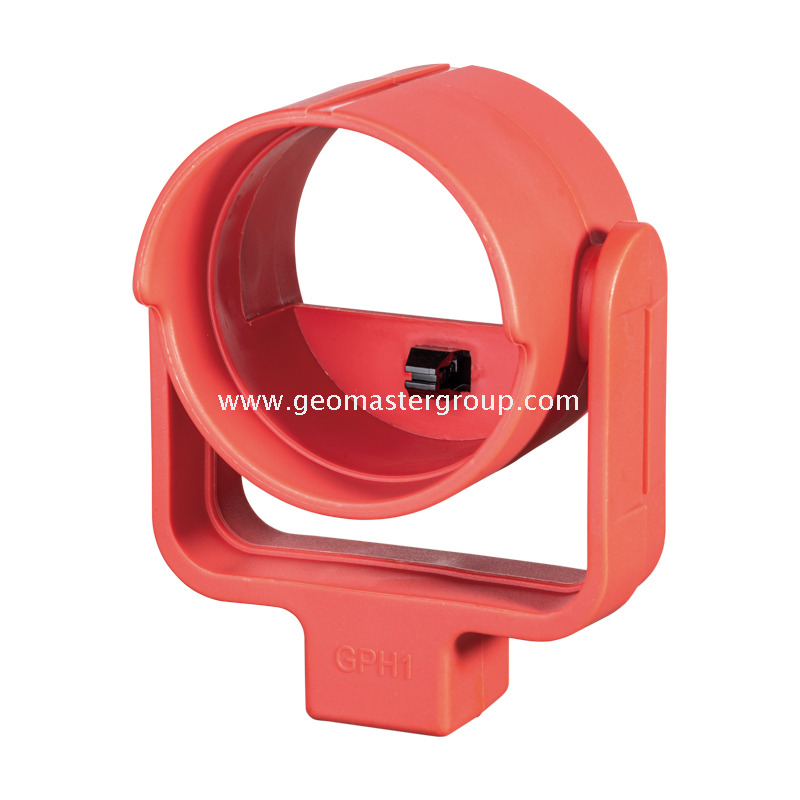

1)Single Circular Prism Holder (GPH1)
2)Prism Preflector Constant (Offset): 0mm; -34.4mm (Absolute)
3)Holder Material: orange weather-resistant Polymer (ORG)
4)Central Height (Height Offset): 86mm
5)Holder Dimensions: 98mm (W.) x 125mm (H.); N.W.: about 170g
6)With quick-release Swiss-style Press Button
7)Tilting Metal Target Plate GZT4: 16.8cm (W) x 18cm(H); N.W.: 75-80g
8)Compatible with original Prism Reflector Poles GLS11, GLS12, GLS13, AP20 AutoPole....
Note: Any updates would be subject to change without prior notice.
