Highlights
Model: CLP059-17/42

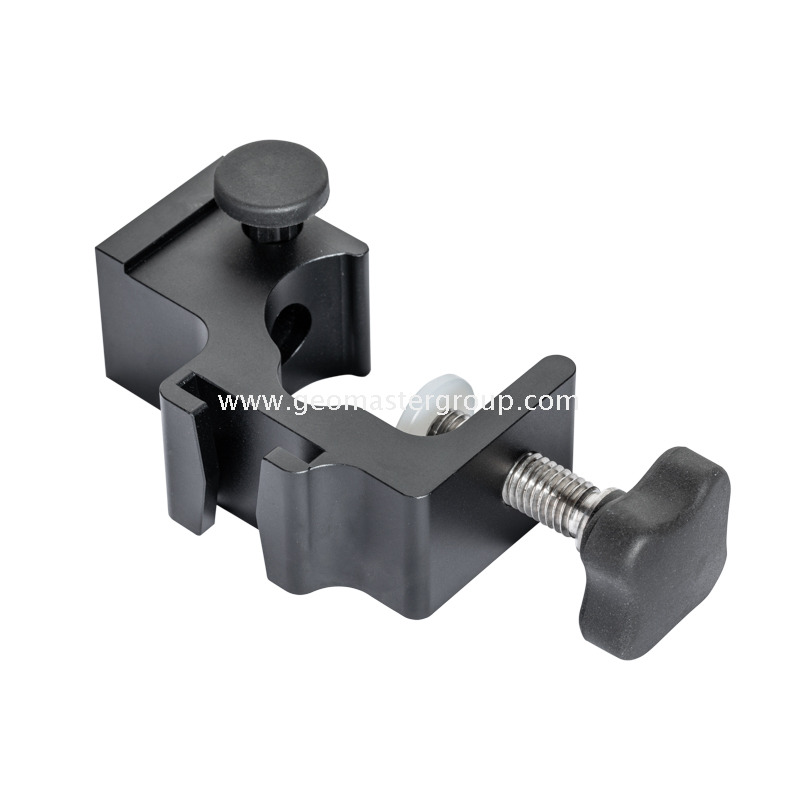

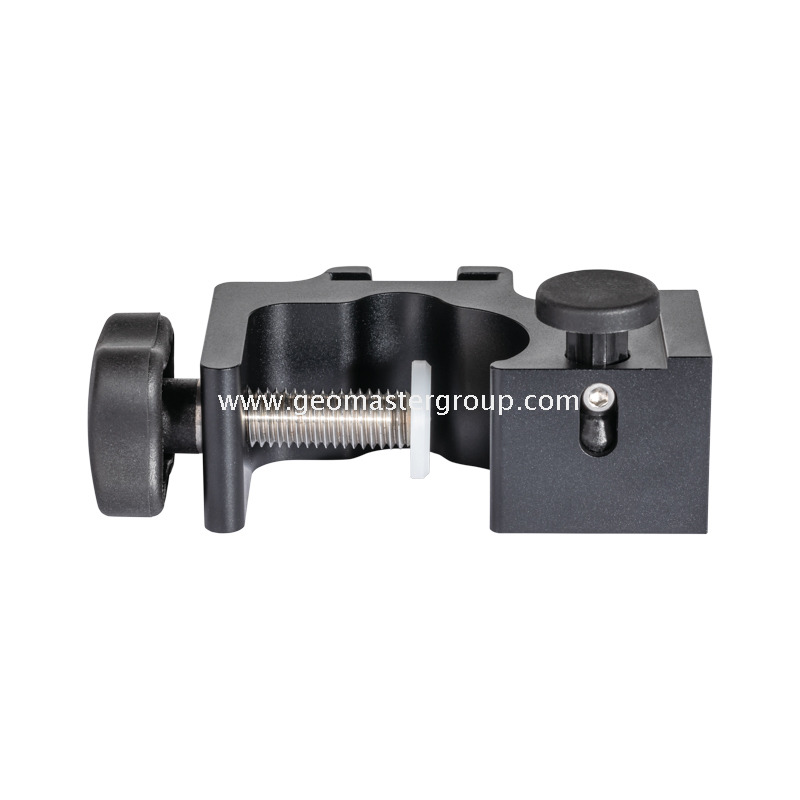

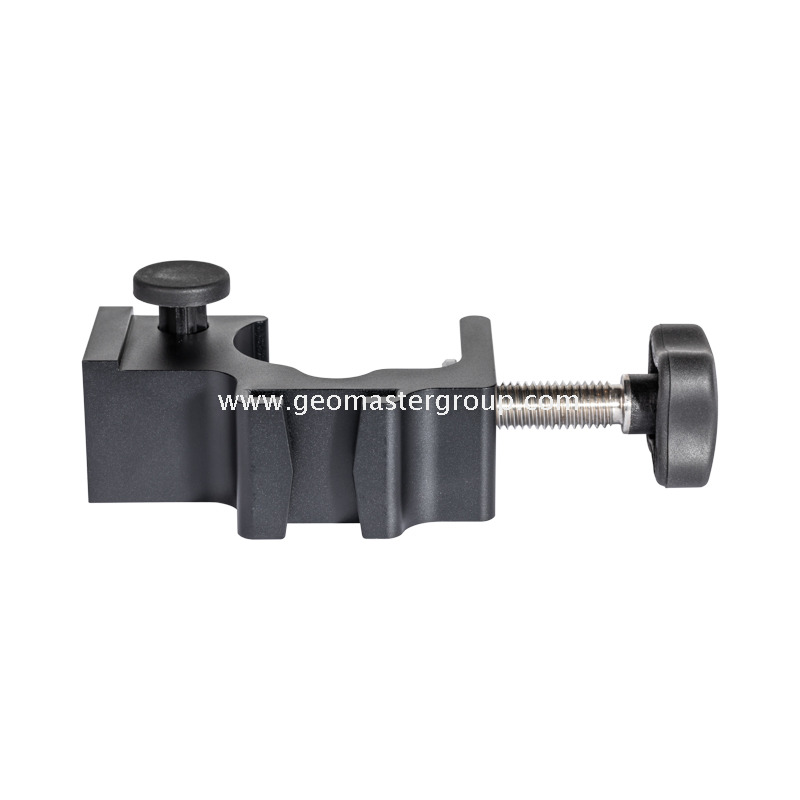

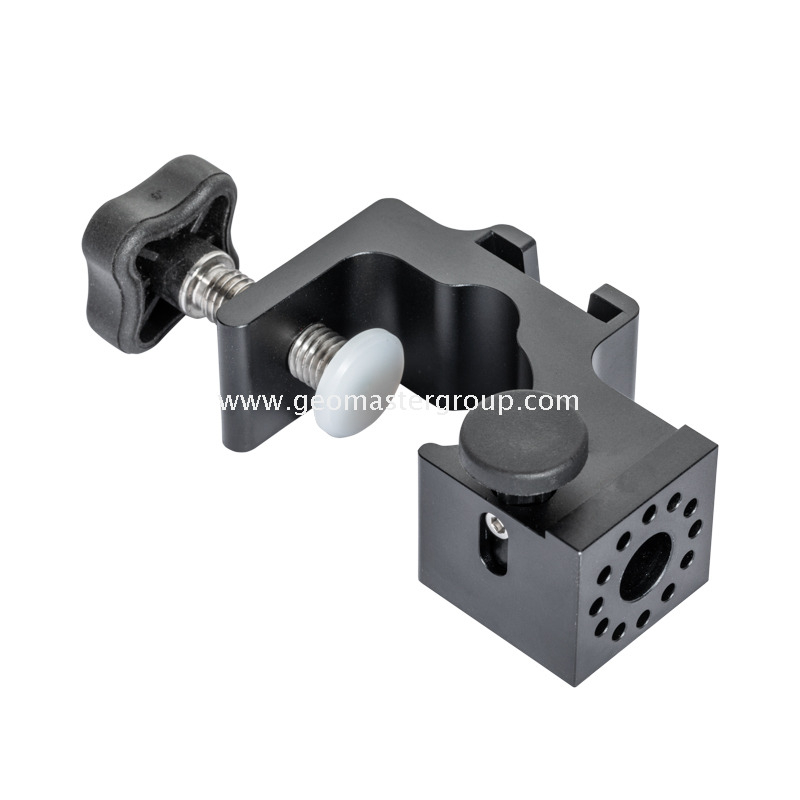

1.Geomaster Claw Pole Clamp (CLP059)

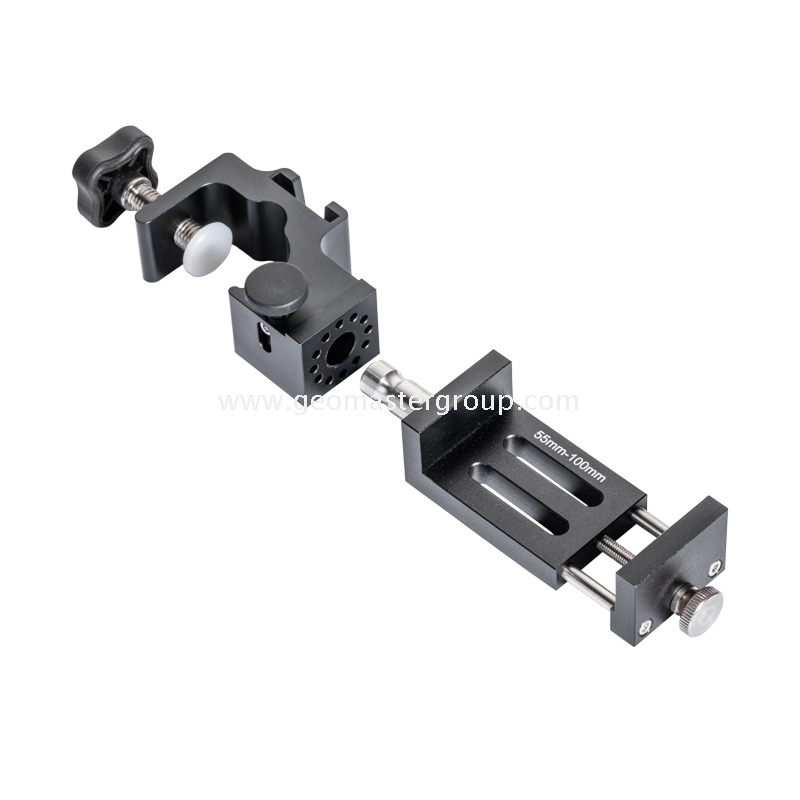

2.Geomaster Quick-release Cradle Clamp
3.Clamping Range: 17-42mm (0.66-1.65")
4.Quick-release Button with 12 Tilt Positions
5.Anti-crush sure-grip Quick-release Clamp
6.w. Battery Slot
7.For most GPS Poles,Prism Poles,Laser Poles
8.Compatible with Seco 5200 Claw Cradles
| Quantity: | |
|---|---|
CLP059-17/42 (0.66-1.65")
Geomaster
9015900090
Features and Specifications
Model: CLP059-17/42
1.Clamping Range: 17-42 mm (0.67-1.65")
2.Cradle Fixing Positions: 12
3.Replacement of original Data Collector Quick-release Cradle Clamp 5198-059
4.Made of matt black anodized aluminium with grip and stainless steel Clamp Screw
5.Designed to prevent the user from over-tightening the Pole Clamp Screw and accidentally crushing
or cracking the Pole
6.Suitable for the Top Tube (Inner Tube) or the Bottom Tube (Outer Tupe) of the most common
Surveying Poles (GPS Poles,Rover Poles,Prism Poles,Laser Poles,Antenna Masts) with a diameter
of 17 to 42 mm (0.67-1.65")
7.Quick-release Button allowing Quick-Release Cradles or Standard Cradles to rotate into a desired
position (12 Positions) for Data Collector or Field Controller reading
8.Compatible with existing Quick-Release Cradles for most popular Data Controllers or pairable
with the Claw Quick-Release Cradle for your Collectors or Controllers,including Seco 5200 series
of Quick-Release Cradles 5200-052,5200-053,5200-0065...
9.Without Circular Bubble or Compass.
10.Equipped with Battery Slot (26.45mm ×3.78mm,1.04" × 0.15")
11.N.W.: 145-150g
| Model | Clamping Range | N.W. |
| CLP059-17/42 | 17-42 mm (0.67-1.65") | 140-145g |
| CLP059-29/42 | 29-42 mm (1.15-1.65") | 140-145g |
Note: Any updating would be subject to change without prior notice!
