Extending a GPS pole may seem like a simple adjustment in the field, but it can have a major impact on both accuracy and safety if not handled correctly. Surveyors often encounter situations where extra reach is necessary—whether working across uneven terrain, reaching above crops, or operating in construction zones with height variations. Geomaster Group, with over two decades of experience in supplying precision surveying tools, understands that safe and stable pole extension is essential to protect both the reliability of data and the operator’s efficiency. That is why our GPS pole extension solutions are designed to balance strength, accuracy, and usability for professional fieldwork.
When it comes to adding length to a GPS pole, not every extension is created equal. The two most common approaches are telescopic sections and slip-fit extenders, and each serves a particular purpose.

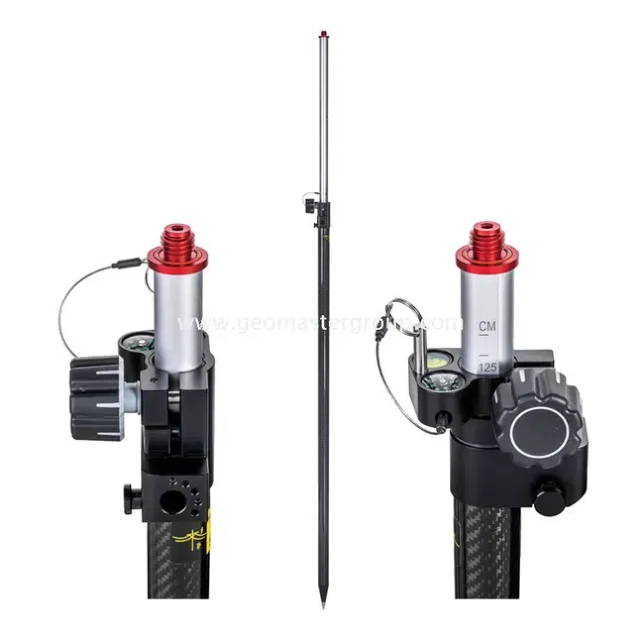

Telescopic extensions allow a single pole to extend smoothly to different heights. They are popular because they save space and provide flexibility in the field without requiring separate components. However, the locking mechanism must be checked carefully to prevent unwanted slipping, especially in windy conditions. A well-made telescopic design is built with durable joints and precision-fit collars to maintain rigidity under load.
Slip-fit extenders, on the other hand, are independent sections that attach between the pole base and the top section. These are straightforward and strong, offering excellent rigidity, but they add extra weight and can take more time to set up. The fit between extension and pole is critical—any mismatch can create play at the joint, leading to measurement errors.
Before choosing an extension, compatibility checks are essential. Every GPS pole model has specific diameter and thread requirements, and mixing components without verifying the fit risks damaging the pole or introducing instability. At Geomaster Group, we manufacture GPS pole extensions to match the dimensions and threading standards of our poles, ensuring a secure, accurate connection that operators can trust in demanding field conditions.
Adding length to a pole changes its behavior in the field. A taller pole increases leverage, which means that even small gusts of wind can introduce vibrations and instability. When the receiver at the top sways, even by millimeters, it can translate into significant positional errors in RTK systems.
The material and structure of the extension play a large role in controlling this effect. Carbon fiber extensions, for instance, are lighter and help reduce wind impact, but aluminum and steel offer more rugged durability in heavy-duty applications. Surveyors must weigh these trade-offs depending on the environment.
Wind is not the only factor. When working on sloped ground, the pole must be held at a perfect vertical alignment for accuracy. A taller pole increases the difficulty of keeping it steady, particularly during long observation sessions. For this reason, field crews are advised to minimize pole extension when possible, only adding height when it is absolutely required to achieve line of sight or access to the survey point.
Geomaster Group’s extensions are engineered to resist torsional twisting and bending, providing stability even when working at maximum pole height. By investing in precision-built equipment, surveyors reduce the risk of data loss and costly repeat work caused by unstable setups.
One of the most common mistakes in extended pole use is inaccurate reporting of pole height. RTK systems require the exact pole length to calculate the antenna height above the survey point, and even small errors can create discrepancies in recorded elevations.
When extensions are used, surveyors must adjust their measurement process to account for the additional height. Telescopic poles often have graduated markings that display total length, making it easier to report values directly. Slip-fit extenders, however, require manual measurement or careful documentation of the combined lengths.
To avoid mistakes, best practice is to record pole height immediately after setup, before starting measurements. Digital controllers in modern GNSS systems allow direct input of antenna height, but that accuracy depends entirely on the field operator’s precision in measuring.
Geomaster Group designs poles and extensions with clear measurement markings and reliable locking points, simplifying the process of reading and reporting correct pole height. By using our equipment, surveyors can be confident that their RTK system receives accurate input, reducing the chance of field errors being carried into final datasets.
Stability is the number one challenge when working with extended poles. At greater heights, even experienced operators can struggle to hold a pole steady for long periods. The solution lies in proper support equipment.
Tripods and bipods are essential when poles are extended beyond standard heights. A bipod allows the base to rest steadily while leaving the operator free to make fine adjustments, while a tripod provides maximum stability for static measurements. For extreme configurations, guying with straps or braces can be added to prevent swaying in windy conditions.
Survey crews should also consider ground conditions. Soft or uneven soil can allow the pole tip to shift, undermining the stability of the entire setup. Using a solid base plate or firming the ground before placing the pole reduces this risk.
Geomaster Group offers compatible accessories such as bipods and clamps designed specifically to work with our GPS pole extensions. These solutions ensure that tall configurations can be managed safely, maintaining both the operator’s comfort and the accuracy of recorded data.
Proper care of pole extensions is critical to ensure they continue performing reliably over time. Dust, grit, and moisture can collect at locking joints, leading to wear and reduced holding strength. After field use, poles and extensions should be wiped clean and stored dry to prevent corrosion or damage.
Telescopic poles need particular attention to their locking collars. Over-tightening can wear out the mechanism, while under-tightening risks slippage during use. Regular inspection ensures these parts remain in good working order. Slip-fit extenders should also be checked for dents or thread damage that could affect fit.
Storage should always be in a padded case or designated compartment to prevent impacts. By protecting the straightness and surface finish of the extension sections, surveyors preserve the accuracy and ease of use of their equipment.
At Geomaster Group, our GPS pole extensions are built from high-grade materials with durable surface treatments to withstand field conditions. With correct care, they will serve reliably for many years, reducing replacement costs and ensuring continued accuracy in professional surveys.
Extending a GPS pole safely is not simply about adding height—it is about protecting the accuracy of every recorded point and ensuring the operator’s safety in the field. From selecting the right extension type to managing wind effects, reporting pole height, and bracing tall setups, each step plays a vital role in successful surveying. Geomaster Group is committed to providing GPS pole extension solutions that meet professional standards, combining robust design with ease of use. If you are looking for reliable extensions to match your GPS pole, contact us today to learn more about our full range of precision surveying tools and accessories.
