Highlights

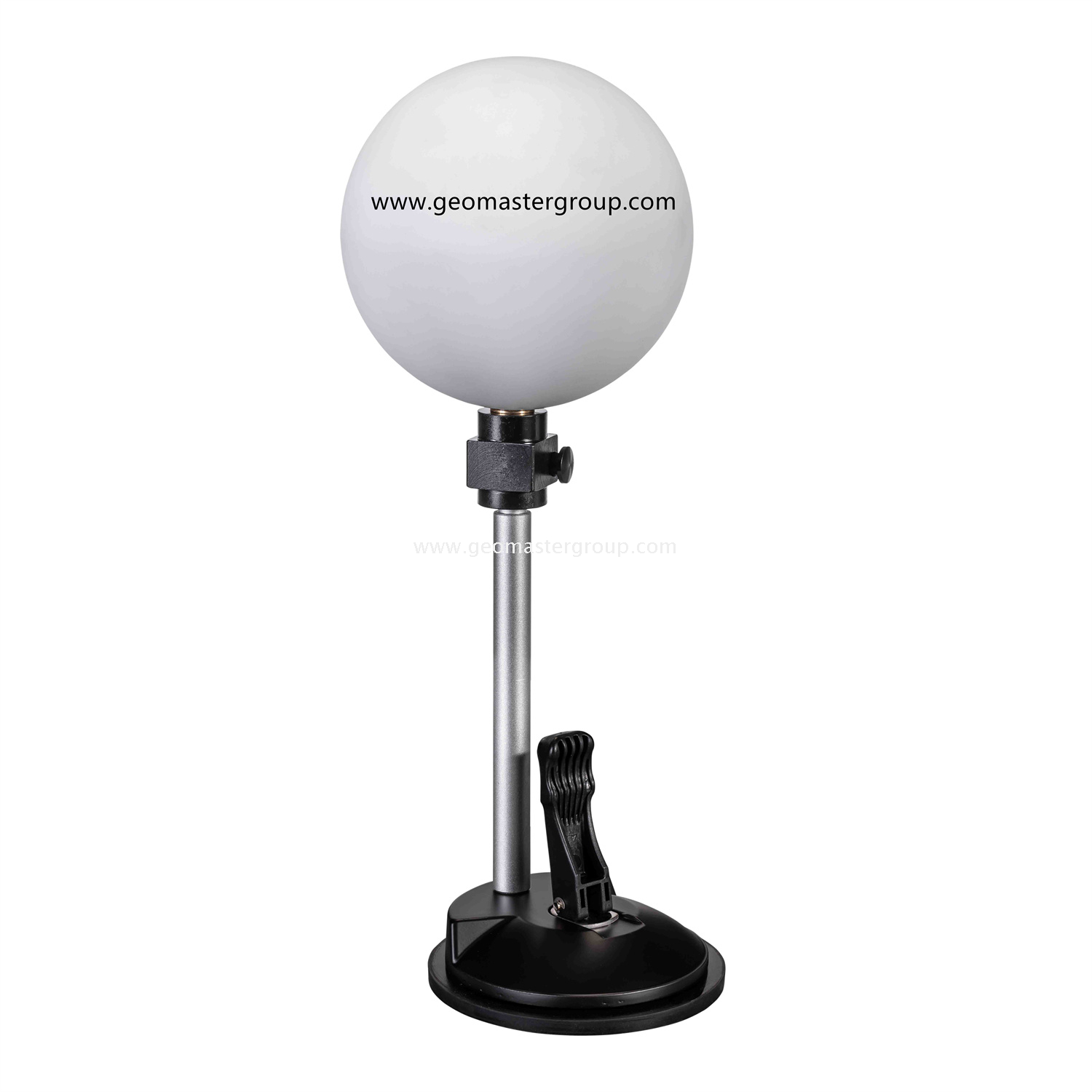

Model: Flexi145-12/200S
1.Geomaster Flexi Scanner Reference Sphere (Flexi)
2.Sphere Outer Diameter 145mm
3.Sphere Adapter Swiss-style GAD50-8/12B
4.Suction Cup Plate Dia. 120mm
5.Suction Cup Adapter 200mm w.Spigot Dia.12mm
6.Compatible with all Laser Scanners
7.Ideal for all smooth-surfaced Constructions
| Quantity: | |
|---|---|
Flexi145-12/200S
Geomaster
9031809090
Specifications
Model: Flexi145-12/200S
Including 145mm ABS Laser Scanner Reference Sphere Flexi145-ABS and Prism Suction Holder
PSH120-12/200S

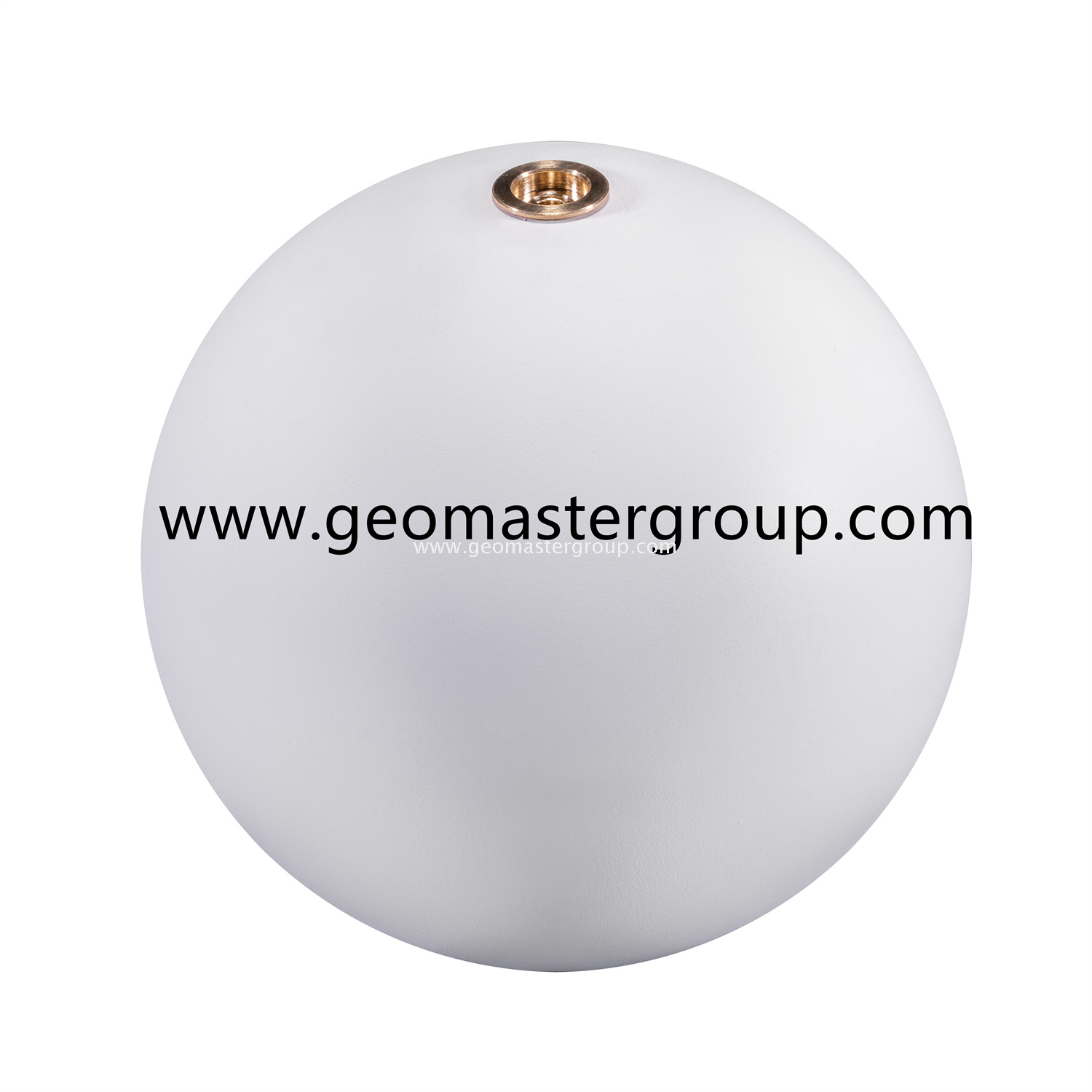

1.ABS Laser Scanner Sphere Flexi145-ABS
1)Outer Diameter: 145mm (5.7")
2)Thickness: 0.60mm
3)N.W.: 280-290g
4)Built-in Brass Female Thread M8×1.25
5)Swiss-style Adapter GAD50-8/12B (M8 to M12; N.W.: 70-75g): Male Thread M8×1.25 into Flexi145-ABS and Swiss-style end (Female Socket Dia 12mm) to Magnetic Fixed Carrier

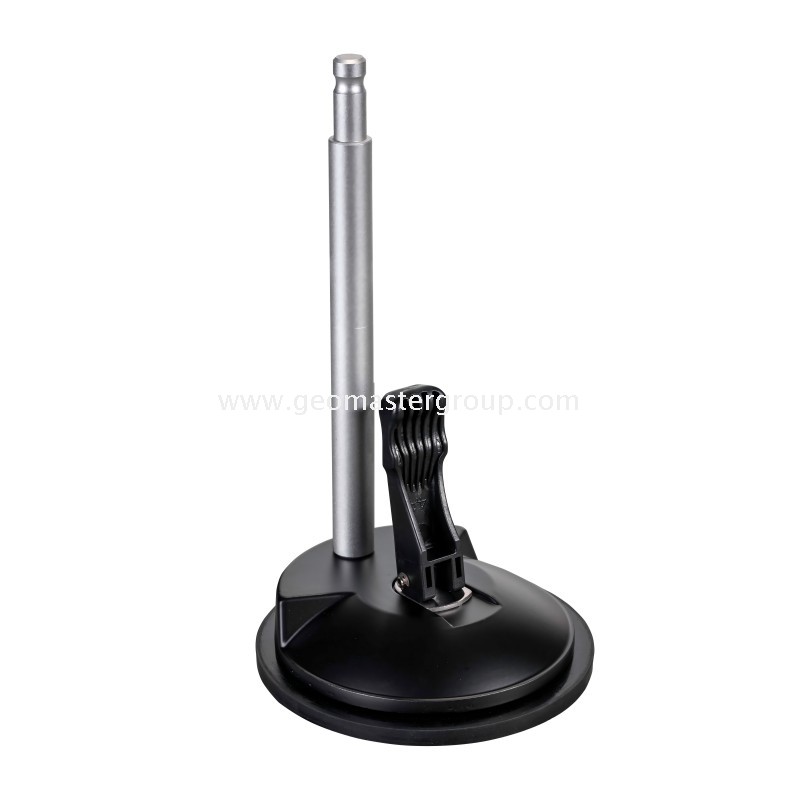

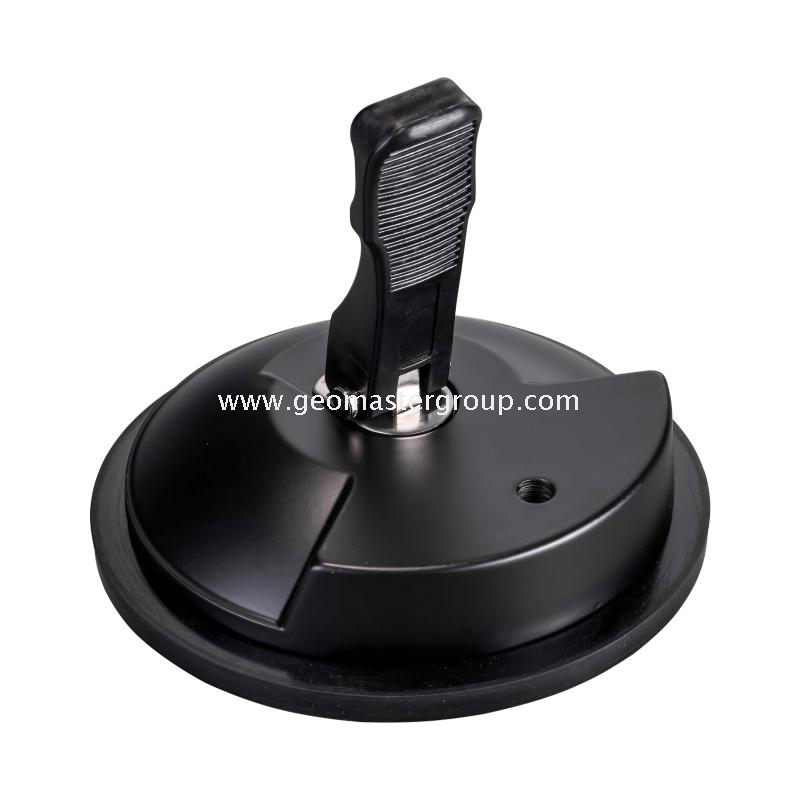

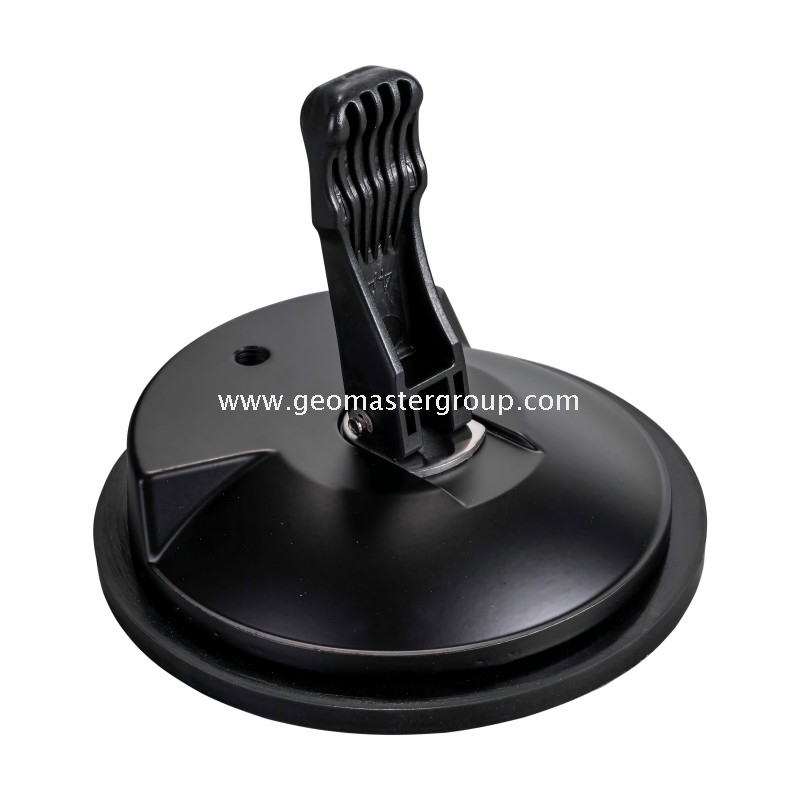

2.Prism Suction Holder/Suction Cup Holder PSH120-12/200S
1)Suction Pad Diameter 120mm
2)Connecting Bore Hole: built-in M8 Thread (10mm high)
3)Geo-Adapter Thread: M8 to Swiss-style Spigot (Dia.12mm)
4)Geo-Adapter Height: 200mm
5)Cup Suction Force up to 15kg
6)N.W.: 420-430g
Features
Model: Flexi145-12/200S
1.Light-weighted ABS 3D Laser Scanning Sphere (O.D. 145mm)
2.Anti-reflective Coating ideal for optimum reflectivity
3.Applicable Solution for façade measuring; free removing without leaving residues after Monitoring, Laser Scanning, Surveying...
4.Widely used on all smooth working surfaces (Floors, Glass Fronts,Windows, Marble, Metal Surfaces,coated or painted Surfaces,Hard Plastic Suraces....)
5.Holding light-weighted all Swiss-style Surveying Items such as Monitoring Prisms (Circular Prisms, Mini Prisms, Robotic Prisms), Prism Holders, Retro Targets, Reference Spheres, Laser Scanner Spheres, Laser Scanner Targets, Spherically Mounted Reflective (SMR), Survey Targets, etc
6.Compatible with and widely used in all present top-brand 3D Laser Scanners and Laser Trackers
Note: Any updating would be subject to occur without prior notice!!
