Scanner Sphere (5.7")

Specifications & Features
Model: Flexi145-ABS/Case
1.ABS Scanner Sphere, Blackening oxidized Adapters & Aluminum Carrying Case

2.Wide Field Applications
Precise geometrical designing and guaranteed manufacturing (Allowable Deviation <1mm) ensure accurate
and efficient scanning from all directions; highly compatible with and widely used in all present top-brand
3D Laser Scanners

3.Large-format Scanning Reference Sphere (Flexi145-ABS)
1)Made of special Combination of different Plastics (ABS)
2)OD:145mm (5.7"); T: 0.60mm; N.W.: 280-290g
3)with Brass Mounting Rest (OD: 22mm; Female Thread M8×1.25)

4.Anti-reflective (Anti-glare) Coating
White shock-proof Ball painted with enhanced anti-reflective (anti-glare) properties ideal
for optimum reflectivity

5.Diversified Connecting Adapters (Blackening oxidized)

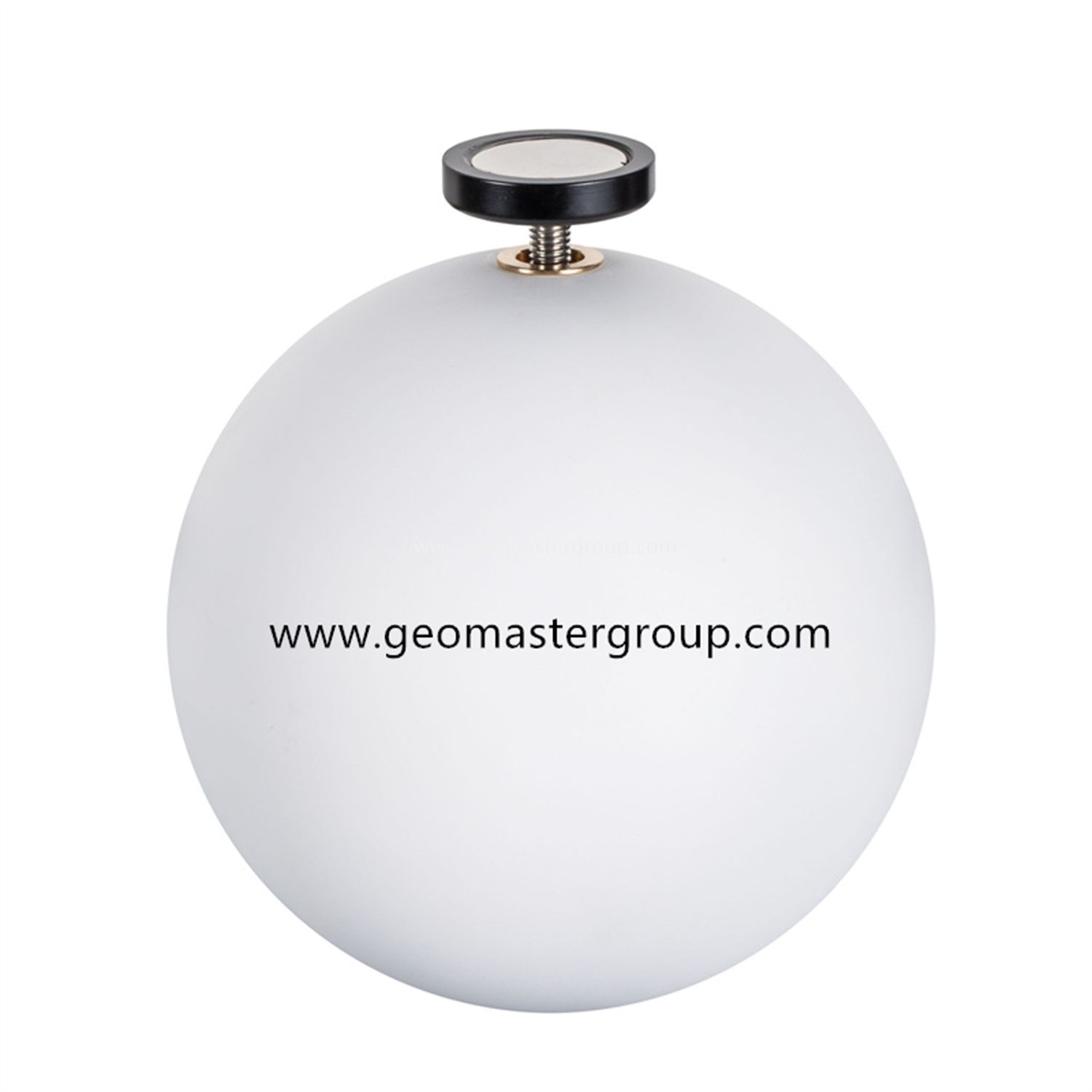

1)Magnetic Mounting Adapter (GAD50-8/30B: OD: 30mm; N.W.: 46-50g)
Male Thread M8×1.25 into SRS and strong Magnetic Mounting Base for fixing on various metal surfaces to respond to different working sites.

2)Swiss-style Adapter (GAD50-8/12B: N.W.: 70-75g)
Male Thread M8×1.25 into SRS and Swiss-style end to mount on Prism Poles, Ranging Poles, GPS Poles or Tribrachs
with Swiss-style standard Stub.

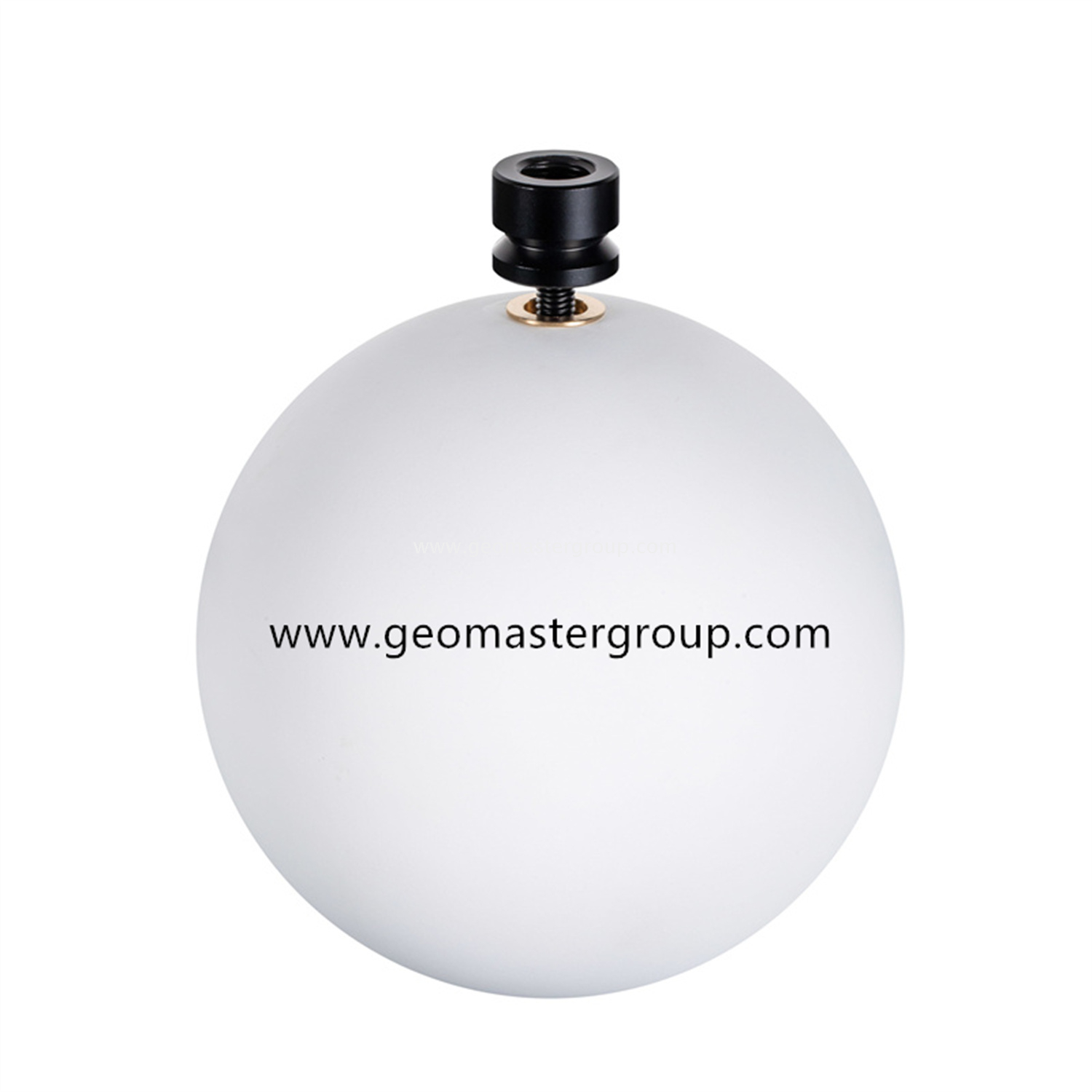

3)Universal Adapter (GAD50-8/58B: N.W.: 17-20g)
Male Thread M8×1.25 into SRS and female Thread 5/8" to mount onto Prism Poles, Ranging Poles,
GPS/GNSS Poles,Tripods or Tribrachs with male Thread 5/8" or mount onto universal Prism Adapter with Dia: 25mm

6.Diversified Connecting Adapters (Chromed-plated) available

1)Magnetic Mounting Adapter (GAD50-8/30A: OD: 30mm; N.W.: 46-50g)

Male Thread M8×1.25 into SRS and strong Magnetic Mounting Base for fixing on various metal surfaces to respond to different working sites.

2)Swiss-style Adapter (GAD50-8/12A: N.W.: 70-75g)

Male Thread M8×1.25 into SRS and Swiss-style end to mount on Prism Poles, Ranging Poles, GPS Poles or Tribrachs
with Swiss-style standard Stub.

3)Universal Adapter (GAD50-8/58A: N.W.: 17-20g)

Male Thread M8×1.25 into SRS and female Thread 5/8" to mount onto Prism Poles, Ranging Poles, GPS
& GNSS Poles,Tripods or Tribrachs with male Thread 5/8" or mount onto universal Prism Adapter with
Dia: 25mm

7.Flexible Packing available
1)Cardboard Box: 1 set
2)Aluminum Case: 6 sets
3)Cushioned Reflective Backpack: 6 sets

8.Customization Services available:
1)Outer Diameters: 100mm(4"),145mm(5.7"),150mm(6"),200mm(8"),230mm(9")
2)Adapters: chrome-plated (A), blackening-oxidized (B)
Note: Any updating would be subject to occur without prior notice!!
