Highlights

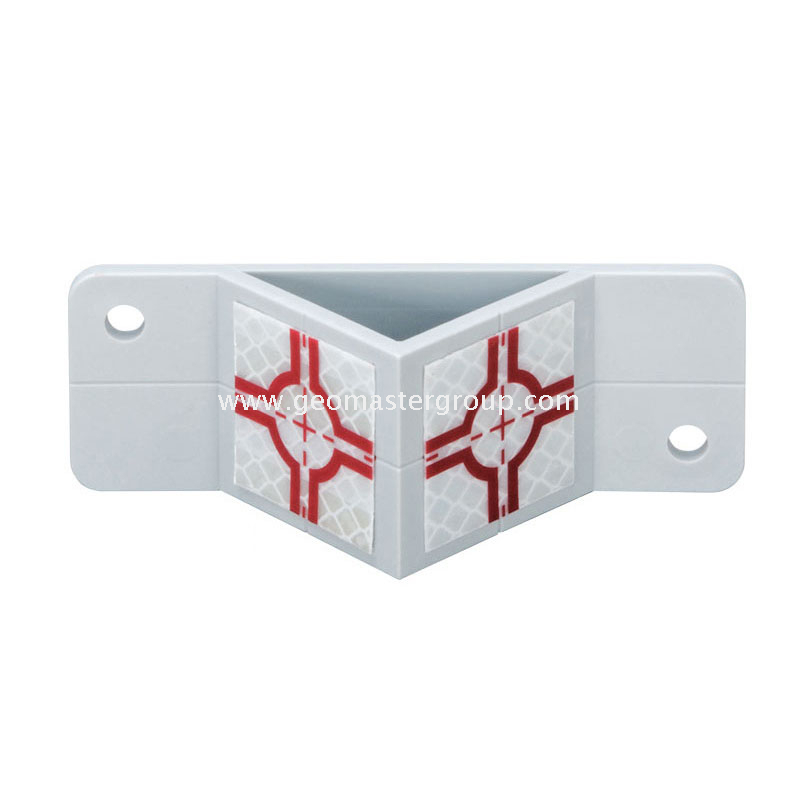

Model: SAT45-30WHT/C1-GR
1.Geomaster Smart Angle Target (SAT)
2.45-degree double-sided Retro Target (45)
3.Sheet Size: 30mm×30mm (30)
4.Patter Color: White (WHT)
5.Sheeting Style: Cross-hair (C1)
6.Back Base: Grey (GR)
7.Measuring Range: 150m
8.Replacement of Rothbucher RSAK130G
| Quantity: | |
|---|---|
SAT45-30WHT/C1-GR
Geomaster
9015900090
Specifications
Model: SAT45-30WHT/C1-GR
1.45-degree Retro Sheet
1)Sheet Size: 30mm×30mm
2)Pattern Color: White (WHT)
3)Sheeting Style: Cross-hair (C1)
4)Measuring Range: 150-160m (depending on Surveying Instruments,orthogonal viewing...)
5)Replacement of Rothbucher Smart Angle Target (Survey Marker) RSAK130G with 30mm Retro Sheet
2.Back Mounting Base
1)Color: Black (BK)
2)Dimensions: 100mm×36mm×3mm
3)Fixing Holes: 2×5.60mm (dia)
4)N.W.: 18g
Features
Model: SAT45-30WHT/C1-GR
1.Installed with double Retro Sheets (45 degree)
2.Sheeting Styles a/v: Cross-hair (C,C1,C2), Arrow-head (AH)
3.Pattern Colors a/v: Fluorescent Lime Green (GRN),Orange (ORG),Amber Yellow (YEL),White (WHT)
4.Back Base Colors a/v: Black(BK),Red (RD), Grey (GR)
5.Ideal for short-range monitoring in difficult construction sites such as bridges, tunnels,railway and subway constructions...
6.Compatible with all present top-brand Surveying Instruments-Automatic Levels, Theodolites,
Construction Lasers, Tachymeters or Total Stations
7.Highly efficient retro-reflectivity 3M™ Diamond Grade™ Reflective Sheets available
8.Customization service available
Note: Any updating would be subject to change without prior notice.
