Highlights

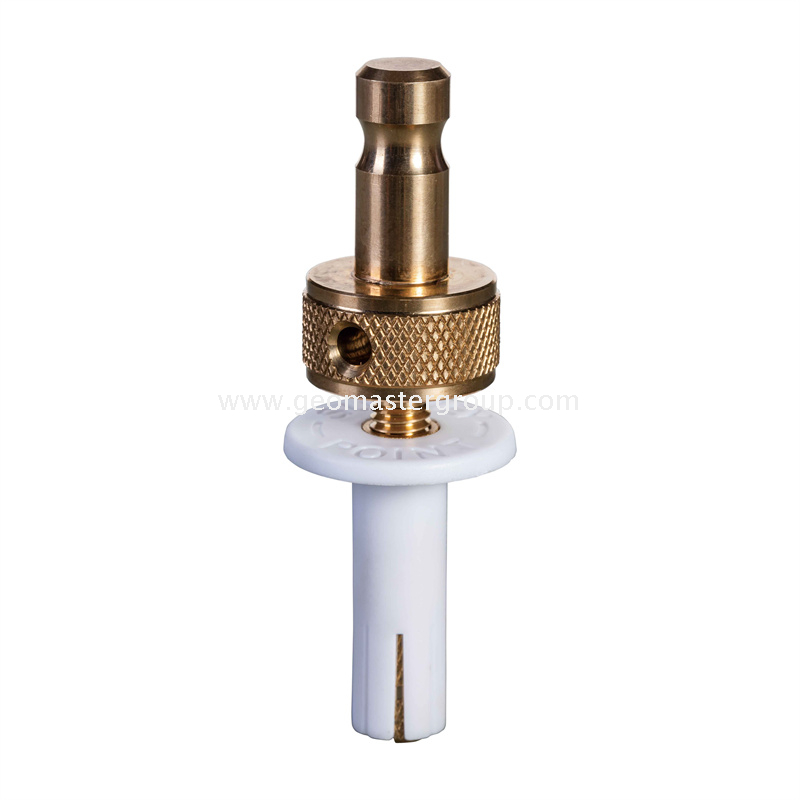

Model: SPP8-12CU
1.Survey Point Plug/Survey Point Adapter
2.Plug Thread: Brass, Female M8
3.Plug Overall Length: 40mm
4.Leica-style Adapter: Brass,Dia.12mm
5.Adapter Bottom Thread: Male, M8
6.Adapter Locking Hole: M6
7.For Survey Marks,Retro Targets,Scanner Spheres,SMR,etc
Availability: | |
---|---|
Quantity: | |
SPP8-12CU
Geomaster
90159000
Specifications
Model: SPP8-12CU
Including Survey Point Plug SPP8-40 and Prism Mount Adapter ADP8-12CU

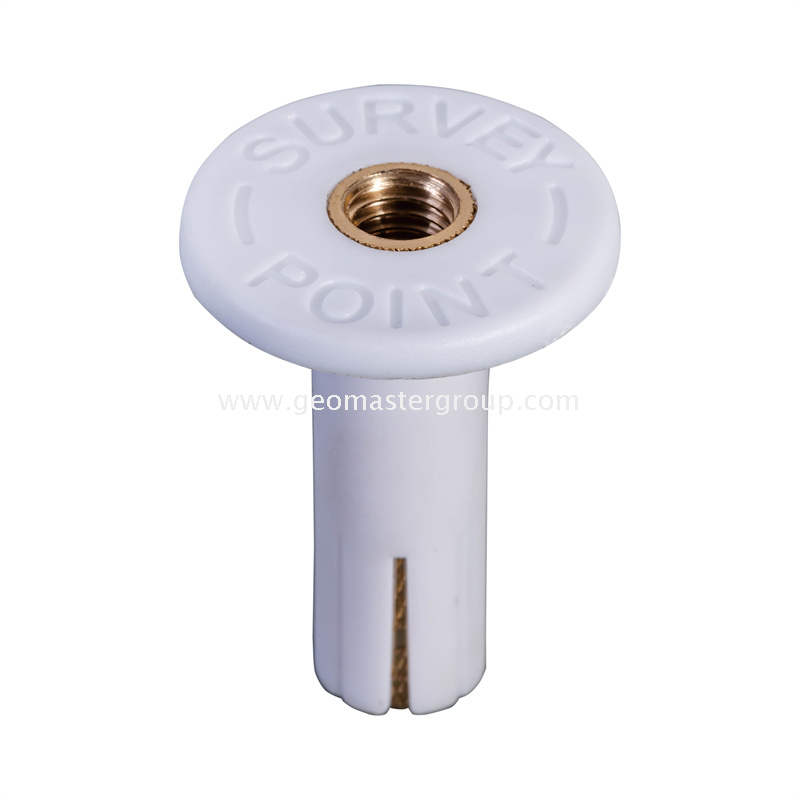

1.Survey Point Plug SPP8-40
1)Flat Head Diameter: 30mm
2)Brass Thread: Female (internal) M8
3)Overall Length/Height: 40mm
4)Grub Screw Diameter: M8×10
5)Steel Ball Diameter: M6
6)Shank Diameter: M12
7)Drill Diameter: 12mm
8)N.W.: 18-20g (full set)
9)2pcs M8 Hex Grub Screws and 1pc Steel Ball

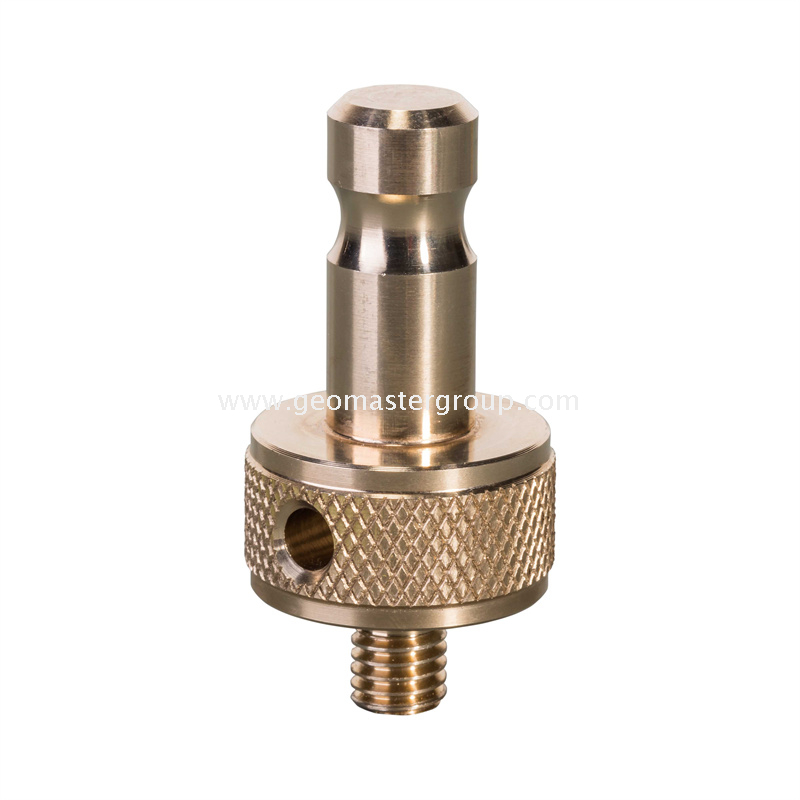

2.Prism Mount Adapter ADP8-12CU
1)Made of Brass H59-1
2)Bottom Male Thread: M8
3)Top Male Thread: Leica-style Spigot (Dia 12mm)
4)Locking Style: equipped with Locking Hole M6
5)N.W.: 75-80g
Features
Model: SPP8-12CU
1.Brass Expansion Survey Point Plug used on the Wall or the Ground
2.White PVC Cladding, highly visible and corrosion-resistant
3.Three highly-visible Colors are available: red, white, yellow
4.Compatible with all Geomaster Geo-Adapters (ADP8 series):
ADP8-12CU,ADP8-58CU,ADP8-12SS/A,ADP8-12SS/B,ADP8-58SS/A,ADP8-58SS/B
5.Suitable for light-weight Surveying Accessories (Survey Marks,Surveying Prisms,Prism Holders,Retro Targets,Scanner Spheres,etc) such as Leica Prism Reflectors GHP1, GHP3, GHP1P, GPR111, GPR121, GPR113, GRZ4, GRZ12, MPR122
6.Customization service available
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying, Geospatial,SLAM Survey,Geosystems,Reality Capture,Rail Survey,Leveling Staff Adapter,Magnetic Fixed Carrier,Fixed Carrier,Magnetic Mount Base, Magnetic
Base, Mounting Base,Magnetic Rail shoe,Mini Prism Pole,Prism Mount Adapter,Prism Pole Adapter,Prism Suction Holder,Scanner Sphere Adapter,Scanner Target Adapter,
Scanner Target Base,Switch Magnetic Base,Tribrach Prism Mount,Prism Mounting Set,Mounting Set,Prism Rain Shelter,Prism Rain Hood, Prism Adapter,Prism Carrier,Prism Tribrach,Drifting Base,Survey Point,Survey Point Nail,Survey Point Plug,Survey Point Marker,Survey Plug, Survey Mark,Survey Marker,Survey Monument, Geodetic Mark,
Survey Bolt,Survey Benchmark,Center Mark,Reference Nail, Mag Nail,Survey Nail,Survey Marking Nail,(Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM,
Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO,Sokkia ,Stonex, Topcon, Trimble,Zeb,Geomaster)
Specifications
Model: SPP8-12CU
Including Survey Point Plug SPP8-40 and Prism Mount Adapter ADP8-12CU
1.Survey Point Plug SPP8-40
1)Flat Head Diameter: 30mm
2)Brass Thread: Female (internal) M8
3)Overall Length/Height: 40mm
4)Grub Screw Diameter: M8×10
5)Steel Ball Diameter: M6
6)Shank Diameter: M12
7)Drill Diameter: 12mm
8)N.W.: 18-20g (full set)
9)2pcs M8 Hex Grub Screws and 1pc Steel Ball
2.Prism Mount Adapter ADP8-12CU
1)Made of Brass H59-1
2)Bottom Male Thread: M8
3)Top Male Thread: Leica-style Spigot (Dia 12mm)
4)Locking Style: equipped with Locking Hole M6
5)N.W.: 75-80g
Features
Model: SPP8-12CU
1.Brass Expansion Survey Point Plug used on the Wall or the Ground
2.White PVC Cladding, highly visible and corrosion-resistant
3.Three highly-visible Colors are available: red, white, yellow
4.Compatible with all Geomaster Geo-Adapters (ADP8 series):
ADP8-12CU,ADP8-58CU,ADP8-12SS/A,ADP8-12SS/B,ADP8-58SS/A,ADP8-58SS/B
5.Suitable for light-weight Surveying Accessories (Survey Marks,Surveying Prisms,Prism Holders,Retro Targets,Scanner Spheres,etc) such as Leica Prism Reflectors GHP1, GHP3, GHP1P, GPR111, GPR121, GPR113, GRZ4, GRZ12, MPR122
6.Customization service available
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying, Geospatial,SLAM Survey,Geosystems,Reality Capture,Rail Survey,Leveling Staff Adapter,Magnetic Fixed Carrier,Fixed Carrier,Magnetic Mount Base, Magnetic
Base, Mounting Base,Magnetic Rail shoe,Mini Prism Pole,Prism Mount Adapter,Prism Pole Adapter,Prism Suction Holder,Scanner Sphere Adapter,Scanner Target Adapter,
Scanner Target Base,Switch Magnetic Base,Tribrach Prism Mount,Prism Mounting Set,Mounting Set,Prism Rain Shelter,Prism Rain Hood, Prism Adapter,Prism Carrier,Prism Tribrach,Drifting Base,Survey Point,Survey Point Nail,Survey Point Plug,Survey Point Marker,Survey Plug, Survey Mark,Survey Marker,Survey Monument, Geodetic Mark,
Survey Bolt,Survey Benchmark,Center Mark,Reference Nail, Mag Nail,Survey Nail,Survey Marking Nail,(Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM,
Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO,Sokkia ,Stonex, Topcon, Trimble,Zeb,Geomaster)
Packing Details
Model: SPP8-12CU
1.N.W.: 90-100g (full set)
2.Qty./CTN: TBD
3.G.W./CTN: TBD
4.Size/CTN: TBD
Packing Details
Model: SPP8-12CU
1.N.W.: 90-100g (full set)
2.Qty./CTN: TBD
3.G.W./CTN: TBD
4.Size/CTN: TBD
