Telescopic Extension Pole (1.2m)

Specifications & Features
Model: TEP-120

1.Product Overview

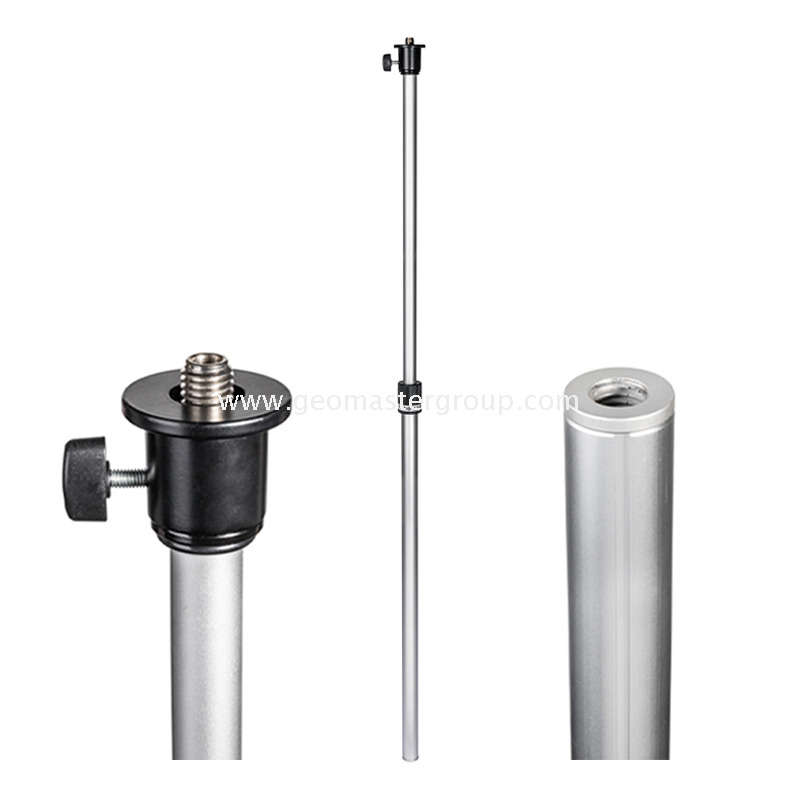

This 1.2m telescopic extension pole is specifically designed as a companion accessory for the Geomaster
GMT-250/AL-WR Wireless Motorized Elevation Tripod. It enables rapid height extension and flexible
accessory mounting, significantly expanding the application range of the tripod system in field surveying,
3D scanning, and laser tracking operations.

2.Key Specifications
1)Extended Length: 120cm
2)Collapsed Length: 72cm
3)Inner Diameter (I.D.): 22mm
4)Outer Diameter (O.D.): 29m
5)Thread Type: 5/8" × 11 TPI (male & female)
6)Material: high-quality aluminum alloy
7)Net Weight: 800g

3.Design & Compatibility
1)Premium Material
Constructed from high-quality aluminum alloy, offering an excellent strength-to-weight ratio with
outstanding corrosion resistance and long-term durability for demanding field environments.

2)Precision Fit
Engineered with 22mm I.D. and 29mm O.D. for stable, wobble-free extension.

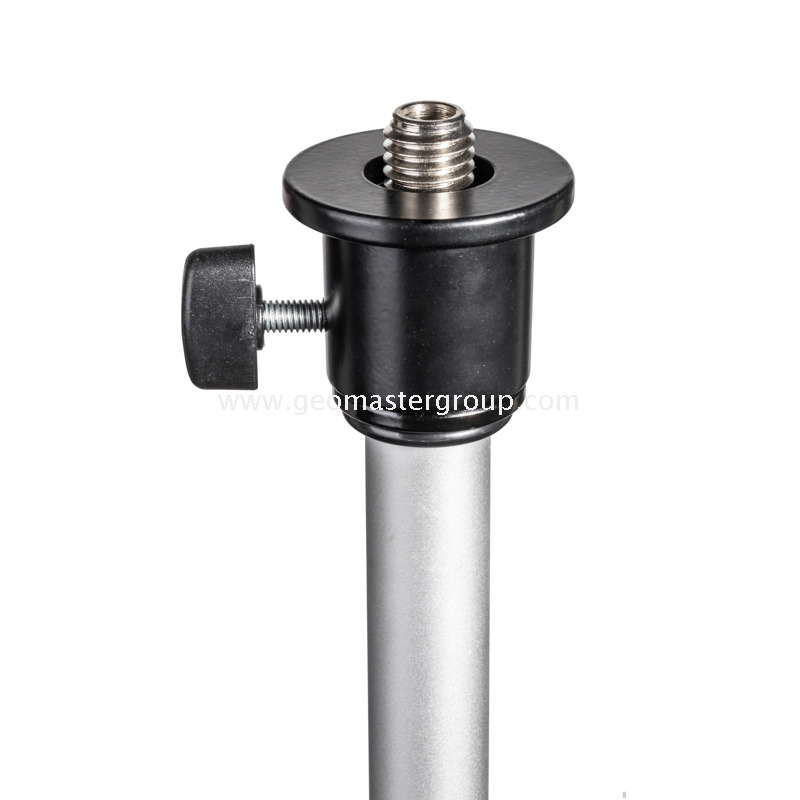

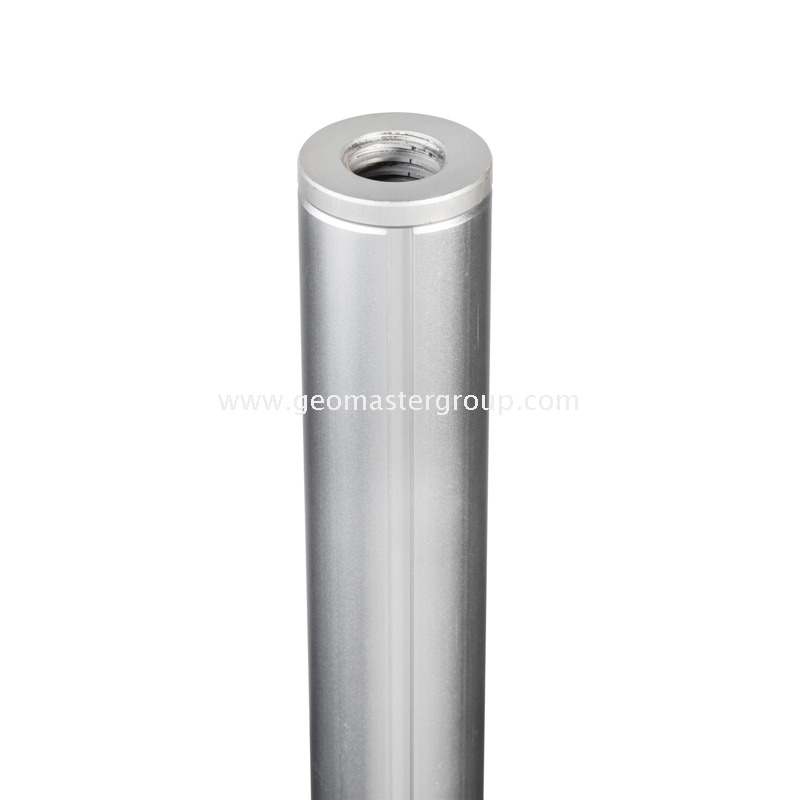

3)Universal Mounting
Equipped with both 5/8" × 11 male and female threads, compatible with a wide range of 3D laser
scanners, trackers, and surveying instruments.

4)Compact Storage
Collapses to just 72 cm, making it easy to transport and store alongside the Geomaster tripod system.

5)Lightweight Construction
At only 800g, it adds minimal weight while providing maximum extension flexibility.

4.Applications

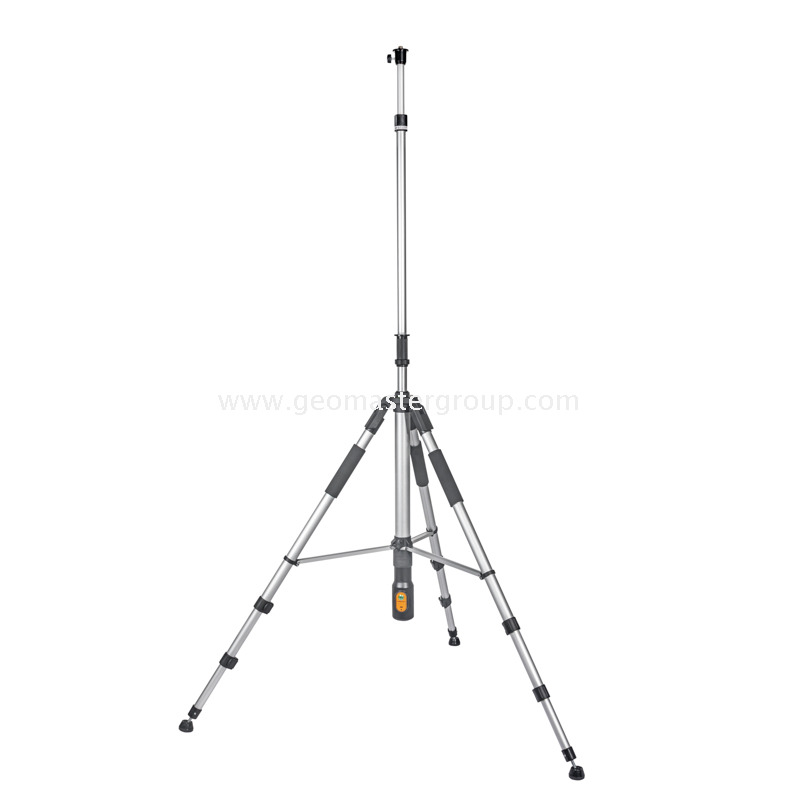

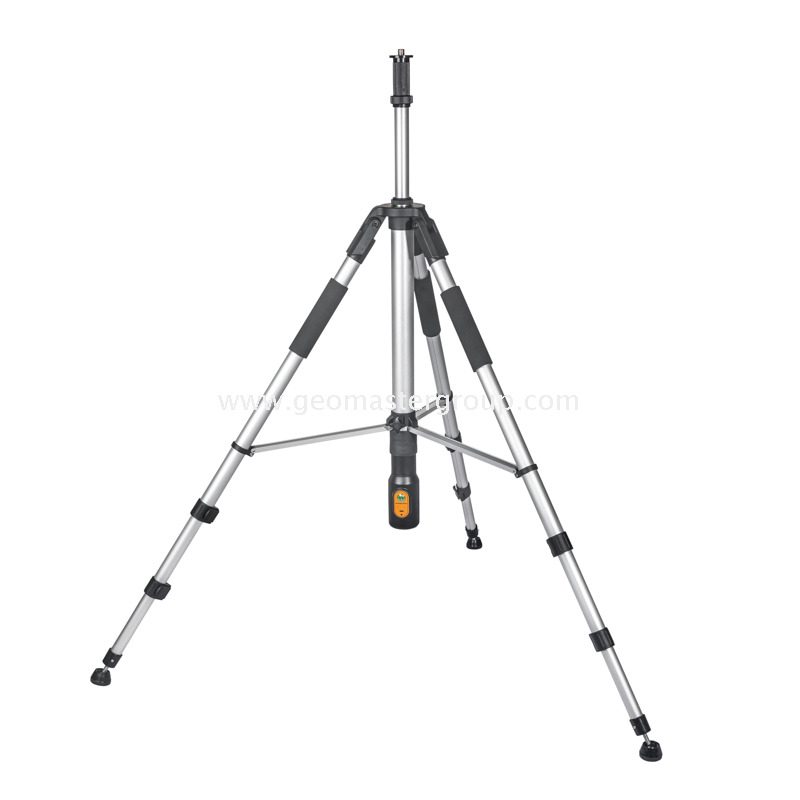

1)Primary Application: Specifically designed as a companion accessory for the Geomaster GMT-250/AL-WR Wireless Motorized Elevation Tripod, extending its working height and expanding its versatility in field operations.
2)Extending the working height of 3D laser scanners and trackers
3)Mounting prisms, targets, or secondary sensors above the tripod
4)Surveying and construction site stakeouts
5)Indoor and outdoor field measurements
Note: Any updates would be subject to change without prior notice.
