Motorized Elevation Tripod

Specifications
Model: GMT250-32
1.Tripod
1)Height Range & N.W.
(1)Maximum Height: 2.5m
(2)Minimum Heigth: 1.1m
(3)N.W.: 5.5kg (excluding accessories)

2)Elevation Range (Lifting Range)
32cm (total travel from minimum to maximum height)

3)Minimum Elevation Increment (Minimum Lifting Step)
0.2mm (smallest single-step adjustment)

3)Payload Capacity
≦8kg (if load exceeds 8kg, there is a risk of damage to the internal motor.)

4)Communication Distance with Receiver ATR-100 (along GMT230-32 Control Panel Direction)
≦50m (output power of the crossline laser should be ≥0.5 mW)

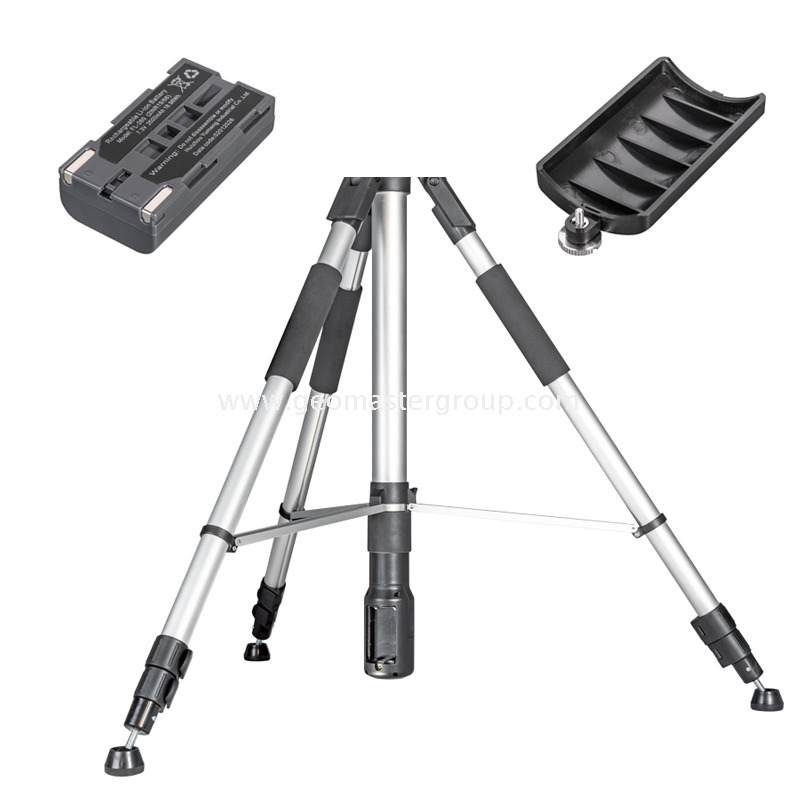

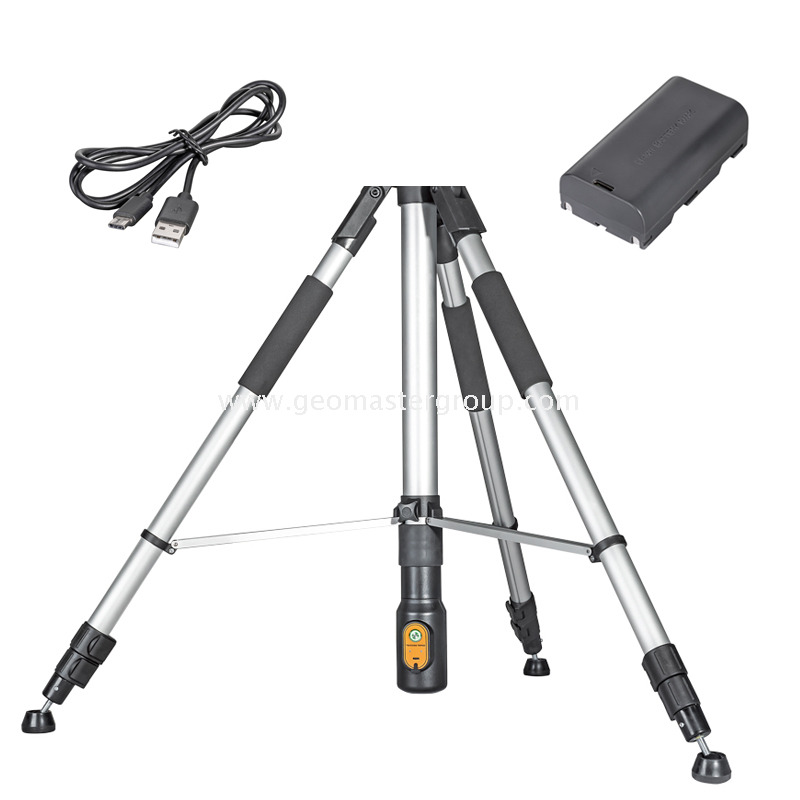

5)Power Supply: Rechargeable Lithium Battery
(1)Rated voltage: 7.3V
(2)Battery capacity: 2600mAh (18.98Wh)
(3)Battery dimensions: 70mm×38mm×20mm
(4)Battery N.W.:
(5)Charge cable: USB C, 1m
6)External Adapter Thread
5/8"×11mm

7)Ambient: Environmental Conditions
(1)Protection class: IP56
(2)Operating temperature: −20°C~60°C (−4°F~140°F)
(3)Storage temperature: −25°C~60°C (−13°F~140°F)

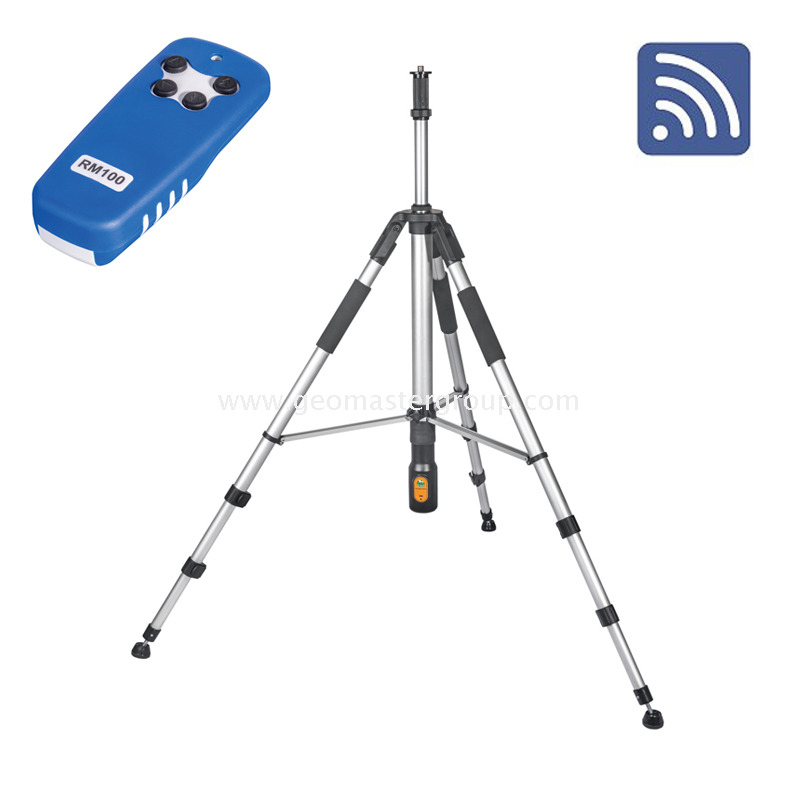

2.Tripod Remote Control RM-100
1)Working range: up to 50m
2)Power supply: 2×1.5V AAA batteries
3)N.W.: 85~90g

3.Automatic Tracking Receivers (ATR-100R for Rotating Laser, ATR-100LCrossline Laser)
1)Working range: up to 50m
2)Measurement accuracy (Fine Mode): ≦1mm @10m
3)Measurement accuracy (Coarse Mode): ≦2mm @10 m
4)Detectable frequency: 10 KHz
5)Detectable spectrum: 635±10nm (Red Beam); 520±10nm (Green Beam)
6)Detection window height: 77mm
7)N.W.: 250g (including battery)
8)Dimensions: 160 ×80 ×26 (mm)
9)Power supply: 4 × 1.5V AA batteries
10)Auto power-off: 30 minutes
11)Operating temperature:-10°C to 50°C

4.Accessories
1)Standard

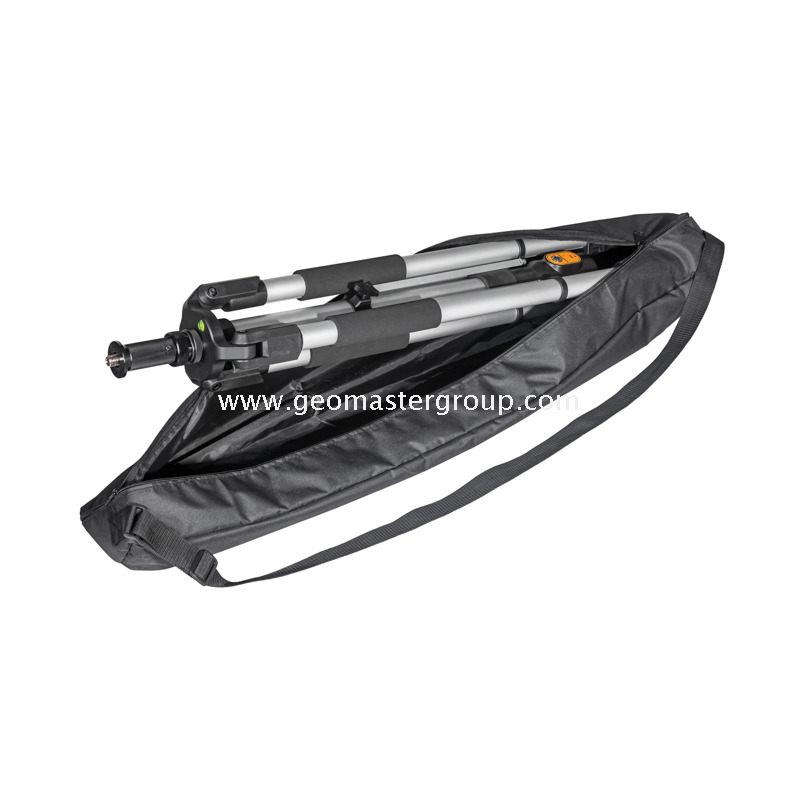

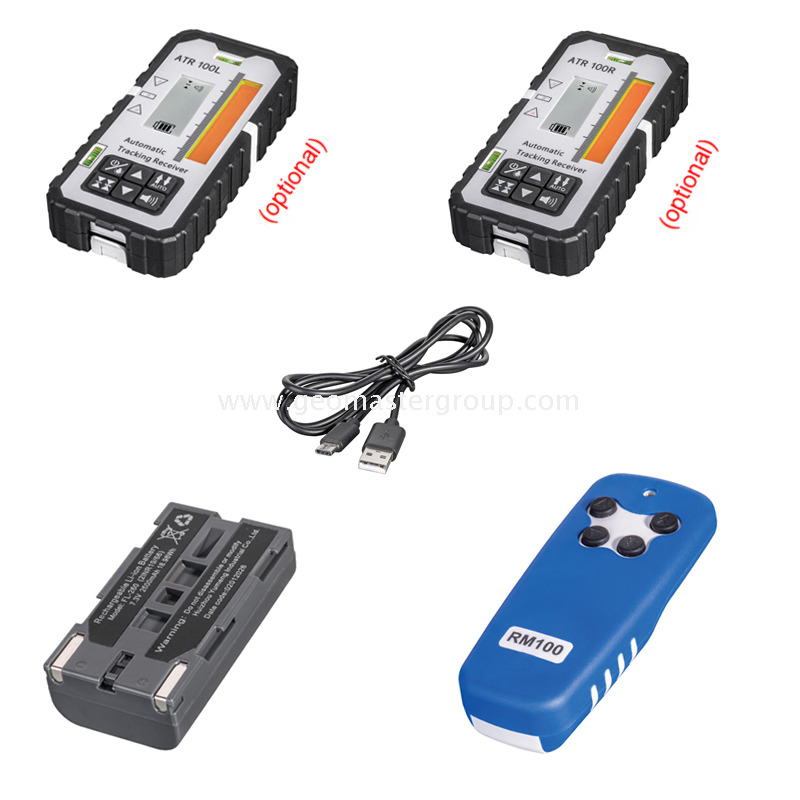

Remote Control (RM-100), Rotating Laser Receiver (ATR-100R), Cross Line Laser Receiver (ATR-100L), Rechargeable Lithium Battery, USB Charging Cable, Mounting Bracket (Holder), Carrying Bag

2)Optional
Extension Pole (EXP-120): 120 cm, 5/8"×11mm male & female thread
Note: Any updaties would be subject to change without prior notice.
