Highlights
Model: TL-220
1.Magnification: 22x
2.Accuracy: ±5mm/30m (±1/5"/100ft)
3.Measuring Range: 60m (200ft)
4.Shortest Focusing Distance: 1.2m (4ft)
5.w.Plumb Bob/Plastic Case
6.w. 5/8" Thread for all Surveying Tripods
| Quantity: | |
|---|---|
TL-220
Geomaster
9015900090
Specifications & Features

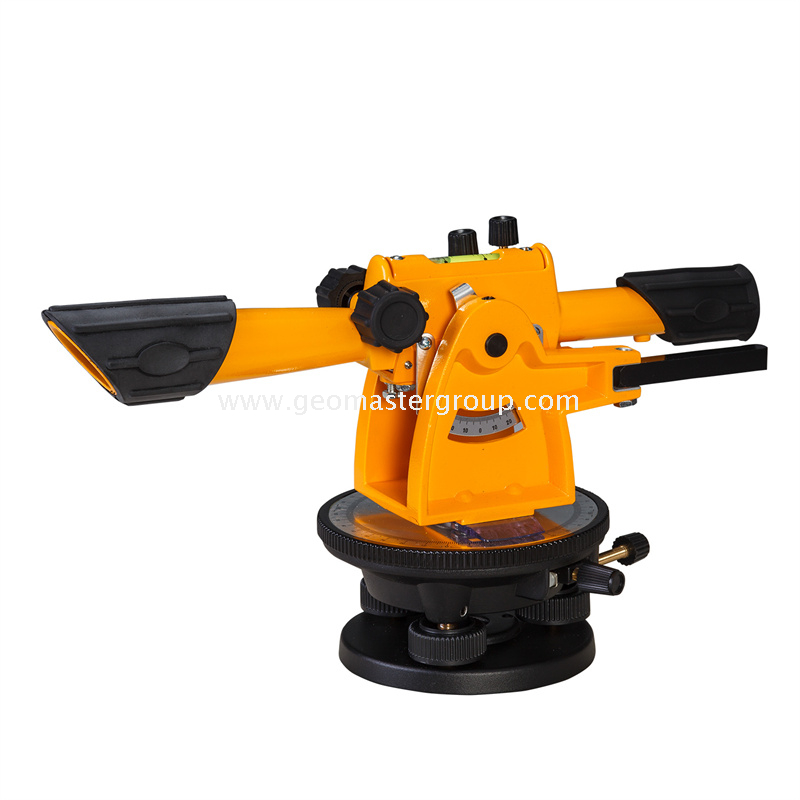

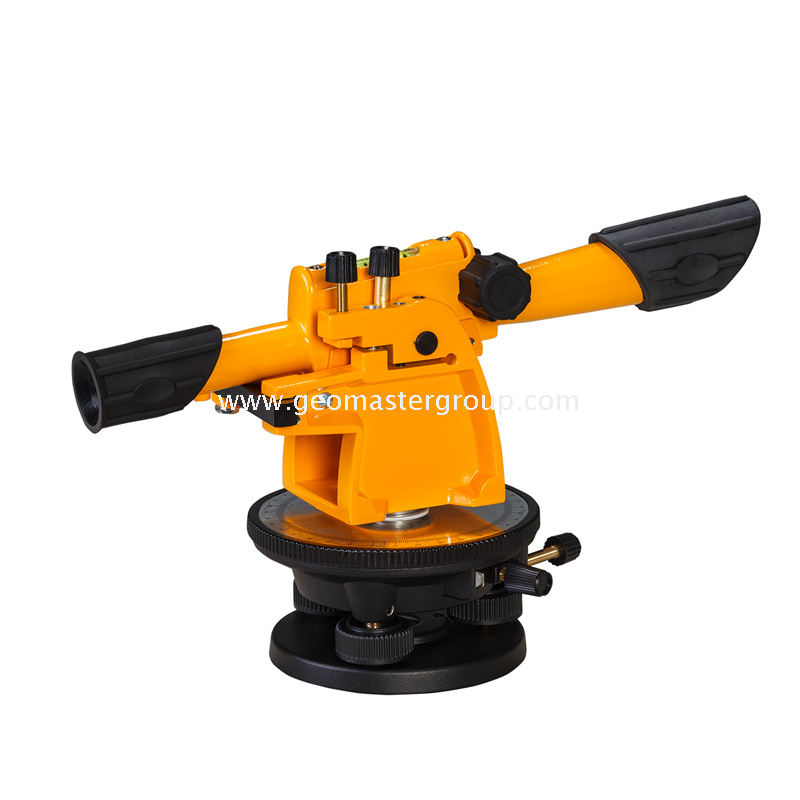

Model: TL-220
Specially designed for vertical alignment tasks such as Poles Aligning,Slope Setting,Wall Plumbing,etc
1.Magnification: 22×
2.Accuracy: ±5mm/30m (±1/5"/100ft)
3.Vertical Tilting Arc: Range: 45º-0-45º; Min. Grad.: 1º
4.Horizontal Circle: 1º/360º; Circle Diameter: 110mm
5.Horizontal Circle Vernier: Range: 15'-0-15'; Min.Grad.: 1'
6.Telescope Image: Erect
7.Telescope Tube Length: 300mm
8.Objective Aperture: 20mm
9.Measuring Range: 60m (200ft)
10.Shortest Focus Distance: 1.2m (4ft)
11.Field of View: 1º20'
12.Top-mounted Plate Bubble (Vial): 10'/2mm
13.Dust-protected Eyepiece with fixed Cross Hairs
14.Built-in Sunshade for clear Sighting and Viewing
15.Large Leveling Screws and Horizontal Tangent Screw for precise Movement Control
16.Body Color: powder-coated yellow safety paint

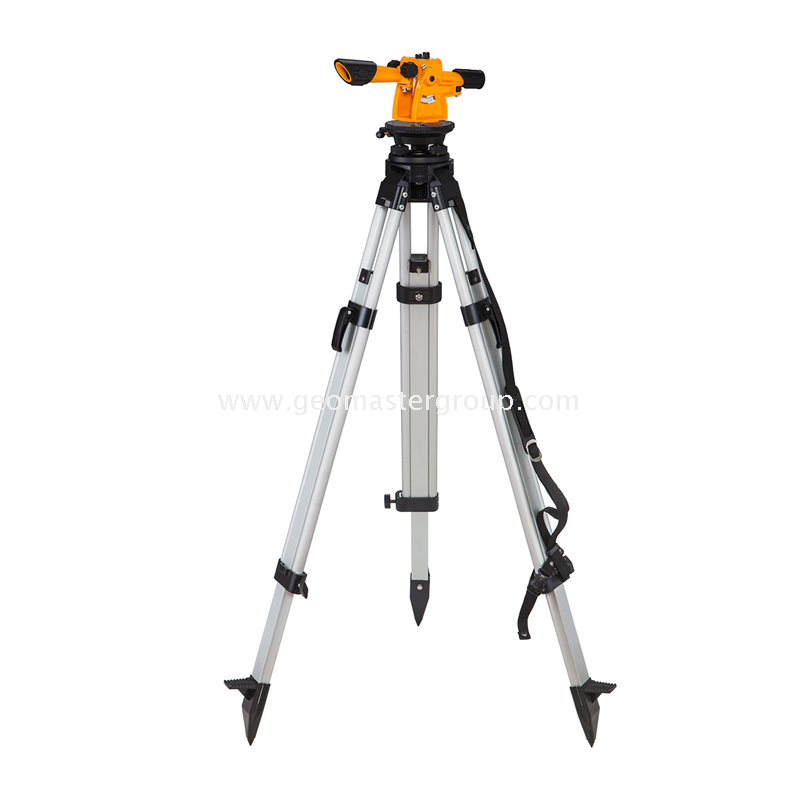

17.Connecting Thread: 5/8", compatible with all present Surveying Tripods

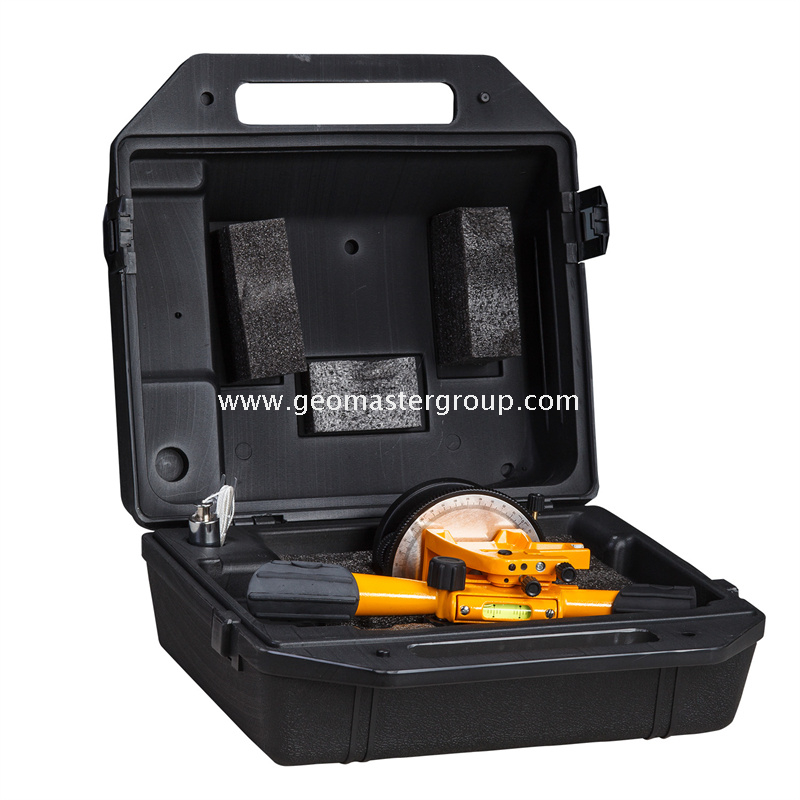

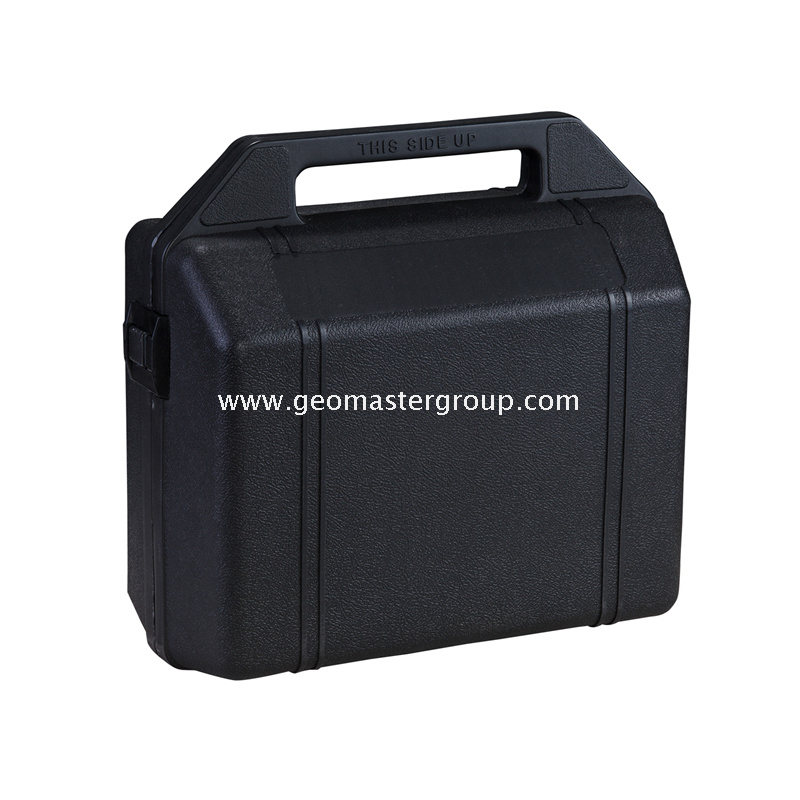

18.Standard Accessories: corded Plumb Bob, Plastic Carrying Case and User Manual
Note: Any updating would be subject to occur without prior notice!!
